NSN 4730-00-231-4010 MS2082244, MS20822-4-4, A67A14

Product Details | PIPE TO TUBE ELBOW

4730-00-231-4010 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS2082244, MS20822-4-4, A67A14, AN82244, AN822-4-4, AS4842/1 , AS48421, AS5195, AS51950404, AS5195-0404 , AS5195-04-04, CTXS6-1/4, CTXS6-1/4 ZZ, CTXS614, CTXS614ZZ, MILF5509, MIL-F-5509, 218491, 218-491, 271451004336, 271451004336 ZZ, 271451004336ZZ, 3005651, 3957818C1 , 44CTXS, 4-4CTXS, 4-4CTX-S, 4-4CTXS ZZ, 44CTXSZZ, 6HA792 , 7349773, 84002056036, 84002056-036, 4730-00-231-4010, 00-231-4010, 4730002314010, 002314010

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-231-4010	03770 ( ELBOW, PIPE TO TUBE )

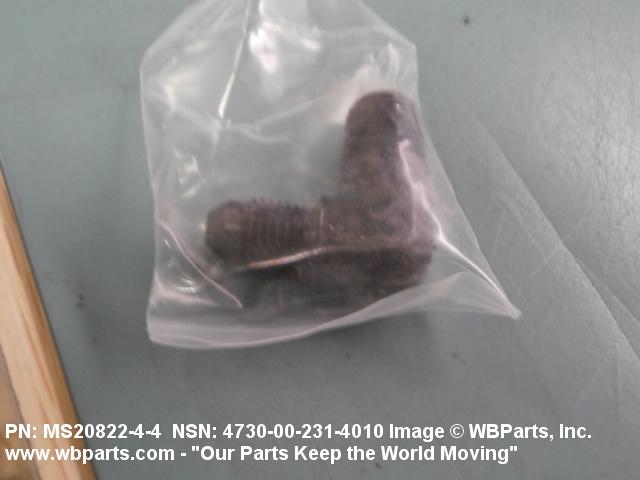

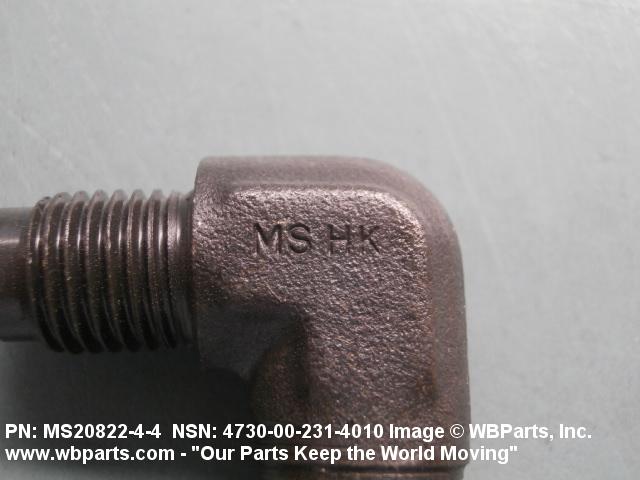

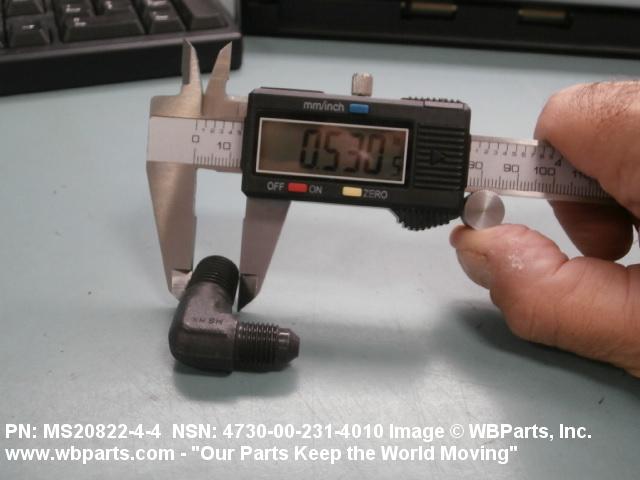

Drawings & Photos | NSN 4730-00-231-4010

Part Number	Request Date	QTY	Origin
4730-00-231-4010	2021-11-310	40	US
4730-00-231-4010	2019-11-329	231	DIBBS
4730-00-231-4010	2019-11-317	231	DIBBS
4730-00-231-4010	2019-09-267	179	DIBBS
4730-00-231-4010	2018-11-333	137	DIBBS
AN822-4-4	2018-11-324	2
4730-00-231-4010	2018-08-219	109	DIBBS
MILF5509	2018-07-201	6	United States
AN82244	2018-07-193	4	US
4730-00-231-4010	2018-02-34	15	US
4730-00-231-4010	2017-04-103	67	DIBBS
4730-00-231-4010	2017-04-92	67	DIBBS
AS48421	2015-05-132	1	CA
MS2082244	2013-10-289	11	China
AS51950404	2013-09-266	16	CN
AS51950404	2013-08-219	16	CN
AS51950404	2013-08-219	16	CN
4730-00-231-4010	2013-01-08	0	DIBBS
4730-00-231-4010	2013-01-08	264	DIBBS
4730-00-231-4010	2012-06-158	68	DIBBS
4730-00-231-4010	2012-06-153	104	DIBBS
4730-00-231-4010	2012-03-68	150	DIBBS
4730-00-231-4010	2011-09-273	150	DIBBS
4730-00-231-4010	2011-08-238	53	DIBBS
4730-00-231-4010	2011-08-235	110	DIBBS
4730-00-231-4010	2010-11-328	80	DIBBS
4730-00-231-4010	2010-08-237	75	DIBBS
4730-00-231-4010	2010-07-190	137	DIBBS
4730-00-231-4010	2010-06-153	99	DIBBS
MILF5509	2009-10-301	1	PK
MILF5509	2009-02-55	100	US

Cross Reference | NSN 4730-00-231-4010

Part Number	Cage Code	Manufacturer
218-491	10988	CNH INDUSTRIAL AMERICA LLC
218-491	K5579	CNH UK LIMITED
271451004336	K0030	BAE SYSTEMS GLOBAL COMBAT SYSTEMSLIMITED
271451004336 ZZ	K0030	BAE SYSTEMS GLOBAL COMBAT SYSTEMSLIMITED
3005651	F1600	FENWICK LINDE SARL
3957818C1	338X5	NAVISTAR DEFENSE LLC
4-4CTX-S	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
4-4CTX-S	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
4-4CTXS	F0644	PARKER HANNIFIN FRANCE HOLDING
4-4CTXS	KH207	PARKER HANNIFIN UK LTD
4-4CTXS ZZ	KH207	PARKER HANNIFIN UK LTD
4730002314010	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6HA792	45152	OSHKOSH CORPORATION
7349773	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
84002056-036	81873	WOODWARD HRT, INC.
A67A14	58588	SURFACE COMBUSTION, INC.
AN822-4-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5195	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5195-04-04	59680	B. & E. MANUFACTURING CO., INC.
AS5195-0404	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
CTXS6-1/4	KH207	PARKER HANNIFIN UK LTD
CTXS6-1/4 ZZ	KH207	PARKER HANNIFIN UK LTD
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS20822-4-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-231-4010

Compare

Related Products | NSN 4730-00-231-4010

4730-00-231-4011, 4730-00-231-4012, 4730-00-231-4013, 4730-00-231-4326, 4730-00-231-4563

Technical Data | NSN 4730-00-231-4010

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE INSIDE QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B67B PLAIN 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL PIPE SIZE ACCOMMODATED	0.250 INCHES 2ND END

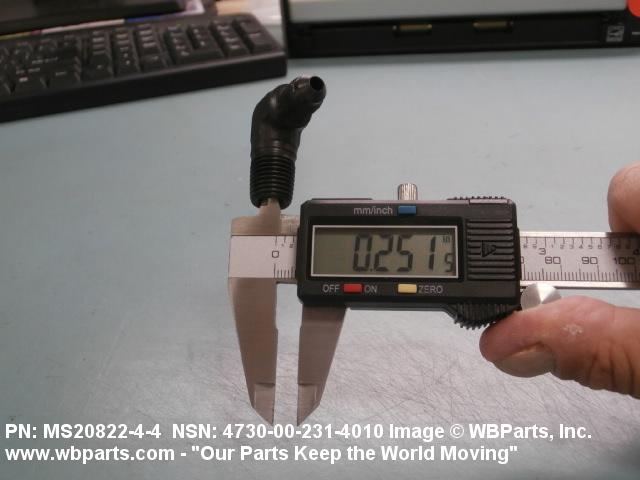

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNJ 1ST END ANPT 2ND END

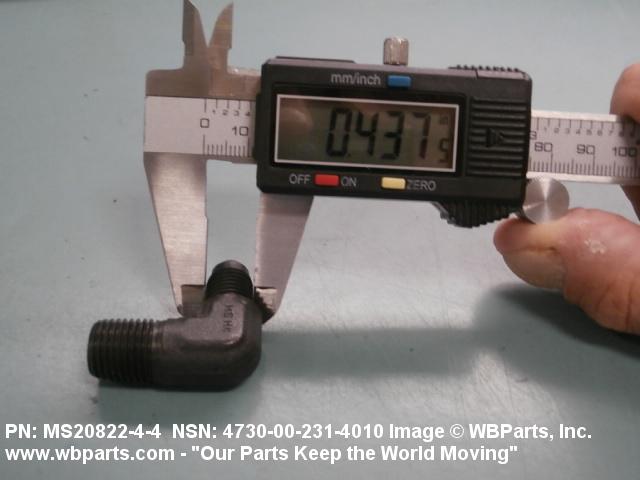

NOMINAL THREAD SIZE	0.438 INCHES 1ST END 0.250 INCHES 2ND END
THREAD QUANTITY PER INCH	20 1ST END
THREAD CLASS	3A 1ST END

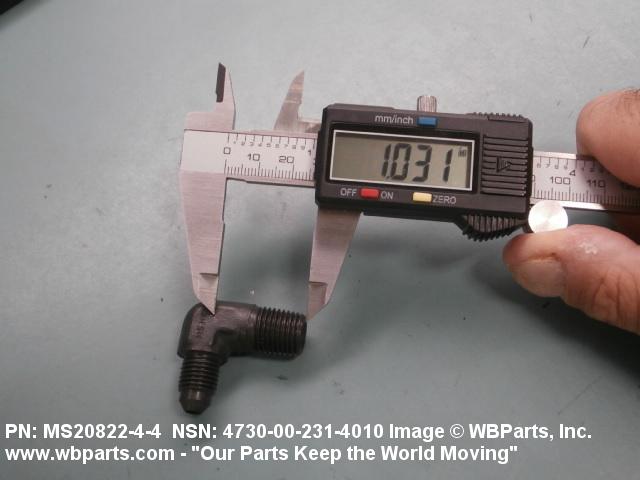

LEG LENGTH	1.031 INCHES NOMINAL 1ST END 1.062 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
SPECIFICATION/STANDARD DATA	96906-MS20822 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	GRUMMAN AEROSPACE A-10 AIRCRAFT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-5509
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20822-4-4

Restrictions/Controls & Freight Information | NSN 4730-00-231-4010

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-231-4010

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 PG : Package
