NSN 4730-00-221-2156 AN81524, AN815-24, 00-221-2156
Product Details | TUBE NIPPLE
4730-00-221-2156 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: AN81524, AN815-24, 4730-00-221-2156, 00-221-2156, 4730002212156, 002212156
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-221-2156 | 03783 ( NIPPLE, TUBE ) |

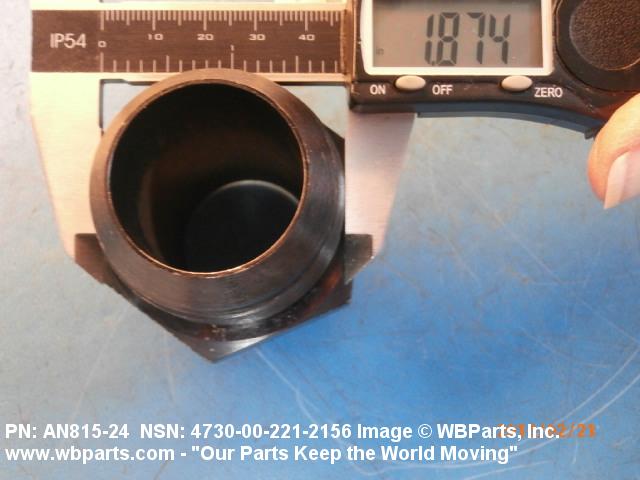

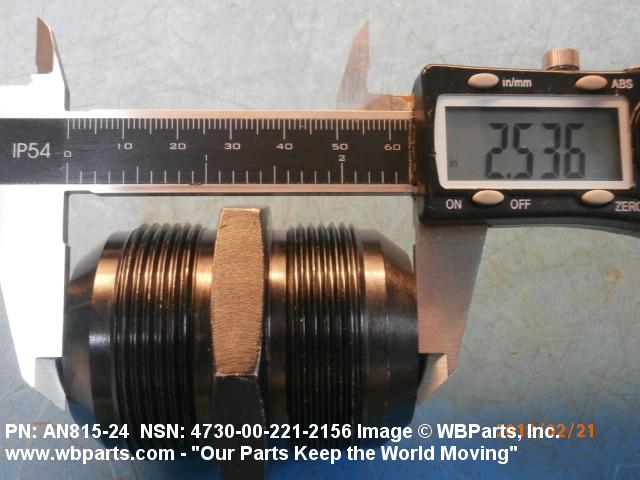

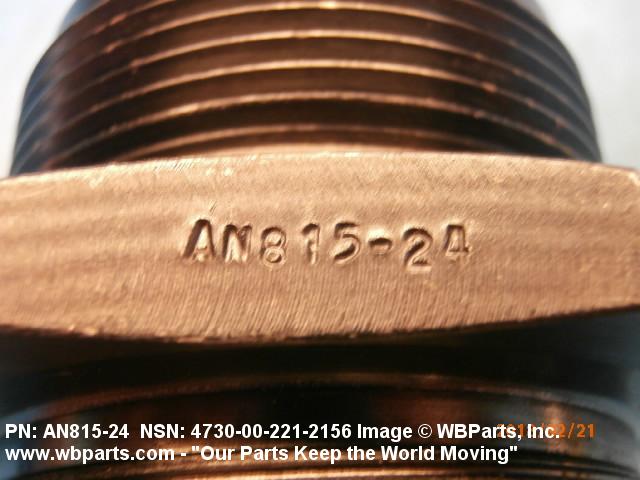

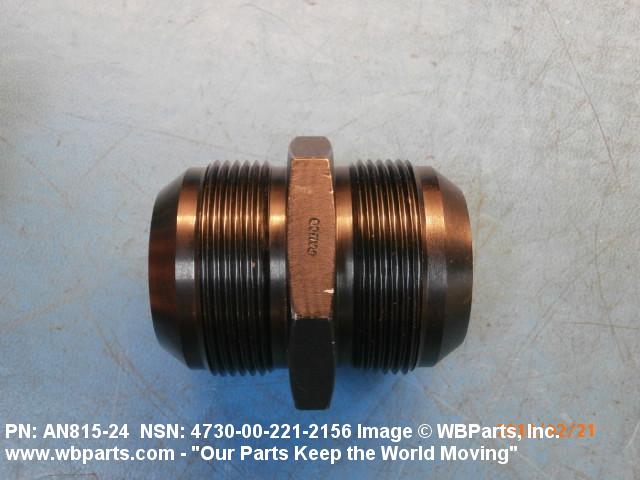

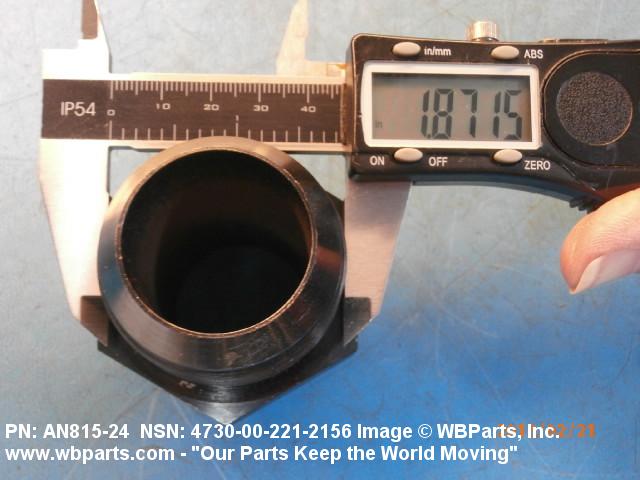

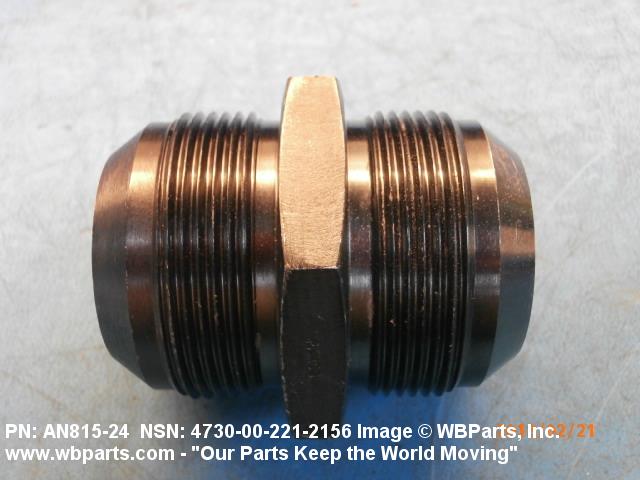

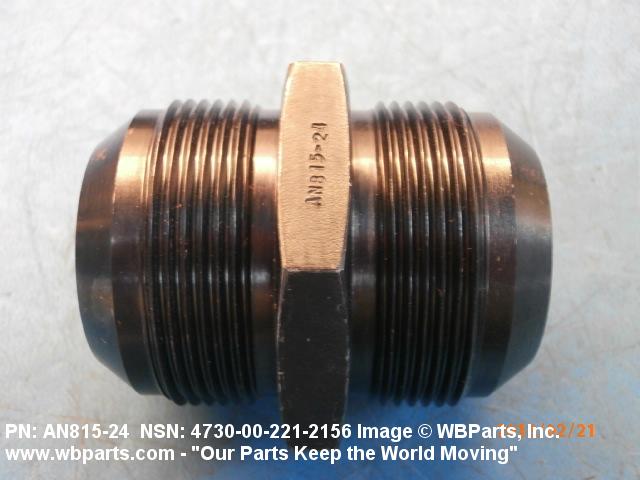

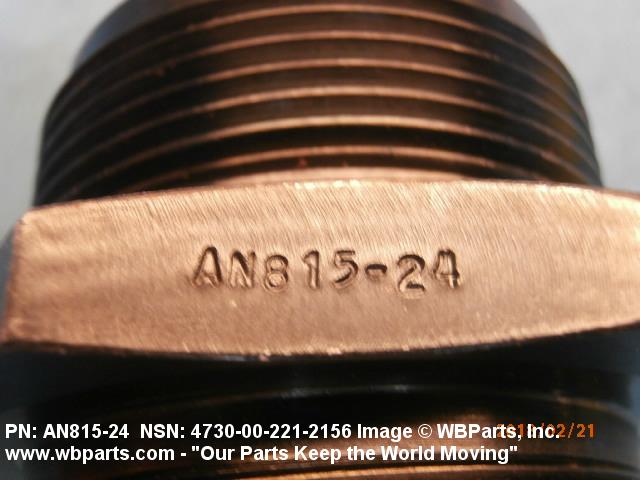

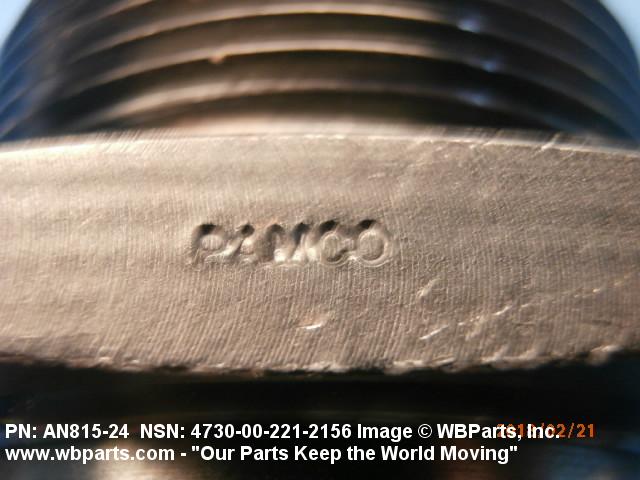

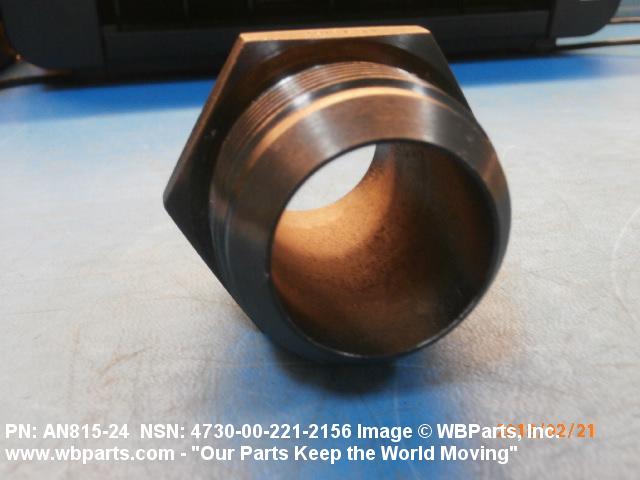

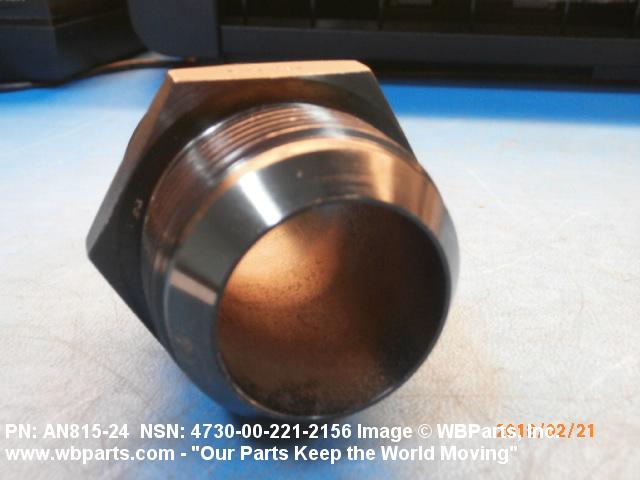

Drawings & Photos | NSN 4730-00-221-2156
Demand History | NSN 4730-00-221-2156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-221-2156 | 2018-02-45 | 12 | us |
| 4730-00-221-2156 | 2018-02-44 | 2 | United States |
Cross Reference | NSN 4730-00-221-2156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN815-24 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN815-24 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN815-24 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN815-24 | 14397 | FABER ENTERPRISES, INC. |
| AN815-24 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN815-24 | 22995 | CROWN FITTING CO INC |
| AN815-24 | 30974 | AEROFIT, LLC |
| AN815-24 | 71563 | COLLINS ENGINEERING CORP |
| AN815-24 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-24 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-221-2156
Technical Data | NSN 4730-00-221-2156
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM INSIDE CADMIUM OUTSIDE |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.500 INCHES 1ST END 1.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UN 1ST END UN 2ND END |
| NOMINAL THREAD SIZE | 1.875 INCHES 1ST END 1.875 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 12 1ST END 12 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| NOMINAL OVERALL LENGTH | 2.531 INCHES |
| SPECIFICATION/STANDARD DATA | 88044-AN815 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN815-24 |
Restrictions/Controls & Freight Information | NSN 4730-00-221-2156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-221-2156
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
