Product Details | HOSE REDUCER

4730-00-202-7466 A straight hose fitting having a different size connection on each end. It is designed to join two hoses of different sizes. Excludes BUSHING (as modified).

Part Alternates: 002027466

Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment

Supply Group (FSG) NSN Assign. NIIN
42 00-202-7466

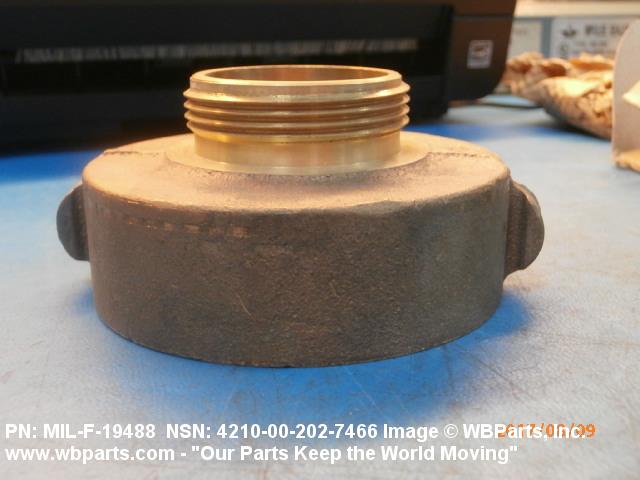

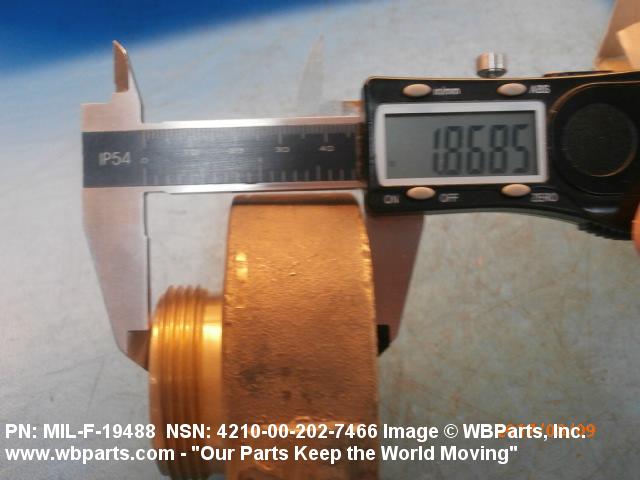

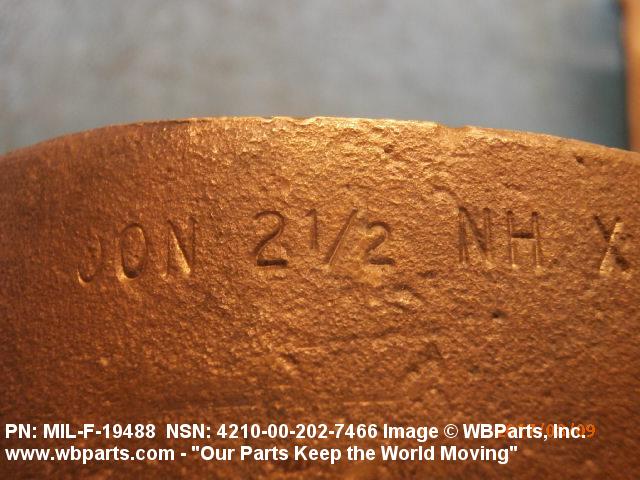

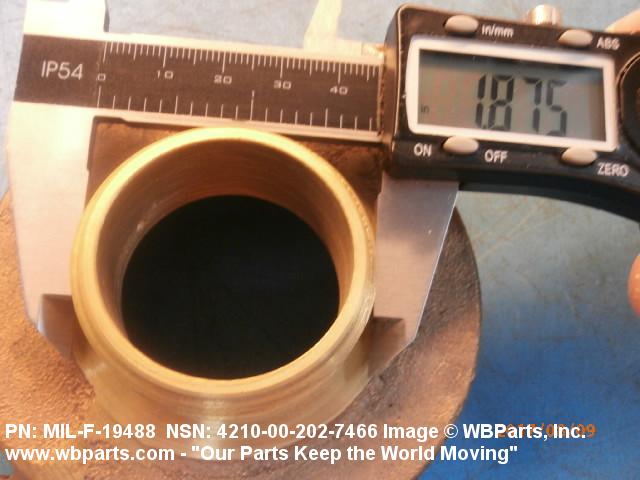

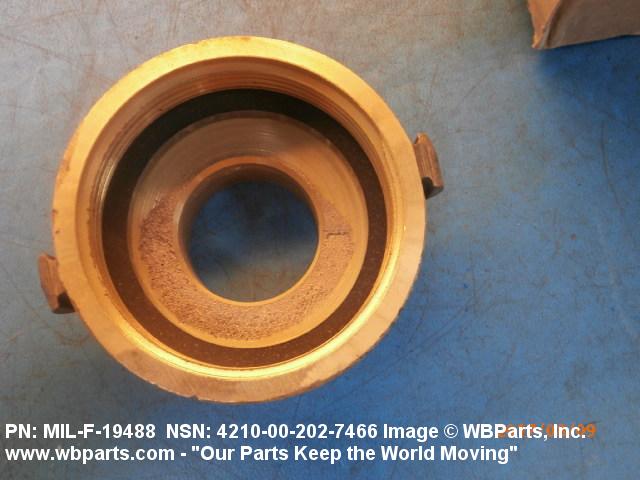

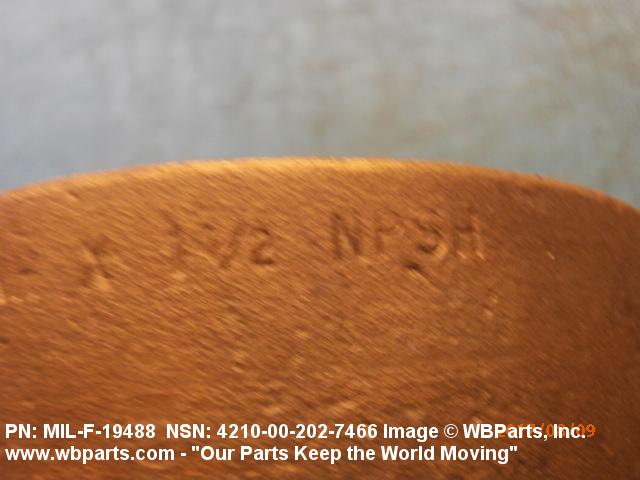

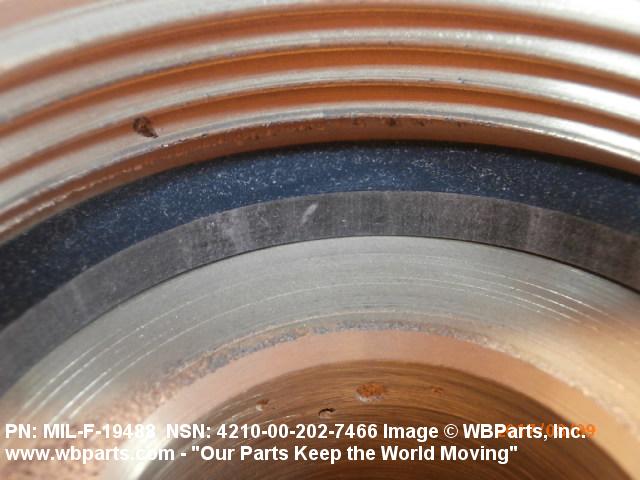

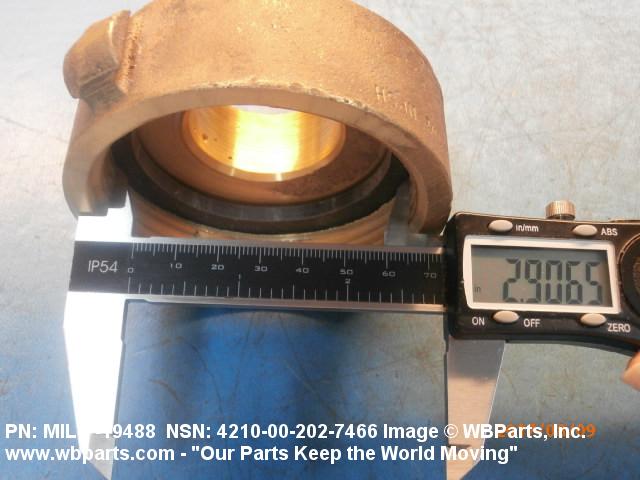

Drawings & Photos | NSN 4210-00-202-7466


Demand History | NSN 4730-00-202-7466

Part Number Request Date QTY Origin
4210-00-202-7466 2022-04-108 6 Canada
4210-00-202-7466 2017-07-204 2 United States
4210-00-202-7466 2017-07-203 2 United States
MILF19488 2013-03-80 12 New Zealand

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-202-7466

Technical Data | NSN 4730-00-202-7466

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
CONNECTION TYPE THREADED INTERNAL HOSE 1ST END THREADED EXTERNAL HOSE 2ND END
CONNECTION STYLE B16C GASKET SEAL 1ST END B67C PLAIN 2ND END
THREAD SERIES DESIGNATOR NH 1ST END NPSH 2ND END
NOMINAL THREAD SIZE 2.500 INCHES 1ST END 1.500 INCHES 2ND END
THREAD QUANTITY PER INCH 7-1/2 1ST END
NOMINAL OVERALL LENGTH 1.812 INCHES
REDUCER TYPE CONCENTRIC
NONDEFINITIVE SPEC/STD DATA 4 TYPE
III FSC APPLICATION DATA HOSE,FIRE FIGHTING
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-F-19488
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILF19488SHIPS

Restrictions/Controls & Freight Information | NSN 4730-00-202-7466

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Controlled Inventory Item Code:UUNCLASSIFIED
Category Code Description
No Freight Information
