NSN 4730-00-196-9581 AN8167D, AN816-7D , AN81688D
Product Details | PIPE TO BOSS STRAIGHT ADAPTER
4730-00-196-9581 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also ADAPTER BUSHING and COUPLING, PIPE.
Part Alternates: AN8167D, AN816-7D , AN81688D, AN816-8-8D, AN8168D, AN816-8D, AS4842/1, AS48421, AS5194D0804, AS5194D0806 , MILF5509, MIL-F-5509, 1558469, 15-58469, 2136928D, 213692-8D, 3112151, 476 664, 476664, 477664, 655280, 8168178, 4730-00-196-9581, 00-196-9581, 4730001969581, 001969581
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-196-9581 | 22674 ( ADAPTER, STRAIGHT, PIPE TO BOSS ) |

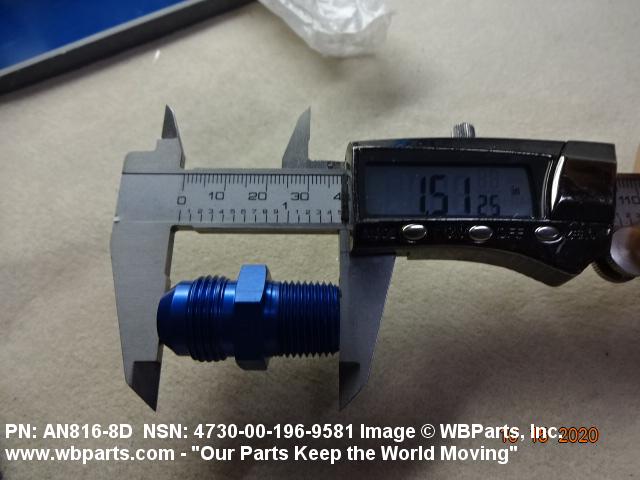

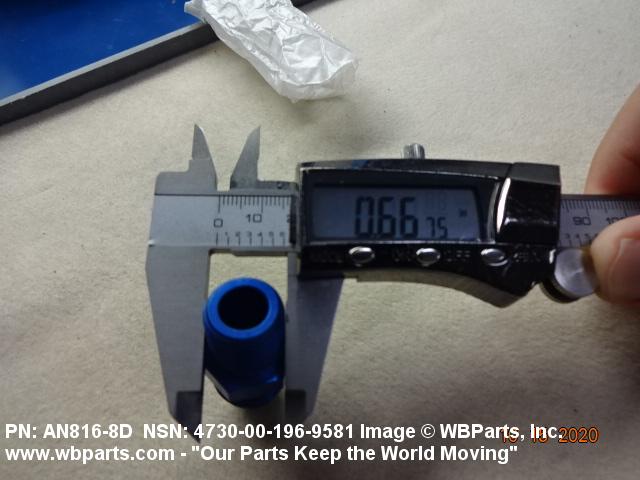

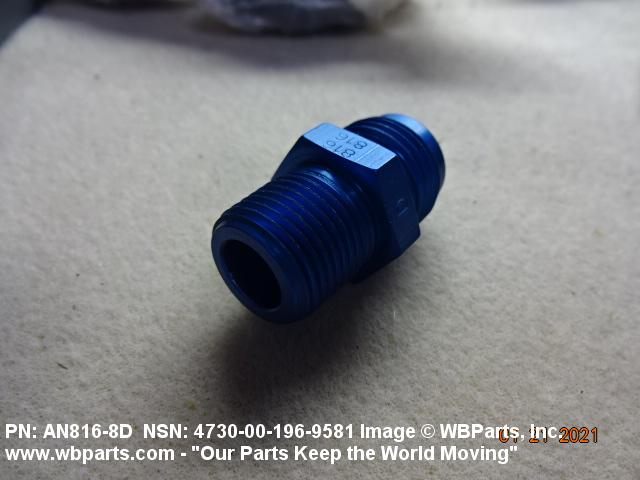

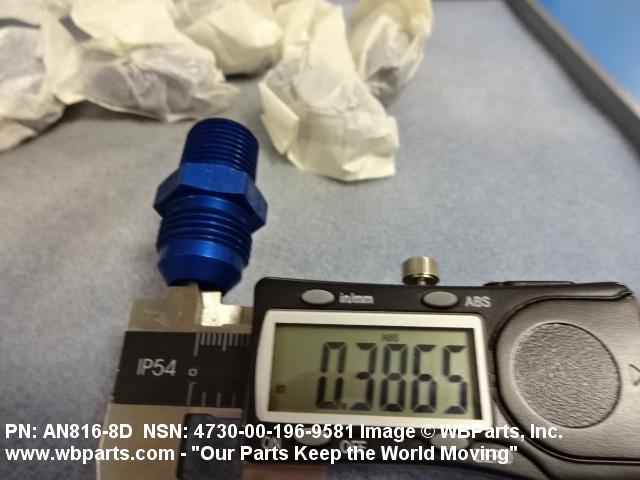

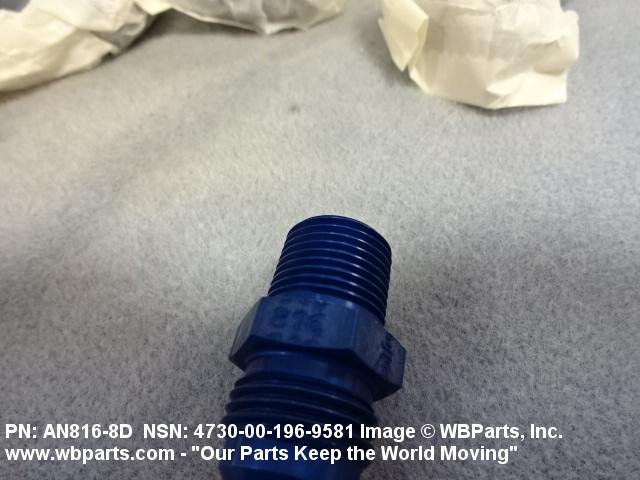

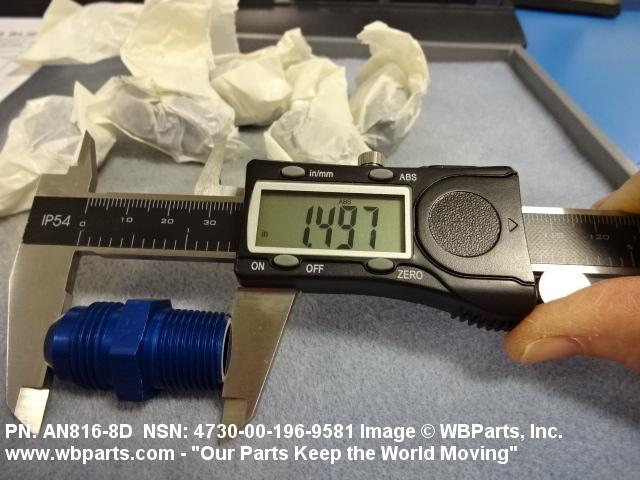

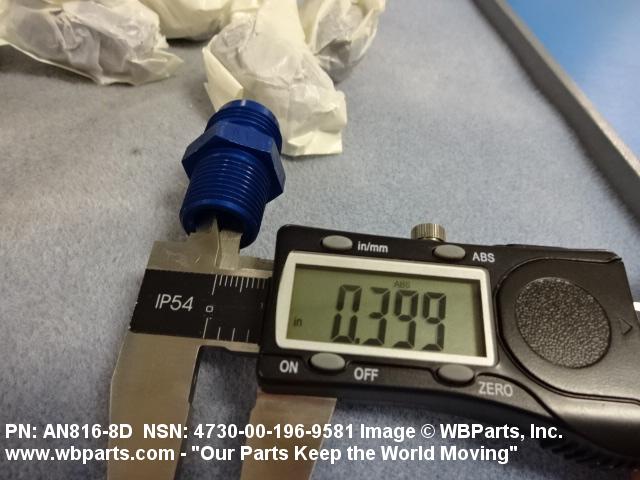

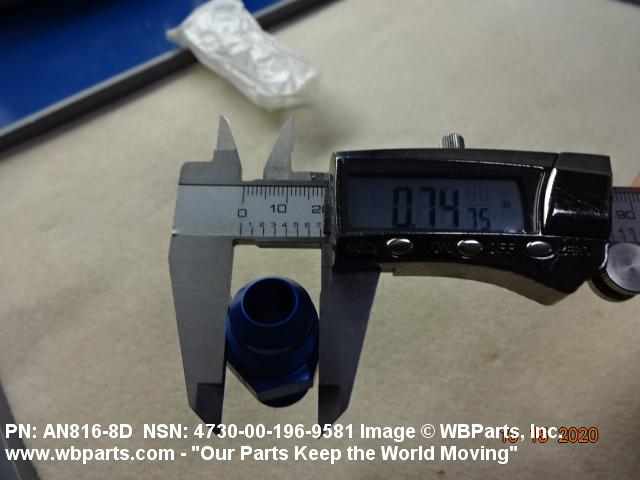

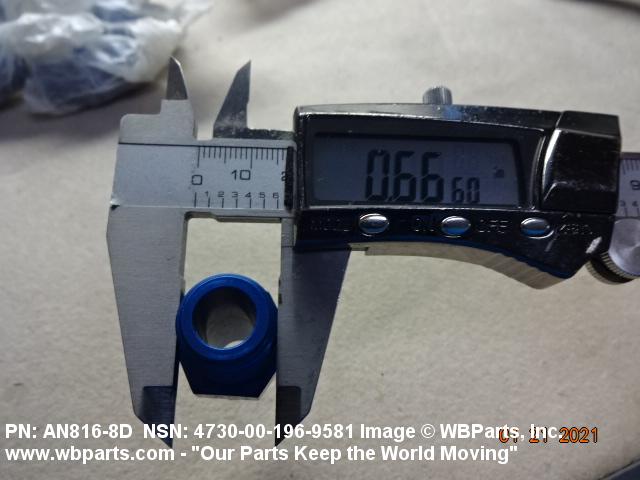

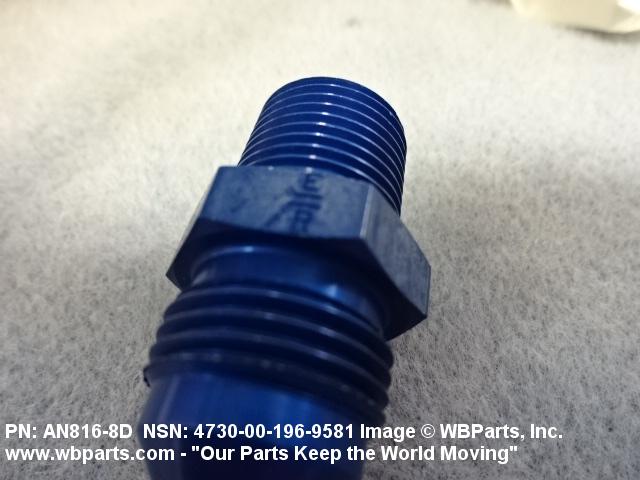

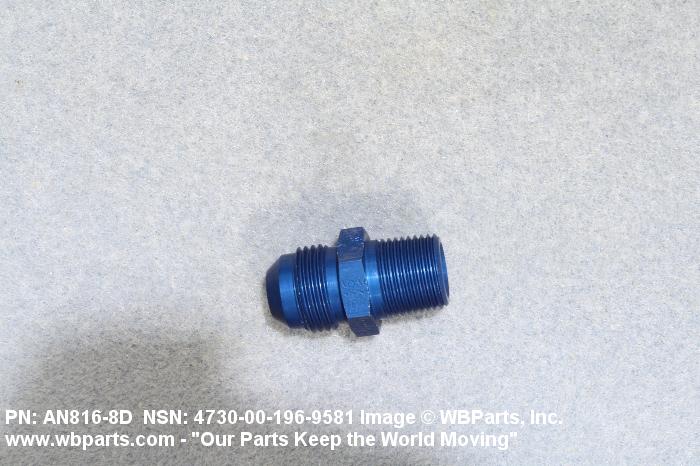

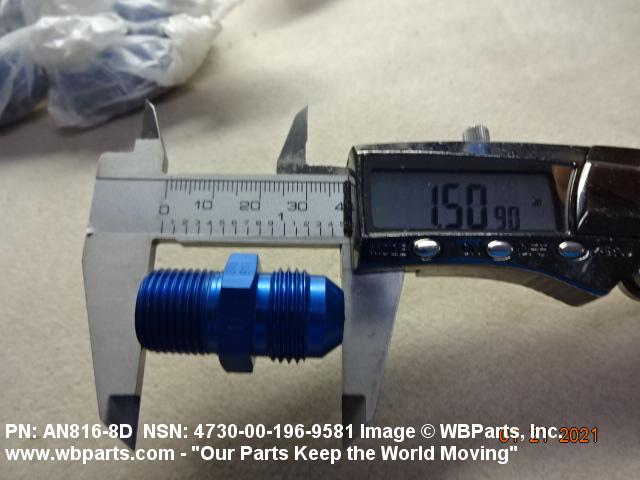

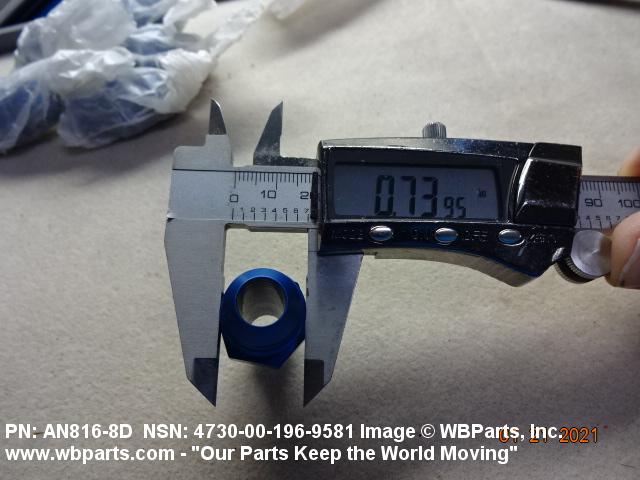

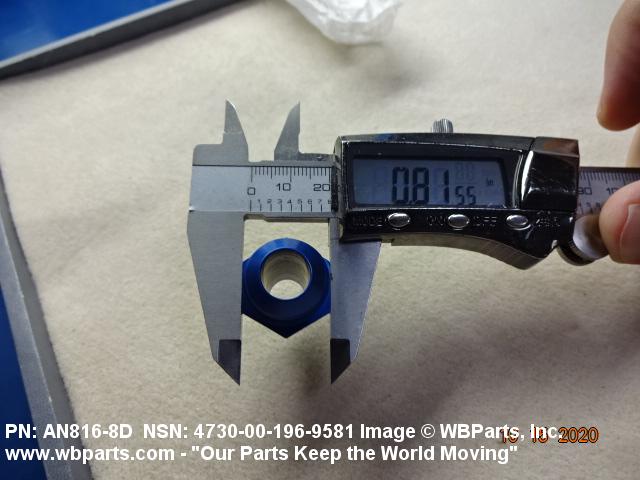

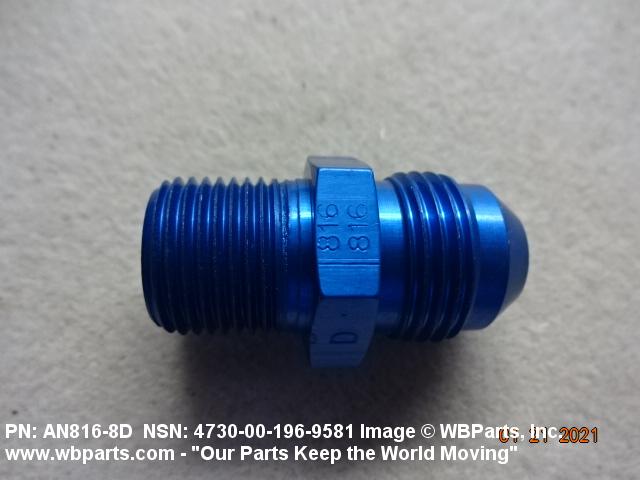

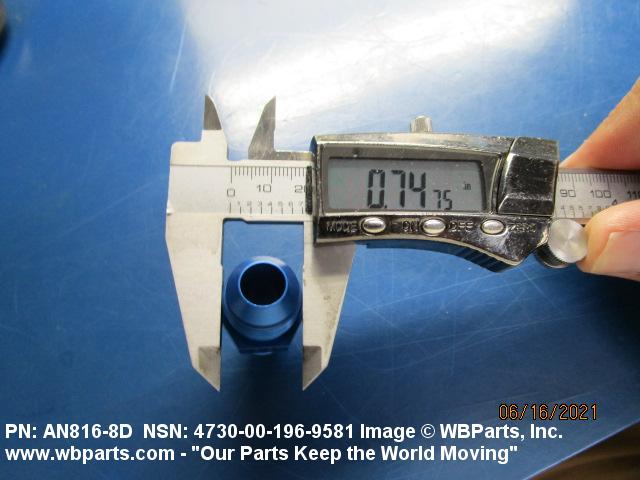

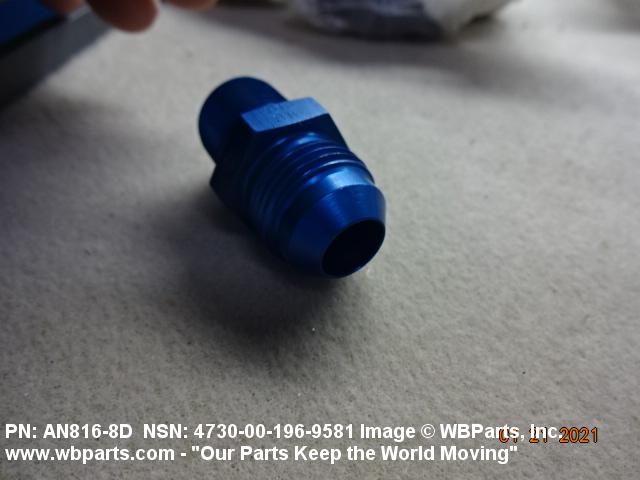

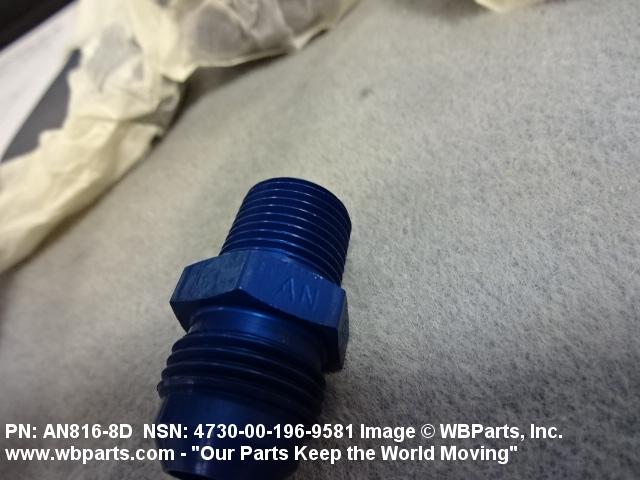

Drawings & Photos | NSN 4730-00-196-9581
Demand History | NSN 4730-00-196-9581
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS48421 | 2025-04-106 | 1 | France |
| 477664 | 2024-03-67 | 8 | US |
| 4730-00-196-9581 | 2024-02-51 | 262 | DIBBS |
| 4730-00-196-9581 | 2024-02-39 | 262 | DIBBS |
| 4730-00-196-9581 | 2024-01-25 | 50 | IL |
| 477664 | 2021-02-49 | 4 | US |
| 477664 | 2020-11-323 | 8 | Northern Mariana Islands |
| 4730-00-196-9581 | 2020-10-288 | 395 | DIBBS |
| 4730-00-196-9581 | 2020-05-143 | 10 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-196-9581 | 2018-06-164 | 347 | United States |
| 4730-00-196-9581 | 2018-06-154 | 347 | DIBBS |
| 4730-00-196-9581 | 2017-04-117 | 307 | DIBBS |
| 4730-00-196-9581 | 2017-04-106 | 307 | DIBBS |
| 477664 | 2016-03-61 | 1 | US |
| AN8168D | 2015-09-259 | 50 | United States |
| 4730-00-196-9581 | 2015-07-189 | 100 | us |
| AS48421 | 2015-05-132 | 1 | CA |
| AN8167D | 2015-04-120 | 40 | United States |
| AN8167D | 2014-10-302 | 12 | United States |
| AS5194D0806 | 2014-01-17 | 16 | Australia |
| AN816-8D | 2012-07-184 | 1 | United States |
| 4730-00-196-9581 | 2010-01-28 | 545 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| 4730-00-196-9581 | 2009-09-245 | 478 | DIBBS |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-196-9581
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15-58469 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 213692-8D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 3112151 | 001JK | EMBRAER S/A |
| 3112151 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 476 664 | 77294 | PIPER AIRCRAFT INC. |
| 477664 | 77294 | PIPER AIRCRAFT INC. |
| 655280 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| AN816-8-8D | 26332 | REPUBLIC TOOL AND ENGINEERING CO |
| AN816-8D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN816-8D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN816-8D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN816-8D | 14397 | FABER ENTERPRISES, INC. |
| AN816-8D | 22995 | CROWN FITTING CO INC |
| AN816-8D | 34724 | ACRA AEROSPACE INC |
| AN816-8D | 71563 | COLLINS ENGINEERING CORP |
| AN816-8D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN816-8D | R1120 | SATAIR A/S |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194D0806 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-196-9581
Related Products | NSN 4730-00-196-9581
Technical Data | NSN 4730-00-196-9581
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END B81 FLARED W/GASKET SEAL 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.375 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | ANPT 1ST END UNJF 2ND END |
| NOMINAL THREAD SIZE | 0.375 INCHES 1ST END 0.750 INCHES 2ND END |
| THREAD CLASS | 3A 2ND END |

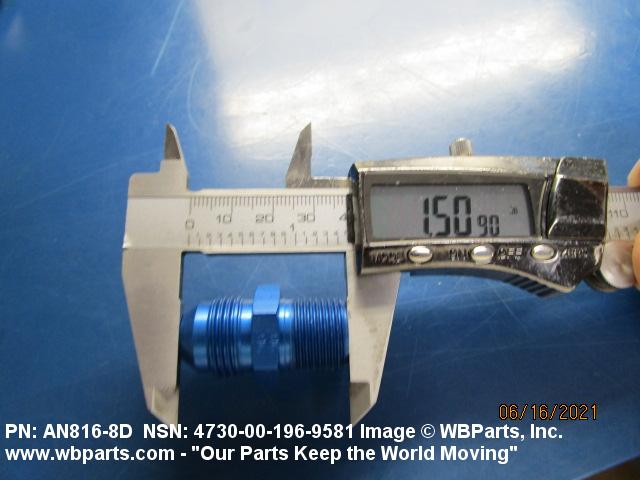

| NOMINAL OVERALL LENGTH | 1.500 INCHES |
