NSN 4730-00-196-9585 AN81654D, AN816-5-4D, AS4842/1
Product Details | PIPE TO TUBE STRAIGHT ADAPTER
4730-00-196-9585 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
Part Alternates: AN81654D, AN816-5-4D, AS4842/1, AS48421, AS5194, AS5194D0504, MILF5509, MIL-F-5509, 013615, 0136-15, 19237, 44401437000, 444-01437-000, 4730-00-196-9585, 00-196-9585, 4730001969585, 001969585
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-196-9585 | 03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE ) |

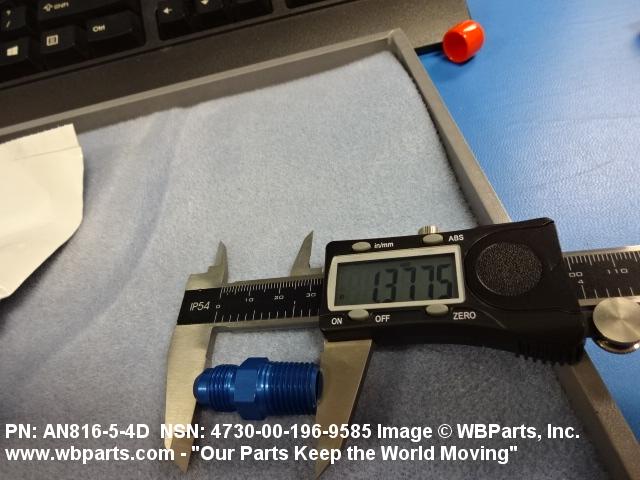

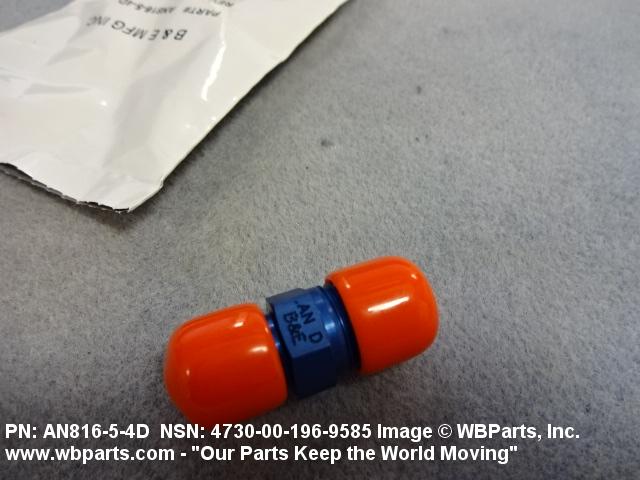

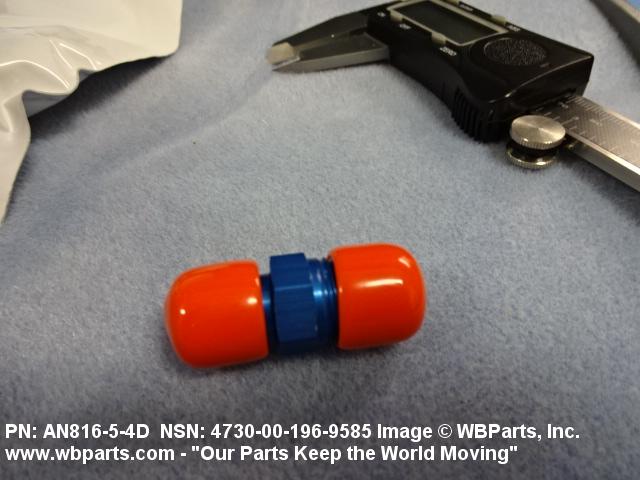

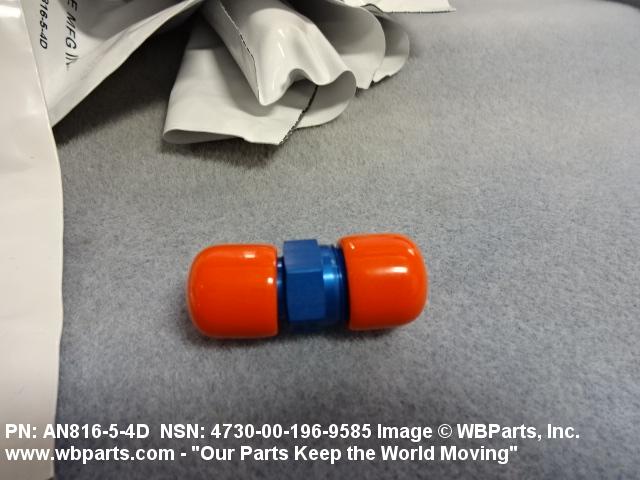

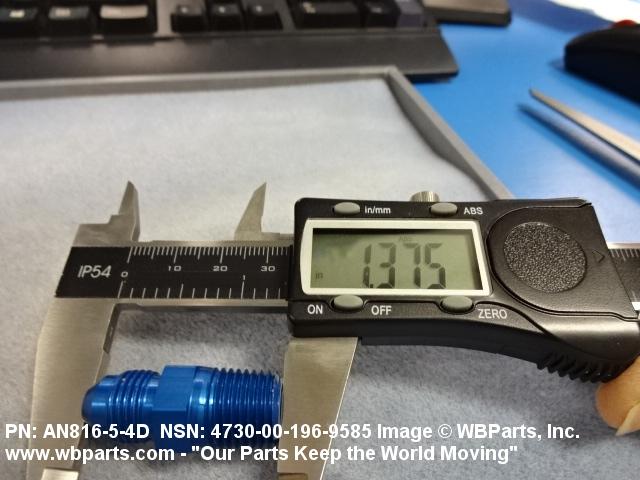

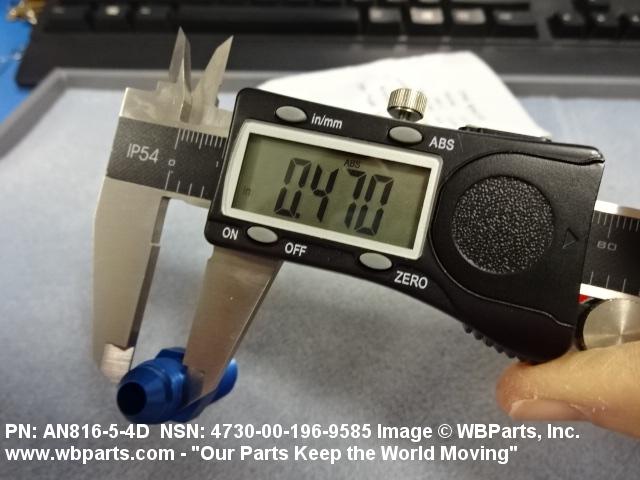

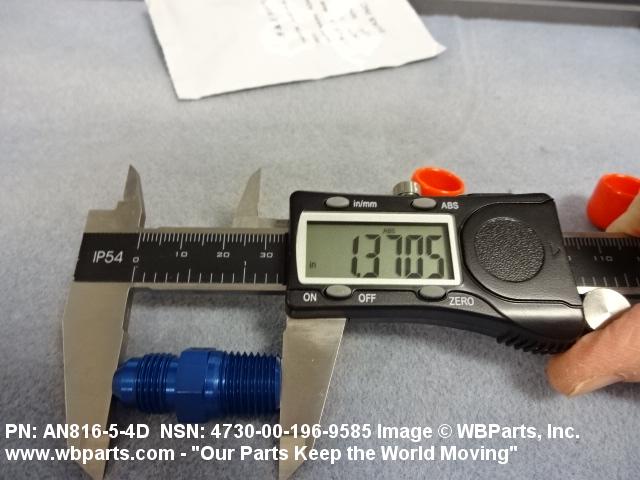

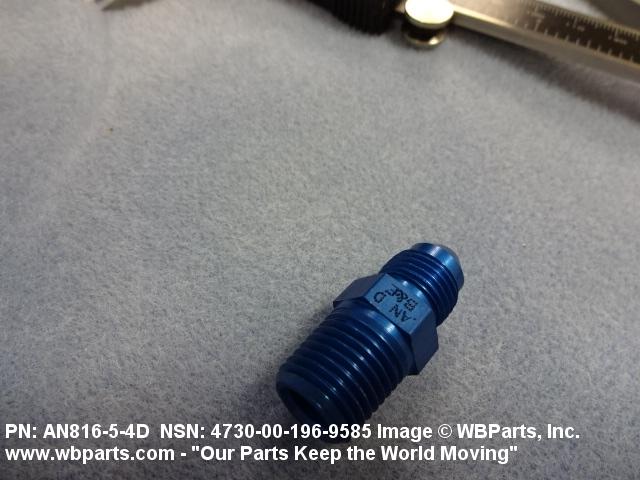

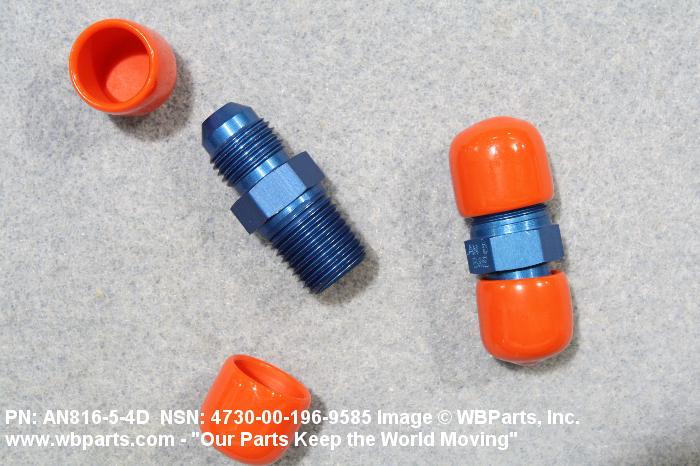

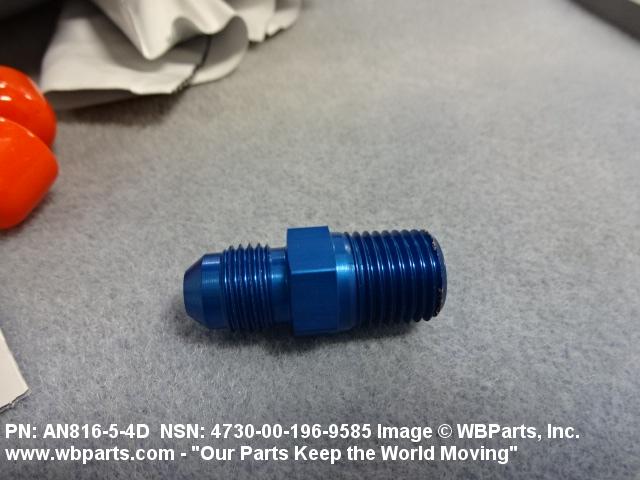

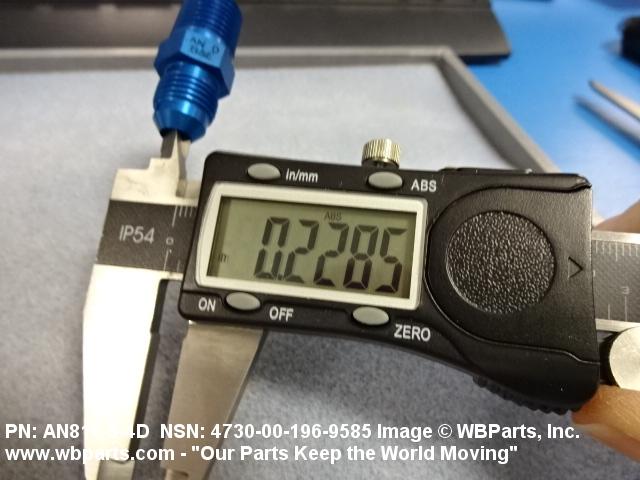

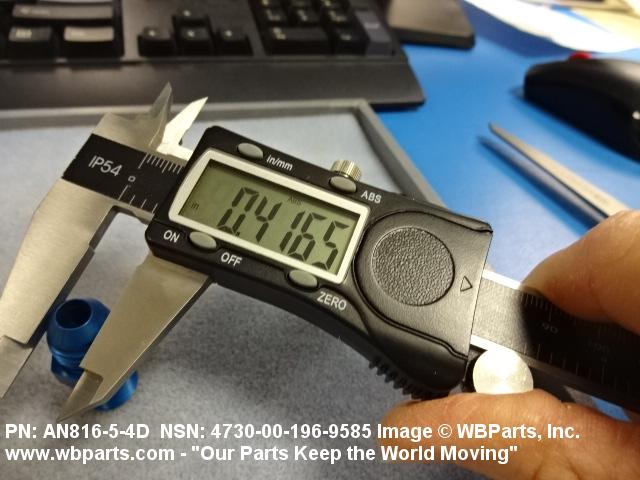

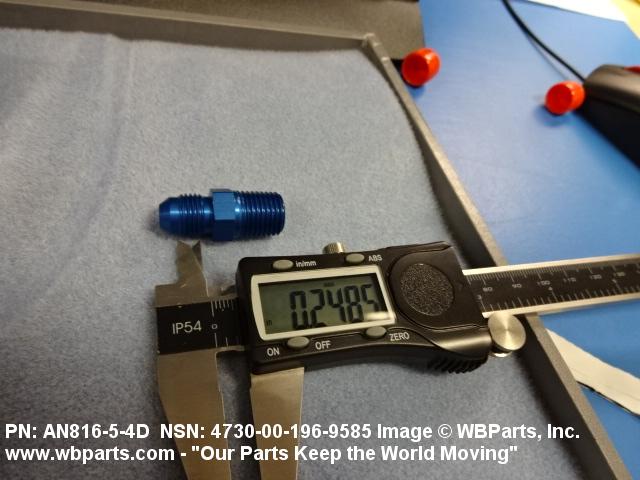

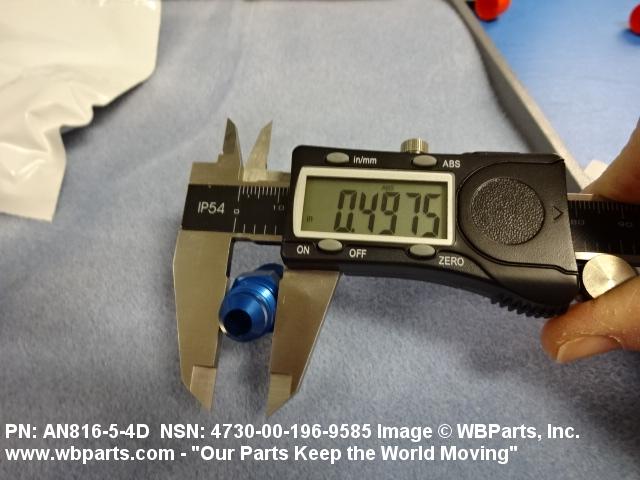

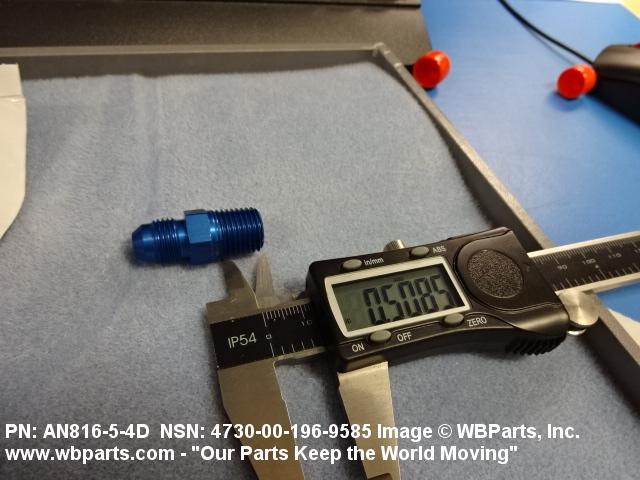

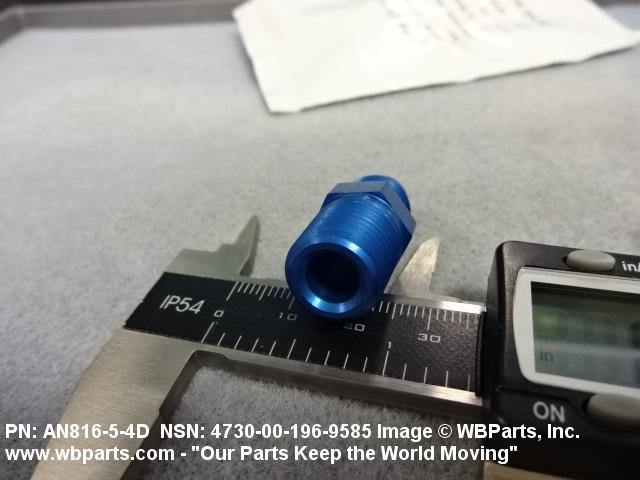

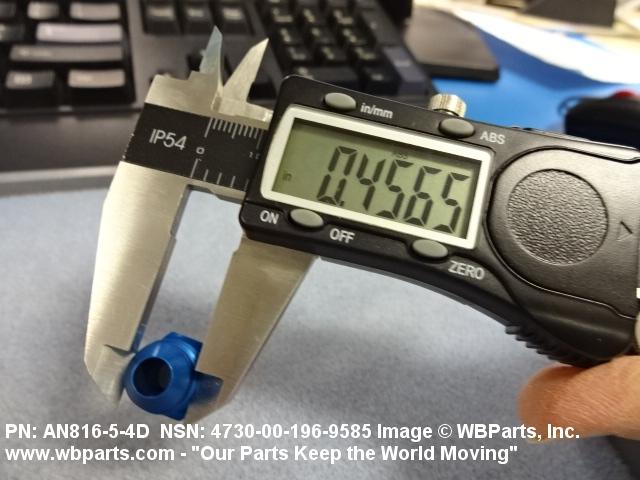

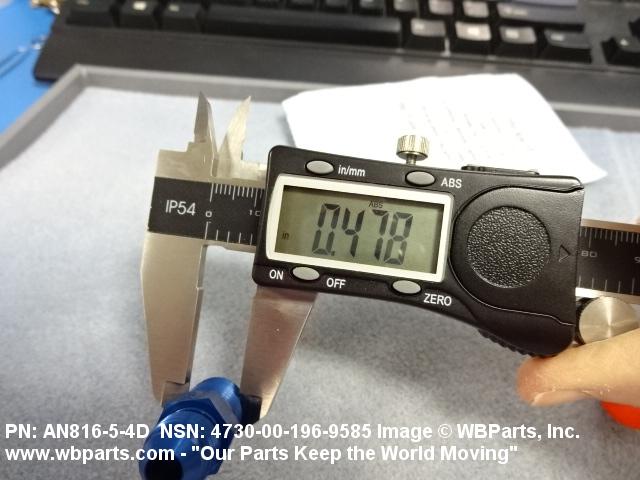

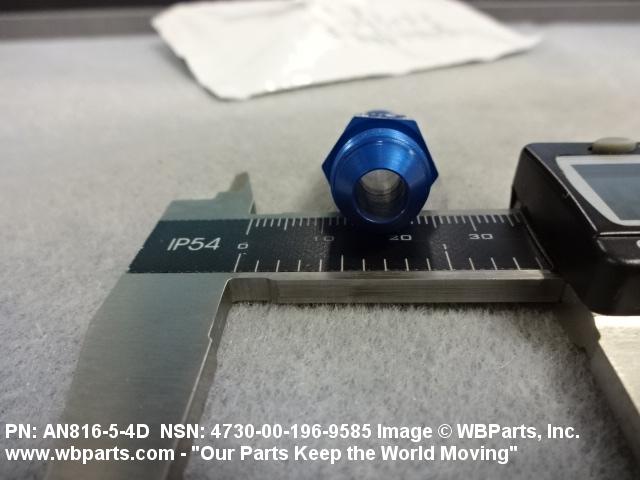

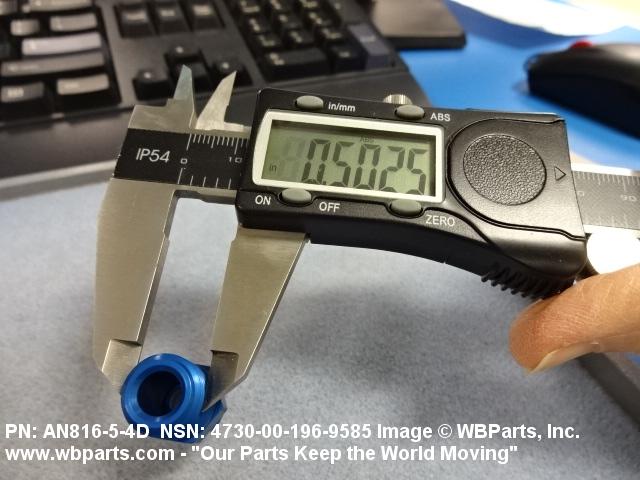

Drawings & Photos | NSN 4730-00-196-9585
Demand History | NSN 4730-00-196-9585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS48421 | 2025-04-106 | 1 | France |
| 4730-00-196-9585 | 2018-09-269 | 1675 | DIBBS |
| 4730-00-196-9585 | 2018-08-227 | 2200 | DIBBS |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-196-9585 | 2017-09-249 | 740 | DIBBS |
| 4730-00-196-9585 | 2017-03-87 | 827 | DIBBS |
| AN81654D | 2016-06-154 | 108 | United States |
| AS48421 | 2015-05-132 | 1 | CA |
| 4730-00-196-9585 | 2010-07-199 | 1 | US |
| MILF5509 | 2009-10-301 | 1 | PK |
| 4730-00-196-9585 | 2009-09-245 | 64 | DIBBS |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-196-9585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0136-15 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 19237 | 53964 | KAYDON CUSTOM FILTRATION CORPORATION |
| 444-01437-000 | F5341 | ZODIAC - INTERTECHNIQUE EROS OXYGEN& LIFE SUPPORT |
| AN816-5-4D | 06957 | AIR WORLD MFG |
| AN816-5-4D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN816-5-4D | 22995 | CROWN FITTING CO INC |
| AN816-5-4D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194D0504 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-196-9585
Technical Data | NSN 4730-00-196-9585
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END ANPT 2ND END |
| NOMINAL THREAD SIZE | 0.500 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |
| NOMINAL OVERALL LENGTH | 1.375 INCHES |
| SPECIFICATION/STANDARD DATA | 81343-AS4842/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 88044-AN816 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN A-10 ACFT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN816-5-4D |
Restrictions/Controls & Freight Information | NSN 4730-00-196-9585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
