NSN 4730-00-187-0087 AN8161212D, AN816-12-12D, AN816440

Product Details | PIPE TO BOSS STRAIGHT ADAPTER

4730-00-187-0087 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also ADAPTER BUSHING and COUPLING, PIPE.

Part Alternates: AN8161212D, AN816-12-12D, AN816440, AN816-4-40, AN81644D, AN816-4-4D, AS4842/1, AS48421, AS5194, AS5194D0404, MILF5509, MIL-F-5509, 2801141, 311C003, 311C0031, 311C003-1, 476 679, 476679, 477679, 8161843, 946.20.85.203, 9462085203, 4730-00-187-0087, 00-187-0087, 4730001870087, 001870087

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-187-0087	22674 ( ADAPTER, STRAIGHT, PIPE TO BOSS )

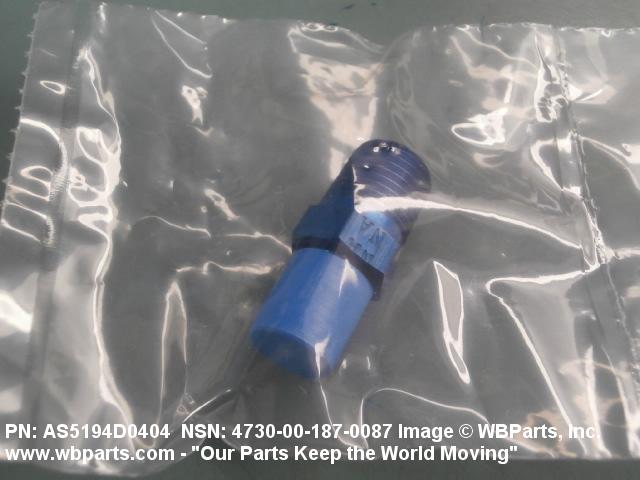

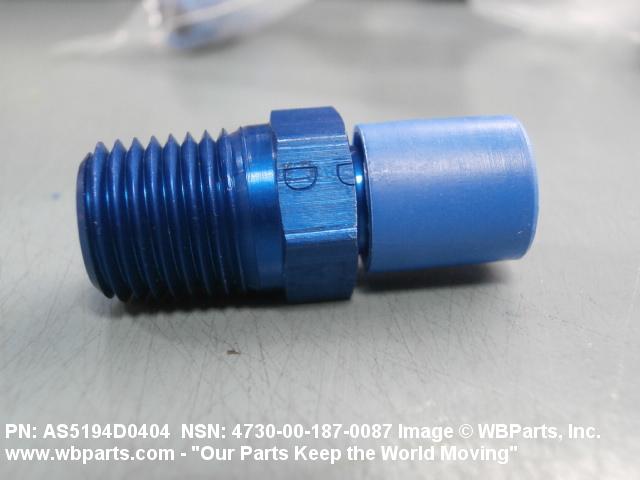

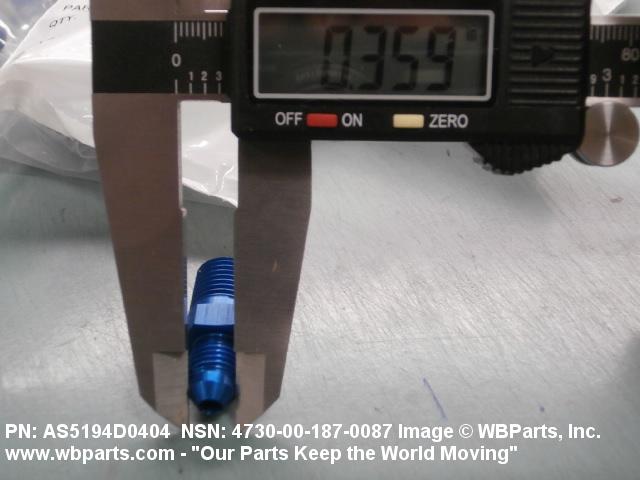

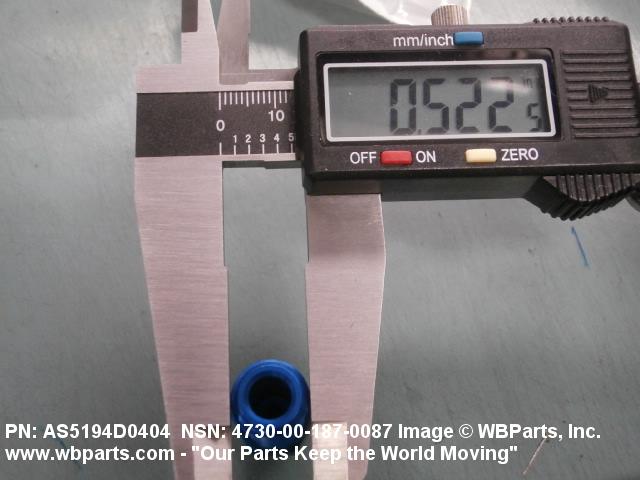

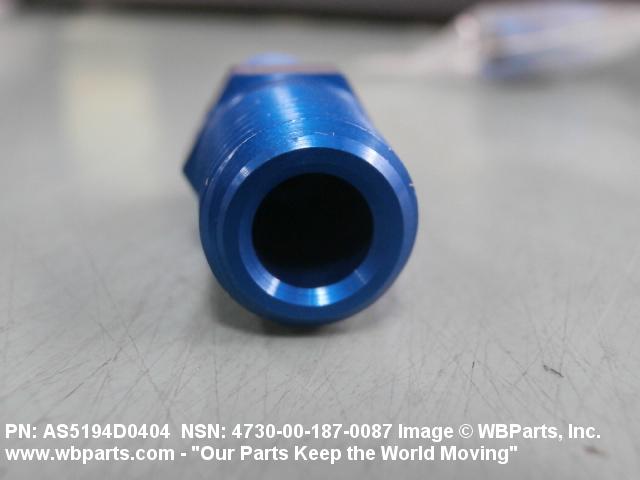

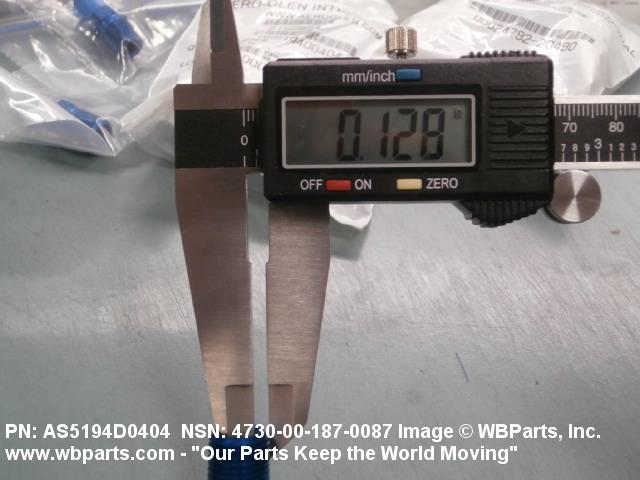

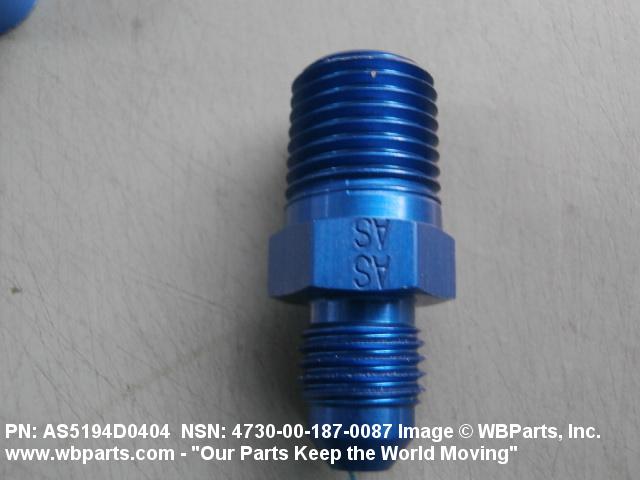

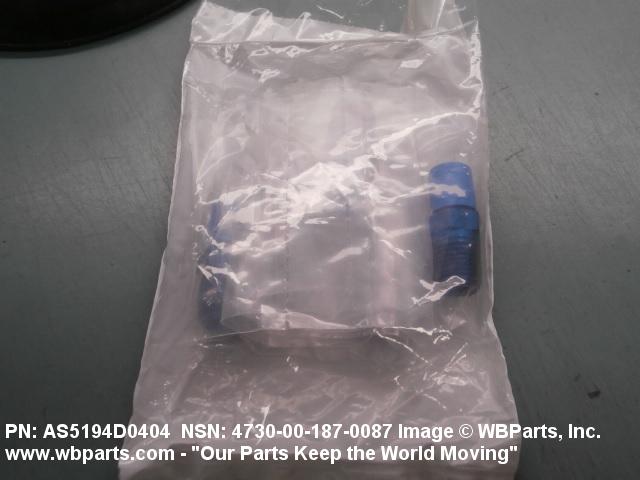

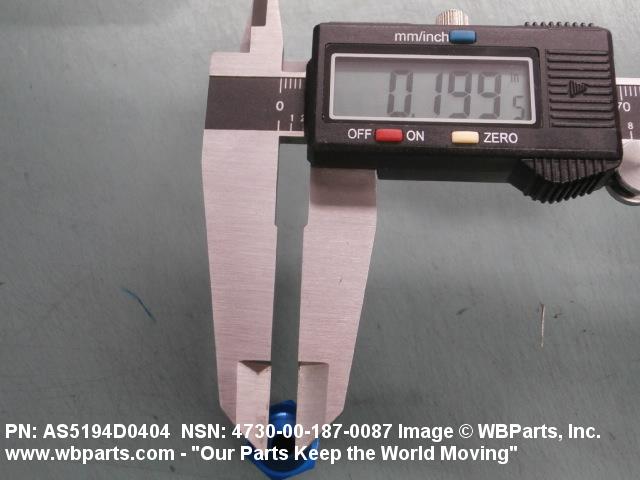

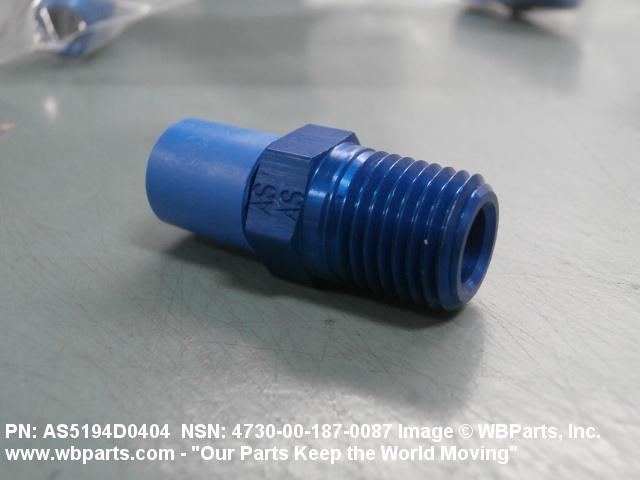

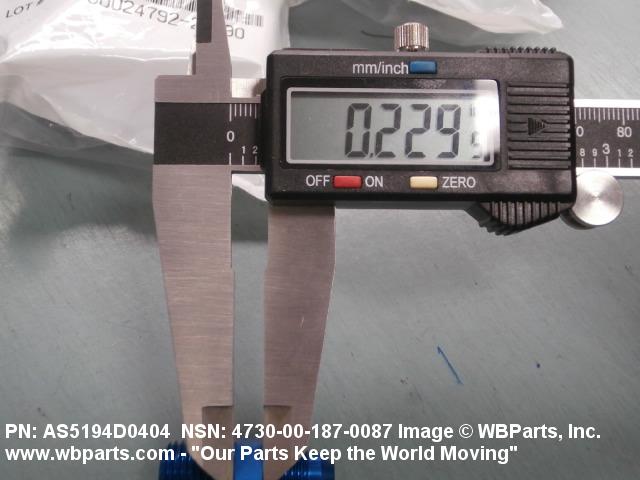

Drawings & Photos | NSN 4730-00-187-0087

Part Number	Request Date	QTY	Origin
4730-00-187-0087	2019-08-220	4404	DIBBS
4730-00-187-0087	2019-05-150	4404	DIBBS
4730-00-187-0087	2018-10-283	2322	DIBBS
MILF5509	2018-07-201	6	United States
4730-00-187-0087	2017-06-155	10	Australia
4730-00-187-0087	2017-04-103	3264	DIBBS
AN81644D	2016-06-168	2	China
4730-00-187-0087	2016-06-157	2506	DIBBS
AS48421	2015-05-132	1	CA
4730-00-187-0087	2014-10-274	472	DIBBS
AS5194D0404	2014-09-260	18	United States
AN81644D	2013-01-16	2	United States
4730-00-187-0087	2012-12-349	690	DIBBS
MILF5509	2009-10-301	1	PK
4730-00-187-0087	2009-06-168	1262	DIBBS
4730-00-187-0087	2009-05-125	1179	DIBBS
4730-00-187-0087	2009-04-97	984	DIBBS
4730-00-187-0087	2009-03-78	166	DIBBS
4730-00-187-0087	2009-03-64	477	DIBBS
MILF5509	2009-02-55	100	US
4730-00-187-0087	2009-01-13	58	DIBBS
4730-00-187-0087	2008-12-350	180	DIBBS
4730-00-187-0087	2008-11-316	255	DIBBS

Cross Reference | NSN 4730-00-187-0087

Part Number	Cage Code	Manufacturer
2801141	001JK	EMBRAER S/A
2801141	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
311C003	62793	BFM ENERGY PRODUCTS CORP
311C003-1	62793	BFM ENERGY PRODUCTS CORP
476 679	77294	PIPER AIRCRAFT INC.
477679	77294	PIPER AIRCRAFT INC.
8161843	19200	US ARMY ARDEC RDECOM
946.20.85.203	S4080	PILATUS AIRCRAFT LTD
AN816-12-12D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN816-4-40	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN816-4-4D	00624	EATON CORPORATION DBA AEROSPACE DIV
AN816-4-4D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN816-4-4D	13899	HYDRO FITTING MANUFACTURING CORPORATION
AN816-4-4D	14397	FABER ENTERPRISES, INC.
AN816-4-4D	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN816-4-4D	22995	CROWN FITTING CO INC
AN816-4-4D	71563	COLLINS ENGINEERING CORP
AN816-4-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN816-4-4D	R1120	SATAIR A/S
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5194	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5194D0404	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-187-0087

Compare

Related Products | NSN 4730-00-187-0087

4730-00-187-0088, 4730-00-187-0446, 4730-00-187-0483, 4730-00-187-0484, 4730-00-187-0485

Technical Data | NSN 4730-00-187-0087

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
CONNECTION TYPE	THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL BOSS 2ND END
CONNECTION STYLE	B67B PLAIN 1ST END B81 FLARED W/GASKET SEAL 2ND END
THREAD SERIES DESIGNATOR	ANPT 1ST END UNJF 2ND END
NOMINAL THREAD SIZE	0.250 INCHES 1ST END 0.438 INCHES 2ND END
THREAD CLASS	3A 2ND END

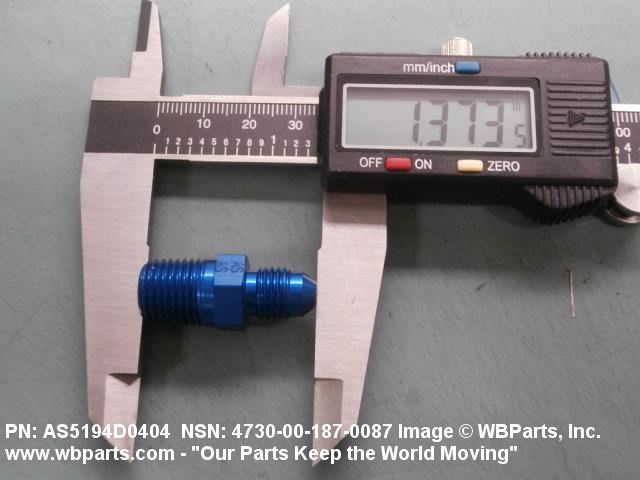

NOMINAL OVERALL LENGTH	1.375 INCHES
FURNISHED ITEMS AND QUANTITY	1 PREFORMED PACKING
SPECIAL FEATURES	CENTER WRENCHING FACILITY
SPECIFICATION/STANDARD DATA	88044-AN816 GOVERNMENT STANDARD AND 81343-AS4842/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III END ITEM IDENTIFICATION	GRUMMAN A-10 ACFT

Restrictions/Controls & Freight Information | NSN 4730-00-187-0087

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-187-0087

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
