NSN 4730-00-187-0088 AN8165D, AN816-5D, AS4842/1

Product Details | PIPE TO BOSS STRAIGHT ADAPTER

4730-00-187-0088 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also ADAPTER BUSHING and COUPLING, PIPE.

Part Alternates: AN8165D, AN816-5D, AS4842/1 , AS48421, AS5194, AS5194D0502 , NAS1367BE5D, MILF5509, MIL-F-5509, 2136925D, 213692-5D, 3112339, 3322100020, 332-2100-020, 4166961, 416696-1, 811FT5D, 4730-00-187-0088, 00-187-0088, 4730001870088, 001870088

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-187-0088	22674 ( ADAPTER, STRAIGHT, PIPE TO BOSS )

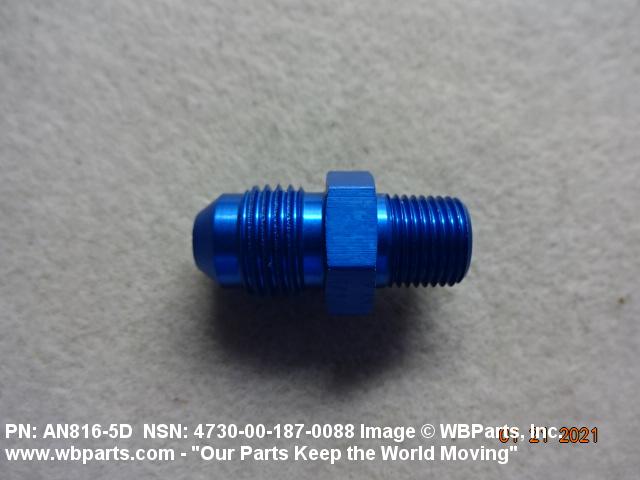

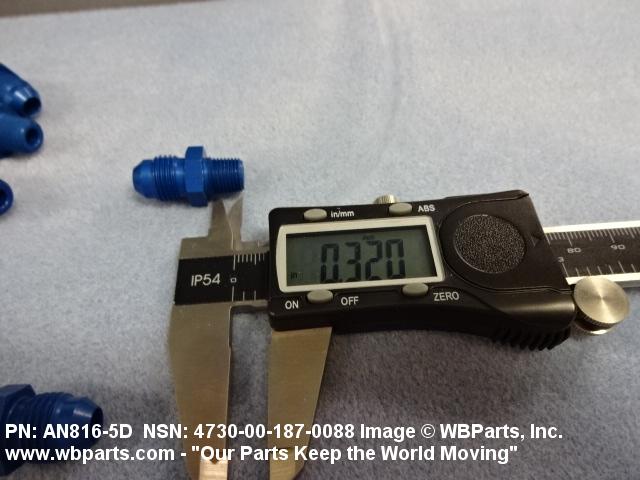

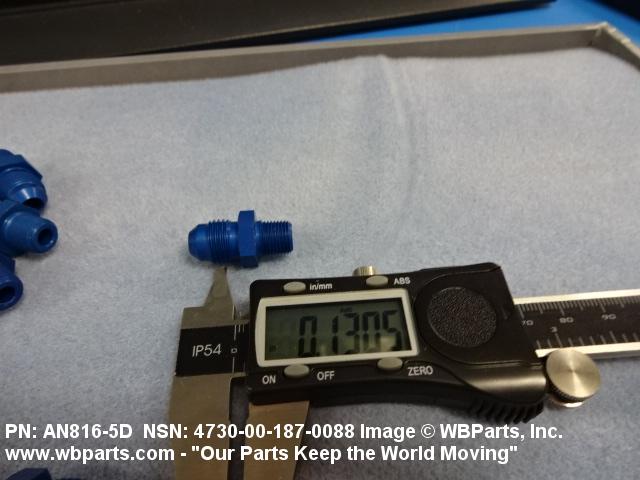

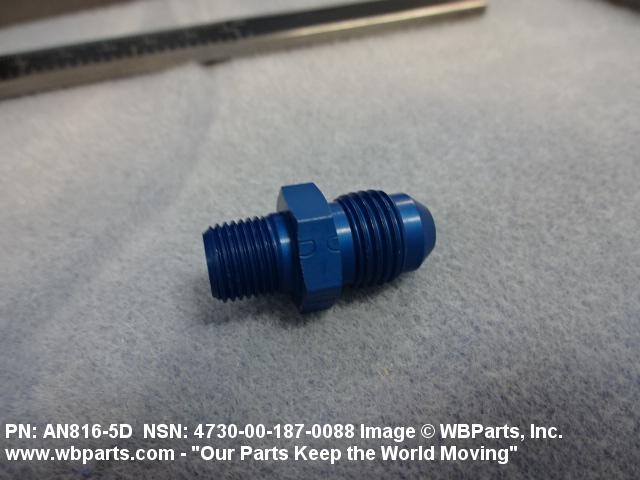

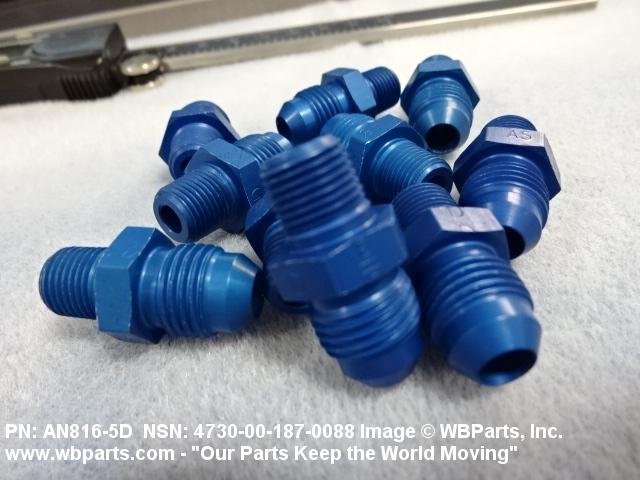

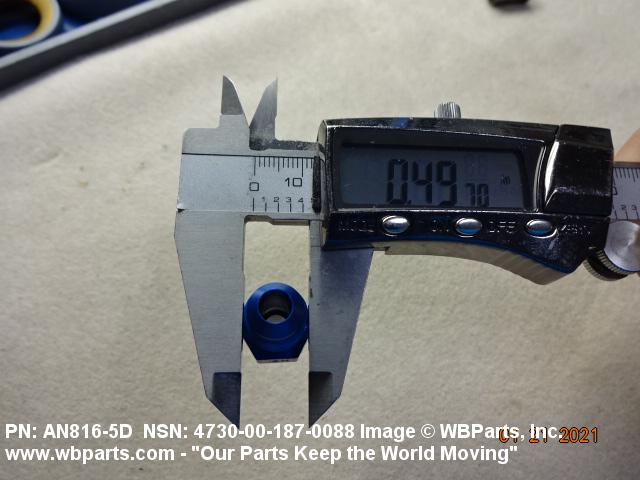

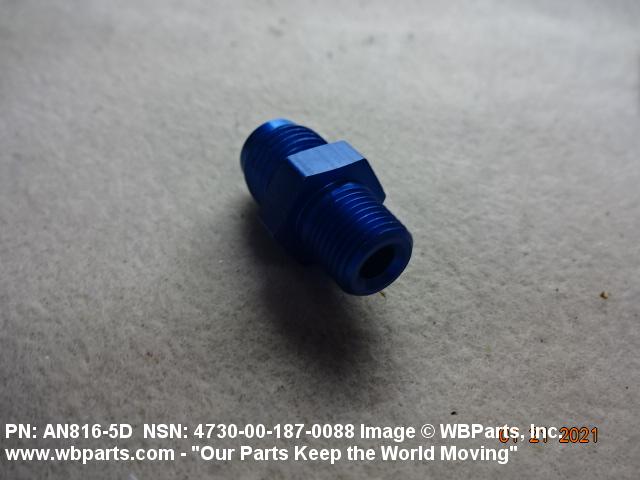

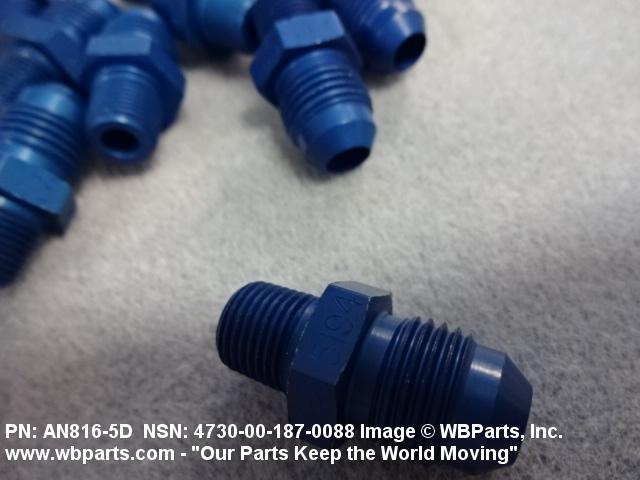

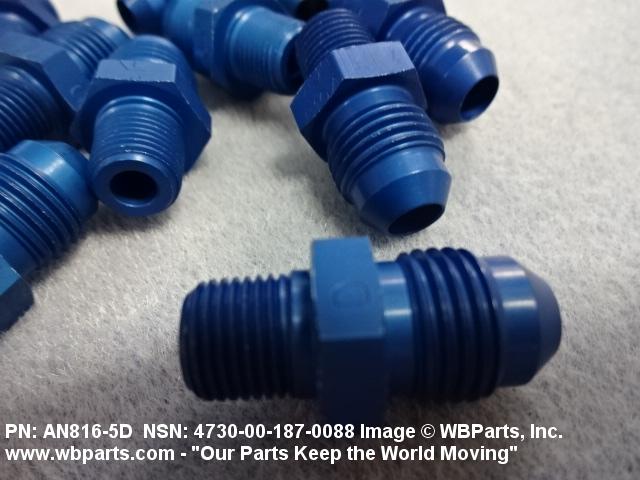

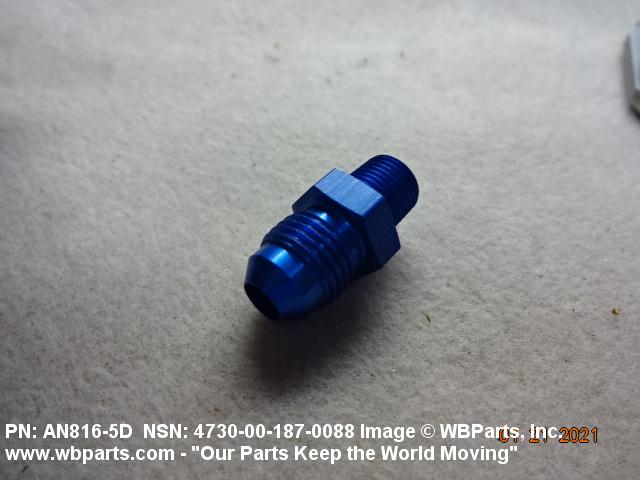

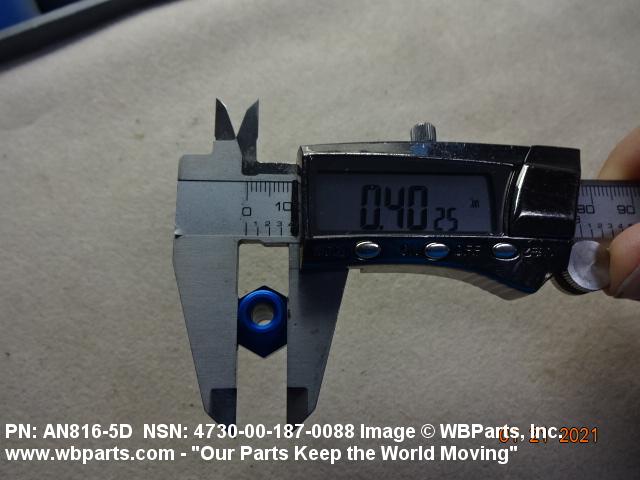

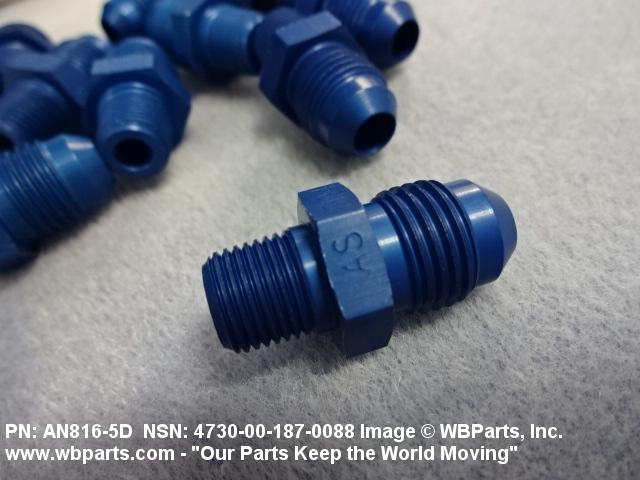

Drawings & Photos | NSN 4730-00-187-0088

Part Number	Request Date	QTY	Origin
4730-00-187-0088	2023-12-354	200	US
AS5194D0502	2023-12-354	200	US
4730-00-187-0088	2021-11-319	2574	DIBBS
4730-00-187-0088	2021-02-52	2783	DIBBS
MILF5509	2018-07-201	6	United States
AS5194D0502	2017-07-201	100	United States
4730-00-187-0088	2017-05-138	3534	DIBBS
4730-00-187-0088	2017-04-103	1067	DIBBS
AN8165D	2016-06-154	30	United States
AS48421	2015-05-132	1	CA
AN8165D	2012-10-293	99	CN
AN8165D	2012-05-135	1	United Arab Emirates
AS5194D0502	2012-05-135	10	United Arab Emirates
4730-00-187-0088	2012-03-72	5	MANUAL
AN816-5D	2012-03-72	5	TW
4730-00-187-0088	2011-11-307	2270	DIBBS
4730-00-187-0088	2011-06-155	1726	DIBBS
4730-00-187-0088	2010-11-306	1489	DIBBS
4730-00-187-0088	2010-01-15	2757	DIBBS
MILF5509	2009-10-301	1	PK
4730-00-187-0088	2009-04-99	1	US
4730-00-187-0088	2009-04-98	3048	DIBBS
MILF5509	2009-02-55	100	US
4730-00-187-0088	2008-11-317	2078	DIBBS

Cross Reference | NSN 4730-00-187-0088

Part Number	Cage Code	Manufacturer
213692-5D	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
3112339	001JK	EMBRAER S/A
3112339	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
332-2100-020	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
416696-1	96214	RAYTHEON COMPANY DBA RAYTHEON
811FT5D	88041	AIR CORPS STANDARDS UNDER CUSTODIANISHIP OF THE
AN816-5D	00624	EATON CORPORATION DBA AEROSPACE DIV
AN816-5D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN816-5D	13899	HYDRO FITTING MANUFACTURING CORPORATION
AN816-5D	14397	FABER ENTERPRISES, INC.
AN816-5D	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN816-5D	22995	CROWN FITTING CO INC
AN816-5D	34724	ACRA AEROSPACE INC
AN816-5D	71563	COLLINS ENGINEERING CORP
AN816-5D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN816-5D	R1120	SATAIR A/S
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5194	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5194D0502	59680	B. & E. MANUFACTURING CO., INC.
AS5194D0502	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS1367BE5D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-187-0088

Compare

Related Products | NSN 4730-00-187-0088

4730-00-187-0446, 4730-00-187-0483, 4730-00-187-0484, 4730-00-187-0485, 4730-00-187-0486

Technical Data | NSN 4730-00-187-0088

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6,T6 FED SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID SINGLE RESPONSE
MAXIMUM OPERATING TEMP	225.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL BOSS 2ND END
CONNECTION STYLE	B67B PLAIN 1ST END B81 FLARED W/GASKET SEAL 2ND END
THREAD SERIES DESIGNATOR	ANPT 1ST END UNJF 2ND END
NOMINAL THREAD SIZE	0.125 INCHES 1ST END 0.500 INCHES 2ND END
THREAD CLASS	3A 2ND END

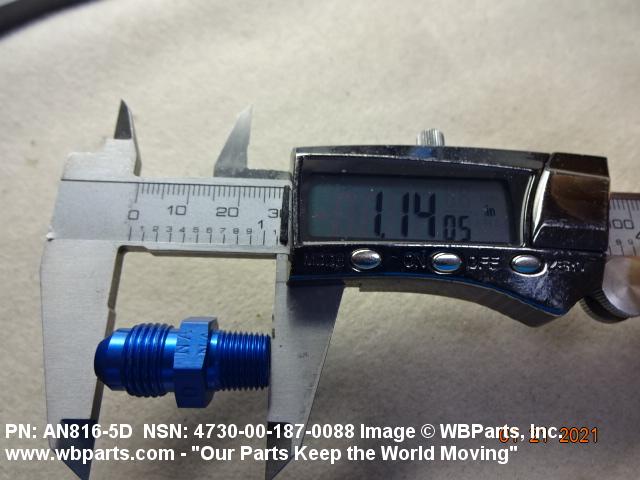

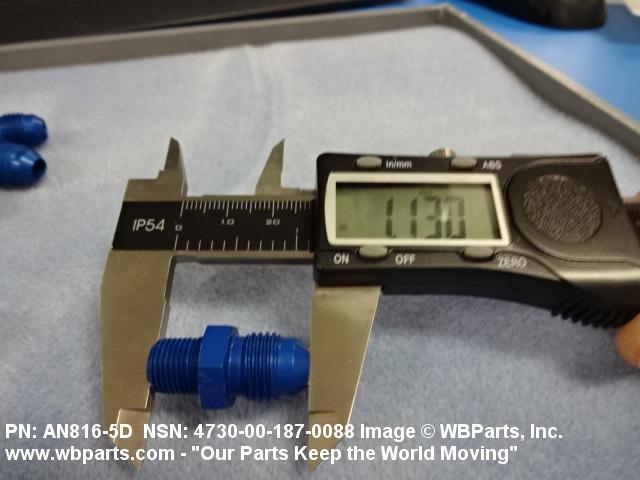

NOMINAL OVERALL LENGTH	1.141 INCHES
SPECIAL FEATURES	CENTER WRENCHING FACILITY
SPECIFICATION/STANDARD DATA	88044-AN816 GOVERNMENT STANDARD AND 81343-AS4842/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III END ITEM IDENTIFICATION	GRUMMAN A-10 ACFT

Restrictions/Controls & Freight Information | NSN 4730-00-187-0088

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-187-0088

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
