NSN 4730-00-186-9961 MS2082240, MS20822-40, MS208224D

Product Details | PIPE TO TUBE ELBOW

4730-00-186-9961 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS2082240, MS20822-40, MS208224D, MS20822-4D, AN8224D, AN822-4D, AN8224DX, AN822-4DX, AS4842/1, AS48421, AS5195W0402, MILF5509, Z00.N7730061663, Z00N7730061663, 49944D, 4994-4D, 74004, 7400-4, 7400X4, 77756, 811CT4D, 8161749, 82205, 8599666003, 8599666-003, 8791283, 101653, 10165-3, 10177, 1025563, 10-25563, 104D19, 10500842, 105-00842, 17309, 206651, 2136954D, 213695-4D, 24794, 2721028P14, 272-1028P14, 36A58, 458 894, 458894, 472644, 4730-00-186-9961, 00-186-9961, 4730001869961, 001869961

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-186-9961	03770 ( ELBOW, PIPE TO TUBE )

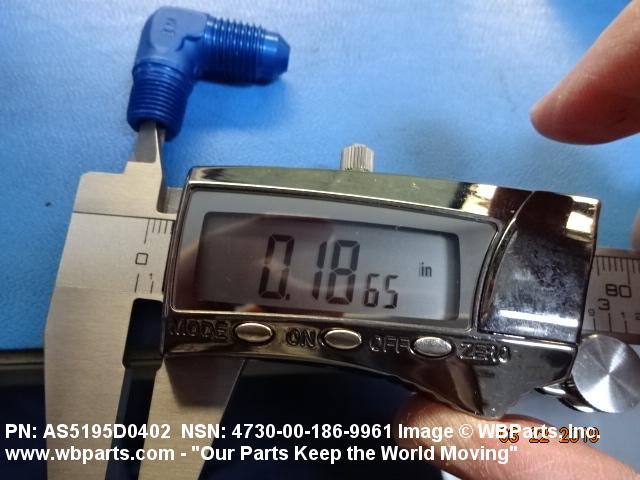

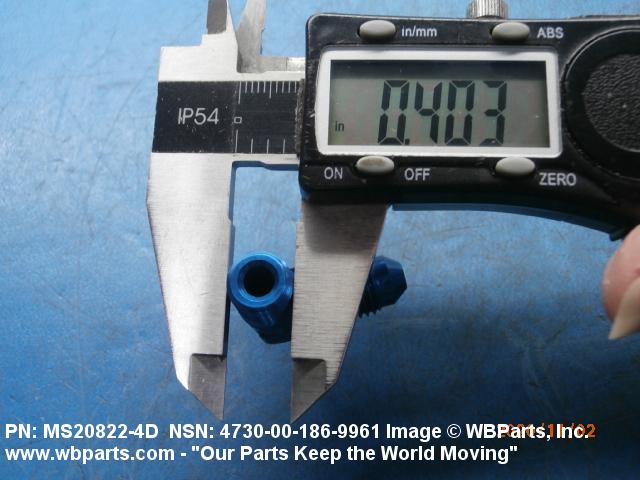

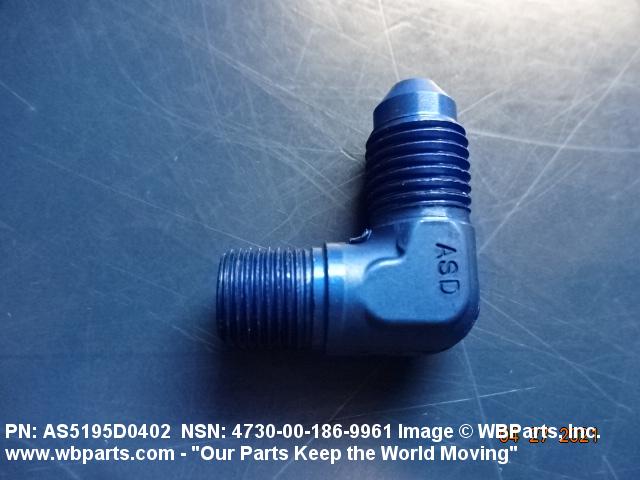

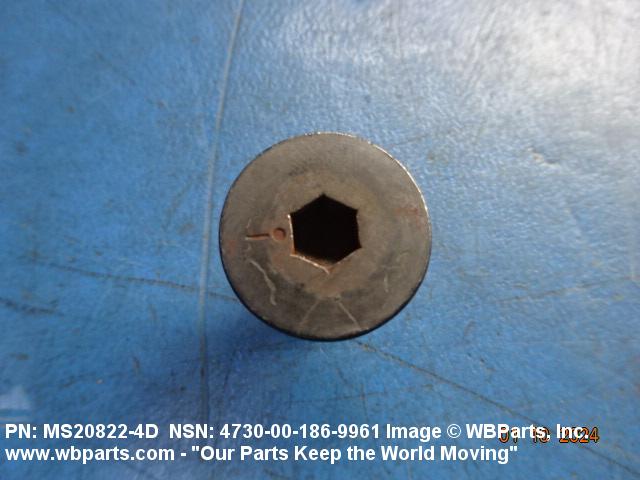

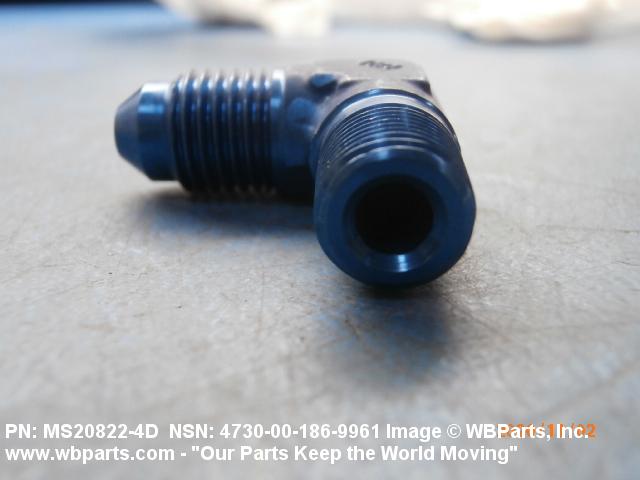

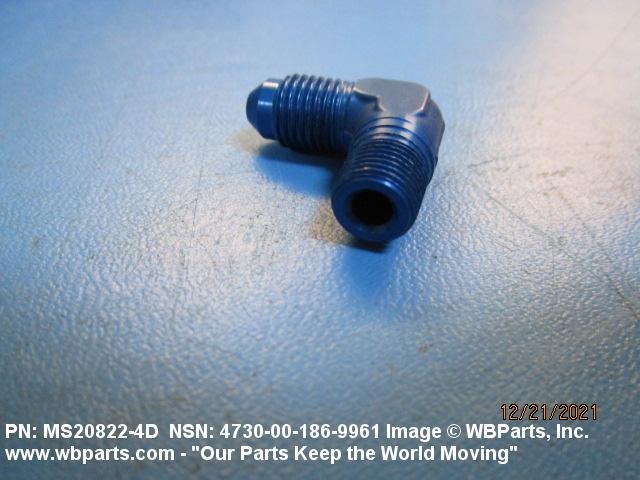

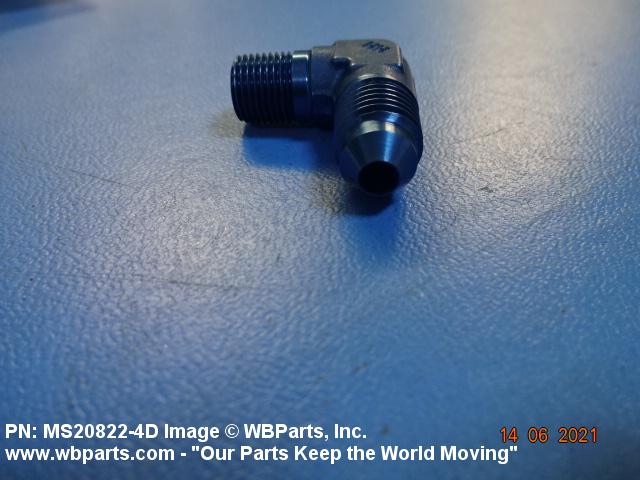

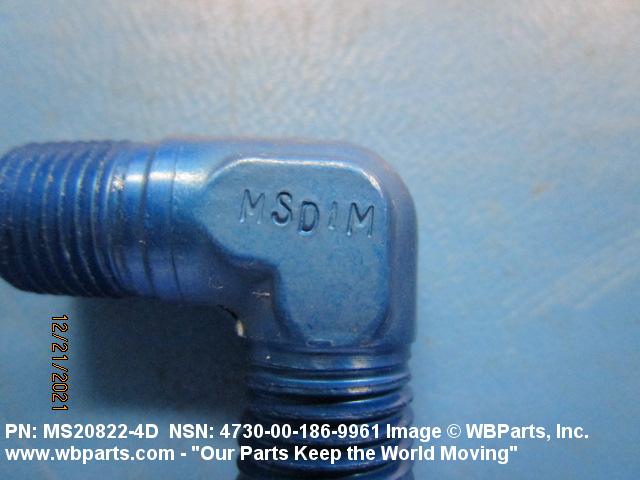

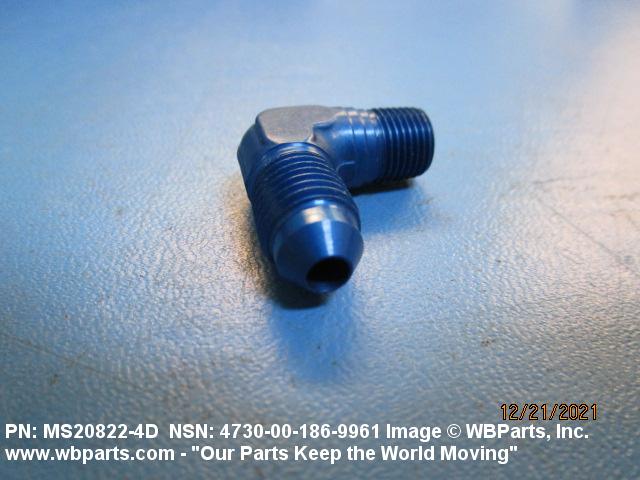

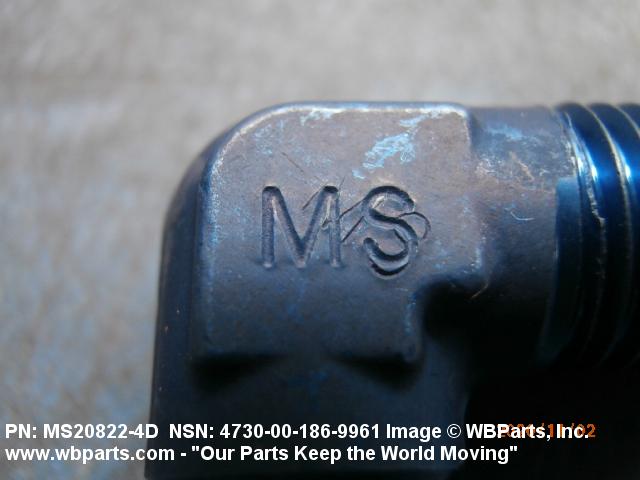

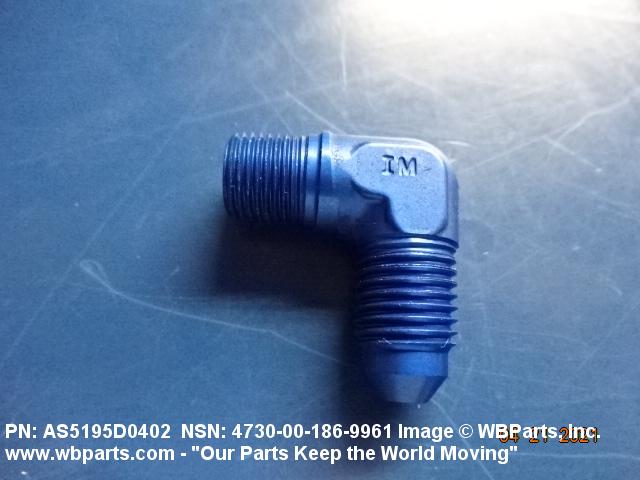

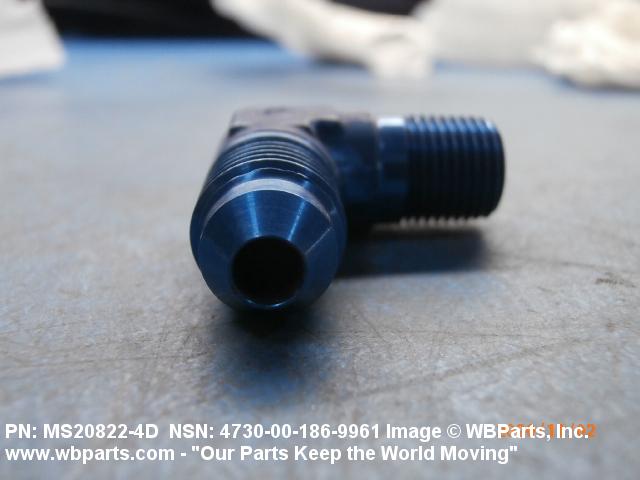

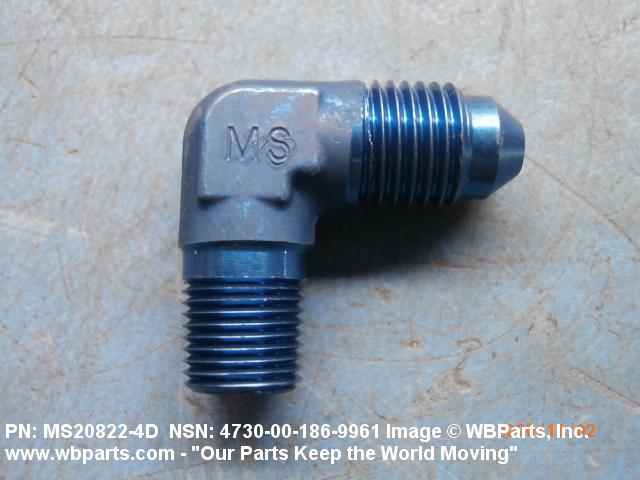

Drawings & Photos | NSN 4730-00-186-9961

Part Number	Request Date	QTY	Origin
MS208224D	2024-11-310	200	United States
MS208224D	2024-08-222	150	United States
MS208224D	2024-06-164	150	United States
4730-00-186-9961	2024-06-158	194	DIBBS
4730-00-186-9961	2024-04-114	300	us
MS208224D	2024-04-110	150	United States
MS208224D	2024-04-110	150	United States
4730-00-186-9961	2024-04-109	329	DIBBS
MS208224D	2023-12-348	79	United States
MS208224D	2023-12-348	79	United States
MS208224D	2023-08-222	200	United States
4730-00-186-9961	2022-10-286	290	DIBBS
MS208224D	2022-08-220	1	United States
4730-00-186-9961	2022-07-212	124	DIBBS
MS208224D	2022-05-151	4	United States
AN8224D	2022-05-133	100	US
MS208224D	2022-05-133	100	US
MS208224D	2021-10-292	10	United States
MS208224D	2021-10-292	20	United States
MS208224D	2021-10-281	30	US
4730-00-186-9961	2021-10-277	42	Malaysia
MS208224D	2021-09-273	42	Malaysia
4730-00-186-9961	2021-05-132	439	DIBBS
4730-00-186-9961	2020-10-296	10	United States
MS208224D	2020-10-287	5	United States
MS208224D	2020-08-232	71	United States
AS5195W0402	2020-05-136	595	US
MILF5509	2018-07-201	6	United States
4730-00-186-9961	2017-09-270	451	DIBBS
MS208224D	2017-04-95	451	United States
4730-00-186-9961	2017-03-89	141	DIBBS
MS208224D	2016-10-302	120	United States
MS208224D	2016-04-98	100	US
74004	2015-10-292	2	LK
AN8224D	2015-09-259	50	United States
AS48421	2015-05-132	1	CA
4730-00-186-9961	2010-12-356	10	United States
MILF5509	2009-10-301	1	PK
4730-00-186-9961	2009-04-113	581	DIBBS
MILF5509	2009-02-55	100	US
MS208224D	2007-10-302	50	US

Cross Reference | NSN 4730-00-186-9961

Part Number	Cage Code	Manufacturer
10-25563	58588	SURFACE COMBUSTION, INC.
10165-3	0LX27	WATTS AUTOMATIC CONTROL VALVE INC
10165-3	59273	MUESCO INC DBA MUESCO MALLAY INC
10177	11599	TRIUMPH ENGINE CONTROL SYSTEMS, LLC
104D19	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
105-00842	79470	DANA CORP WEATHERHEAD DIV
17309	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
206651	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
206651	16004	DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC
206651	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
213695-4D	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
24794	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
272-1028P14	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
272-1028P14	49956	RAYTHEON COMPANY DBA RAYTHEON
36A58	58588	SURFACE COMBUSTION, INC.
458 894	77294	PIPER AIRCRAFT INC.
472644	57733	STEWART-WARNER CORPORATION
4994-4D	82386	JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS
7400-4	79470	DANA CORP WEATHERHEAD DIV
7400X4	79470	DANA CORP WEATHERHEAD DIV
77756	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
811CT4D	88041	AIR CORPS STANDARDS UNDER CUSTODIANISHIP OF THE
8161749	18876	U S ARMY AVIATION AND MISSILE COMMAND
82205	00198	PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
82205	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
82205	R1120	SATAIR A/S
8599666-003	99974	DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS
8791283	19203	PICATINNY ARSENAL
AN822-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN822-4DX	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5195W0402	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MILF5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS20822-40	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20822-4D	79470	DANA CORP WEATHERHEAD DIV
MS20822-4D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Z00.N7730061663	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-186-9961

Compare

Related Products | NSN 4730-00-186-9961

4730-00-186-9962, 4730-00-186-9963, 4730-00-186-9964, 4730-00-186-9965, 4730-00-186-9966

Technical Data | NSN 4730-00-186-9961

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B67B PLAIN 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END

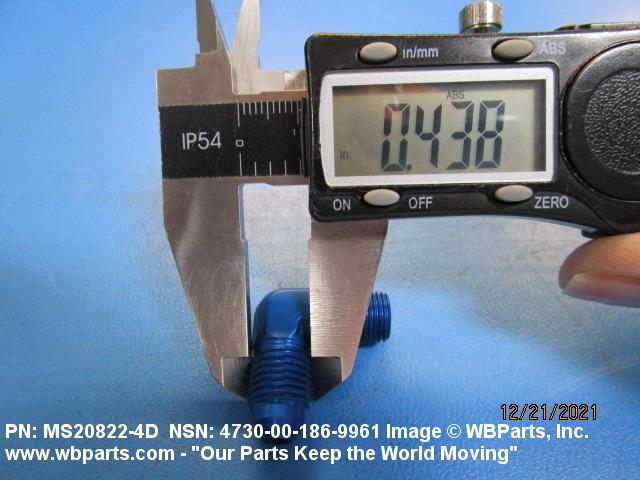

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END

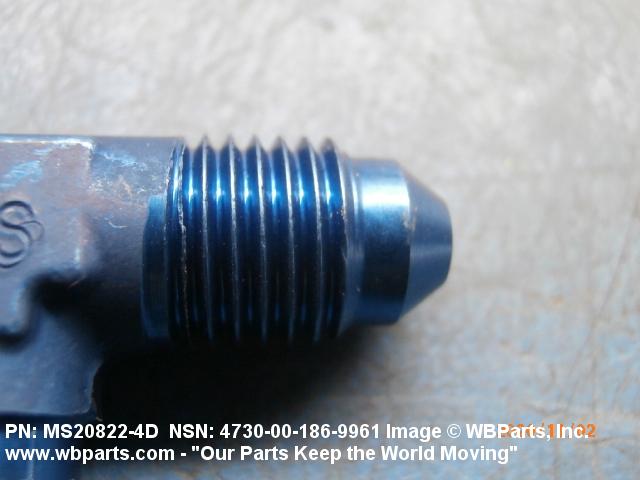

THREAD SERIES DESIGNATOR	UNJF 1ST END ANPT 2ND END
NOMINAL THREAD SIZE	0.438 INCHES 1ST END 0.125 INCHES 2ND END
THREAD QUANTITY PER INCH	20 1ST END
THREAD CLASS	3A 1ST END

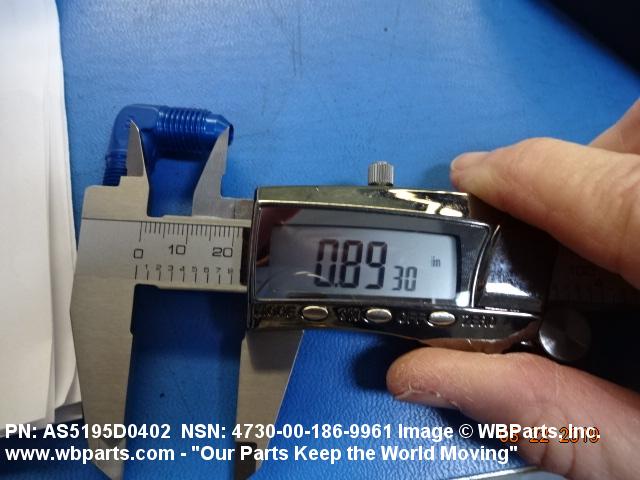

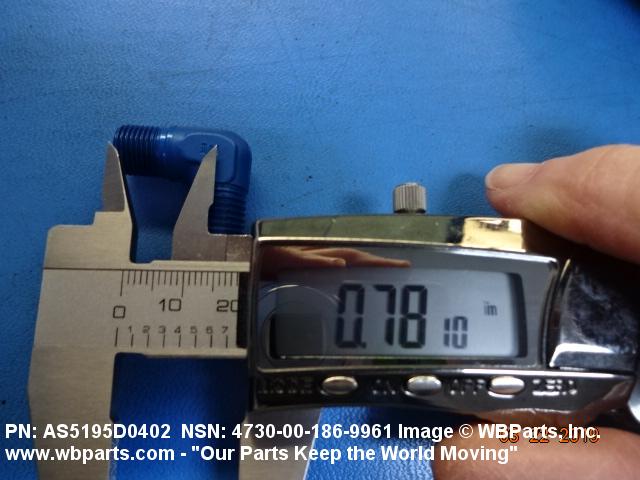

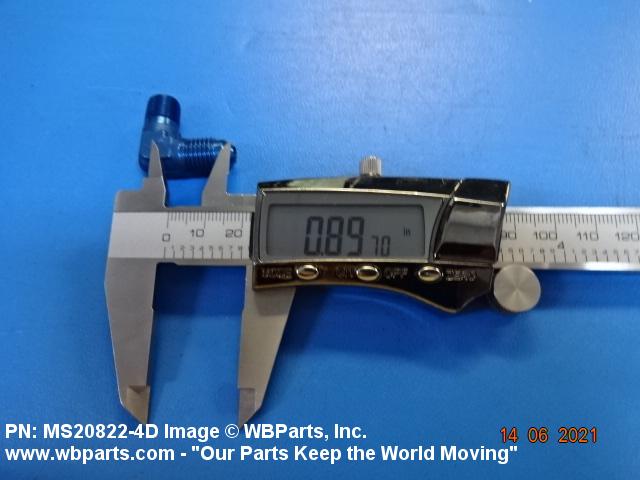

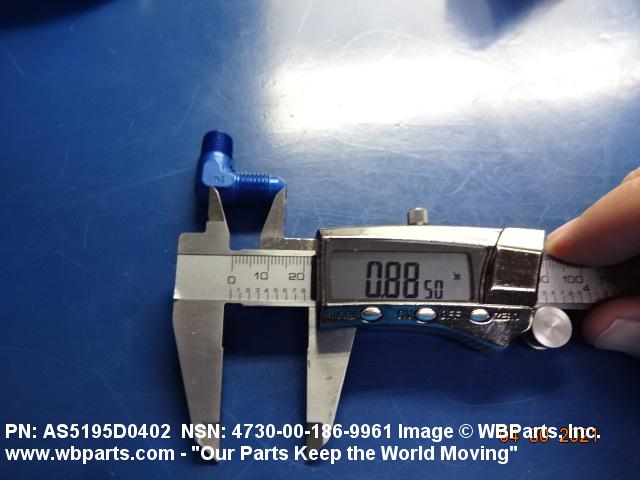

LEG LENGTH	0.891 INCHES NOMINAL 1ST END 0.781 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
SPECIAL FEATURES	GRUMMAN AEROSPACE CORP A-10 AIRCRAFT;WEAPON SYSTEM ESSENTIAL
SPECIFICATION/STANDARD DATA	81343-J512 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	6A FIGURE
CRITICALITY CODE JUSTIFICATION	FEAT
III END ITEM IDENTIFICATION	BOEING VERTOL CARGO TRANSPORT HELICOPTER MODEL CH-47
