NSN 4730-00-186-9964 MS20822660, MS20822-6-60, MS2082266D

Product Details | PIPE TO TUBE ELBOW

4730-00-186-9964 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: MS20822660, MS20822-6-60, MS2082266D, MS20822-6-6D, MS20822-6-6D/ELBOW, MS2082266DELBOW, AN82266D, AN822-6-6D, AS4842/1 , AS48421, AS5195, AS5195W0606 , 1016510, 10165-10, 4730-00-186-9964, 00-186-9964, 4730001869964, 001869964

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-186-9964	03770 ( ELBOW, PIPE TO TUBE )

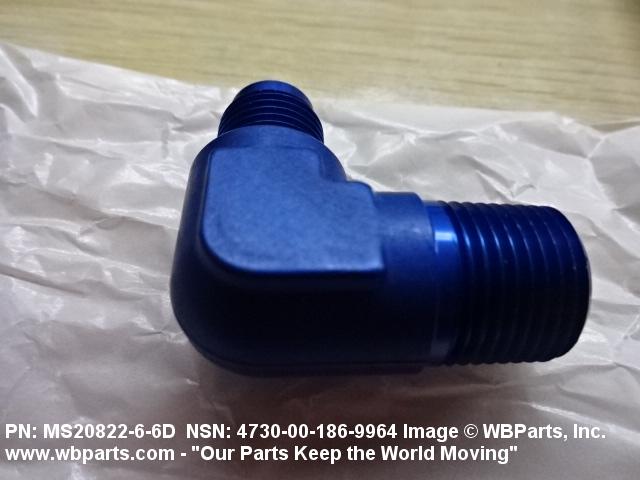

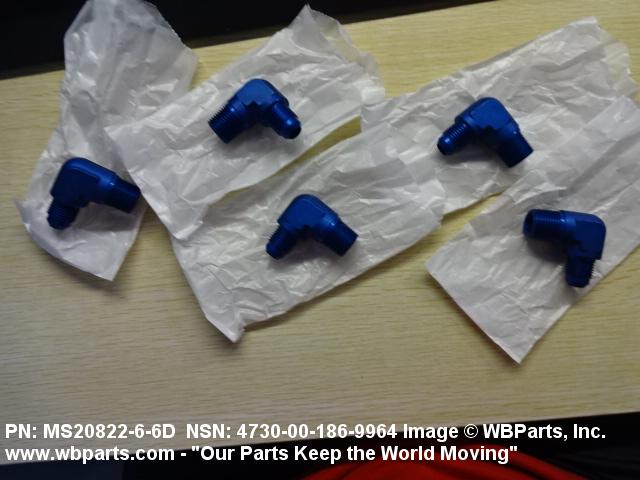

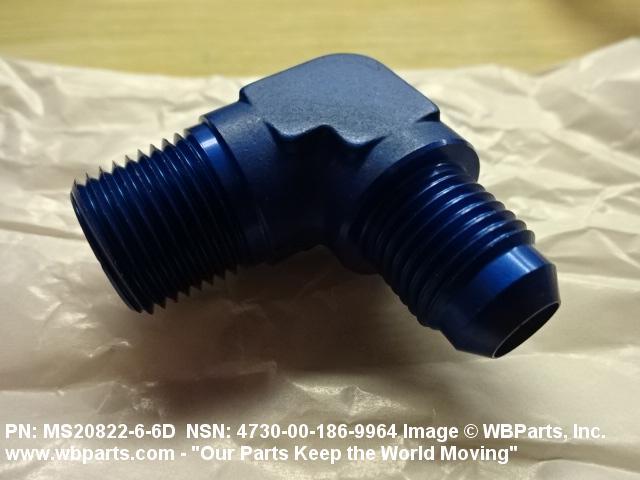

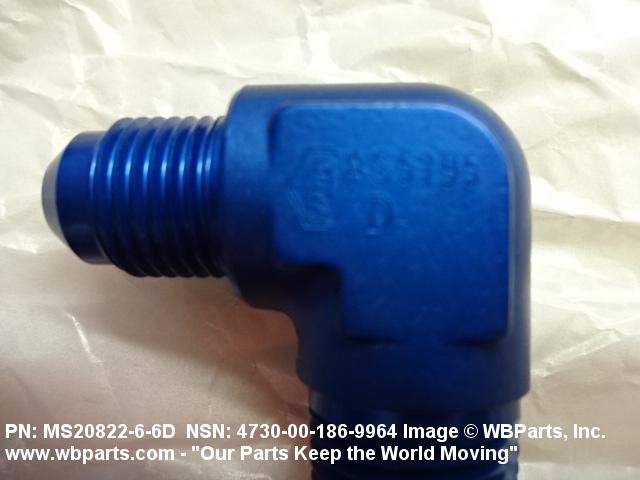

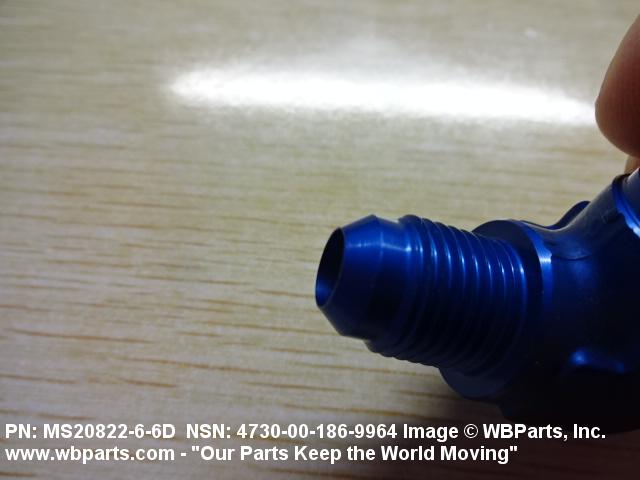

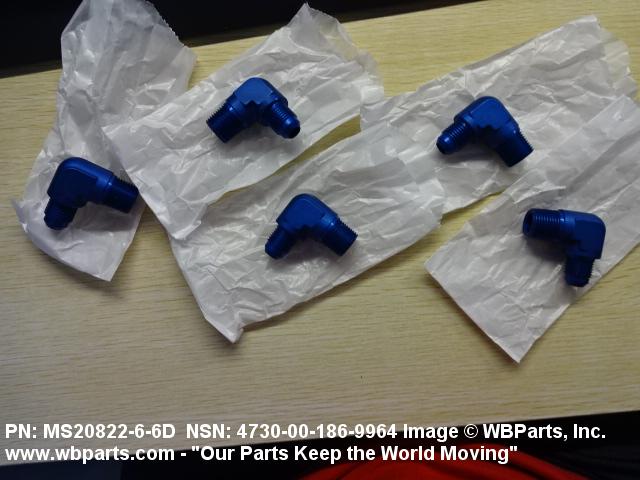

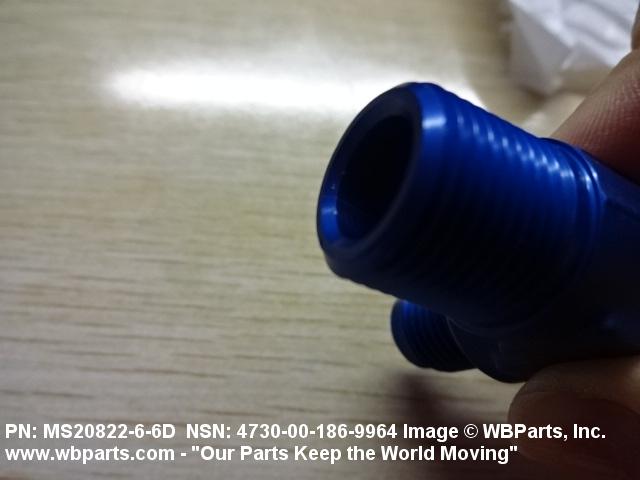

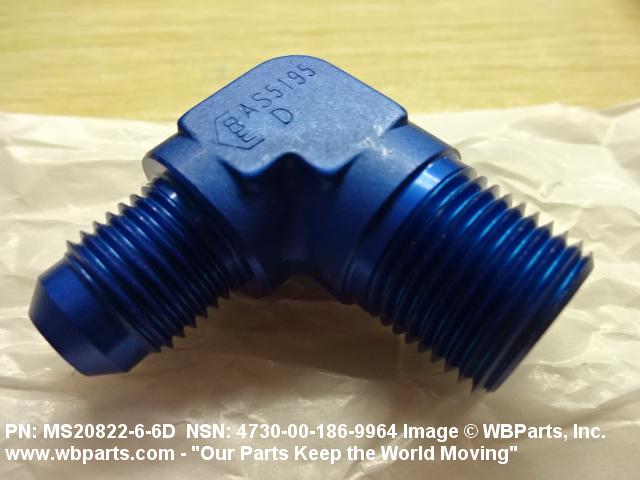

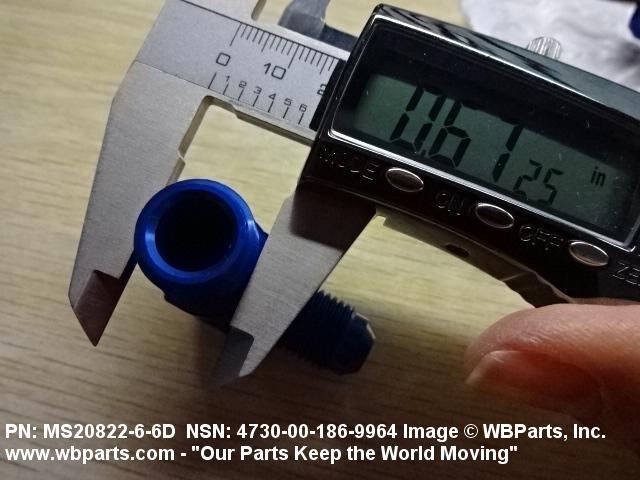

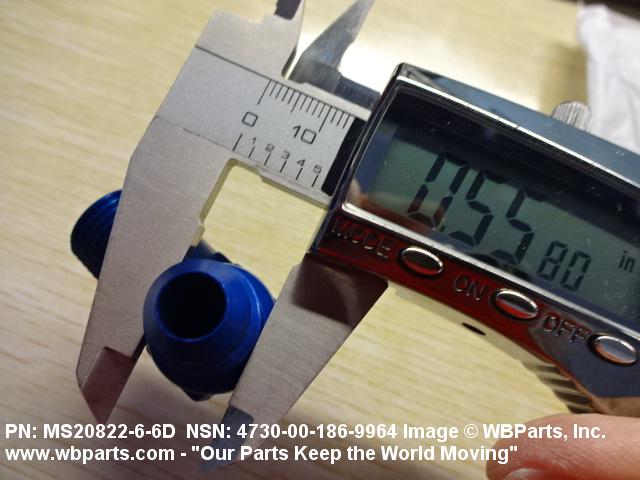

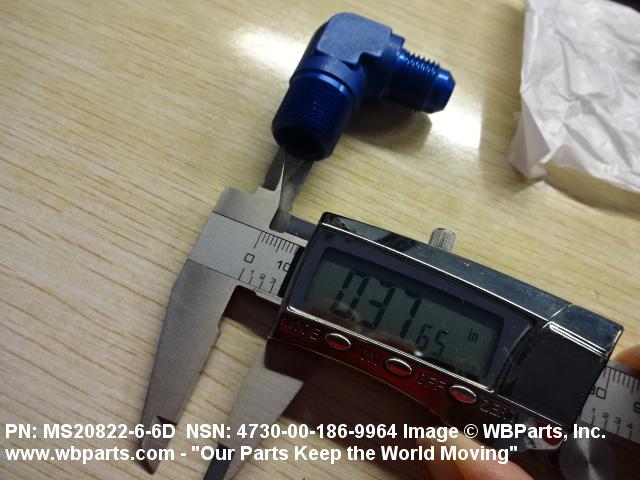

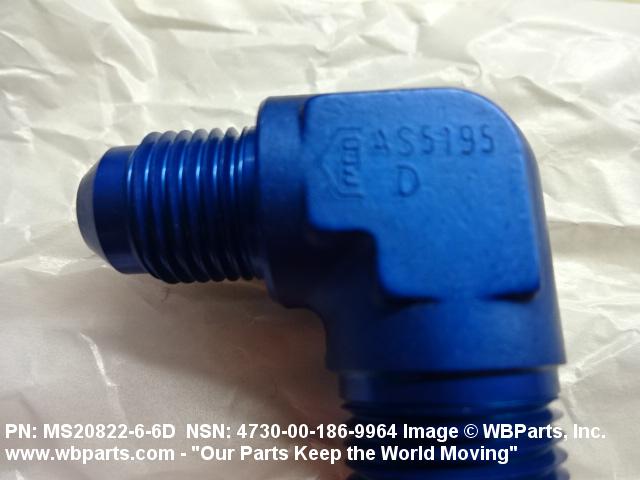

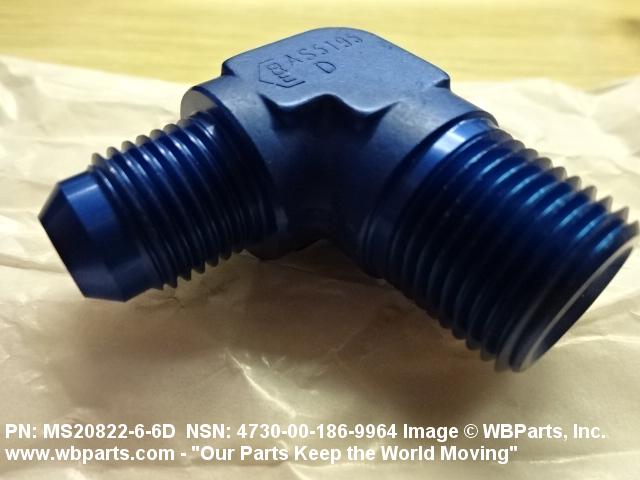

Drawings & Photos | NSN 4730-00-186-9964

Part Number	Request Date	QTY	Origin
4730-00-186-9964	2023-07-194	366	DIBBS
4730-00-186-9964	2023-06-152	10	India
4730-00-186-9964	2023-02-38	366	DIBBS
4730-00-186-9964	2022-11-317	219	DIBBS
4730-00-186-9964	2022-06-174	147	DIBBS
4730-00-186-9964	2020-11-314	148	DIBBS
4730-00-186-9964	2020-10-302	148	DIBBS
MS2082266D	2019-03-63	5	China
MS2082266D	2019-03-63	5	China
AS48421	2015-05-132	1	CA
MS2082266D	2012-08-241	60	United States
4730-00-186-9964	2011-08-220	527	DIBBS
4730-00-186-9964	2011-04-102	534	DIBBS
4730-00-186-9964	2011-02-55	352	DIBBS
4730-00-186-9964	2009-02-55	292	DIBBS
4730-00-186-9964	2009-01-07	45	United States
4730-00-186-9964	2009-01-07	1050	United States
4730-00-186-9964	2008-11-317	45	United States
4730-00-186-9964	2008-11-317	1050	United States

Cross Reference | NSN 4730-00-186-9964

Part Number	Cage Code	Manufacturer
10165-10	0LX27	WATTS AUTOMATIC CONTROL VALVE INC
1016510	59273	MUESCO INC DBA MUESCO MALLAY INC
AN822-6-6D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5195	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5195W0606	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS20822-6-60	95764	AIR ASSOCIATES INC
MS20822-6-6D	00624	EATON CORPORATION DBA AEROSPACE DIV
MS20822-6-6D	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
MS20822-6-6D	13899	HYDRO FITTING MANUFACTURING CORPORATION
MS20822-6-6D	14397	FABER ENTERPRISES, INC.
MS20822-6-6D	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
MS20822-6-6D	22995	CROWN FITTING CO INC
MS20822-6-6D	50948	PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN
MS20822-6-6D	71563	COLLINS ENGINEERING CORP
MS20822-6-6D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20822-6-6D	R1120	SATAIR A/S
MS20822-6-6D/ELBOW	FAQZ8	AERO PAUL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-186-9964

Compare

Related Products | NSN 4730-00-186-9964

4730-00-186-9965, 4730-00-186-9966, 4730-00-186-9967, 4730-00-186-9968, 4730-00-186-9969

Technical Data | NSN 4730-00-186-9964

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B67B PLAIN 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNJF 1ST END ANPT 2ND END
NOMINAL THREAD SIZE	0.562 INCHES 1ST END 0.375 INCHES 2ND END
THREAD CLASS	3A 1ST END
LEG LENGTH	1.188 INCHES NOMINAL ALL ENDS
FLOW ANGLE	90.0 DEGREES
SPECIAL FEATURES	GRUMMAN AEROSPACE A-10 AIRCRAFT
SPECIFICATION/STANDARD DATA	96906-MS20822 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	AIRCRAFT APPLICATION; REMOTE CONTROL SYSTEM,AN/TSM-106 SHOP EQUIPMENT,GUIDED MISSILE,REMOTE CONTROL SYSTEM
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20822-6-6D

Restrictions/Controls & Freight Information | NSN 4730-00-186-9964

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-186-9964

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
