NSN 4730-00-163-0492 11290255-5, 16516SS, 165-16-SS
Product Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-00-163-0492 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Part Alternates: 11290255-5, 16516SS, 165-16-SS, 4730-00-163-0492, 00-163-0492, 4730001630492, 112902555, 001630492
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 NOV 1971 | 00-163-0492 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |

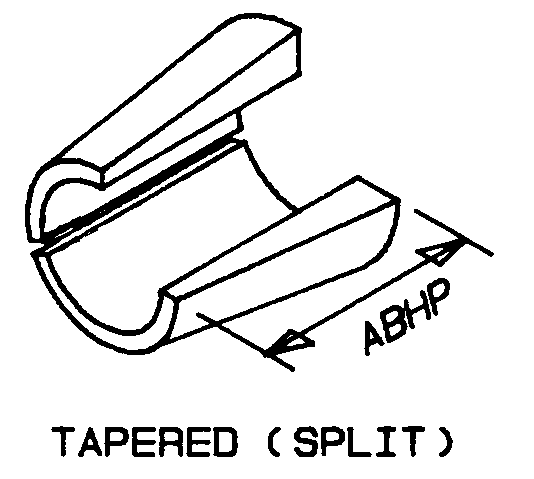

Drawings & Photos | NSN 4730-00-163-0492
Demand History | NSN 4730-00-163-0492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-163-0492 | 2022-09-264 | 20 | United States |
| 4730-00-163-0492 | 2018-08-231 | 1 | DIBBS |
| 4730-00-163-0492 | 2018-08-230 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-163-0492
Technical Data | NSN 4730-00-163-0492
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | K6 TAPERED |
| OVERALL LENGTH | 0.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-163-0492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-163-0492
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
