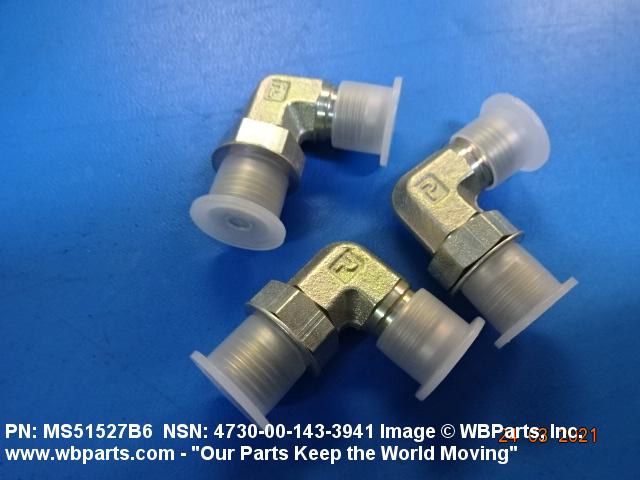

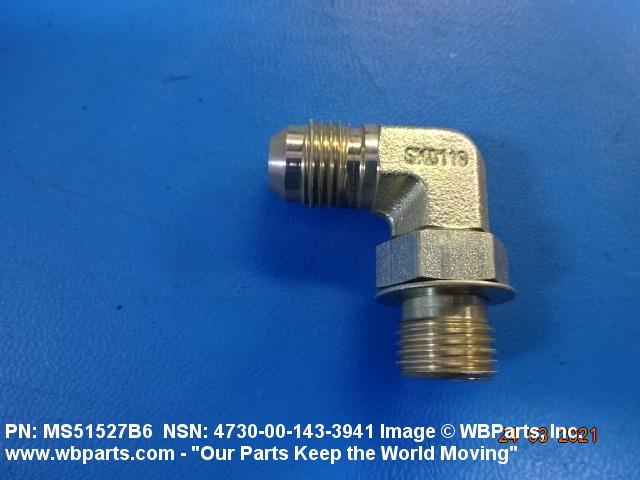

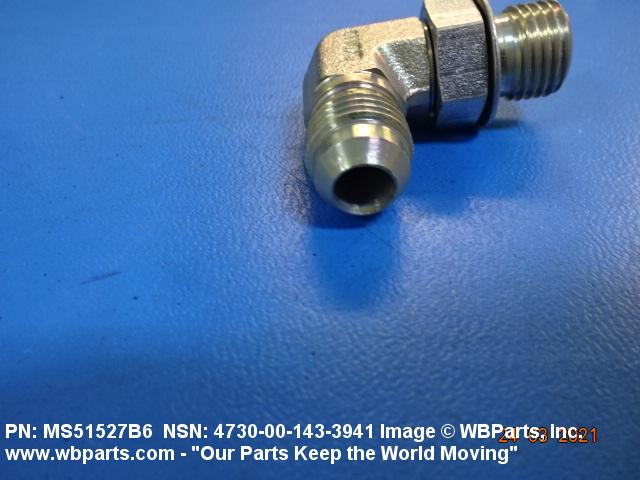

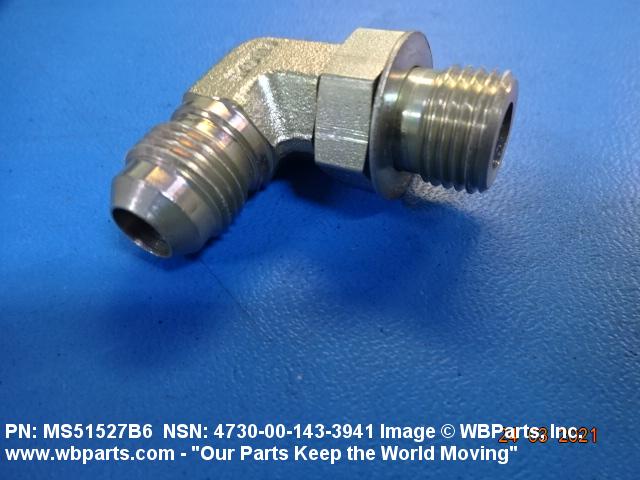

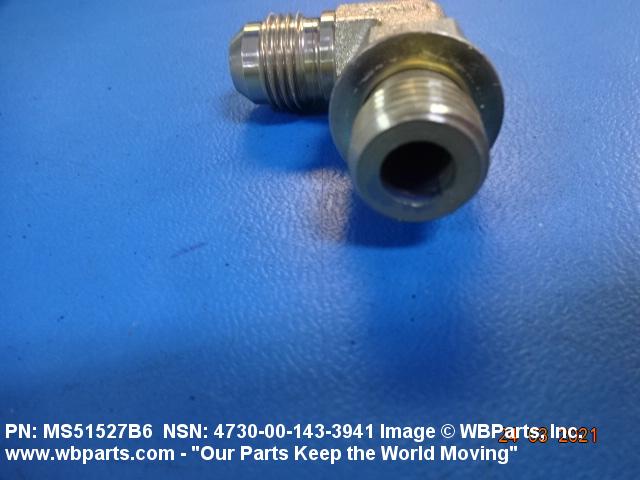

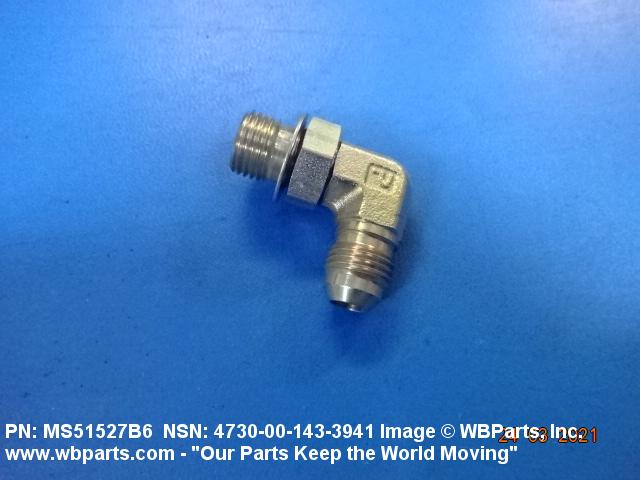

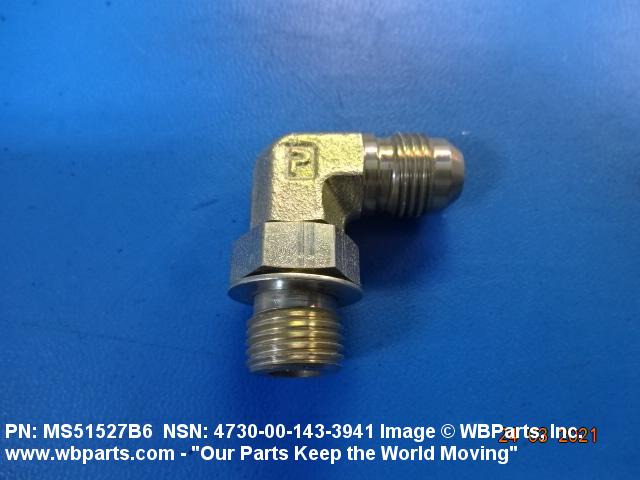

NSN 4730-00-143-3941 MS39321G6, MS51527A6, MS51527B6
Product Details | TUBE TO BOSS ELBOW
4730-00-143-3941 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.
Part Alternates: MS39321G6, MS51527A6, MS51527B6, A00671B006, A00671B-006, A107A85, A107A-85, A13253, A-13253, AC1389, AC-1-389, B107A83, B107A-83, C5515X6, SK6000121, SK-6000-1-21, MILF18866, MIL-F-18866, 00252083905, 00252-0839-05, 06044600, 102303, 10343086 , 104866S, 1048-6-6S, 10503867, 107A85, 11618713-7, 11664719, 13207E6770FN92, 17K5, 206266, 2062-6-6 , 206266S, 2062-6-6S , 20689003, 20689-003, 250366, 2503-6-6, 5014337, 5224680106, 5224-6801-06, 65D35432, 65D354321, 65D35432-1, 680106, 6801-06, 6BCAC, 6C50XS, 6C50X-S, 6C5BXS, 6C5OXS, 6SA6, 7445060645, 7-445-060645 , 849F5006X06, 849-F50-06X06, 849FS006X06, 849-FS0-06X06, 8967GX , 4730-00-143-3941, 00-143-3941, 4730010260446 , 4730001433941, 116187137, 001433941
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
47 | 24 JAN 1973 | 00-143-3941 | 22679 ( ELBOW, TUBE TO BOSS ) |
Demand History | NSN 4730-00-143-3941
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS51527B6 | 2024-05-137 | 55 | US |
MS51527B6 | 2024-05-134 | 55 | US |
4730-00-143-3941 | 2023-09-250 | 3714 | DIBBS |
4730-00-143-3941 | 2023-08-242 | 2899 | DIBBS |
4730-00-143-3941 | 2023-08-215 | 3438 | DIBBS |
4730-00-143-3941 | 2021-05-146 | 5015 | DIBBS |
4730-00-143-3941 | 2021-03-62 | 3 | Malaysia |
4730-00-143-3941 | 2021-02-33 | 2 | Malaysia |
MS51527A6 | 2020-09-261 | 6 | US |
4730-00-143-3941 | 2020-06-182 | 24 | MANUAL |
MS51527B6 | 2020-01-14 | 15 | United States |
MS51527B6 | 2020-01-14 | 15 | United States |
MS51527B6 | 2019-03-72 | 12 | United States |
4730-00-143-3941 | 2017-12-340 | 13240 | US |
4730-00-143-3941 | 2017-11-334 | 13240 | DIBBS |
4730-00-143-3941 | 2017-07-188 | 30 | US |
4730-00-143-3941 | 2017-05-128 | 13040 | DIBBS |
4730-00-143-3941 | 2015-12-344 | 5971 | DIBBS |
4730-00-143-3941 | 2015-09-245 | 2501 | DIBBS |
4730-00-143-3941 | 2014-07-195 | 5949 | DIBBS |
4730-00-143-3941 | 2014-07-183 | 5949 | DIBBS |
4730-00-143-3941 | 2013-10-303 | 3600 | DIBBS |
4730-00-143-3941 | 2013-06-159 | 0 | DIBBS |
4730-00-143-3941 | 2012-06-181 | 1656 | DIBBS |
4730-00-143-3941 | 2012-05-126 | 2538 | DIBBS |
4730-00-143-3941 | 2012-01-10 | 1118 | DIBBS |
4730-00-143-3941 | 2011-12-347 | 1631 | DIBBS |
6C50XS | 2011-09-259 | 6 | IN |
4730-00-143-3941 | 2011-07-189 | 3590 | DIBBS |
4730-00-143-3941 | 2011-06-180 | 1195 | DIBBS |
4730-00-143-3941 | 2011-06-164 | 665 | DIBBS |
6C50XS | 2011-06-154 | 6 | Philippines |
4730-00-143-3941 | 2011-04-101 | 1709 | DIBBS |
4730-00-143-3941 | 2011-02-33 | 1019 | DIBBS |
4730-00-143-3941 | 2008-08-226 | 1 | US |
6C50XS | 2007-05-123 | 2 | AT |
Cross Reference | NSN 4730-00-143-3941
Part Number | Cage Code | Manufacturer |
---|---|---|
00252-0839-05 | 05172 | AAI CORPORATION DIV MISSISSIPPI OPERATIONS |
00252-0839-05 | 06659 | TESTEK, INC. |
00252-0839-05 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
06044600 | 54217 | TEREX AERIALS INC |
102303 | 58312 | MIL-TECH MFG INC |
1048-6-6S | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
10503867 | 98247 | CANADIAN COMMERCIAL CORP DBACORPORATION COMMERCIALE |
107A85 | 03533 | CRANE CARRIER COMPANY |
11618713-7 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
11664719 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
13207E6770FN92 | 97403 | CECOM LR CENTER |
17K5 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
2062-6-6 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
2062-6-6S | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
2062-6-6S | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
20689-003 | 50653 | PRINTRONIX DATA PRINTER DIV |
2503-6-6 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
4730010260446 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
5014337 | 53711 | NAVAL SEA SYSTEMS COMMAND |
5224-6801-06 | 61796 | CEMEN TECH, INC. |
65D35432 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
65D35432-1 | 18894 | AIR ARMAMENT CENTER/ EN |
65D35432-1 | 98296 | STANDARD MFG CO INC |
6801-06 | 0S1H5 | TOMPKINS INDUSTRIES, INC. |
6BCAC | 63906 | VEYANCE TECHNOLOGIES, INC. DIV VEYANCE NORTH AMERICA |
6BCAC | 70434 | ANCHOR SWAN CORP SUB OF AMERACE CORP |
6C50X-S | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
6C5BXS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
6C5BXS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
6C5BXS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
6C5OXS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
6SA6 | 59257 | L AND L FITTINGS MFG |
7-445-060645 | 12361 | GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP |
849-F50-06X06 | 13174 | PARKER HANNIFIN CORP HOSE PRODUCTS DIV |
849-FS0-06X06 | 13174 | PARKER HANNIFIN CORP HOSE PRODUCTS DIV |
8967GX | 45152 | OSHKOSH CORPORATION |
A-13253 | 38999 | ARVA INDUSTRIES INC |
A00671B-006 | 94697 | MOOG, INC. |
A107A-85 | 03533 | CRANE CARRIER COMPANY |
AC-1-389 | 46717 | PETTIBONE LLC |
B107A-83 | 03533 | CRANE CARRIER COMPANY |
C5515X6 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
MIL-F-18866 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MS39321G6 | 16236 | DLA LAND AND MARITIME |
MS51527A6 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
MS51527A6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS51527A6 | A9271 | GORIZIANE GROUP SPA |
MS51527B6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
SK-6000-1-21 | 0EAK3 | GSE MANAGEMENT CO |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 4730-00-143-3941
Technical Data | NSN 4730-00-143-3941
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 12L14 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | J514 ASSN STD SINGLE TREATMENT RESPONSE AND QQ-P-416, TY 2, CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
MAXIMUM OPERATING TEMP | 400.0 DEG FAHRENHEIT SINGLE RESPONSE |
CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
CONNECTION STYLE | B64 FLARED 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
SEAT ANGLE | 37.0 DEGREES 1ST END |
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
THREAD SERIES DESIGNATOR | UNF ALL ENDS |
NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
THREAD CLASS | 2A ALL ENDS |
LEG LENGTH | 1.062 INCHES NOMINAL 1ST END 1.250 INCHES NOMINAL 2ND END |
FLOW ANGLE | 90.0 DEGREES |
FURNISHED ITEMS AND QUANTITY | 1 LOCKNUT AND 1 PREFORMED PACKING AND 1 FLAT WASHER |
SPECIFICATION/STANDARD DATA | 96906-MS51527 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
NONDEFINITIVE SPEC/STD DATA | 10A FIGURE |
III END ITEM IDENTIFICATION | GRUMMAN A-10 ACFT; 3990-01-442-1939 BAP (BRIDGE ADAPTER PALLET) |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-18866 |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51527A6 |
Restrictions/Controls & Freight Information | NSN 4730-00-143-3941
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 576 | unknown |
Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-143-3941
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
5 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
5 EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | K | Reserved |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
5 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
5 EA : Each |
