NSN 4730-00-080-2519 0081120007, 0081120-007, 01031008
Product Details | PIPE CAP
4730-00-080-2519 A pipe fitting primarily designed for permanent installation during piping system operation to fit over or butt against a pipe or pipe fitting for sealing. Excludes FLANGE, PIPE, BLIND.
Part Alternates: 0081120007, 0081120-007, 01031008, 13357, 825834, 8258-3-4, 847007, 847-007, 8601, 4730-00-080-2519, 00-080-2519, 4730000802519, 000802519
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 NOV 1972 | 00-080-2519 | 06073 ( CAP, PIPE ) |
Drawings & Photos | NSN 4730-00-080-2519
Demand History | NSN 4730-00-080-2519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0081120-007 | 2024-10-302 | 10 | DIBBS |
| 01031008 | 2024-10-302 | 10 | DIBBS |
| 847-007 | 2024-10-302 | 10 | DIBBS |
| 0081120-007 | 2024-09-260 | 6 | DIBBS |
| 01031008 | 2024-09-260 | 6 | DIBBS |
| 847-007 | 2024-09-260 | 6 | DIBBS |
| 4730-00-080-2519 | 2013-01-23 | 635 | DIBBS |
| 4730-00-080-2519 | 2012-01-20 | 450 | DIBBS |
| 4730-00-080-2519 | 2011-09-256 | 453 | DIBBS |
| 4730-00-080-2519 | 2009-05-150 | 387 | DIBBS |
| 4730-00-080-2519 | 2009-04-105 | 86 | DIBBS |
Cross Reference | NSN 4730-00-080-2519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0081120-007 | 54119 | CLEVELAND SERVICE CENTER |
| 01031008 | 14007 | NIBCO INC |
| 01031008 | 61623 | NIBCO INC CHEMTROL DIV |
| 13357 | 14007 | NIBCO INC |
| 8258-3-4 | 27782 | PLASTILINE INC |
| 847-007 | 14007 | NIBCO INC |
| 847-007 | 14889 | GEORGE FISCHER SLOANE INC. |
| 847-007 | 61623 | NIBCO INC CHEMTROL DIV |
| 847-007 | 96405 | LASCO INDUSTRIES |
| 8601 | 27286 | ESLON THERMOPLASTICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-080-2519
Related Products | NSN 4730-00-080-2519
Technical Data | NSN 4730-00-080-2519
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |

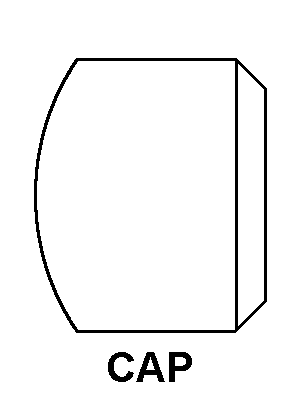

| STYLE DESIGNATOR | A4 CAP |

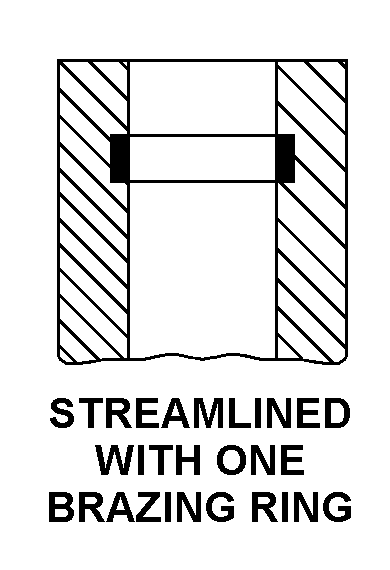

| CONNECTION STYLE | H2 STREAMLINED WITH ONE BRAZING RING |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.750 INCHES |
| SPECIAL FEATURES | SCHEDULE 80 PIPE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 690.000 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 75.000 DEG FAHRENHEIT ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-00-080-2519
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-080-2519
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
