NSN 4730-00-052-5742 12Z61482, 12Z6148-2, 4TXB
Product Details | TUBE FITTING FLARED SLEEVE
4730-00-052-5742 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: 12Z61482, 12Z6148-2, 4TXB, 4TXCS, 97330989, 9733098-9, 4730-00-052-5742, 00-052-5742, 4730000525742, 000525742
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-052-5742 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

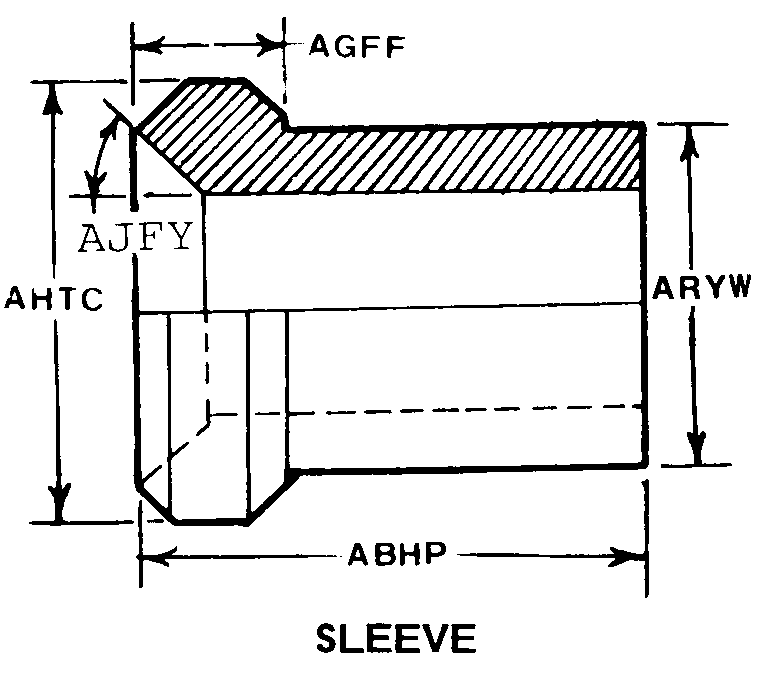

Drawings & Photos | NSN 4730-00-052-5742
Demand History | NSN 4730-00-052-5742
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4TXB | 2024-11-310 | 4 | United States |
| 4730-00-052-5742 | 2023-07-198 | 477 | DIBBS |
| 4730-00-052-5742 | 2023-07-187 | 477 | DIBBS |
| 4730-00-052-5742 | 2022-06-172 | 582 | DIBBS |
Cross Reference | NSN 4730-00-052-5742
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z6148-2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 4TXB | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4TXB | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 4TXB | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 4TXCS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4TXCS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 4TXCS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 9733098-9 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
