NSN 4730-00-038-7015 MS518233, MS51823-3, J514

Product Details | TUBE COUPLING NUT

4730-00-038-7015 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.

Part Alternates: MS518233, MS51823-3, J514, 4 080110C, 4080110C, 4730-00-038-7015, 00-038-7015, 4730000387015, 000387015

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	13 NOV 1972	00-038-7015	03859 ( NUT, TUBE COUPLING )

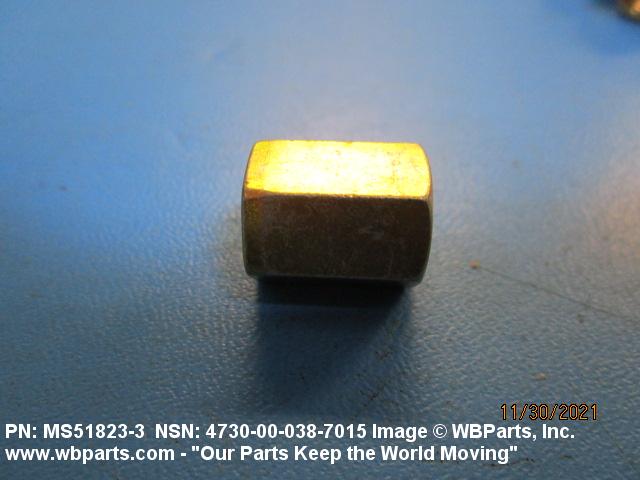

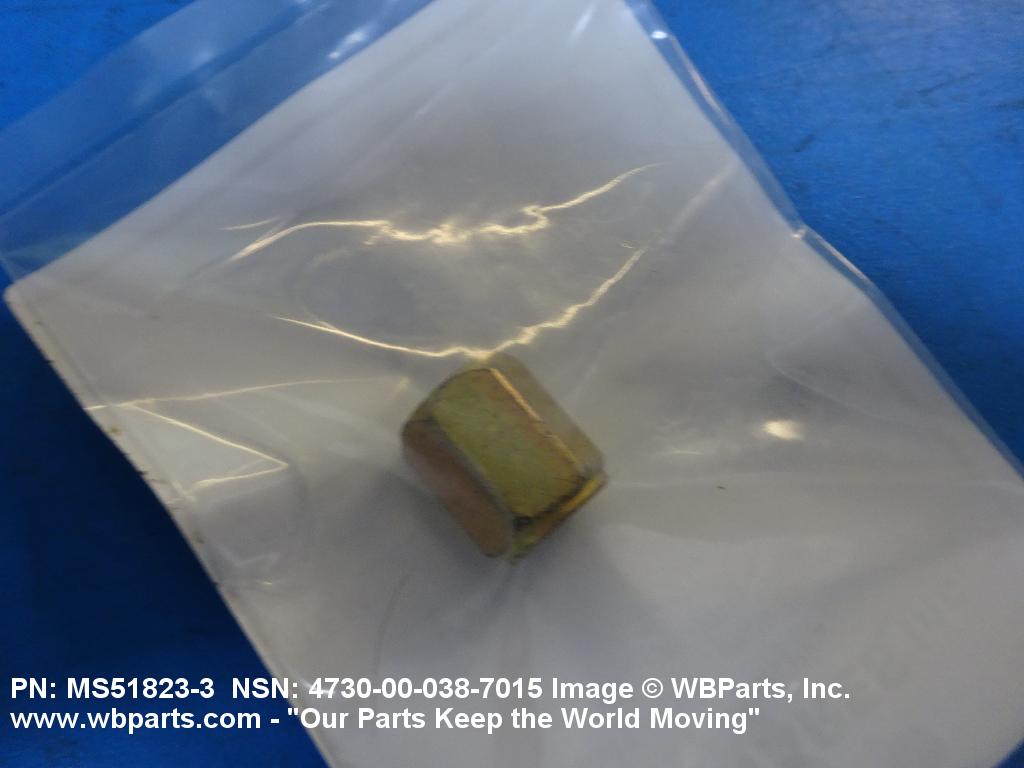

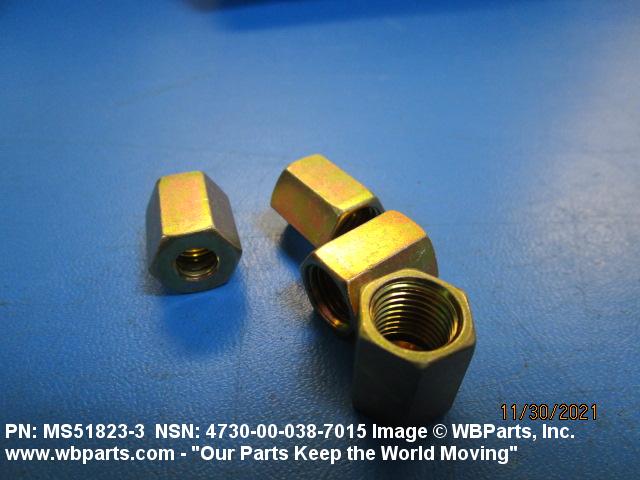

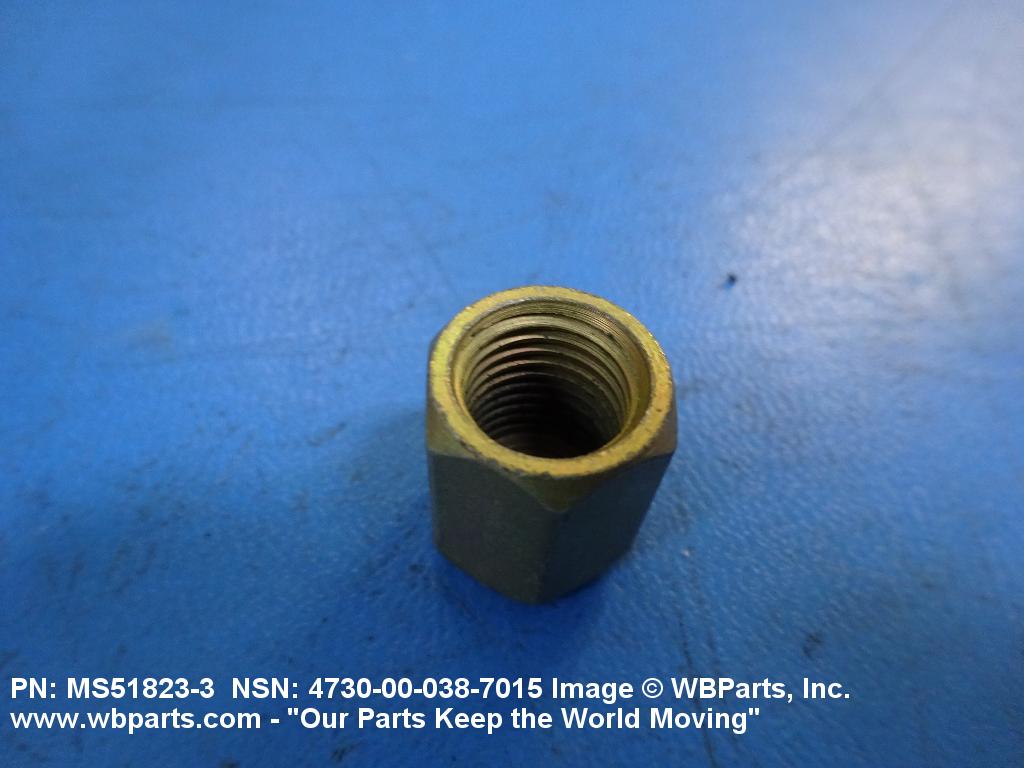

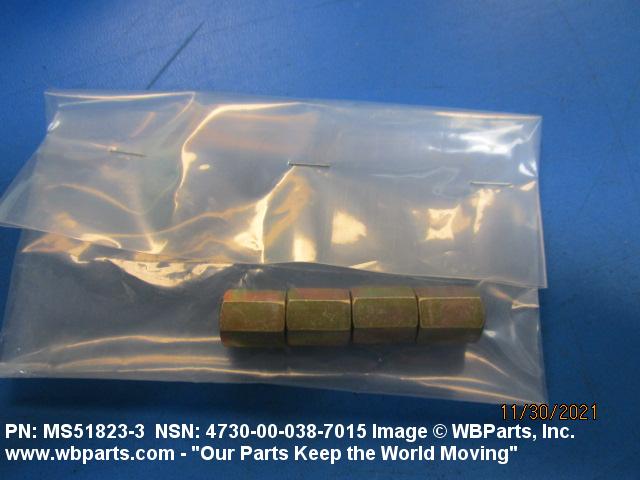

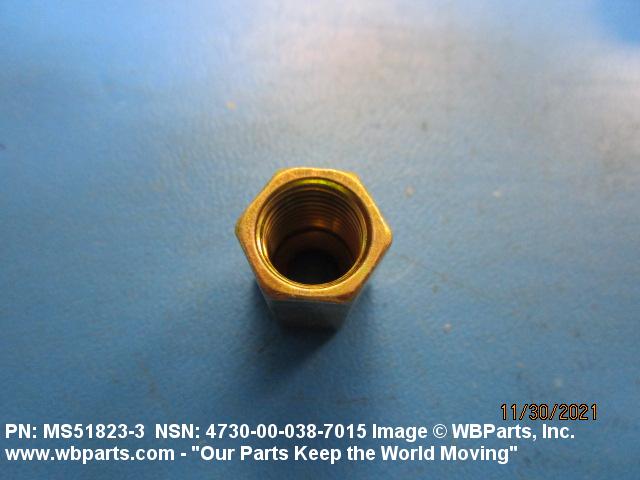

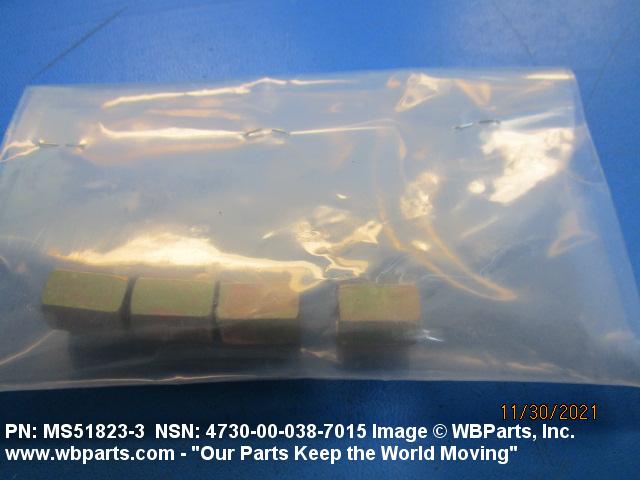

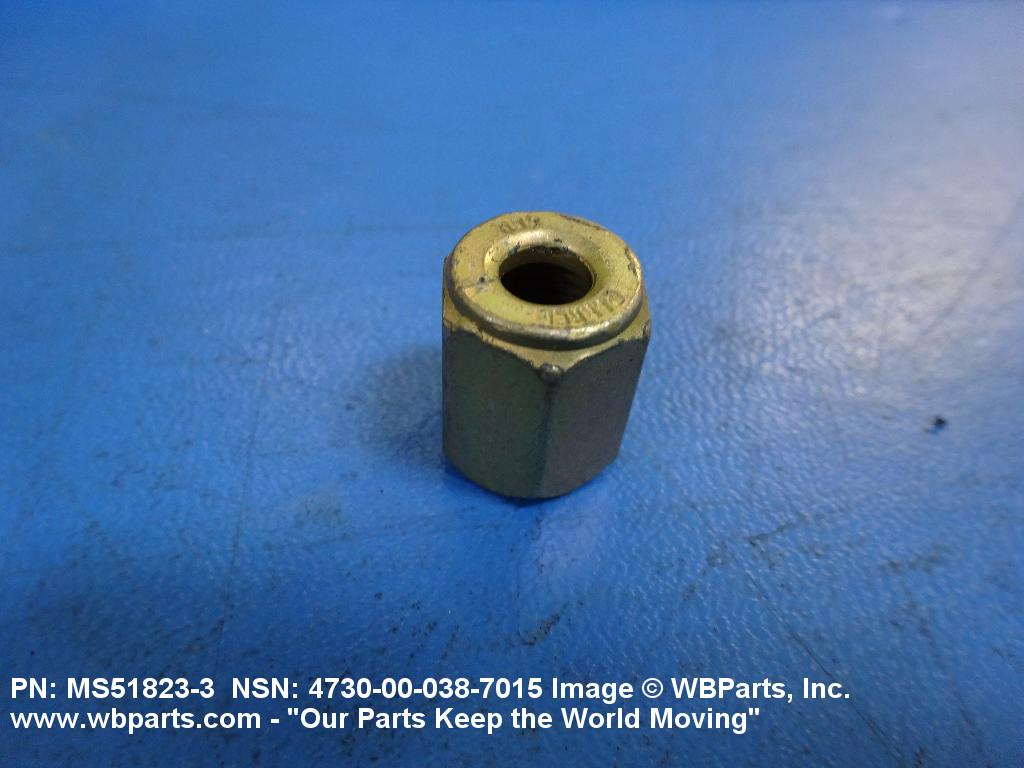

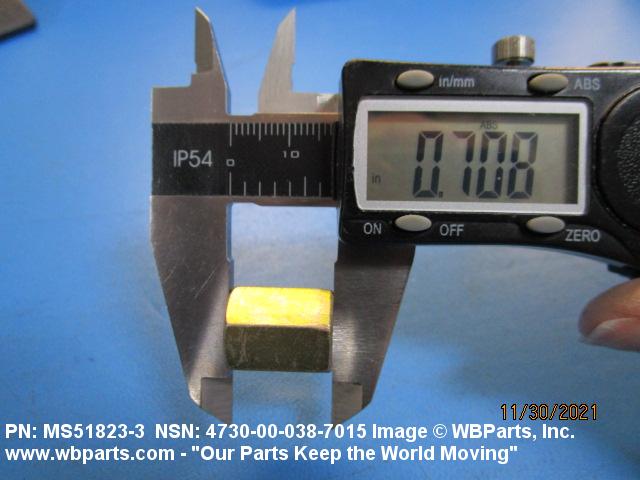

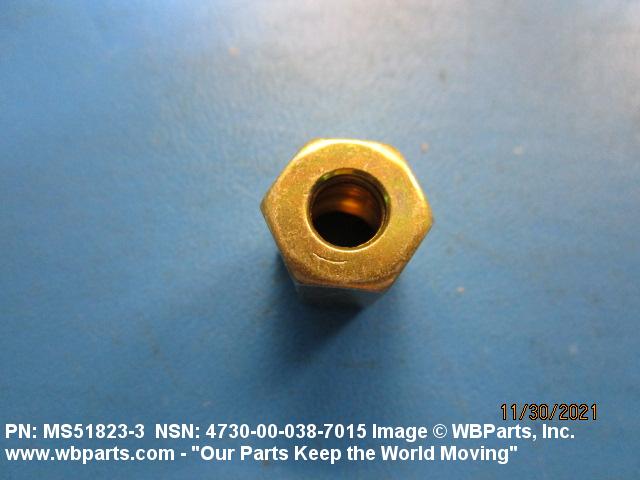

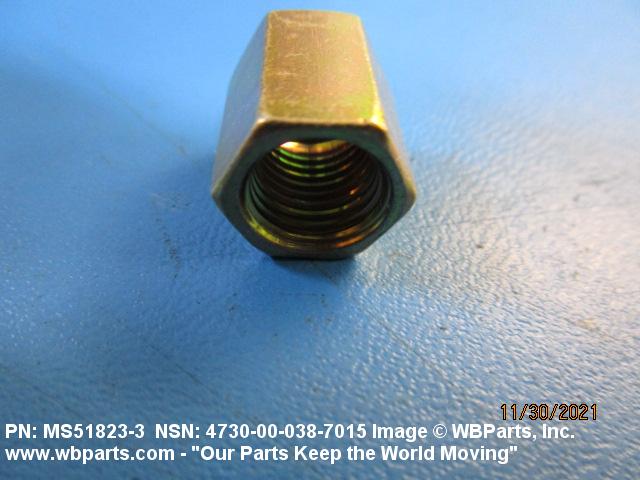

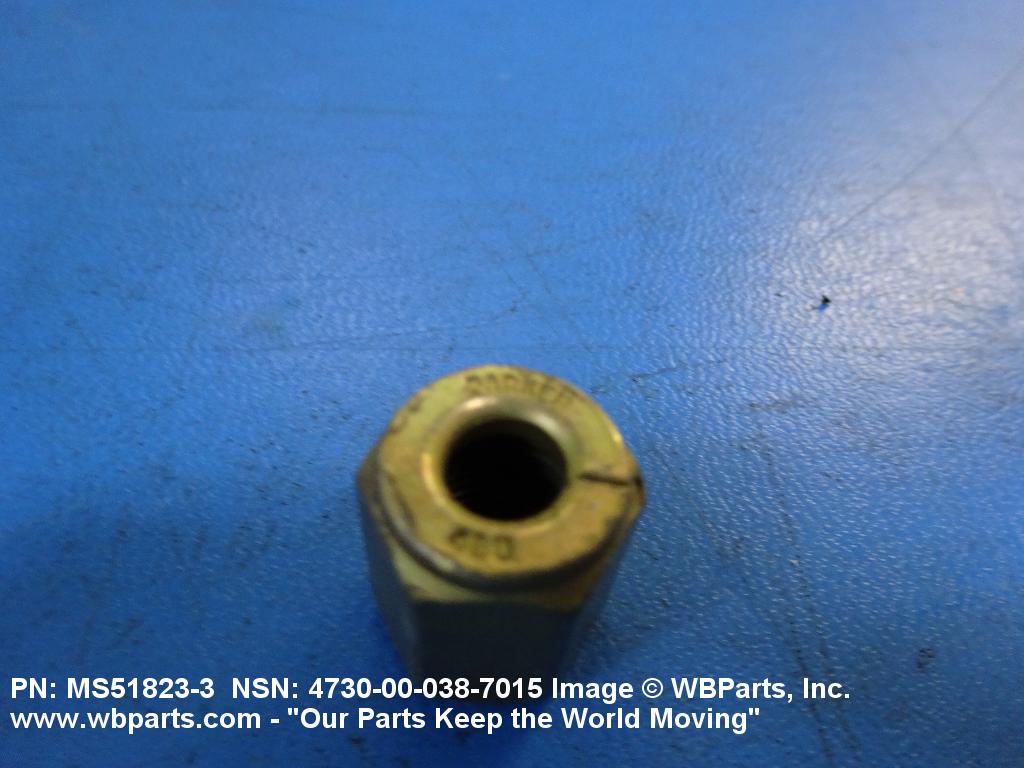

Drawings & Photos | NSN 4730-00-038-7015

Part Number	Request Date	QTY	Origin
4730-00-038-7015	2022-10-284	4	ES
MS518233	2022-09-250	1	ES
MS518233	2022-05-132	8	United States
MS518233	2022-04-91	12	United States
4730-00-038-7015	2022-03-76	10	US
MS518233	2022-03-60	1	United States
MS518233	2022-01-27	2	United States
4730-00-038-7015	2021-11-326	4	United States
4730-00-038-7015	2021-11-326	12	United States
4730-00-038-7015	2021-11-326	200	United States
4730-00-038-7015	2021-06-181	4	United States
MS518233	2021-06-181	4	United States
4730-00-038-7015	2020-08-219	12	United States
4730-00-038-7015	2019-11-323	1	United States
4730-00-038-7015	2016-01-20	1563	DIBBS
J514	2015-02-48	1	us
4730-00-038-7015	2014-02-41	626	DIBBS
4730-00-038-7015	2012-08-229	304	DIBBS
4730-00-038-7015	2012-04-97	304	DIBBS
4730-00-038-7015	2012-01-09	304	DIBBS
4730-00-038-7015	2011-12-349	379	DIBBS
4730-00-038-7015	2011-10-290	304	DIBBS
4730-00-038-7015	2011-08-213	60	DIBBS
4730-00-038-7015	2011-06-172	77	DIBBS
4730-00-038-7015	2011-05-137	101	DIBBS
J514	2010-02-47	20	us

Cross Reference | NSN 4730-00-038-7015

Part Number	Cage Code	Manufacturer
4730000387015	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
MS51823-3	00624	EATON CORPORATION DBA AEROSPACE DIV
MS51823-3	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
MS51823-3	11328	AEROQUIP CORP AEROSPACE DIV
MS51823-3	22031	AIR-WAY MANUFACTURING COMPANY
MS51823-3	30327	IMPERIAL
MS51823-3	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
MS51823-3	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
MS51823-3	79470	DANA CORP WEATHERHEAD DIV
MS51823-3	93188	L AND L MFG CO
MS51823-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51823-3	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
MS51823-3	98660	LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV
MS51823-3	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-038-7015

Compare

Related Products | NSN 4730-00-038-7015

4730-00-038-7023, 4730-00-038-7030, 4730-00-038-7052, 4730-00-038-7078, 4730-00-038-7080

Technical Data | NSN 4730-00-038-7015

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.437 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	J514 ASSN STD SINGLE TREATMENT RESPONSE AND QQ-P-416, TY 2, CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
NUT STYLE	A350 TUBE COUPLING

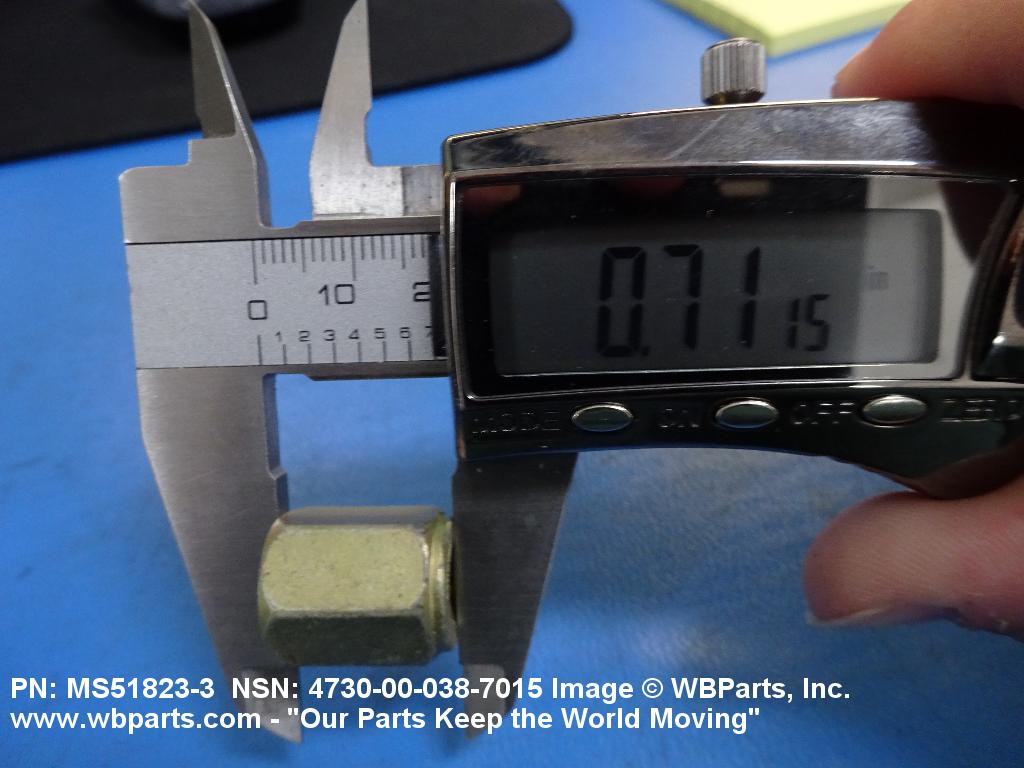

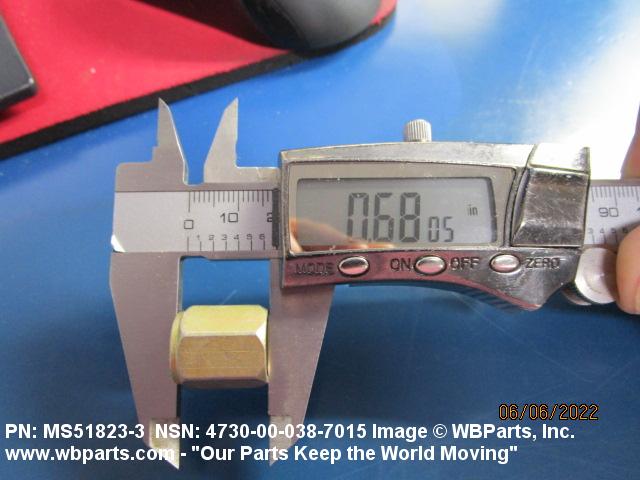

NUT HEIGHT	0.680 INCHES MINIMUM AND 0.720 INCHES MAXIMUM

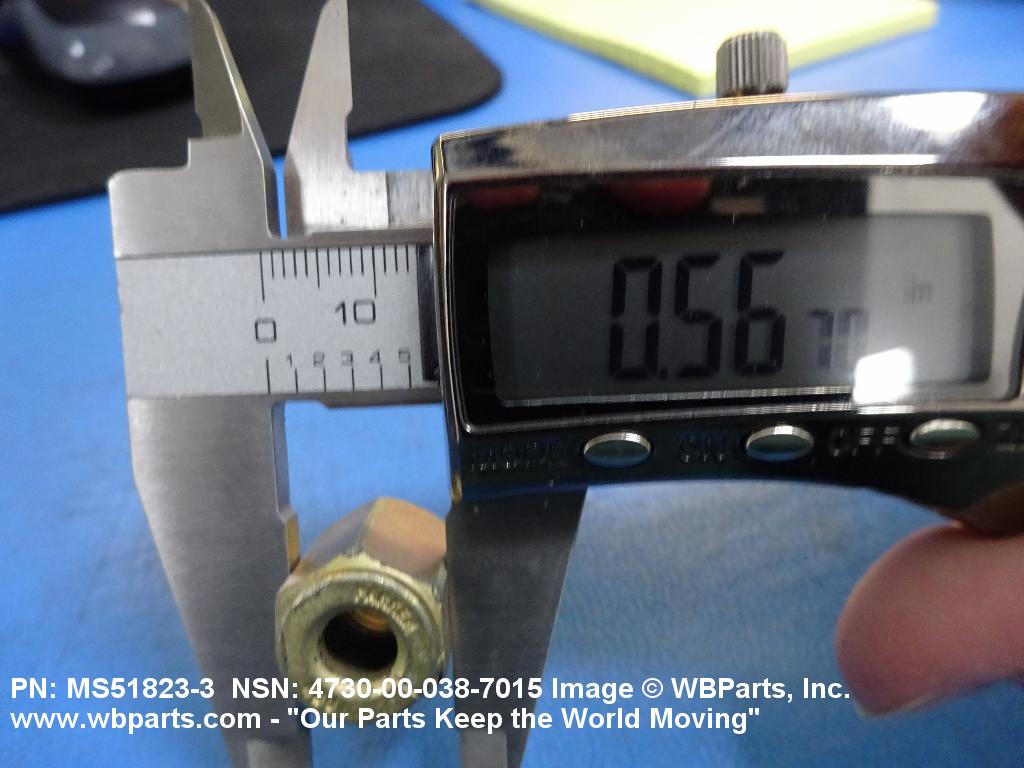

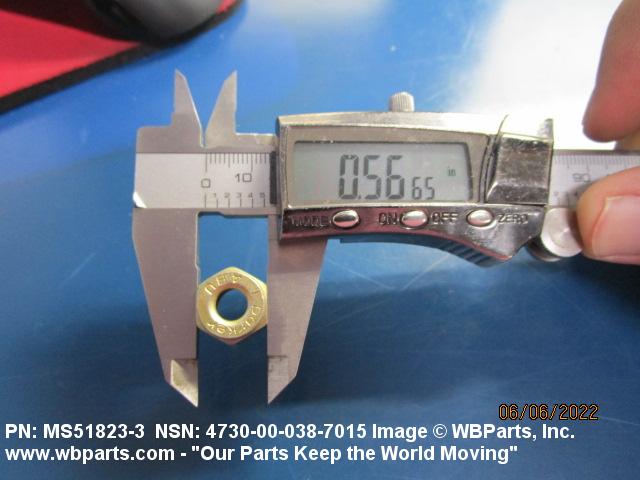

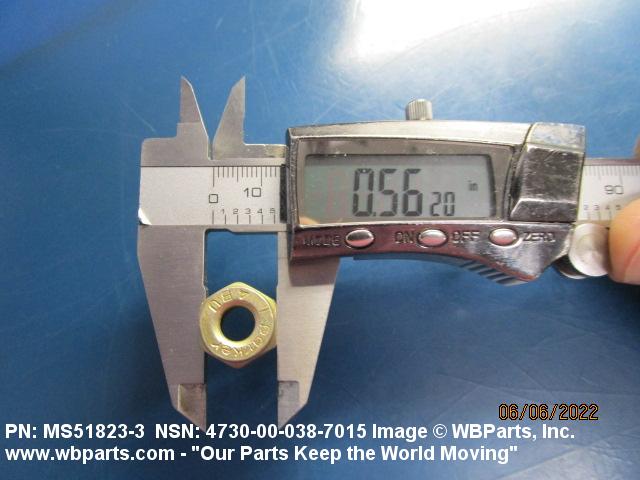

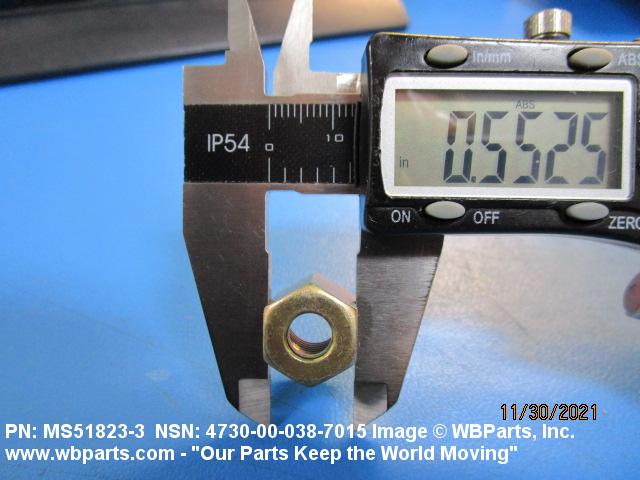

WIDTH ACROSS FLATS	0.562 INCHES NOMINAL
LENGTH TO SHOULDER	0.537 INCHES MINIMUM AND 0.552 INCHES MAXIMUM

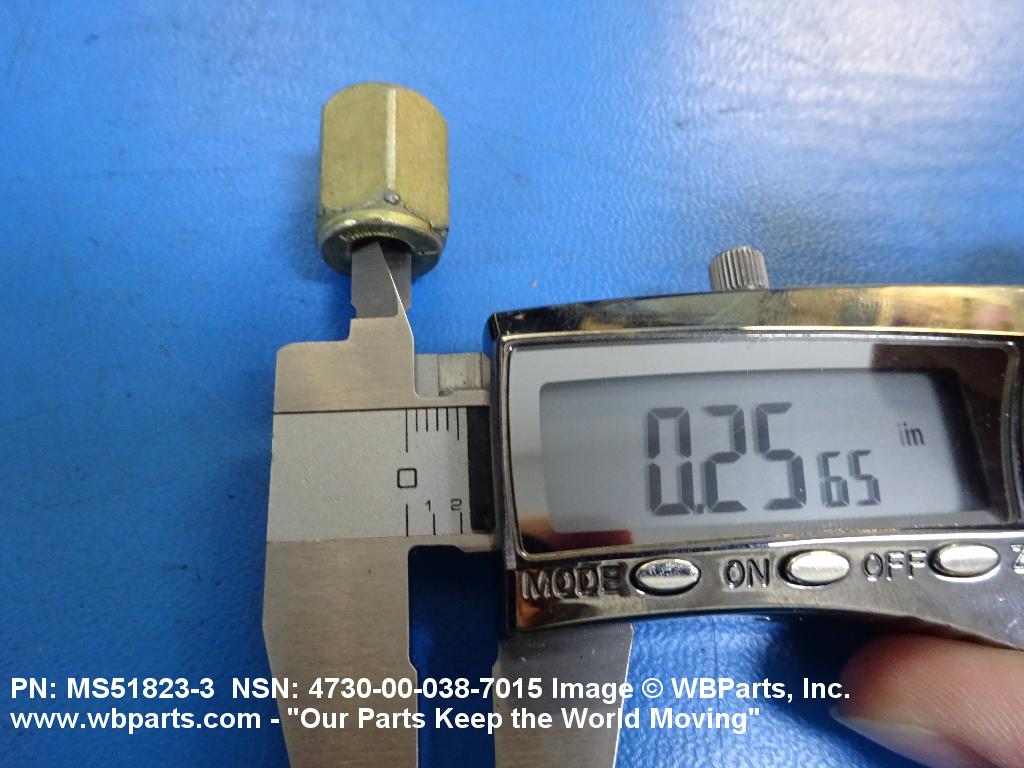

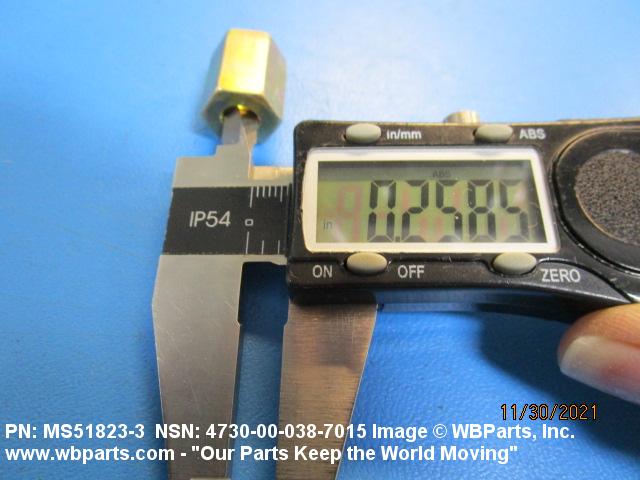

SMALLEST INSIDE DIAMETER	0.255 INCHES MINIMUM AND 0.258 INCHES MAXIMUM
SEAT ANGLE	45.00 DEGREES NOMINAL
FABRICATION METHOD	ANY ACCEPTABLE
NOMINAL TUBE OUTSIDE DIAMETER	0.250 INCHES
SPECIFICATION/STANDARD DATA	96906-MS51823 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	31 FIGURE
III END ITEM IDENTIFICATION	2350-01-031-0586
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51823-3

Restrictions/Controls & Freight Information | NSN 4730-00-038-7015

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-038-7015

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
