NSN 4720-01-465-5784 FC35508, FC355-08, 01-465-5784
Product Details | NONMETALLIC HOSE
4720-01-465-5784 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: FC35508, FC355-08, 4720-01-465-5784, 01-465-5784, 4720014655784, 014655784
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 JUN 1999 | 01-465-5784 | 22670 ( HOSE, NONMETALLIC ) |

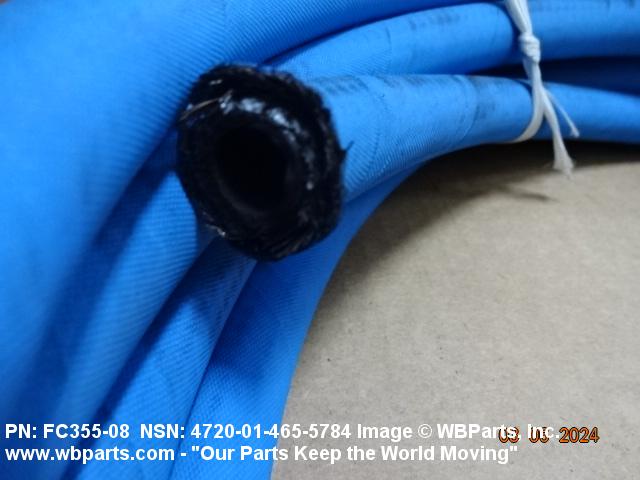

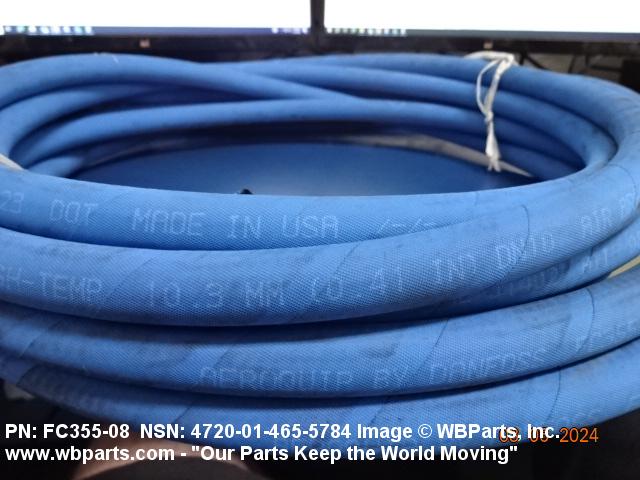

Drawings & Photos | NSN 4720-01-465-5784
Demand History | NSN 4720-01-465-5784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-465-5784 | 2024-02-60 | 15 | United States |
| 4720-01-465-5784 | 2024-02-60 | 16 | United States |
| 4720-01-465-5784 | 2022-09-245 | 10 | United States |
Cross Reference | NSN 4720-01-465-5784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FC355-08 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-465-5784
Technical Data | NSN 4720-01-465-5784
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| INSIDE SURFACE CONDITION | SMOOTH |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.410 INCHES NOMINAL |

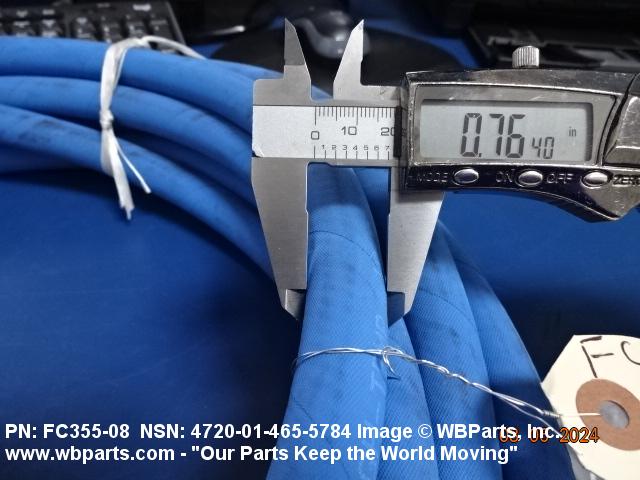

| OUTSIDE DIAMETER | 0.770 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | 1.750 INCHES |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 1250.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 5000.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4720-01-465-5784
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
