NSN 4720-00-415-1362 MS521301B206, MS521301B206R, ZZH428
Product Details | NONMETALLIC HOSE
4720-00-415-1362 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: MS521301B206, MS521301B206R, ZZH428, ZZ-H-428, 20R1ECSC25XR, 20R1ECS-C-25XR, 4720-00-415-1362, 00-415-1362, 4720004151362, 004151362
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 NOV 1970 | 00-415-1362 | 22670 ( HOSE, NONMETALLIC ) |

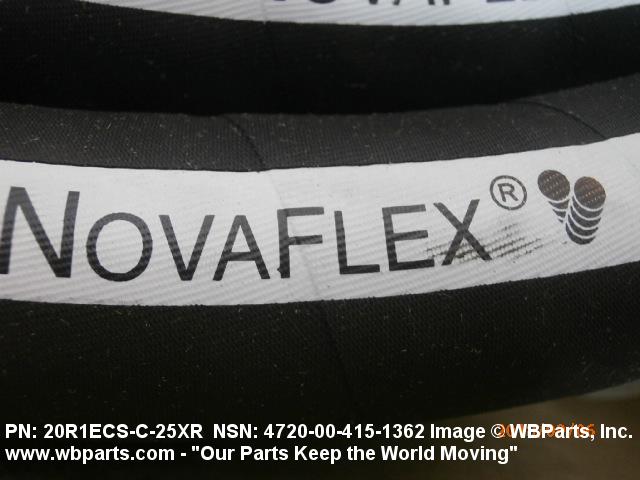

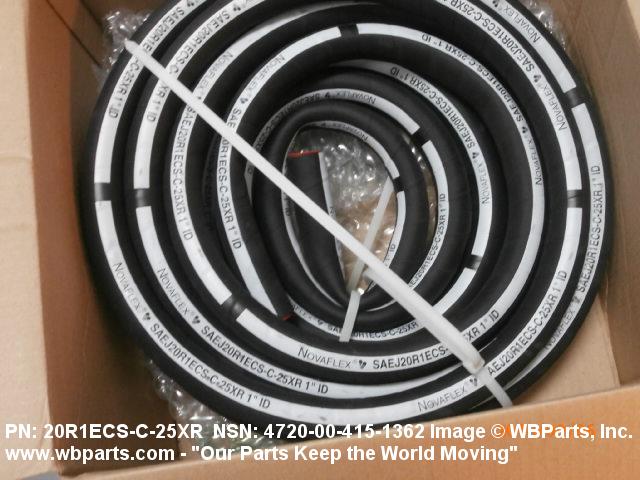

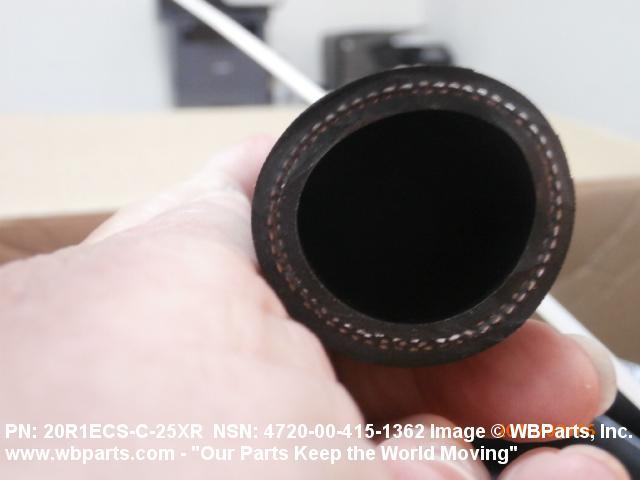

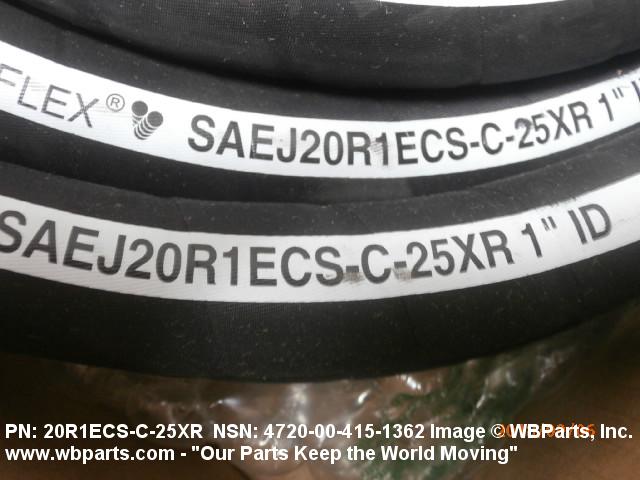

Drawings & Photos | NSN 4720-00-415-1362
Demand History | NSN 4720-00-415-1362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-415-1362 | 2024-05-123 | 901 | DIBBS |
| 4720-00-415-1362 | 2024-02-46 | 259 | DIBBS |
| 4720-00-415-1362 | 2023-11-316 | 371 | DIBBS |
| 4720-00-415-1362 | 2022-03-67 | 178 | DIBBS |
| 4720-00-415-1362 | 2020-02-55 | 30 | Netherlands |
| 4720-00-415-1362 | 2018-04-92 | 30 | Netherlands |
| 4720-00-415-1362 | 2011-09-262 | 626 | DIBBS |
| 4720-00-415-1362 | 2011-08-224 | 1711 | DIBBS |
| 4720-00-415-1362 | 2008-12-339 | 637 | DIBBS |
Cross Reference | NSN 4720-00-415-1362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20R1ECS-C-25XR | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS521301B206 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS521301B206R | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| ZZ-H-428 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-415-1362
Related Products | NSN 4720-00-415-1362
Technical Data | NSN 4720-00-415-1362
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, ETHYLENE PROPYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED TEXTILE YARN OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND OIL RESISTANT AND OZONE RESISTANT AND MILDEW RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

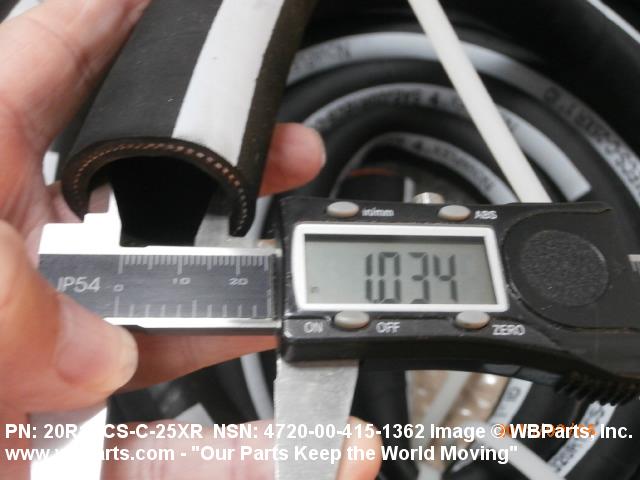

| INSIDE DIAMETER | 1.000 INCHES NOMINAL |

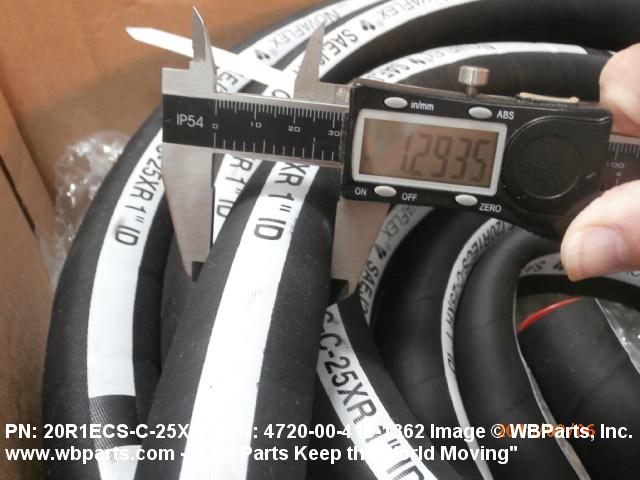

| OUTSIDE DIAMETER | 1.219 INCHES NOMINAL |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 212.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | 275.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81343 SAE J20-1 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4720-00-415-1362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 195040 | WASTE:HOSE FABRIC RUBR COMB |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-415-1362
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
