NSN 4720-01-273-9160 M24136/3-10, M24136310, MILH24136
Product Details | NONMETALLIC HOSE
4720-01-273-9160 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M24136/3-10, M24136310, MILH24136, MIL-H-24136, 258010, 2580-10, 305B, 4720-01-273-9160, 01-273-9160, 4720012739160, 012739160
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 03 MAR 1988 | 01-273-9160 | 22670 ( HOSE, NONMETALLIC ) |

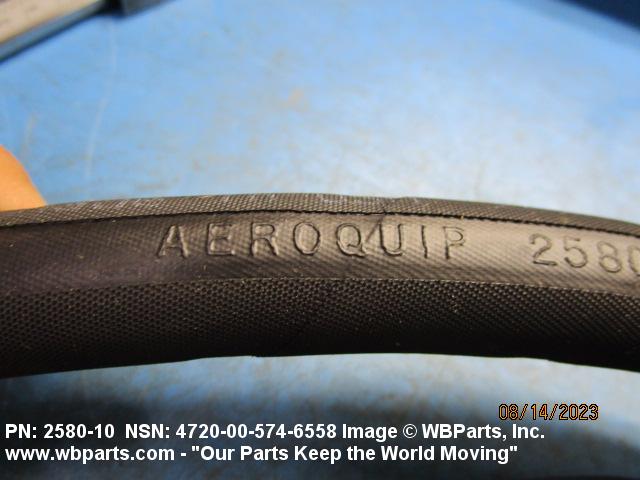

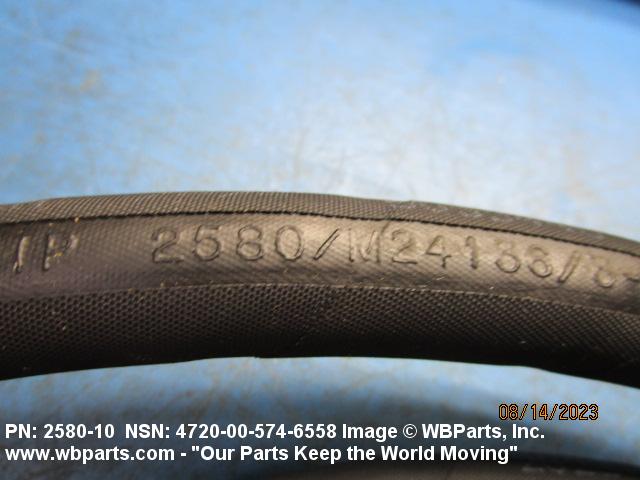

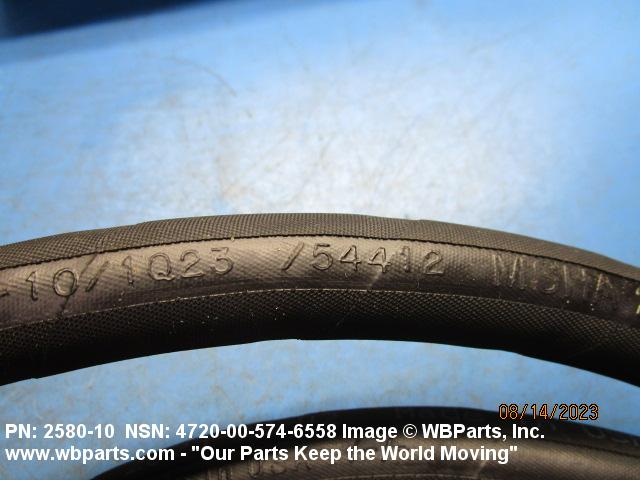

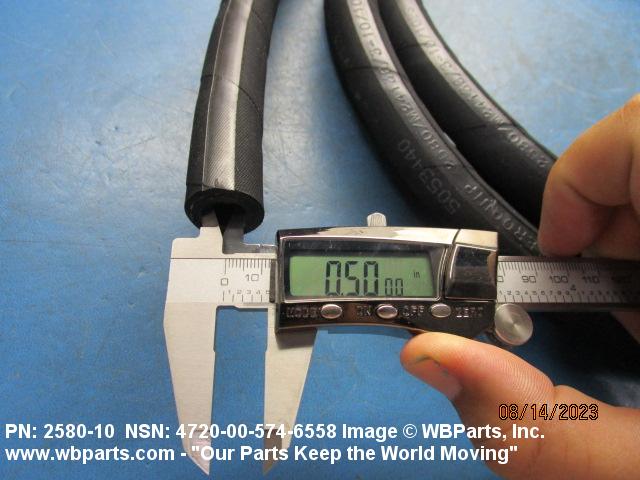

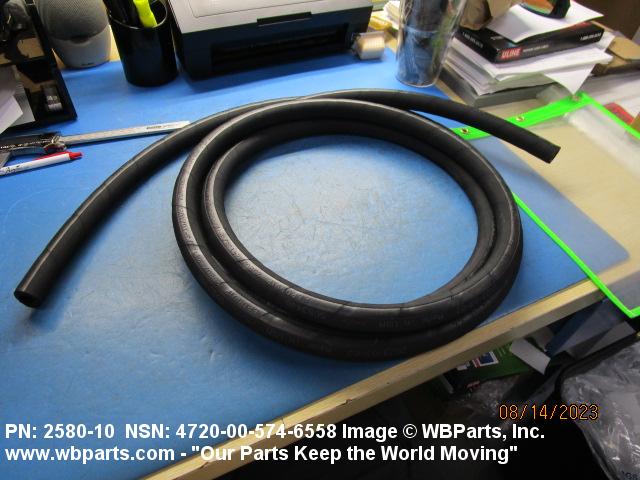

Drawings & Photos | NSN 4720-01-273-9160
Demand History | NSN 4720-01-273-9160
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 258010 | 2023-08-04 | 12 | United States |
| 4720-01-273-9160 | 2017-07-20 | 42 | DIBBS |
| 4720-01-273-9160 | 2017-07-09 | 42 | DIBBS |
| 4720-01-273-9160 | 2017-07-04 | 15 | DIBBS |
| 4720-01-273-9160 | 2014-04-01 | 116 | DIBBS |
| 4720-01-273-9160 | 2013-12-09 | 97 | DIBBS |
| 4720-01-273-9160 | 2013-12-06 | 35 | DIBBS |
| 4720-01-273-9160 | 2013-12-05 | 12 | DIBBS |
| 4720-01-273-9160 | 2013-10-03 | 109 | DIBBS |
Cross Reference | NSN 4720-01-273-9160
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-01-273-9160
Technical Data | NSN 4720-01-273-9160
| Characteristic | Specifications |
|---|---|
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 01276 |
| DESIGN CONTROL REFERENCE | 2580-10 |
Restrictions/Controls & Freight Information | NSN 4720-01-273-9160
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-273-9160
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
X FT : Foot |
