NSN 4720-01-146-1066 6041200, 604-1200, 01-146-1066
Product Details | METALLIC HOSE ASSEMBLY
4720-01-146-1066 A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY.
Part Alternates: 6041200, 604-1200, 4720-01-146-1066, 01-146-1066, 4720011461066, 011461066
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 JAN 1983 | 01-146-1066 | 17972 ( HOSE ASSEMBLY, METALLIC ) |

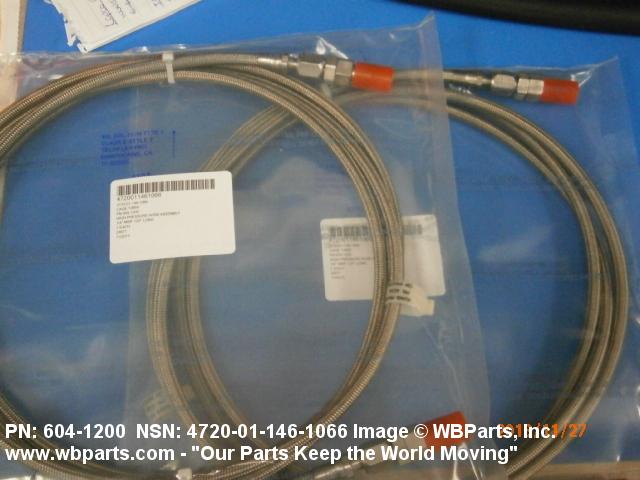

Drawings & Photos | NSN 4720-01-146-1066
Demand History | NSN 4720-01-146-1066
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 604-1200 | 2021-06-161 | 6 | DIBBS |
| 604-1200 | 2020-06-163 | 3 | DIBBS |
| 604-1200 | 2020-06-159 | 10 | DIBBS |
| 604-1200 | 2020-03-86 | 6 | DIBBS |
| 604-1200 | 2019-06-171 | 4 | DIBBS |
| 4720-01-146-1066 | 2014-05-132 | 7 | DIBBS |
| 4720-01-146-1066 | 2014-04-120 | 7 | DIBBS |
| 4720-01-146-1066 | 2013-11-323 | 1 | United States |
| 4720-01-146-1066 | 2013-11-311 | 1 | United States |
| 4720-01-146-1066 | 2012-08-215 | 1 | DIBBS |
Cross Reference | NSN 4720-01-146-1066
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 604-1200 | 13859 | KING NUTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-01-146-1066
Related Products | NSN 4720-01-146-1066
Technical Data | NSN 4720-01-146-1066
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE STYLE | 10 ANNULAR CLOSE-PITCH CORRUGATED |
| INNER CONVEYING TUBE MATERIAL | STEEL, QQ-S-763, CLASS 305 |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.037 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.094 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 120.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 2.500 INCHES |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D5 PLAIN |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING STEEL, QQ-S-763, CLASS 305 |
| FIRST END THREAD SERIES DESIGNATOR | UNS |
| FIRST END NOMINAL THREAD SIZE | 0.250 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 24 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | 10000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 40000.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4720-01-146-1066
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-146-1066
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
