NSN 4720-00-915-5880 S2190402006, S21904-02006, S219042006
Product Details | METALLIC HOSE ASSEMBLY
4720-00-915-5880 A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY.
Part Alternates: S2190402006, S21904-02006, S219042006, S21904-2006, 1083580196, 108358-0196, 1083580202, 108358-0202, 5211, 4720-00-915-5880, 00-915-5880, 4720009155880, 009155880
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 NOV 1965 | 00-915-5880 | 17972 ( HOSE ASSEMBLY, METALLIC ) |

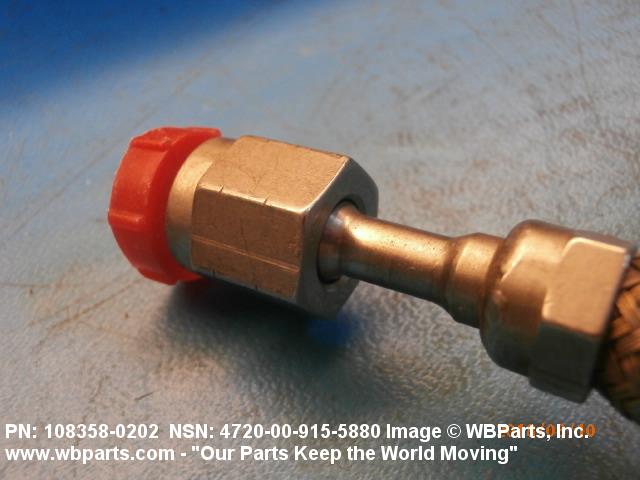

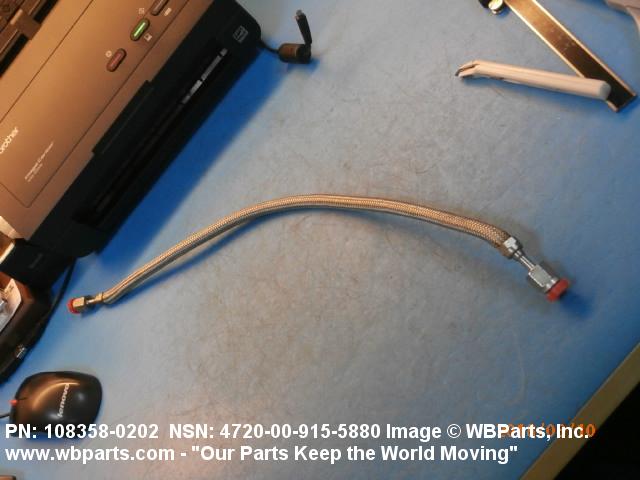

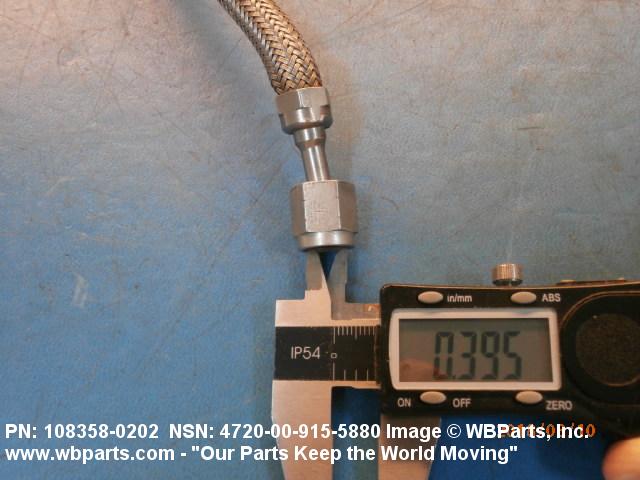

Drawings & Photos | NSN 4720-00-915-5880
Demand History | NSN 4720-00-915-5880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 108358-0196 | 2022-02-46 | 15 | DIBBS |
| 108358-0202 | 2022-02-46 | 15 | DIBBS |
| 5211 | 2022-02-46 | 15 | DIBBS |
| S21904-02006 | 2022-02-46 | 15 | DIBBS |
| S21904-2006 | 2022-02-46 | 15 | DIBBS |
| 5211 | 2021-03-74 | 1 | BR |
| 1083580202 | 2018-07-198 | 4 | Brazil |
| 1083580202 | 2018-06-180 | 4 | BR |
| 5211 | 2017-11-305 | 12 | SA |
| 4720-00-915-5880 | 2015-02-53 | 17 | DIBBS |
| 4720-00-915-5880 | 2012-09-254 | 10 | DIBBS |
| 4720-00-915-5880 | 2012-02-39 | 10 | DIBBS |
| 4720-00-915-5880 | 2011-07-199 | 5 | DIBBS |
| 4720-00-915-5880 | 2010-09-246 | 10 | DIBBS |
| 4720-00-915-5880 | 2010-08-218 | 11 | DIBBS |
| 4720-00-915-5880 | 2010-05-132 | 24 | DIBBS |
| 4720-00-915-5880 | 2009-07-197 | 11 | DIBBS |
| 4720-00-915-5880 | 2009-07-197 | 19 | DIBBS |
Cross Reference | NSN 4720-00-915-5880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108358-0196 | 96142 | SENIOR FLEXONICS INC |
| 108358-0196 | 98769 | SENIOR OPERATIONS LLC DBA SENIOR AEROSPACE SSP |
| 108358-0202 | 96142 | SENIOR FLEXONICS INC |
| 108358-0202 | 98769 | SENIOR OPERATIONS LLC DBA SENIOR AEROSPACE SSP |
| 5211 | 16519 | SENIOR FLEXONICS INC |
| 5211 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| S21904-02006 | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
| S21904-2006 | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-915-5880
Related Products | NSN 4720-00-915-5880
Technical Data | NSN 4720-00-915-5880
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE STYLE | 10 ANNULAR CLOSE-PITCH CORRUGATED |
| INNER CONVEYING TUBE MATERIAL | STEEL, CORROSION RESISTING |

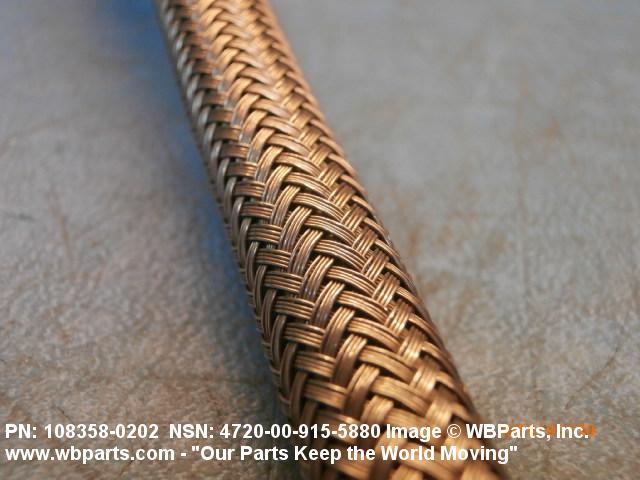

| LAYER COMPOSITION AND LOCATION | OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.300 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.600 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 20.300 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 1.000 INCHES |

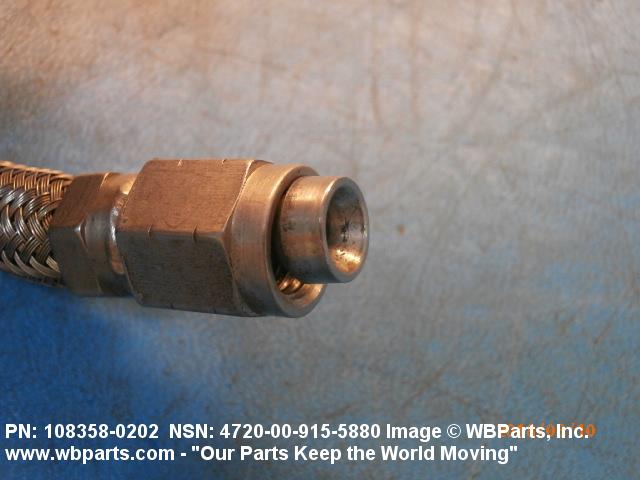

| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 SWIVEL NUT FLARE |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | INCLUDED |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | 1600.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 3200.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | NOT RATED |
| III FSC APPLICATION DATA | FUSELAGE SECTIONS,AIRFRAME |
| III END ITEM IDENTIFICATION | EH-1H;UH-1V;EH-1X;UH-1F |
Restrictions/Controls & Freight Information | NSN 4720-00-915-5880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-915-5880
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
