NSN 4720-00-927-0325 H10006500101, H10006-500-101, REDARA1052826
Product Details | AIR BREAT AIR DUCT HOSE ASSEMBLY
4720-00-927-0325 A length of HOSE, AIR DUCT, AIR BREATHING which may have end couplings on one or both end/or incorporates a communication cable. It is designed for use in breathing oxygen system, air line masks, gas masks, and the like. Excludes items which include the branch or fork hoses; assemblies made up of the oxygen breathing hose, communication cable, wiring for face mask heater, and vent and pressure ducts for the anti-Gsuit and HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: H10006500101, H10006-500-101, REDARA1052826, REDARA10528-26, 103-501-500, 12107101500, 12107-101-500, 121541, 12154-1, 33C1201500, 33C1201-500, 8148650, 4720-00-927-0325, 00-927-0325, 4720009270325, 103501500, 009270325
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 AUG 1966 | 00-927-0325 | 30600 ( HOSE ASSEMBLY, AIR DUCT, AIR BREATHING ) |
Drawings & Photos | NSN 4720-00-927-0325
Demand History | NSN 4720-00-927-0325
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8148650 | 2006-04-117 | 10 | US |
Cross Reference | NSN 4720-00-927-0325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103-501-500 | 30143 | OXYTRONICS INC |
| 12107-101-500 | 31441 | AMERICAN SAFETY FLIGHT SYSTEMS INC |
| 12107-101-500 | 62323 | CONAX FLORIDA CORPORATION |
| 12154-1 | 31441 | AMERICAN SAFETY FLIGHT SYSTEMS INC |
| 12154-1 | 62323 | CONAX FLORIDA CORPORATION |
| 33C1201-500 | 80206 | NAVAL AIR DEVELOPMENT CENTER WARMINSTER |
| H10006-500-101 | 14165 | SPACE AERO PRODUCTS CO INC |
| REDARA10528-26 | 28445 | R. E. DARLING CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-927-0325
Related Products | NSN 4720-00-927-0325
Technical Data | NSN 4720-00-927-0325
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 1ST END COUPLING |
| SURFACE TREATMENT | ANODIZE 1ST END COUPLING |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| WALL THICKNESS | 0.281 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 50.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | COUPLING FIRST END |

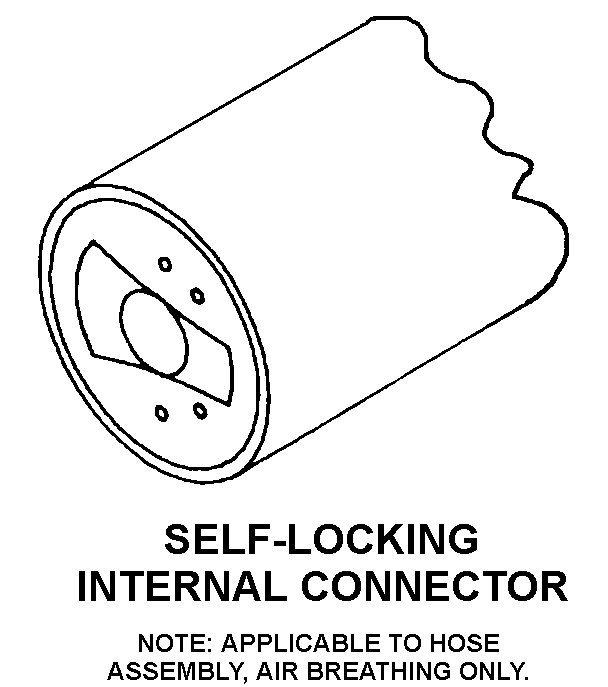

| COUPLING STYLE | D13 SELF-LOCKING INTERNAL CONNECTOR FIRST END |
| HOSE WEIGHT | 8.000 OUNCES PER LINEAR FOOT |
| MAXIMUM OPERATING PRESSURE | 100.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | OZONE RESISTANCE:NOT OZONE RESISTANT; END SIMILARITY:IDENTICAL; HOSE STYLE:HELICALLY WOUND CONTINUOUS WIRE SUPPORTED,STYLE NO. 4 FROM OLD FIIG A22900; HOSE MATERIAL:WIRE AND NYLON FABRIC AND SILICONE RUBBER |
| (NON-CORE DATA) TEMP RANGE | -65.0 TO 160.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 80206 |
| DESIGN CONTROL REFERENCE | 33C1201-500 |
Restrictions/Controls & Freight Information | NSN 4720-00-927-0325
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-927-0325
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BO | SX:BREATHING OXYGEN SYSTEMS AND COMPONENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
