NSN 4720-00-540-2779 154024, 1540-24, 24124
Product Details | NONMETALLIC HOSE
4720-00-540-2779 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: 154024, 1540-24, 24124, 241-24, 24424, 244-24 , 25824, 258-24, 425824, 4258-24, 4720-00-540-2779, 00-540-2779, 4720005402779, 005402779
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-540-2779 | 22670 ( HOSE, NONMETALLIC ) |

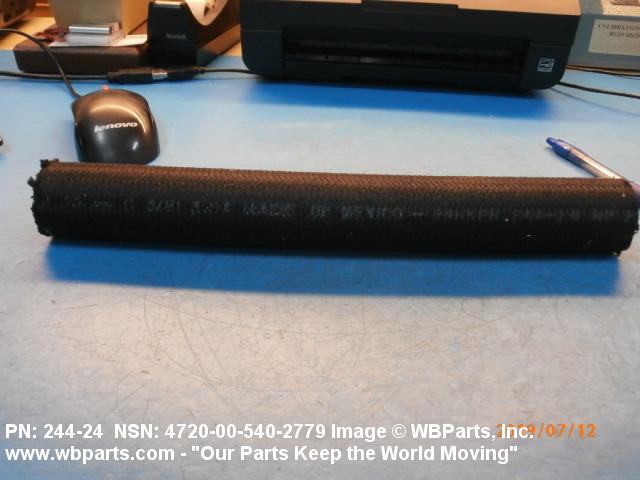

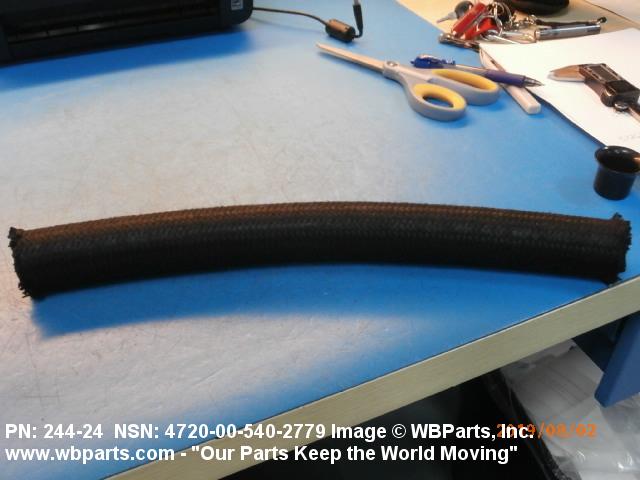

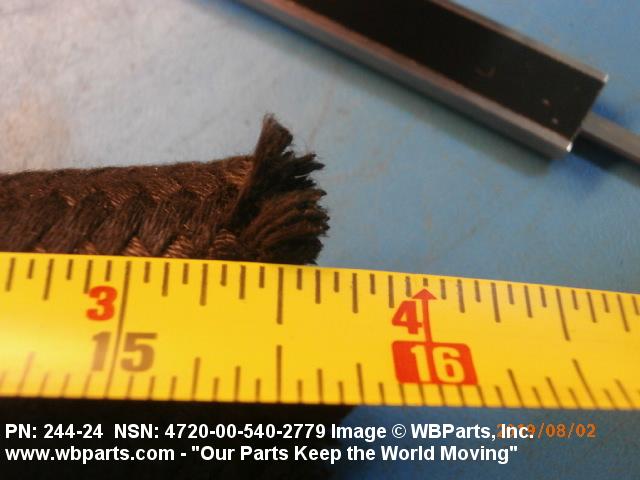

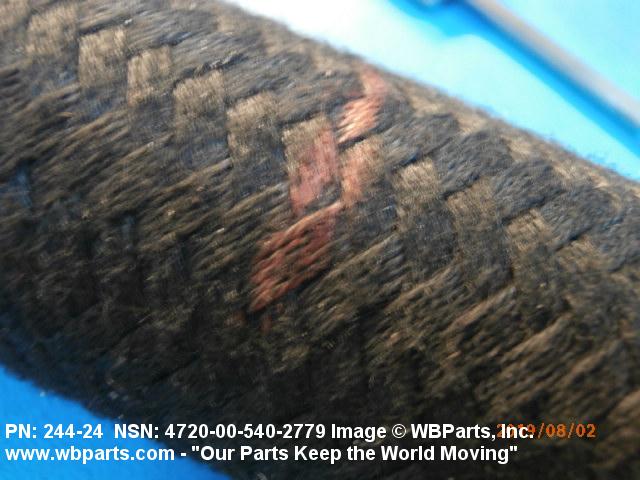

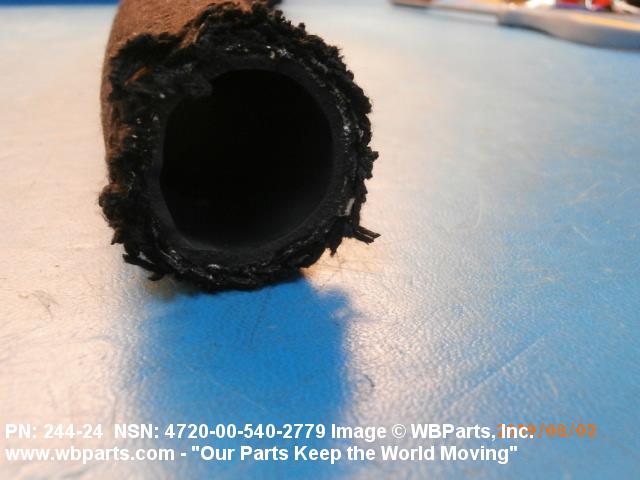

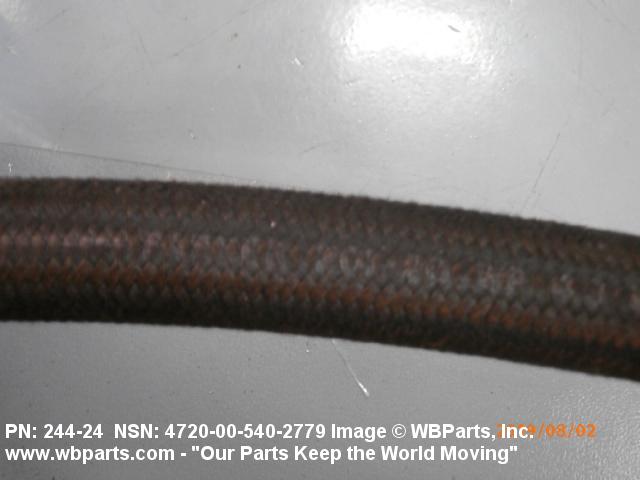

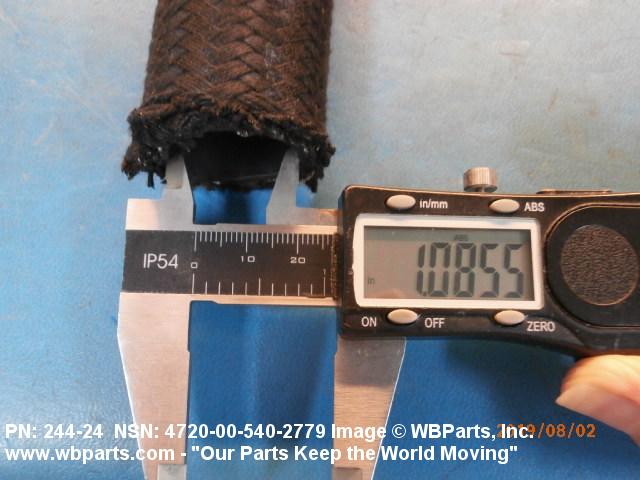

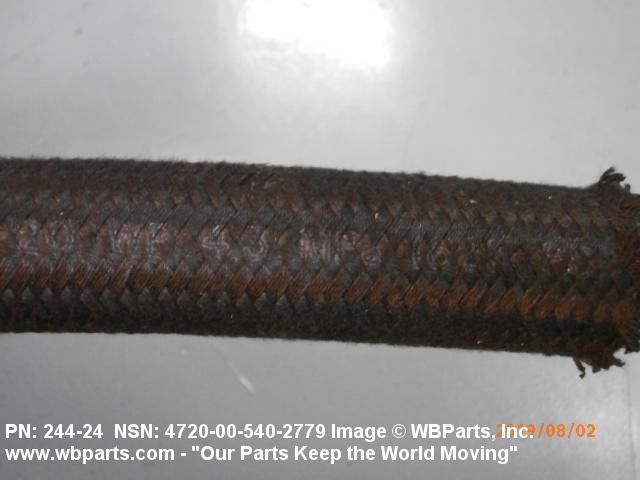

Drawings & Photos | NSN 4720-00-540-2779
Demand History | NSN 4720-00-540-2779
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-540-2779 | 2019-06-170 | 1 | United States |
| 4720-00-540-2779 | 2016-10-292 | 97 | DIBBS |
| 4720-00-540-2779 | 2016-07-213 | 97 | DIBBS |
| 4720-00-540-2779 | 2016-06-158 | 43 | DIBBS |
| 4720-00-540-2779 | 2008-11-318 | 25 | DIBBS |
Cross Reference | NSN 4720-00-540-2779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1540-24 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 1540-24 | 82126 | MARE ISLAND NAVAL SHIPYARD |
| 241-24 | 87373 | PARKER-HANNIFIN CORPORATION DBA HOSE PRODUCTS DIV |
| 241-24 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 244-24 | 87373 | PARKER-HANNIFIN CORPORATION DBA HOSE PRODUCTS DIV |
| 258-24 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 4258-24 | 62727 | MID-STATE SALES, INC. DBA MID-STATE HOSE & FITTINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4720-00-540-2779
Technical Data | NSN 4720-00-540-2779
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| INSIDE SURFACE CONDITION | SMOOTH |

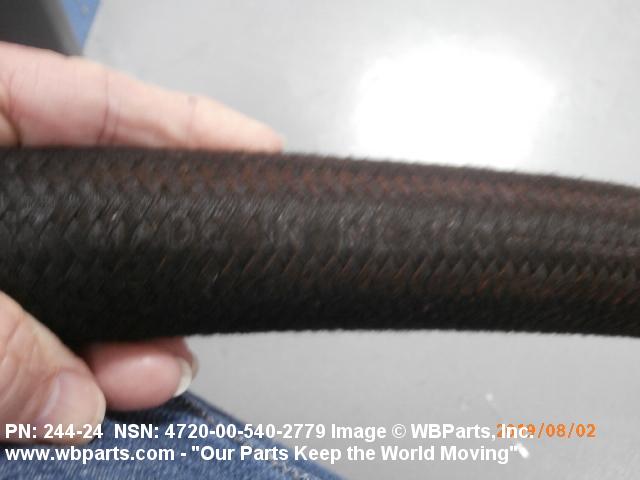

| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED CORROSION RESISTANT STEEL WIRE OUTER LAYER RUBBER IMPREGNATED BRAIDED COTTON CORD |
| EXTERIOR COLOR | RED |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

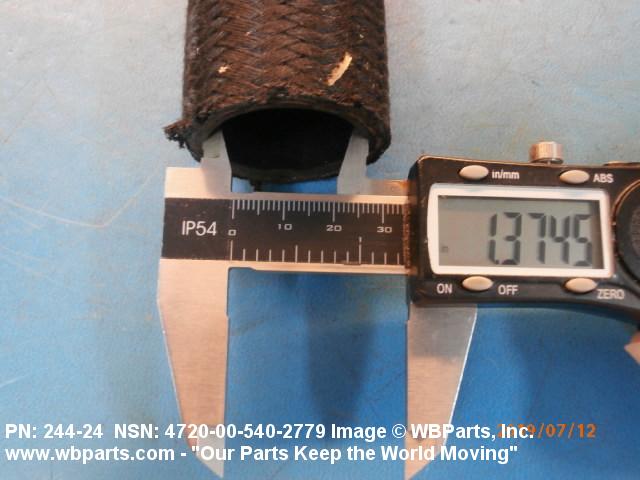

| INSIDE DIAMETER | 1.380 INCHES NOMINAL |

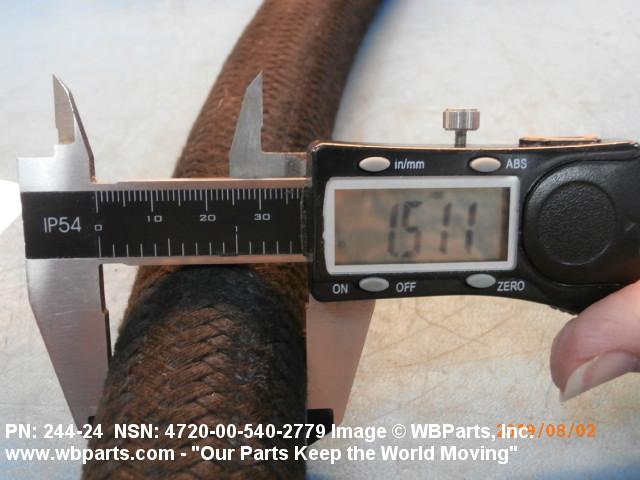

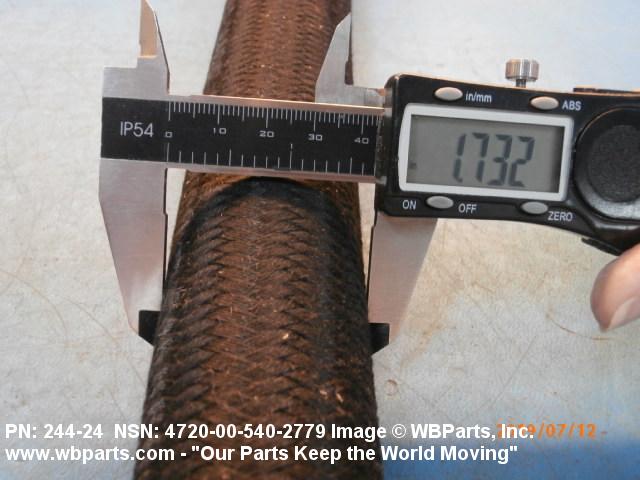

| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |

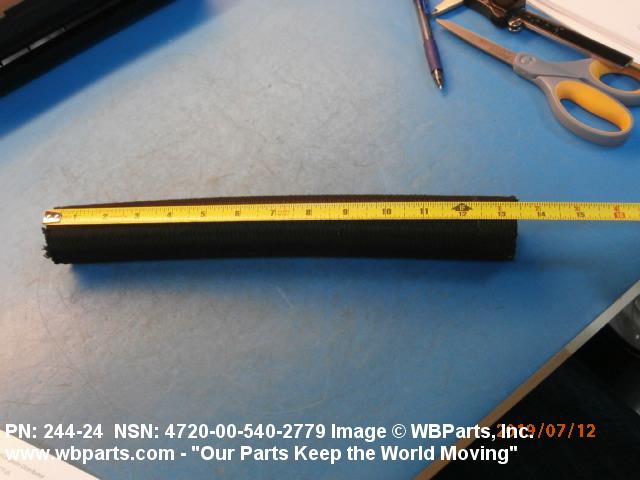

| MEASURING METHOD AND LENGTH | ANY ACCEPTABLE |
| MINIMUM INSIDE BENDING RADIUS | 10.500 INCHES |
| TEMP RATING | -15.0 DEG FAHRENHEIT AND 250.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 350.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 700.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 2000.0 POUNDS PER SQUARE INCH |
| VACUUM IN TORR | 50.8 |
| SPECIFICATION/STANDARD DATA | 81343-SAEJ51 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | B TYPE AND 24 SIZE |
| MANUFACTURERS CODE | 01276 |
| DESIGN CONTROL REFERENCE | 1540-24 |
Restrictions/Controls & Freight Information | NSN 4720-00-540-2779
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-540-2779
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
Z FT : Foot |
