NSN 4720-00-288-9878 M24135/10-04, M241351004, AE3694
Product Details | NONMETALLIC HOSE
4720-00-288-9878 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: M24135/10-04, M241351004, AE3694, AE369-4, 2214, 221-4, 2254, 225-4, 26514, 2651-4, 26514L1, 2651-4L1, 4720-00-288-9878, 00-288-9878, 4720002889878, 002889878
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 APR 1978 | 00-288-9878 | 22670 ( HOSE, NONMETALLIC ) |

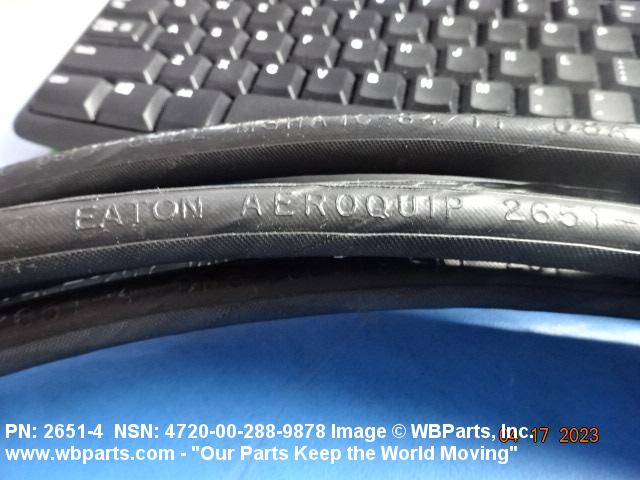

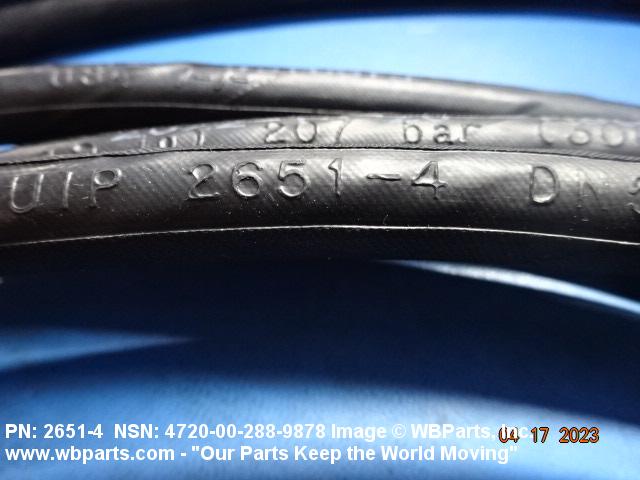

Drawings & Photos | NSN 4720-00-288-9878
Demand History | NSN 4720-00-288-9878
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-288-9878 | 2024-11-309 | 391 | DIBBS |
| 4720-00-288-9878 | 2024-10-298 | 391 | DIBBS |
| 2254 | 2024-09-247 | 1 | France |
| 4720-00-288-9878 | 2023-04-95 | 30 | United States |
| 4720-00-288-9878 | 2022-08-236 | 30 | UK |
| 4720-00-288-9878 | 2022-08-236 | 30 | UK |
| 4720-00-288-9878 | 2022-08-236 | 30 | UK |
| 4720-00-288-9878 | 2022-08-236 | 30 | UK |
| 4720-00-288-9878 | 2022-08-236 | 30 | UK |
| 4720-00-288-9878 | 2022-08-220 | 672 | DIBBS |
| 4720-00-288-9878 | 2022-07-209 | 672 | DIBBS |
| 4720-00-288-9878 | 2017-01-10 | 21 | MANUAL |
| 4720-00-288-9878 | 2016-09-273 | 1142 | DIBBS |
| 4720-00-288-9878 | 2015-07-202 | 50 | DIBBS |
| 4720-00-288-9878 | 2015-07-198 | 50 | DIBBS |
| 2214 | 2015-02-46 | 6 | BR |
| 4720-00-288-9878 | 2014-08-232 | 50 | DIBBS |
| 4720-00-288-9878 | 2014-08-217 | 483 | DIBBS |
| 4720-00-288-9878 | 2014-04-92 | 440 | DIBBS |
Cross Reference | NSN 4720-00-288-9878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 221-4 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 225-4 | 87373 | PARKER-HANNIFIN CORPORATION DBA HOSE PRODUCTS DIV |
| 225-4 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 2651-4 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 2651-4 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 2651-4L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| AE369-4 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| AE369-4 | 1P322 | EATON AEROQUIP INC |
| M24135/10-04 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| M24135/10-04 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-288-9878
Related Products | NSN 4720-00-288-9878
Technical Data | NSN 4720-00-288-9878
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, SYNTHETIC |
| MEDIA FOR WHICH DESIGNED | AIR AND BUTANE AND FUEL/OIL, HYDROCARBON AND WATER, FRESH AND WATER, SALT |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED TEXTILE YARN 2ND LAYER BRAIDED STEEL WIRE 3RD LAYER BRAIDED TEXTILE YARN OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND HYDRAULIC FLUID RESISTANT AND OIL RESISTANT AND WATER RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |

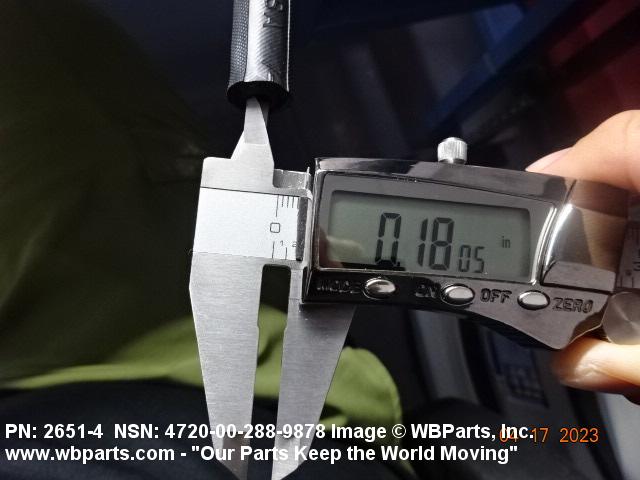

| INSIDE DIAMETER | 0.188 INCHES NOMINAL |

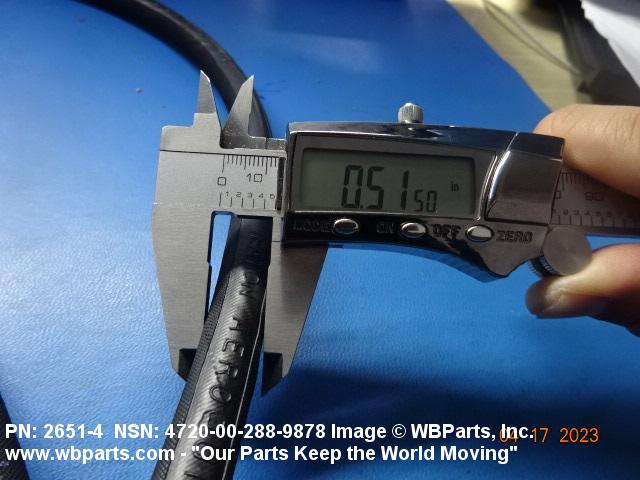

| OUTSIDE DIAMETER | 0.516 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | ANY ACCEPTABLE |
| MINIMUM INSIDE BENDING RADIUS | 3.000 INCHES |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 6000.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 12000.0 POUNDS PER SQUARE INCH |
| VACUUM IN TORR | 50.8 |
| SPECIFICATION/STANDARD DATA | 81343-SAE J517,100R5 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 4 SIZE |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24135/10-04 |
Restrictions/Controls & Freight Information | NSN 4720-00-288-9878
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-288-9878
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
X FT : Foot |
