NSN 4720-00-288-9750 MS521301B209360, SAE J20 , SAE20R1ECSC33X914
Product Details | NONMETALLIC HOSE
4720-00-288-9750 A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING.20242100023Fire Fighting Equipment47200024Hose and Flexible Tubing
Part Alternates: MS521301B209360, SAE J20 , SAE20R1ECSC33X914, SAE-20R1ECS-C-33X914 , SAEJ20, ZZH428, ZZ-H-428, 4720-00-288-9750, 00-288-9750, 4720002889750, 002889750
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-288-9750 | 22670 ( HOSE, NONMETALLIC ) |

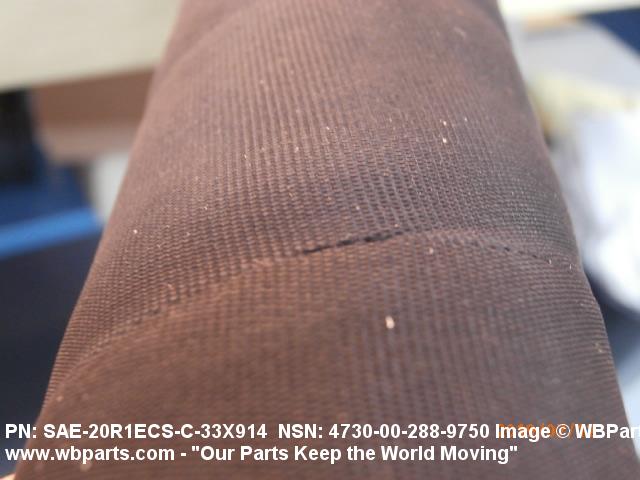

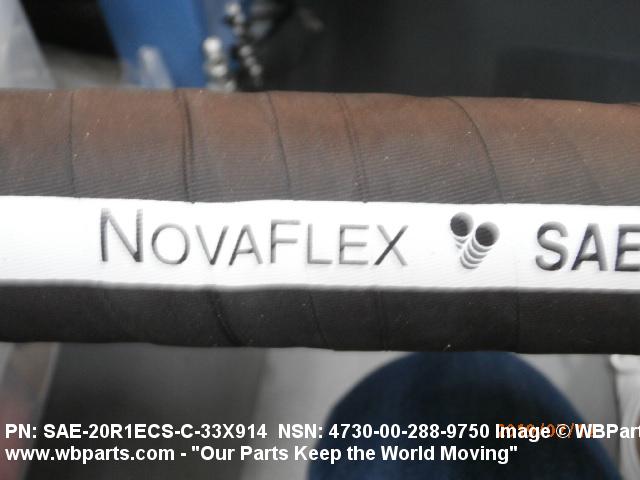

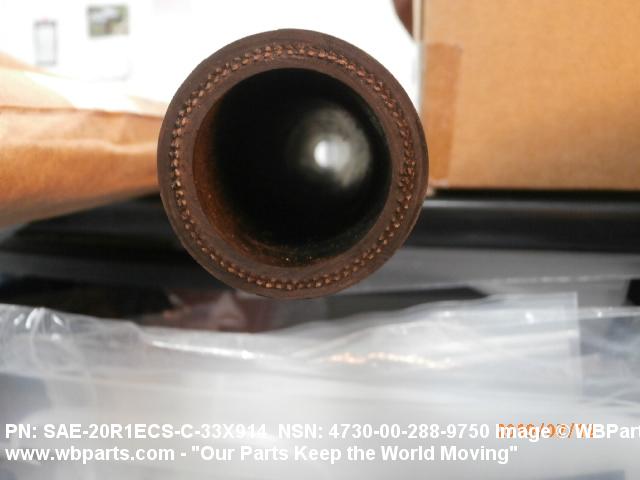

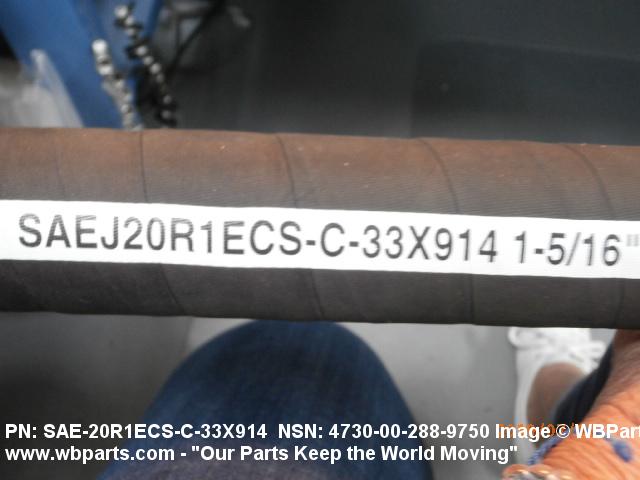

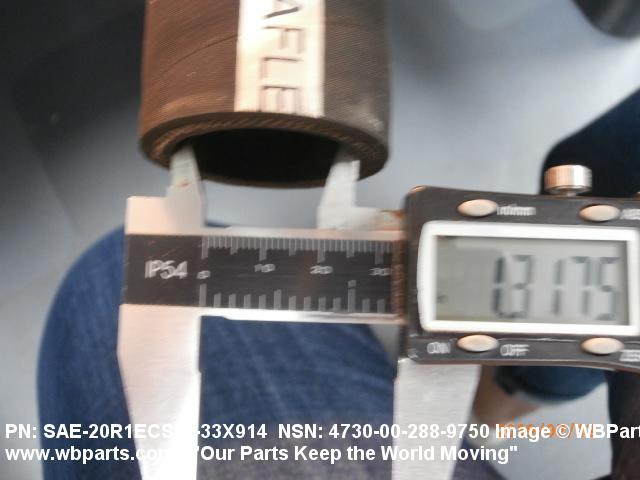

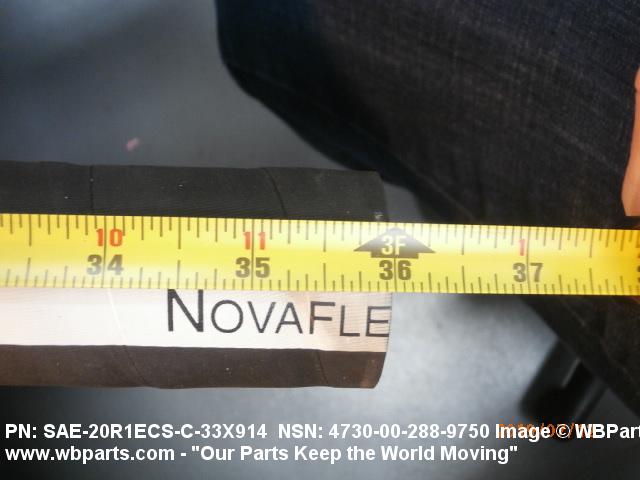

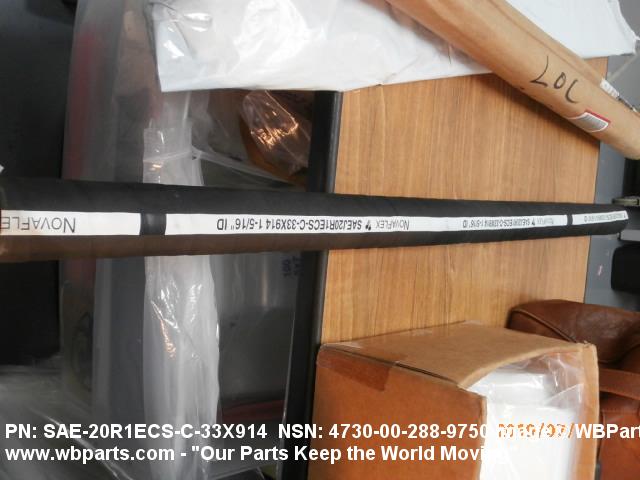

Drawings & Photos | NSN 4720-00-288-9750
Demand History | NSN 4720-00-288-9750
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-288-9750 | 2022-05-132 | 1 | United States |
| 4720-00-288-9750 | 2021-09-257 | 1 | United States |
| 4720-00-288-9750 | 2021-09-257 | 2 | United States |
| 4720-00-288-9750 | 2021-01-28 | 117 | DIBBS |
| 4720-00-288-9750 | 2020-01-23 | 2 | US |
| 4720-00-288-9750 | 2017-06-158 | 167 | DIBBS |
| 4720-00-288-9750 | 2017-03-86 | 167 | DIBBS |
| MS521301B209360 | 2015-05-138 | 6 | United States |
| MS521301B209360 | 2015-05-138 | 2 | United States |
| 4720-00-288-9750 | 2014-10-295 | 11 | United States |
| 4720-00-288-9750 | 2013-09-258 | 167 | DIBBS |
| 4720-00-288-9750 | 2012-12-349 | 65 | DIBBS |
| 4720-00-288-9750 | 2011-05-132 | 87 | DIBBS |
| 4720-00-288-9750 | 2009-12-336 | 25 | DIBBS |
| 4720-00-288-9750 | 2009-08-233 | 49 | DIBBS |
| 4720-00-288-9750 | 2009-04-107 | 50 | DIBBS |
Cross Reference | NSN 4720-00-288-9750
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-288-9750
Related Products | NSN 4720-00-288-9750
Technical Data | NSN 4720-00-288-9750
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, ETHYLENE PROPYLENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED TEXTILE YARN OUTER LAYER MOLDED RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND OIL RESISTANT AND OZONE RESISTANT AND MILDEW RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 1.312 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 36.000 INCHES NOMINAL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 212.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| BURST TEST PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81348-ZZ-H-428 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND B GRADE AND 2 CLASS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS521301B209360 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ZZ-H-428 |
Restrictions/Controls & Freight Information | NSN 4720-00-288-9750
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | U | 96 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-288-9750
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | U | 96 months |
| Purchasing | QTY UOM |
1 LG : Length |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | U | 96 months |
| Purchasing | QTY UOM |
1 LG : Length |
