NSN 4710-01-420-2120 17P6D1015501, 17P6D1015-501, 01-420-2120
Product Details | METALLIC TUBE AND FITTINGS
4710-01-420-2120 An item consisting of metal tube, straight or prebent, with permanently attached fittings (brazed or welded) on one or both ends. It is primarily designed to convey fluids, gases, and/or semisolids. For items with detachable end fittings, see TUBE ASSEMBLY, METAL.
Part Alternates: 17P6D1015501, 17P6D1015-501, 4710-01-420-2120, 01-420-2120, 4710014202120, 014202120
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 OCT 1995 | 01-420-2120 | 36987 ( TUBE AND FITTINGS, METALLIC ) |
Drawings & Photos | NSN 4710-01-420-2120
Cross Reference | NSN 4710-01-420-2120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P6D1015-501 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-420-2120
Technical Data | NSN 4710-01-420-2120
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | ALUMINUM ALLOY, WW-T-700/6, T4, TYPE 1 |
| TUBE OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |

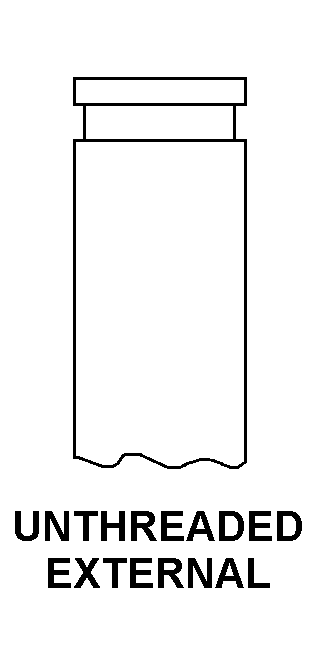

| END CONNECTION STYLE | B59 UNTHREADED EXTERNAL |
| MATING END QUANTITY | 2 |
| DESIGN FORM | STRAIGHT |
| OVERALL LENGTH | 80.030 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AIRCRAFT, AIRLIFTER C-17A |
Restrictions/Controls & Freight Information | NSN 4710-01-420-2120
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
