4710-01-420-2122 An item consisting of metal tube, straight or prebent, with permanently attached fittings (brazed or welded) on one or both ends. It is primarily designed to convey fluids, gases, and/or semisolids. For items with detachable end fittings, see TUBE ASSEMBLY, METAL.

Part Alternates: 17P6D13791, 17P6D1379-1, 4710-01-420-2122, 01-420-2122, 4710014202122, 014202122

Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing

Supply Group (FSG) NSN Assign. NIIN
47 11 OCT 1995 01-420-2122

Drawings & Photos | NSN 4710-01-420-2122


Cross Reference | NSN 4710-01-420-2122

Part Number Cage Code Manufacturer
17P6D1379-1 88277 BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4710-01-420-2122

Technical Data | NSN 4710-01-420-2122

Characteristic Specifications
TUBING MATERIAL ALUMINUM ALLOY, WW-T-700/6, T4, TYPE 1
TUBE OUTSIDE DIAMETER 7.000 INCHES MINIMUM AND 9.670 INCHES MAXIMUM
WALL THICKNESS 0.063 INCHES MINIMUM AND 0.065 INCHES MAXIMUM

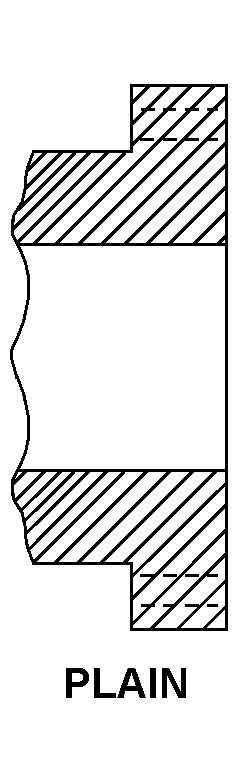

END CONNECTION STYLE B70 PLAIN
MATING END QUANTITY 1
BOLT HOLE QUANTITY 12
BOLT CIRCLE DIAMETER 7.750 INCHES NOMINAL
DESIGN FORM PREBENT
FEATURES PROVIDED SUPPORT BRACKET
III END ITEM IDENTIFICATION AIRCRAFT, AIRLIFTER C-17A
MANUFACTURERS CODE 88277
DESIGN CONTROL REFERENCE 17P6D1379-1
