NSN 4530-00-595-0920 F8060060PLP, F80-6-00-60PLP, F80PLP
Product Details | PRESSURE ATOMIZING OIL BURNER NOZZLE
4530-00-595-0920 An essentially tubular fitting which forms the combustion outlet end of the fuel feed line in a pressure oil burner. It has a single, threaded oil inlet connection at one end and a nonconnected outlet at the other through which the oil is released in the boiler combustion chamber in the form of a spray. Outlet tip may be separable. May include strainer, filter, and/or adapter.
Part Alternates: F8060060PLP, F80-6-00-60PLP, F80PLP, 89936, 899-36, 903152, 4530-00-595-0920, 00-595-0920, 4530005950920, 005950920
Plumbing, Heating, and Waste Disposal Equipment | Fuel Burning Equipment Units
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01 JAN 1963 | 00-595-0920 | 13774 ( NOZZLE, OIL BURNER, PRESSURE ATOMIZING ) |

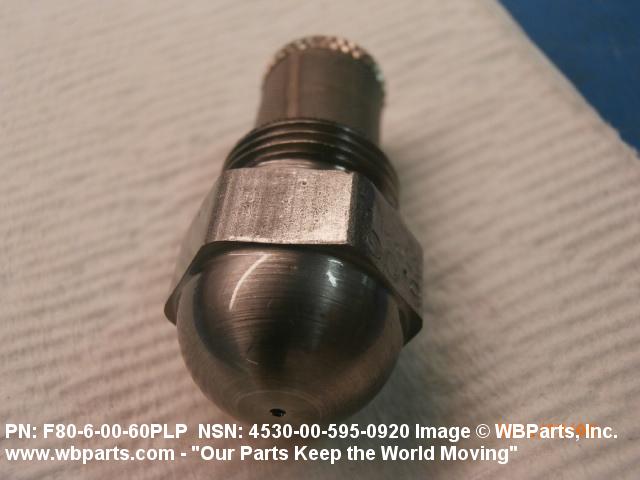

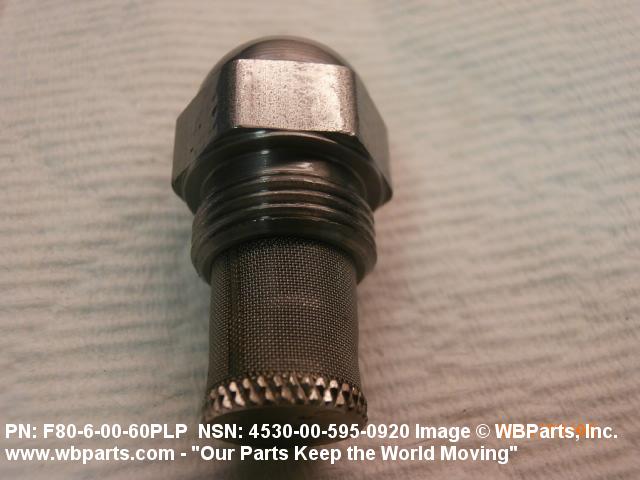

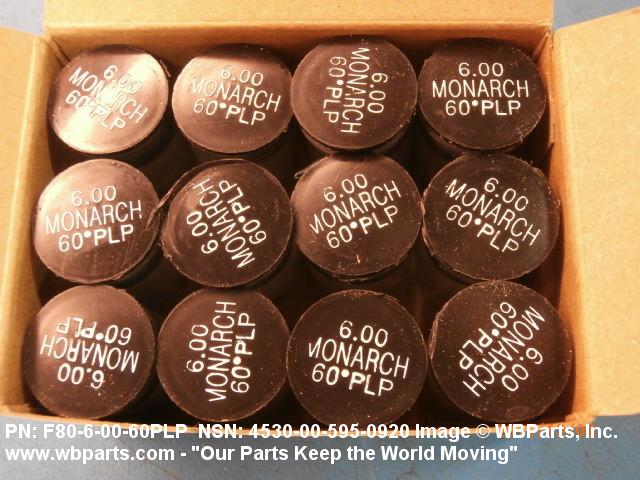

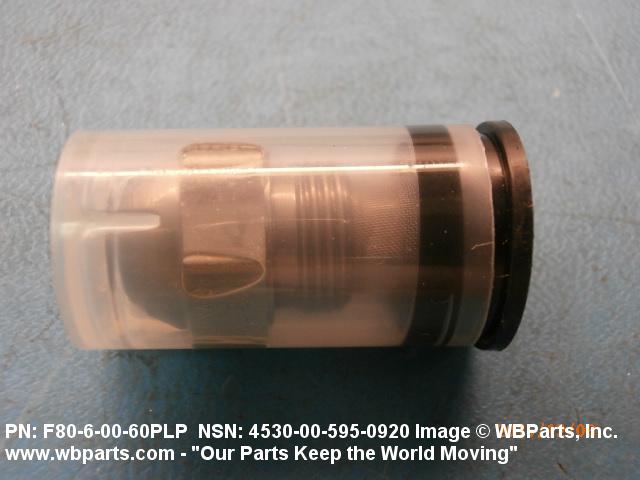

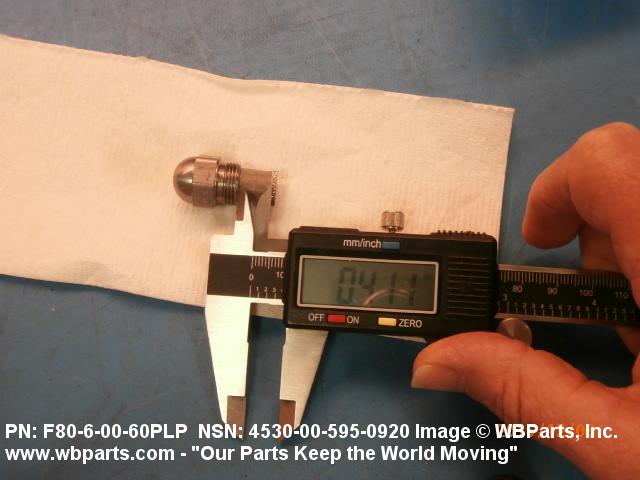

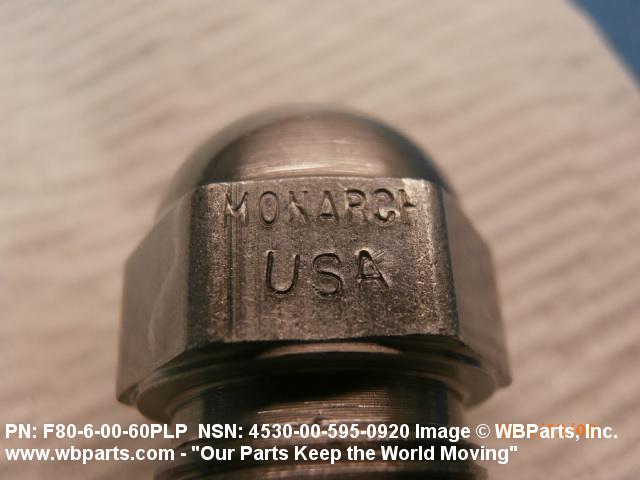

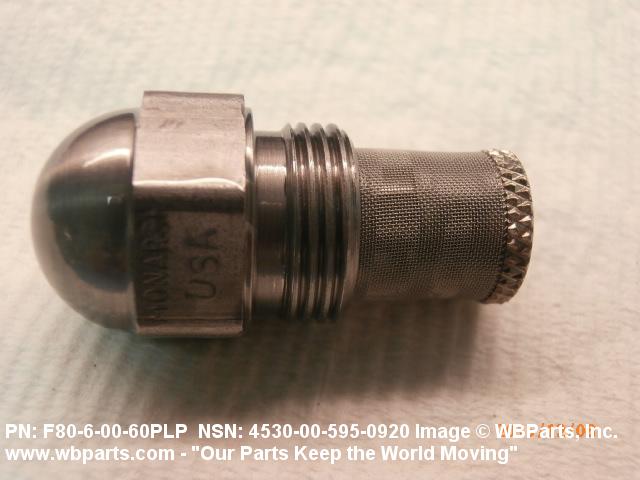

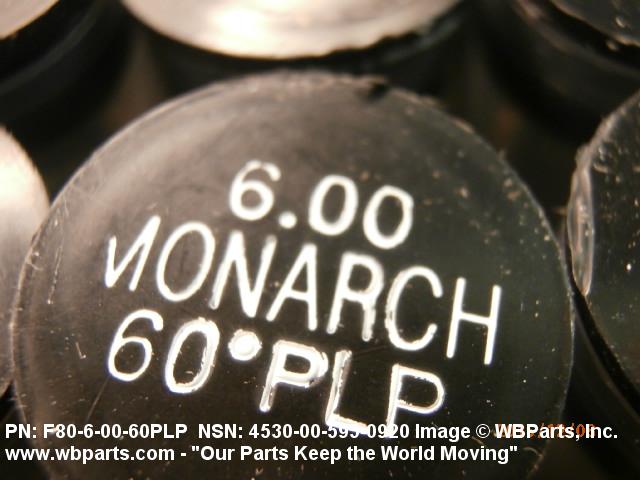

Drawings & Photos | NSN 4530-00-595-0920
Demand History | NSN 4530-00-595-0920
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4530-00-595-0920 | 2016-05-140 | 8 | US |
| 4530-00-595-0920 | 2015-11-313 | 3 | Taiwan |
| 4530-00-595-0920 | 2015-05-131 | 30 | DIBBS |
| 4530-00-595-0920 | 2015-04-120 | 30 | DIBBS |
Cross Reference | NSN 4530-00-595-0920
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4530-00-595-0920
Related Products | NSN 4530-00-595-0920
Technical Data | NSN 4530-00-595-0920
| Characteristic | Specifications |
|---|---|

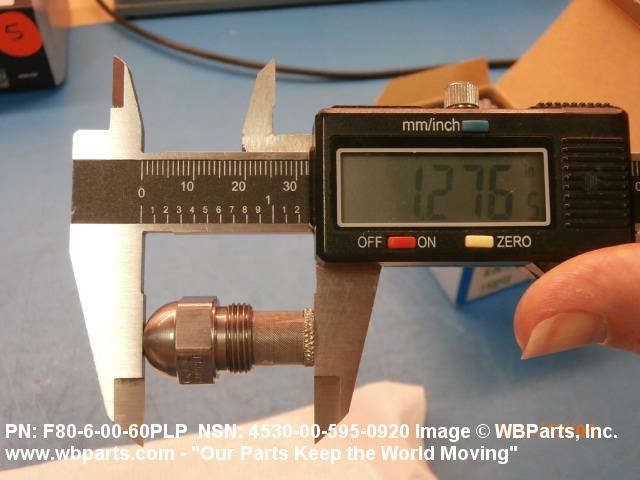

| OVERALL LENGTH | 1.305 INCHES NOMINAL |

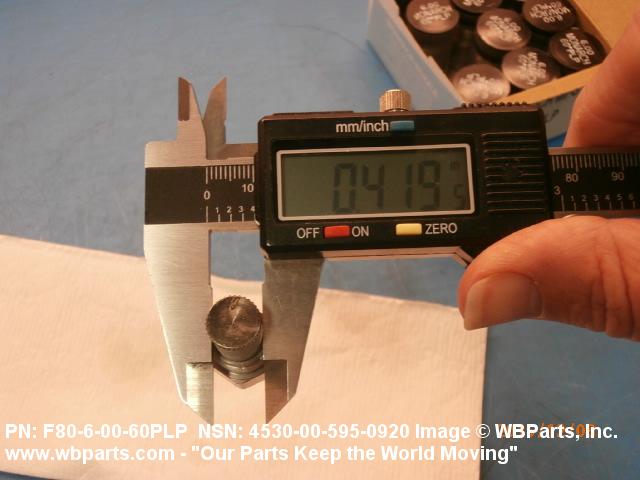

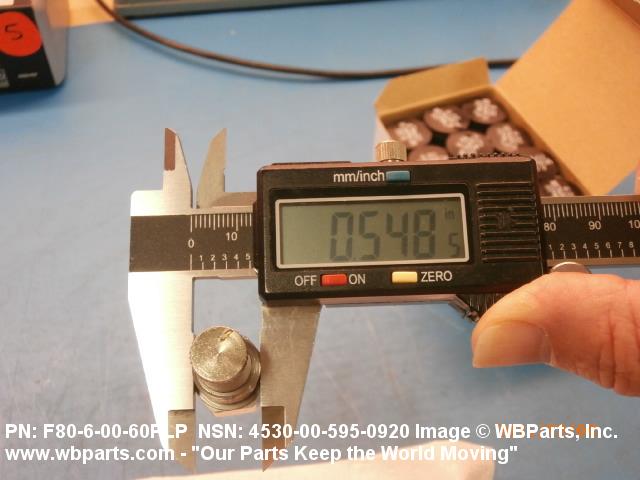

| OVERALL DIAMETER | 0.424 INCHES NOMINAL |
| MATERIAL | BRASS AND STEEL |

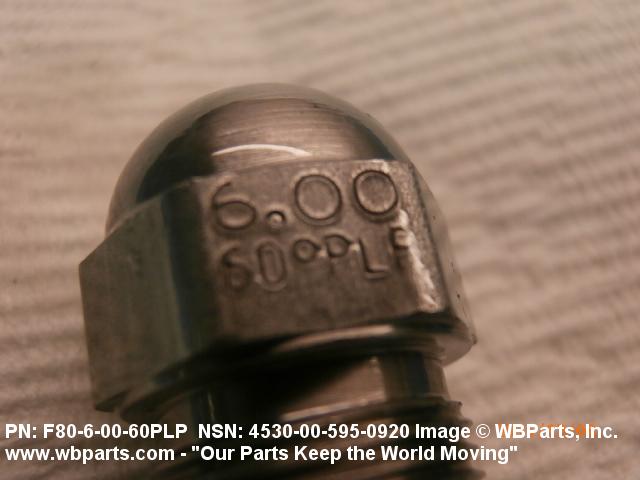

| CAPACITY IN GALLONS PER HOUR | 6.000 |
| SPRAY ANGLE IN DEG | 60.000 |
| SPRAY TYPE | SEMIHOLLOW |
| CONNECTION THREAD LOCATION | EXTERNAL |

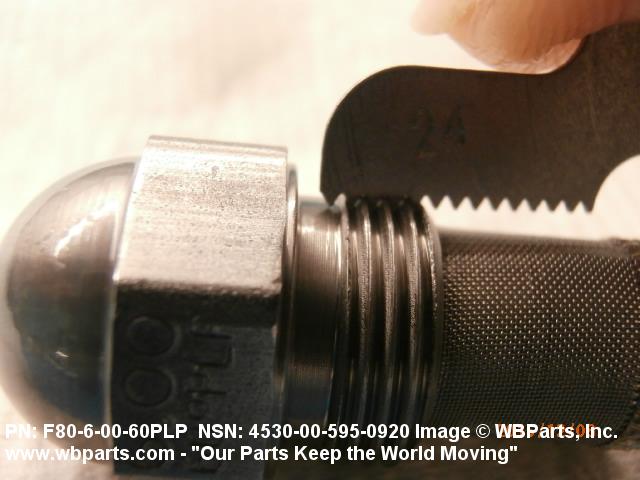

| THREAD SIZE | 9/16 - 24 THD SIZE |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| STRAINER PROVISION | INCLUDED |
| STRAINER LENGTH | 0.403 INCHES |
| STRAINER MESH SIZE | 200 |
| STRAINER MATERIAL | STEEL |
| FILTER | NOT INCLUDED |
| ADAPTER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4530-00-595-0920
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4530-00-595-0920
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
