NSN 4530-00-300-9598 B04010201, TR774, 8227099-01
Product Details | PRESSURE ATOMIZING OIL BURNER NOZZLE
4530-00-300-9598 An essentially tubular fitting which forms the combustion outlet end of the fuel feed line in a pressure oil burner. It has a single, threaded oil inlet connection at one end and a nonconnected outlet at the other through which the oil is released in the boiler combustion chamber in the form of a spray. Outlet tip may be separable. May include strainer, filter, and/or adapter.
Part Alternates: B04010201, TR774, 8227099-01, 04010201, 289302, 28930-2, 8227099, 4530-00-300-9598, 00-300-9598, 4530003009598, 003009598, 822709901
Plumbing, Heating, and Waste Disposal Equipment | Fuel Burning Equipment Units
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01 JAN 1963 | 00-300-9598 | 13774 ( NOZZLE, OIL BURNER, PRESSURE ATOMIZING ) |

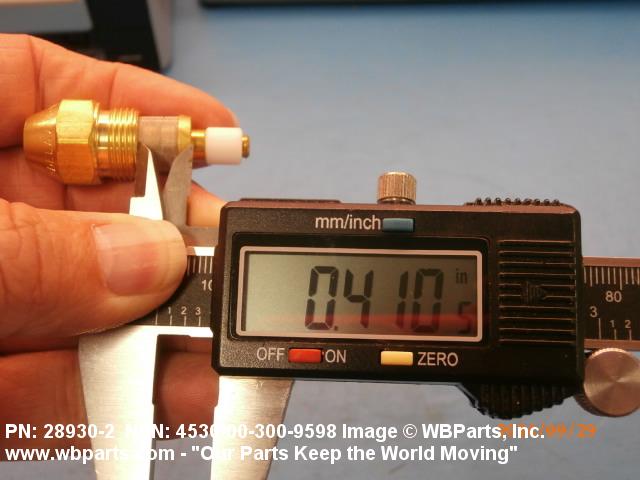

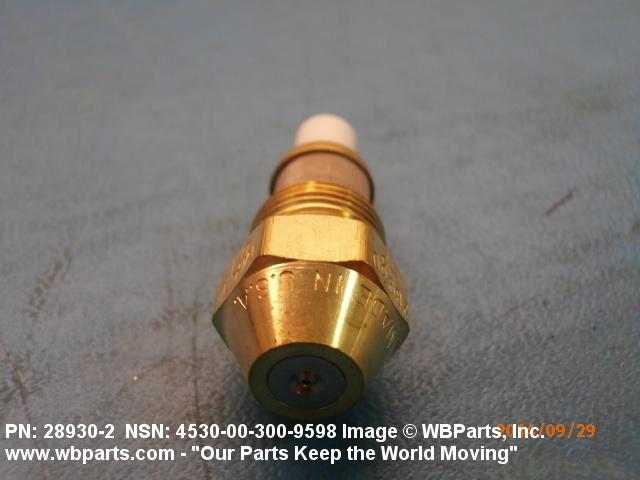

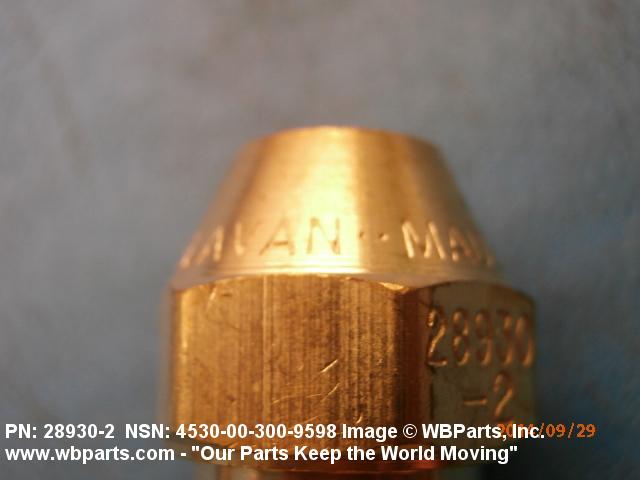

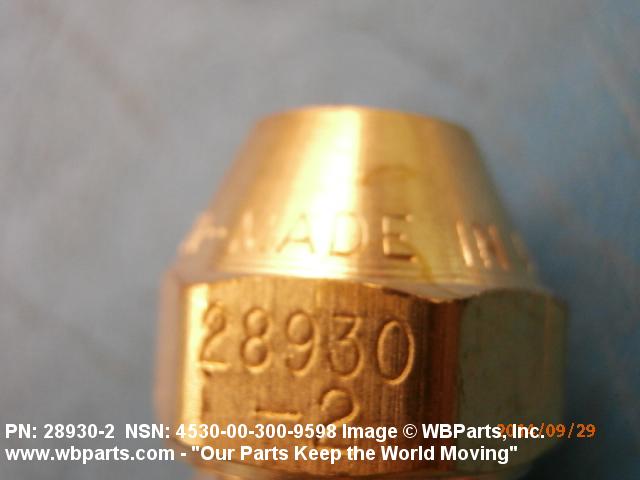

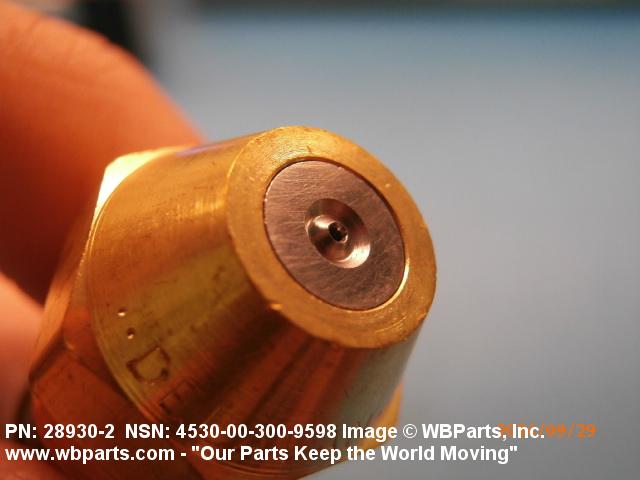

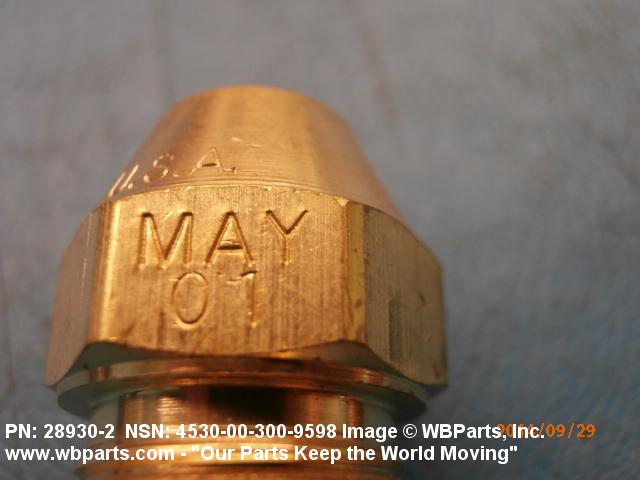

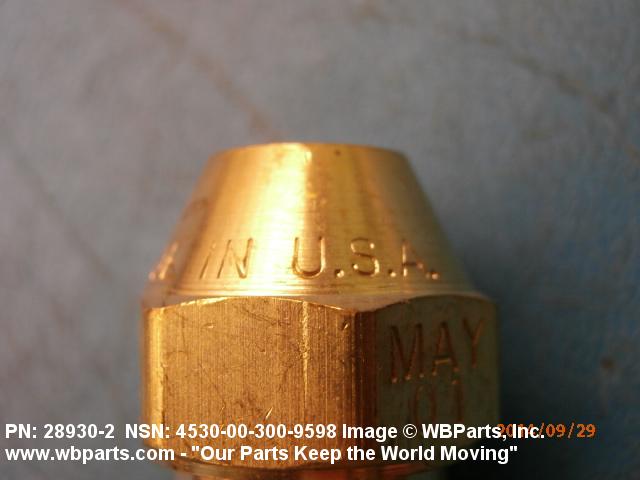

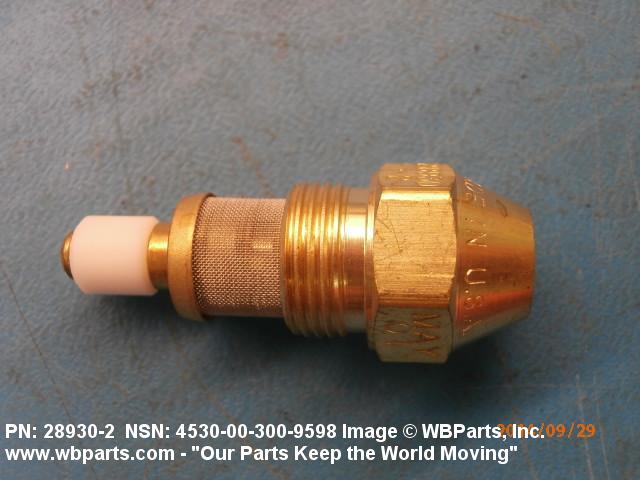

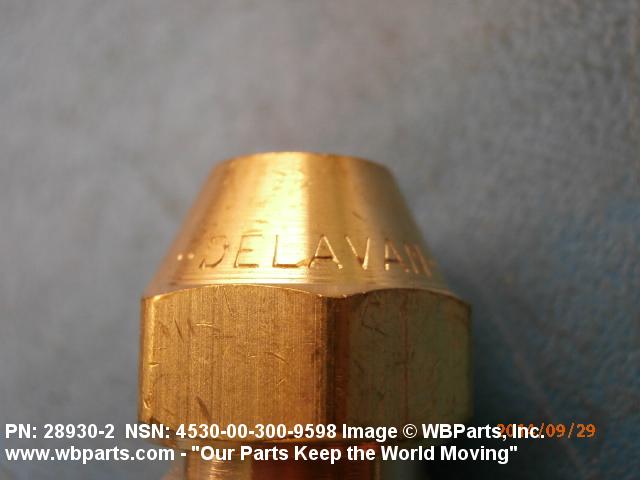

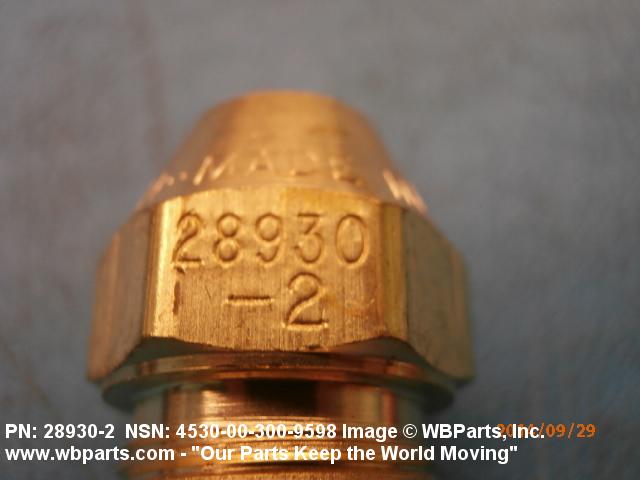

Drawings & Photos | NSN 4530-00-300-9598
Demand History | NSN 4530-00-300-9598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4530-00-300-9598 | 2022-02-35 | 3 | US |
| 4530-00-300-9598 | 2018-02-54 | 1 | IS |
| 4530-00-300-9598 | 2016-08-223 | 2 | CA |
| 4530-00-300-9598 | 2016-05-132 | 1 | US |
| 4530-00-300-9598 | 2014-09-260 | 3 | United States |
Cross Reference | NSN 4530-00-300-9598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04010201 | 57386 | C-WAY INDUSTRIES INC |
| 28930-2 | 71895 | DELAVAN INC DBA TURBINE FUEL TECHNOLOGIES |
| 8227099 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 8227099-01 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| B04010201 | 57386 | C-WAY INDUSTRIES INC |
| TR774 | 90598 | ENGINEERED AIR SYSTEMS INC. DBA DRS SUSTAINMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4530-00-300-9598
Related Products | NSN 4530-00-300-9598
Technical Data | NSN 4530-00-300-9598
| Characteristic | Specifications |
|---|---|

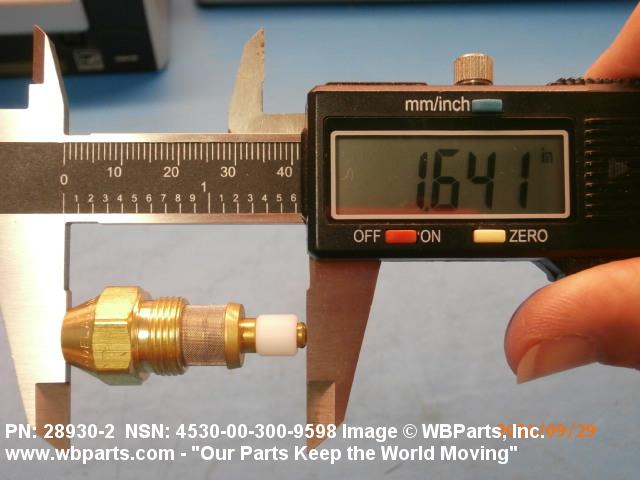

| OVERALL LENGTH | 1.646 INCHES NOMINAL |

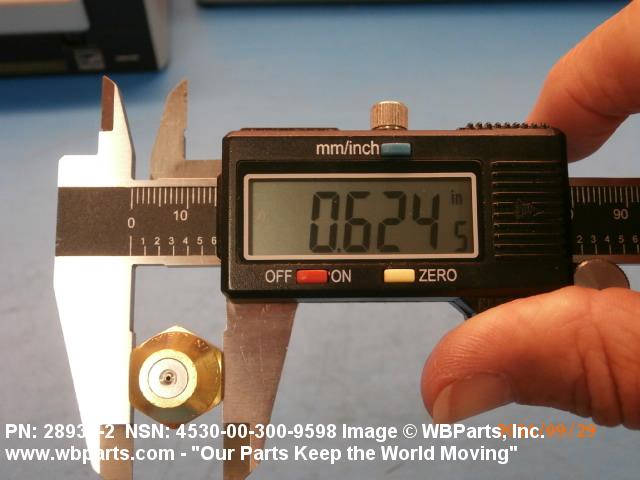

| OVERALL WIDTH | 0.619 INCHES NOMINAL |
| MATERIAL | BRASS |
| CAPACITY IN GALLONS PER HOUR | 5.000 |
| SPRAY ANGLE IN DEG | 70.0 |
| SPRAY TYPE | SOLID |
| CONNECTION THREAD LOCATION | EXTERNAL |
| THREAD SIZE | 9/16-24 |
| SCREW THREAD SERIES DESIGNATOR | UNEF |

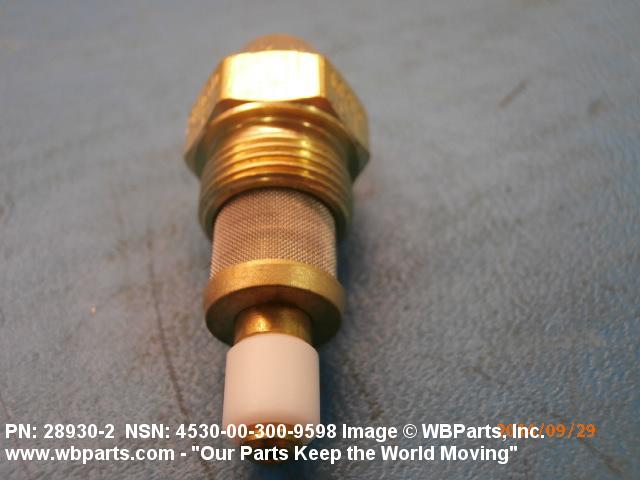

| STRAINER PROVISION | INCLUDED |
| STRAINER LENGTH | 0.437 INCHES |
| STRAINER MESH SIZE | 100 |
| STRAINER MATERIAL | NICKEL COPPER ALLOY |
| FILTER | NOT INCLUDED |
| ADAPTER | NOT INCLUDED |
| SPECIAL FEATURES | GRUMMAN;A10 AIRCRAFT;TEFLON SEAL SCREW PIN ATTACHED TO STRAINER |
| MANUFACTURERS CODE | 98752 |
| MFR SOURCE CONTROLLING REFERENCE | 8227099 |
Restrictions/Controls & Freight Information | NSN 4530-00-300-9598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4530-00-300-9598
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
