NSN 4520-01-492-2181 H33103, H33-103, EFHH33106
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-492-2181 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: H33103, H33-103, EFHH33106, EFH-H33-106, 2007171, 2007171001, 2007171-001, 2007971, 2007971001, 2007971-001, 4520-01-492-2181, 01-492-2181, 4520014922181, 014922181
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 19 NOV 2001 | 01-492-2181 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-492-2181
Cross Reference | NSN 4520-01-492-2181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2007171 | 66948 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| 2007171-001 | 66948 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| 2007971 | 66948 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| 2007971-001 | 66948 | HARRIS CORPORATION DBA GOVERNMENT COMMUNICATIONS |
| EFH-H33-106 | 02728 | ELECTRO-FLEX HEAT A DIVISION OF THREE HEAT, LLC |
| H33-103 | 02728 | ELECTRO-FLEX HEAT A DIVISION OF THREE HEAT, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-492-2181
Related Products | NSN 4520-01-492-2181
Technical Data | NSN 4520-01-492-2181
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2 STRIP, WEDGE |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |

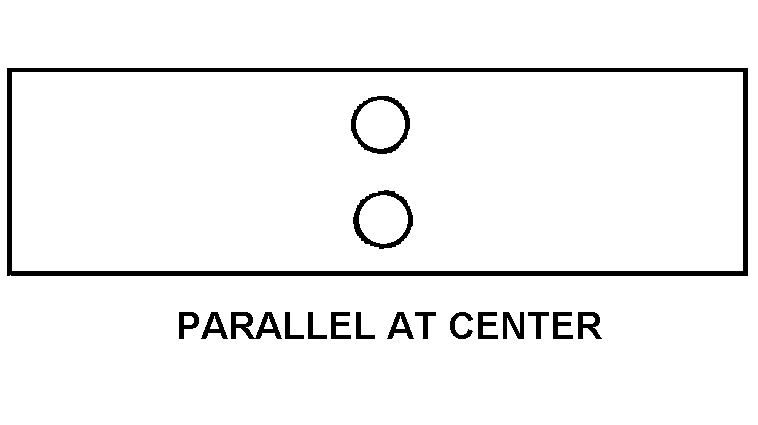

| TERMINAL ARRANGEMENT STYLE | 6 PARALLEL AT CENTER |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | GLASS FIBER AND SILICON CARBIDE SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 DC SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | NOT RATED SINGLE VOLTAGE |
| WATT DENSITY RATING | 4.4 PER SQUARE INCH SINGLE VOLTAGE |
| HEAT CONTROL TYPE | ANY ACCEPTABLE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 1 WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | 12.000 INCHES NOMINAL |
| SPECIAL FEATURES | BASE DIM AT 6.75 INCH AND TOP DIM AT 3.25 INCH; MAX SHEATH TEMP AT 450 F |
| III END ITEM IDENTIFICATION | RADAR TREAT EMITER AN/MST-T1 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HEATER,FLEXIBLE |
Restrictions/Controls & Freight Information | NSN 4520-01-492-2181
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062257 | HEAT ELEMENT/RESISTANCE GRID |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-492-2181
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FD | SU:"ELECTRONIC WARFARE EQUIPMENT, NON-AIRBORNE" |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
