Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT

4520-01-492-4942 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment

Part Alternates: 4520-01-492-4942, 01-492-4942, 4520014924942, 014924942

Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment

Supply Group (FSG) NSN Assign. NIIN
45 01-492-4942

Drawings & Photos | NSN 4520-01-492-4942


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4520-01-492-4942

Technical Data | NSN 4520-01-492-4942

Characteristic Specifications

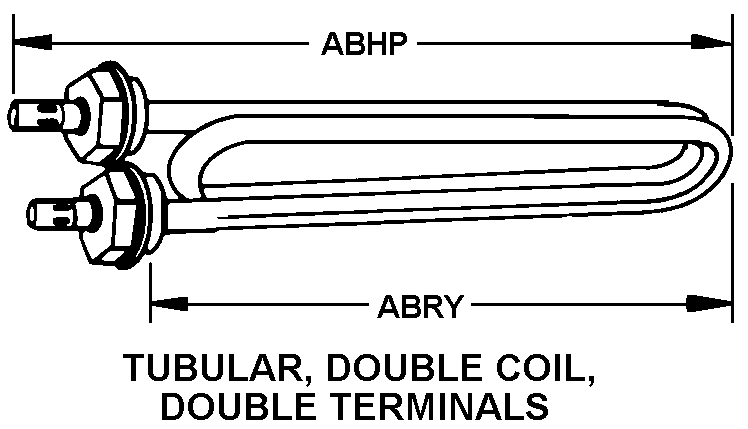

BODY STYLE 9 TUBULAR, DOUBLE COIL, DOUBLE TERMINALS
OVERALL LENGTH 40.381 INCHES NOMINAL
LENGTH 37.031 INCHES NOMINAL
ELEMENT RADIATION SPECTRUM NONINFRARED
MATERIAL INCOLOY 800 SHEATH
VOLTAGE IN VOLTS AND CURRENT TYPE 440.0 AC SINGLE VOLTAGE
FREQUENCY IN HERTZ 60.0
PHASE THREE SINGLE VOLTAGE
MAXIMUM WATTAGE RATING IN WATTS 40000.000 SINGLE VOLTAGE
WATT DENSITY RATING NOT RATED SINGLE VOLTAGE
HEAT CONTROL TYPE THERMOSTAT
THERMOSTAT RANGE 90.0 TO 180.0 DEG FAHRENHEIT
EFFECTIVE HEATING LENGTH 37.000 INCHES NOMINAL
ELEMENT QUANTITY 1
HEAT QUANTITY 1
ELEMENT CONNECTION STYLE 4 STUD TYPE
TERMINAL QUANTITY 5
TERMINAL LENGTH 2.750 INCHES NOMINAL
MOUNTING METHOD STYLE 12 AXIAL STUD TYPE MOUNTING FACILITY
MOUNTING FACILITY LENGTH 2.750 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNF MOUNTING FACILITY
NOMINAL THREAD SIZE 0.250 INCHES MOUNTING FACILITY
THREAD QUANTITY 28 PER INCH MOUNTING FACILITY
SPECIAL FEATURES SPECIAL PROJECT FOR NSN 4540-01-323-6140
III END ITEM IDENTIFICATION 306 GALLON ELECTRIC WATER HEATER: 4520-01-503-5971
III PART NAME ASSIGNED BY CONTROLLING AGENCY ELEMENT
