NSN 4520-01-491-7802 HK21956, 717801930001, 717801930-001
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-491-7802 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: HK21956, 717801930001, 717801930-001, 4520-01-491-7802, 01-491-7802, 4520014917802, 717801930, 014917802
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 31 OCT 2001 | 01-491-7802 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-491-7802
Demand History | NSN 4520-01-491-7802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-491-7802 | 2012-09-271 | 1 | United States |
| 4520-01-491-7802 | 2012-09-254 | 3 | DIBBS |
| 4520-01-491-7802 | 2010-03-67 | 19 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-491-7802
Related Products | NSN 4520-01-491-7802
Technical Data | NSN 4520-01-491-7802
| Characteristic | Specifications |
|---|---|

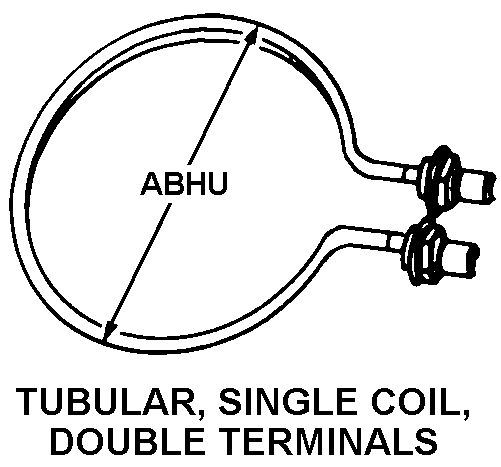

| BODY STYLE | 8 TUBULAR, SINGLE COIL, DOUBLE TERMINALS |
| MATERIAL | ALUMINUM RESISTANCE WIRE EMBEDDING/SUPPORT INSULATION |
| ELEMENT QUANTITY | 2 |
| SPECIAL FEATURES | INSULATION IS POLYIMIDE; LEAD WIRE-A.W.G NO. 28, STRANDED, TEFLON INSULTATED PER MIL-W-16878, TYPE E; ELEMENT IS NON-INDUCTIVE PATTERN; TEMPERATURE RANGE IS -40 DEG C TO +60 DEG C; RATED POWER IS 300 WATTS TOTAL POWER; HEATING ELEMENT IS TO BE KEPT 010 FROM EACH HOLE; HEATING ELEMENT SHALL OCCUR IN A STRAIGHT LINE |
| III END ITEM IDENTIFICATION | AN/AAQ14 TARGETING SET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HEATER, GASKET |
Restrictions/Controls & Freight Information | NSN 4520-01-491-7802
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062257 | HEAT ELEMENT/RESISTANCE GRID |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TU | AF Cataloging Agent DLIS-K Battle Creek, MI 49037-3094 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-491-7802
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
