NSN 4330-01-282-7075 340004, 3400-04, 01-282-7075

Product Details | FLUID FILTER BODY

4330-01-282-7075 A component of a FILTER, FLUID designed to contain the FILTER ELEMENT, FLUID and attach to the HEAD, FLUID FILTER or the COVER, ACCESS. It may have inlet and/or outlet connections, means for mounting a drain plug(s), check, relief and or by-pass valves. Excludes BOWL, SEDIMENT.See also STRAINER BODY, SEDIMENT.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters

Part Alternates: 340004, 3400-04, 4330-01-282-7075, 01-282-7075, 4330012827075, 012827075

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	21 JUL 1988	01-282-7075	22572 ( FILTER BODY, FLUID )

Drawings & Photos | NSN 4330-01-282-7075

Part Number	Request Date	QTY	Origin
3400-04	2019-03-83	1	DIBBS
4330-01-282-7075	2018-04-108	1	DIBBS
4330-01-282-7075	2018-04-108	2	DIBBS
4330-01-282-7075	2018-02-45	1	DIBBS
4330-01-282-7075	2010-10-304	1	DIBBS
4330-01-282-7075	2009-11-317	3	DIBBS
4330-01-282-7075	2009-10-296	7	DIBBS
4330-01-282-7075	2009-10-288	7	DIBBS
4330-01-282-7075	2008-06-165	1	DIBBS
4330-01-282-7075	2008-04-105	3	DIBBS
4330-01-282-7075	2006-04-91	3	DIBBS
4330-01-282-7075	2005-12-343	2	DIBBS
4330-01-282-7075	2005-12-335	2	DIBBS

Cross Reference | NSN 4330-01-282-7075

Part Number	Cage Code	Manufacturer
3400-04	26519	BARKER ROCKFORD CO THE DBA HECO DIV DIV HECO DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-01-282-7075

Compare

Related Products | NSN 4330-01-282-7075

4330-01-282-8585, 4330-01-282-8587, 4330-01-282-8588, 4330-01-282-8589, 4330-01-282-8590

Technical Data | NSN 4330-01-282-7075

Characteristic	Specifications

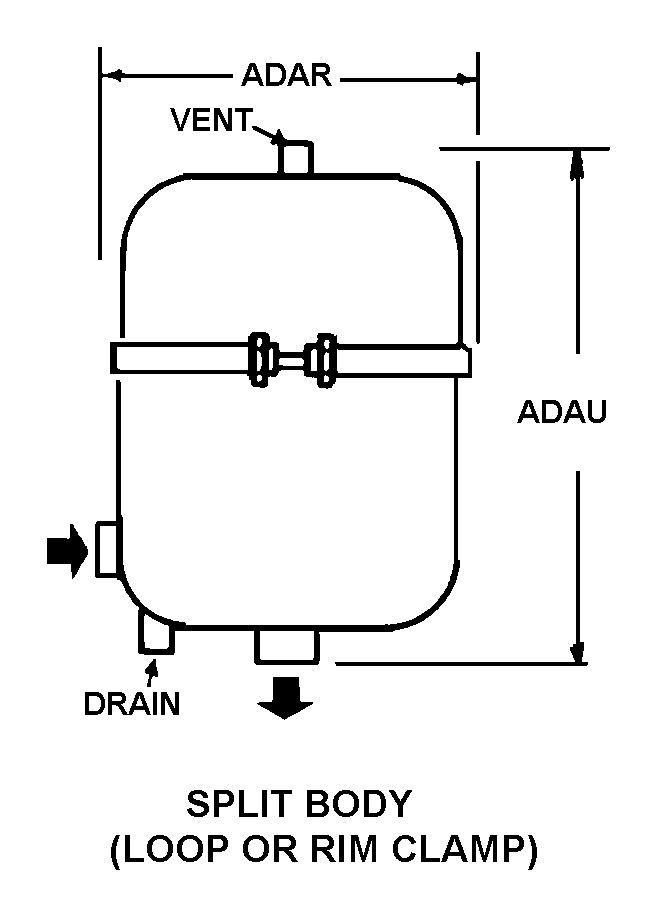

STYLE DESIGNATOR	C50 SPLIT BODY
BODY OUTSIDE DIAMETER	9.000 INCHES NOMINAL
BODY HEIGHT	11.9375 INCHES NOMINAL
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
MOUNTING TYPE	BRACKET W/DRILLED HOLE CENTER
BRACKET QUANTITY	2
MOUNTING HOLE QUANTITY	4
DISTANCE BETWEEN MOUNTING HOLE CENTERS	4.750 INCHES NOMINAL
MOUNTING HOLE DIAMETER	0.4062 INCHES NOMINAL
FILTERING SYSTEM FOR WHICH DESIGNED	FULL FLOW
SPECIAL FEATURES	CONSIST OF: VALVE,VENT 1,PLUG,FILLER 1,GASKET,FILLER PLUG 1,GASKET,COVER 1,ASSEMBLY,ELEMENT RETAINER & RELIEF VALVE 1,GUIDE,END 1,RING ASSEMBLY,CLAMPING 2,CAP SCREW,CLAMPING RING 2,BRACKET,MOUNTING 2,GASKEET,ELEMENT 2,PLUG,DRAIN 1,NAMEPLATE 1,BOWL 1,COVER 1,ASSEMBLY,ELEMET 1
III FSC APPLICATION DATA	AIRCRAFT HYDRAULIC,VACUUM,DEICING SYSTEMS
MANUFACTURERS CODE	26519
DESIGN CONTROL REFERENCE	3400-04

Restrictions/Controls & Freight Information | NSN 4330-01-282-7075

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4330-01-282-7075

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	P	The current standard price is the initial negotiated provisioned price. This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price. ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
Materiel Management Aggregation Code	QS	TG:AIRCRAFT GROUND SERVICES EQUIPMENT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
