NSN 4330-01-282-8587 070282, 01-282-8587, 012828587
Product Details | FLUID FILTER
4330-01-282-8587 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 070282, 4330-01-282-8587, 01-282-8587, 4330012828587, 012828587
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 23 JUL 1988 | 01-282-8587 | 32622 ( FILTER, FLUID ) |
Drawings & Photos | NSN 4330-01-282-8587
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-01-282-8587
Technical Data | NSN 4330-01-282-8587
| Characteristic | Specifications |
|---|---|

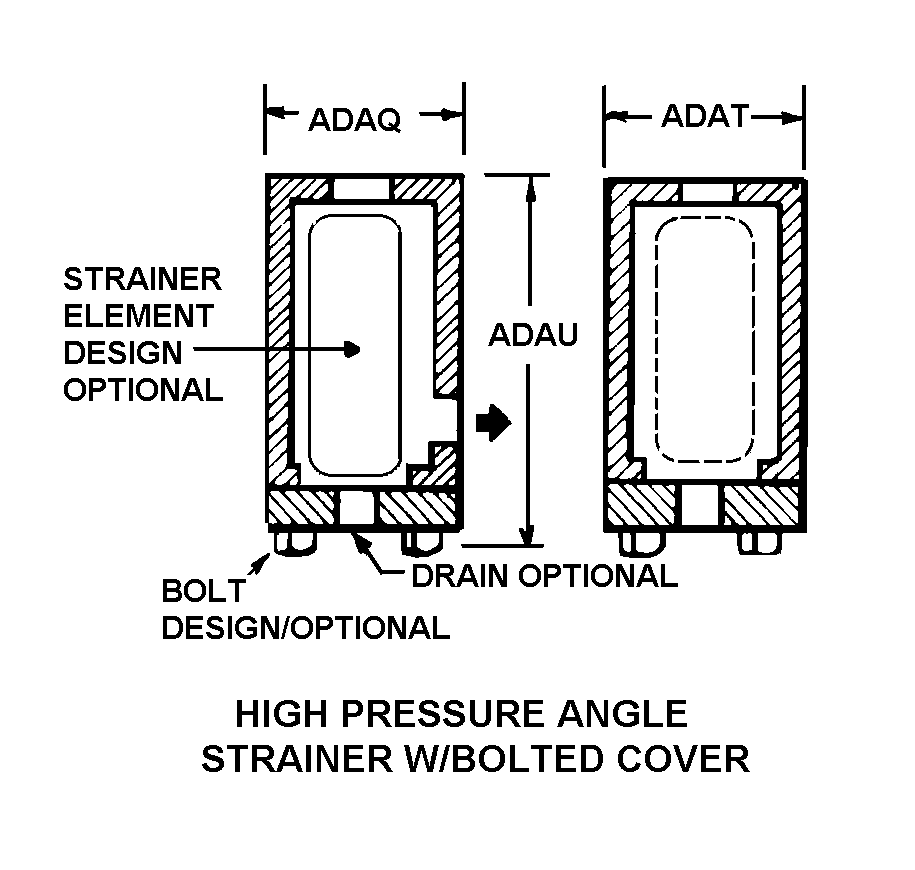

| STYLE DESIGNATOR | C34 HIGH PRESSURE ANGLE STRAINER W/BOLTED COVER |
| BODY LENGTH | 11.250 INCHES MINIMUM AND 11.500 INCHES MAXIMUM |
| BODY WIDTH | 8.625 INCHES MINIMUM AND 8.875 INCHES MAXIMUM |
| BODY HEIGHT | 16.375 INCHES MINIMUM AND 17.250 INCHES MAXIMUM |
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING FILTERING MEDIUM PLASTIC POLYETHYLENE SEAL |
| SURFACE TREATMENT | PAINT BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-R-2323G,TYPE1 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | REUSABLE |
| FILTERING ELEMENT QUANTITY | 1 |
| FILTRATION RATING IN MICRONS | NOT RATED |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 40.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | 5.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE CONNECTION TYPE | RAISED FACE FLANGE TOP |

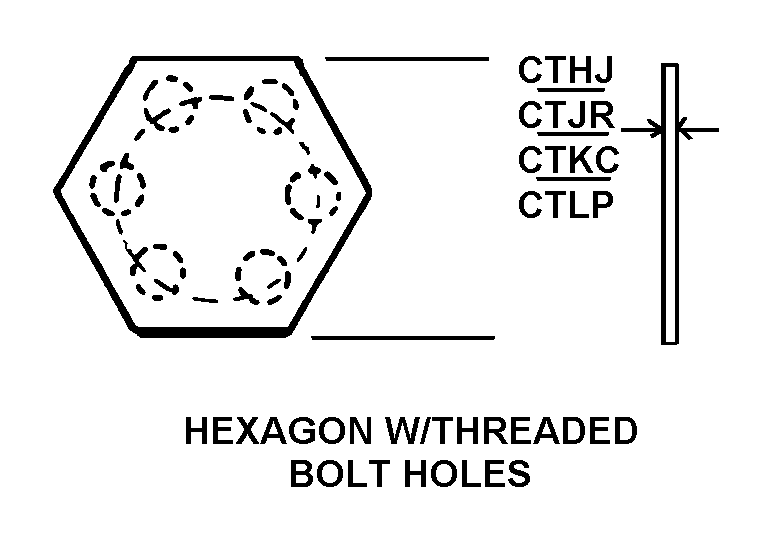

| FIRST INTAKE FLANGE SHAPE STYLE | 10 HEXAGON W/THREADED BOLT HOLES |
| FIRST INTAKE FLANGE FACE STYLE | 1 PLAIN |
| SECOND INTAKE FLANGE THICKNESS | 3.438 INCHES NOMINAL |
| SECOND INTAKE FLANGE LENGTH | 7.938 INCHES NOMINAL |
| SECOND INTAKE FLANGE WIDTH | 7.250 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | NOT IDENTICAL |
| FIRST DISCHARGE CONNECTION TYPE | PLAIN FACE FLANGE END |
| FIRST DISCHARGE FLANGE SHAPE STYLE | 7 RECTANGULAR W/THREADED BOLT HOLES |
| FIRST DISCHARGE FLANGE FACE STYLE | 1 PLAIN |
| MOUNTING TYPE | UNTHREADED HOLE BOTTOM |
| MOUNTING HOLE QUANTITY | 4 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 6.500 INCHES MAXIMUM AND 8.500 INCHES MAXIMUM |
| FILTERING SYSTEM FOR WHICH DESIGNED | FULL FLOW |
| FEATURES PROVIDED | BY-PASS VALVE AND DRAIN COCK |
| SPECIAL FEATURES | MICRON RATING 238;INLET AND OURLET 3.000 IN. DIA,4 EA THD HOLES 5/8-11UNC-2BON 2.438 IN BY 4.188 IN |
Restrictions/Controls & Freight Information | NSN 4330-01-282-8587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-01-282-8587
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
