NSN 4320-01-508-5397 7249324, 01-508-5397, 015085397
Product Details | CYLINDER SLEEVE
4320-01-508-5397 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: 7249324, 4320-01-508-5397, 01-508-5397, 4320015085397, 015085397
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 23 MAY 2003 | 01-508-5397 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 4320-01-508-5397
Cross Reference | NSN 4320-01-508-5397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7249324 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-508-5397
Technical Data | NSN 4320-01-508-5397
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | 200.0 NOMINAL BRINELL STANDARD |
| DESIGN TYPE | WET |

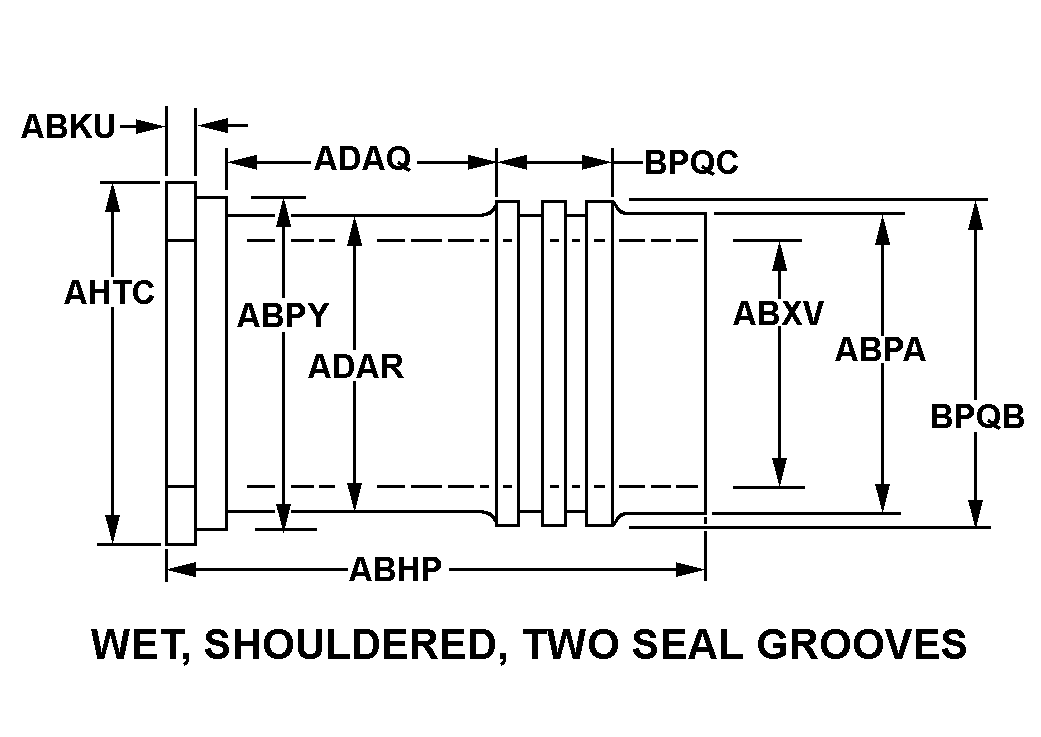

| STYLE DESIGNATOR | A11 WET, SHOULDERED, TWO SEAL GROOVES |
| OVERALL LENGTH | 6.016 INCHES NOMINAL |
| FLANGE THICKNESS | 0.375 INCHES NOMINAL |
| BODY LENGTH | 2.681 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.969 INCHES NOMINAL |
| GROOVED PORTION WIDTH | 2.062 INCHES NOMINAL |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | INCLUDED |
| BOTTOM INSIDE CHAMFER | INCLUDED |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
| SPECIAL FEATURES | MATERIAL: STEEL ALLOY, ASTM A 322; NHA: 7249046 |
| III END ITEM IDENTIFICATION | MK45 NSFS |
Restrictions/Controls & Freight Information | NSN 4320-01-508-5397
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-508-5397
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
