NSN 4320-01-508-5421 7249359, 01-508-5421, 015085421
Product Details | CYLINDER SLEEVE
4320-01-508-5421 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: 7249359, 4320-01-508-5421, 01-508-5421, 4320015085421, 015085421
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 23 MAY 2003 | 01-508-5421 | 16756 ( CYLINDER SLEEVE ) |
Drawings & Photos | NSN 4320-01-508-5421
Cross Reference | NSN 4320-01-508-5421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7249359 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-01-508-5421
Technical Data | NSN 4320-01-508-5421
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| DESIGN TYPE | WET |

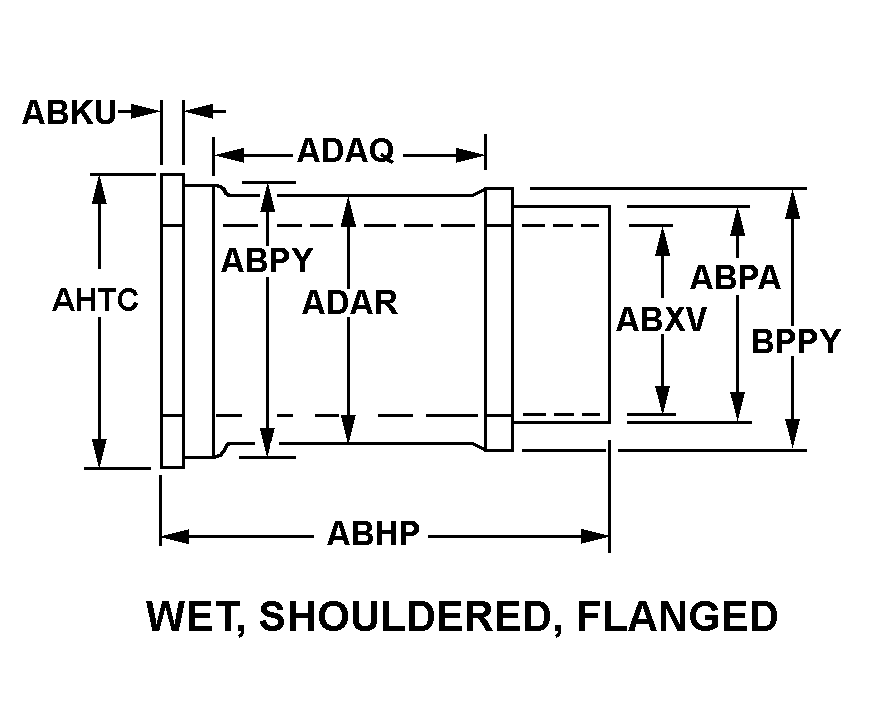

| STYLE DESIGNATOR | A9 WET, SHOULDERED, FLANGED |
| OVERALL LENGTH | 15.063 INCHES NOMINAL |
| FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.6247 INCHES NOMINAL |
| EXPANDED DIAMETER | 1.749 INCHES NOMINAL |
| BORE DIAMETER | 1.125 INCHES NOMINAL |
| BODY LENGTH | 12.375 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.469 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 3.375 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER UNDER FLANGE | 1.7485 INCHES NOMINAL |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | INCLUDED |
| CHAMFER LENGTH | 0.062 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 30.0 |
| BOTTOM INSIDE CHAMFER | INCLUDED |
| BOTTOM CHAMFER LENGTH | 0.062 INCHES NOMINAL |
| BOTTOM CHAMFER ANGLE IN DEG | 30.0 |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
| SPECIAL FEATURES | MATERIAL: ALLOY STEEL ASTM A 322; NHA: 7249041 |
| III END ITEM IDENTIFICATION | MK45 NSFS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SLEEVE, PISTON |
Restrictions/Controls & Freight Information | NSN 4320-01-508-5421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114730 | BARRELS/LINERS/SLEEVES I/C ENGINE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-01-508-5421
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
