NSN 4320-00-097-0977 A7593, A759-3, Y300B80LX6154
Product Details | DIRT AND LIQUID DEFLECTOR
4320-00-097-0977 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial
Part Alternates: A7593, A759-3, Y300B80LX6154, Y300B80LX6-154, Y300B80LX6165, Y300B80LX6-165, 60079, 4320-00-097-0977, 00-097-0977, 4320000970977, 000970977
Pumps and Compressors | Power and Hand Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1961 | 00-097-0977 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
Drawings & Photos | NSN 4320-00-097-0977
Demand History | NSN 4320-00-097-0977
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A7593 | 2012-05-136 | 30 | |
| A7593 | 2008-07-189 | 1 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4320-00-097-0977
Technical Data | NSN 4320-00-097-0977
| Characteristic | Specifications |
|---|---|

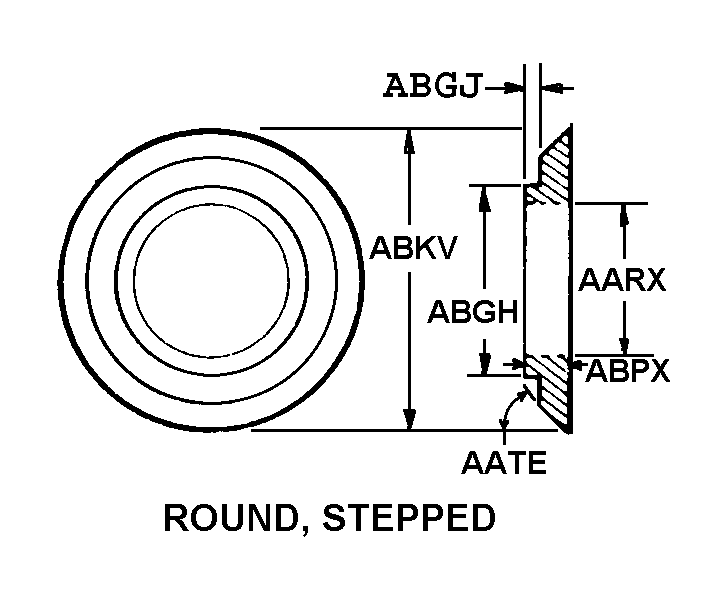

| STYLE DESIGNATOR | 3 ROUND, STEPPED |
| INSIDE DIAMETER | 4.000 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 25.0 |
| STEP DIAMETER | 4.375 INCHES NOMINAL |
| STEP LENGTH | 0.344 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.438 INCHES NOMINAL |
| MATERIAL | BRASS |
| OZONE RESISTANCE | NOT OZONE RESISTANT |
| SPECIAL FEATURES | DEFLECTOR SPLIT INTO 2 HALVES,JOINED BY 2,NO. 6-32 THD SCREWS,0.750 IN. LG |
Restrictions/Controls & Freight Information | NSN 4320-00-097-0977
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019490 | AUTO PARTS: SHIELDS,BRAKE DUST |
| Less than car load rating | ||
| Less than truck load rating | B | 300.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4320-00-097-0977
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
