NSN 4310-00-842-6506 602, 68132, 00-842-6506
Product Details | INTAKE AIR CLEANER
4310-00-842-6506 A device designed to prevent foreign particles from entering the air intake system of an internal combustion engine or air compressor. Excludes mufflers.20329400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43100028Compressors and Vacuum Pumps
Part Alternates: 602, 68132, 4310-00-842-6506, 00-842-6506, 4310008426506, 008426506
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-842-6506 | 10118 ( AIR CLEANER, INTAKE ) |

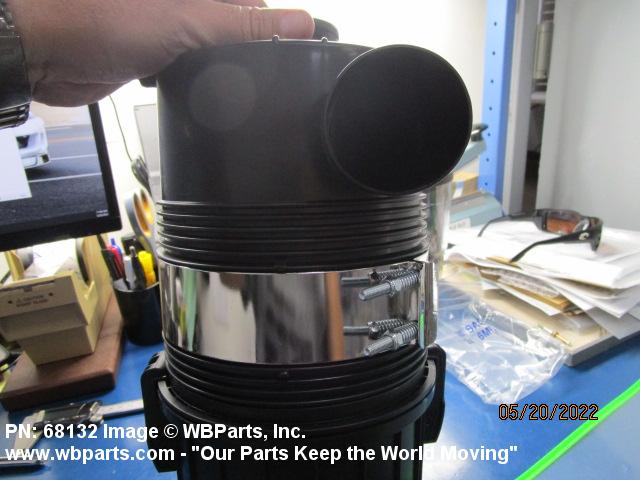

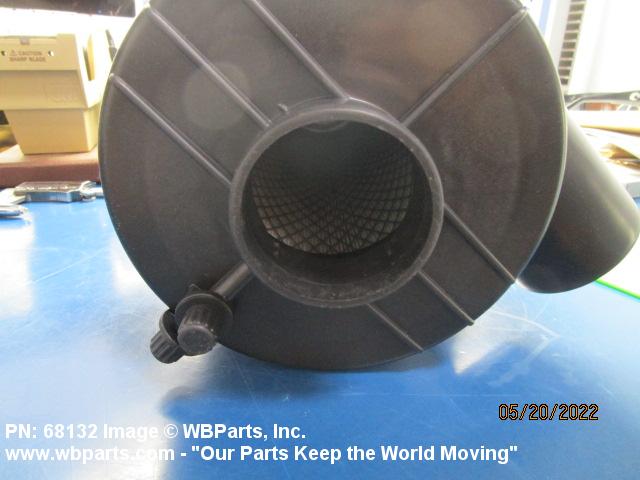

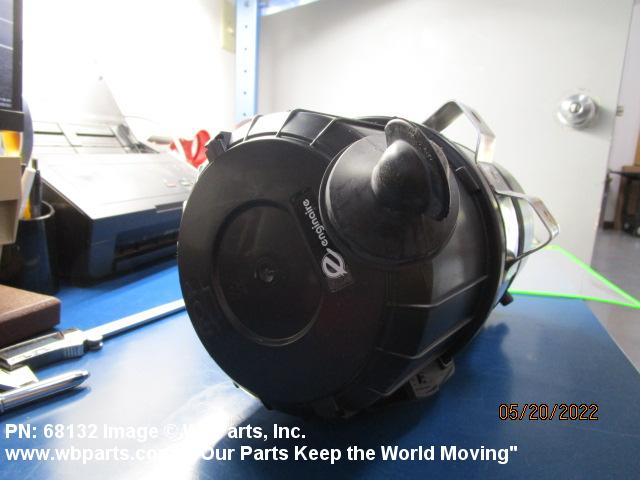

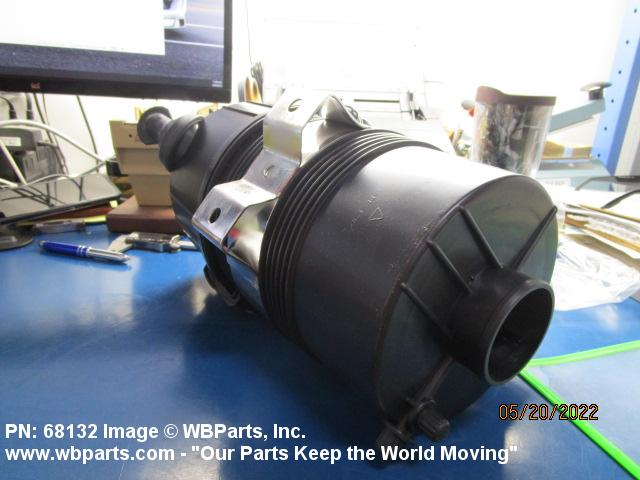

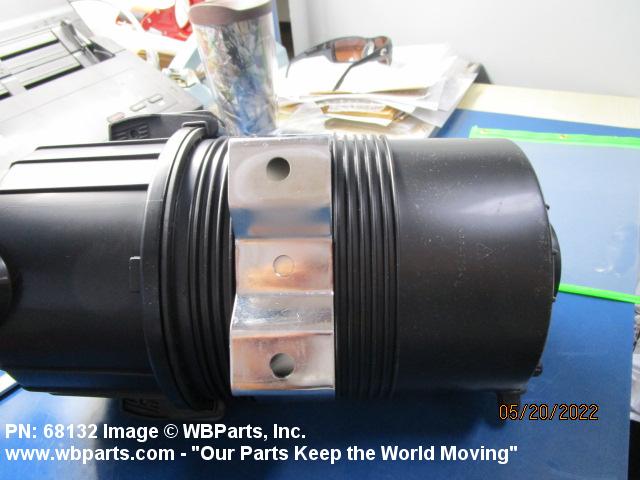

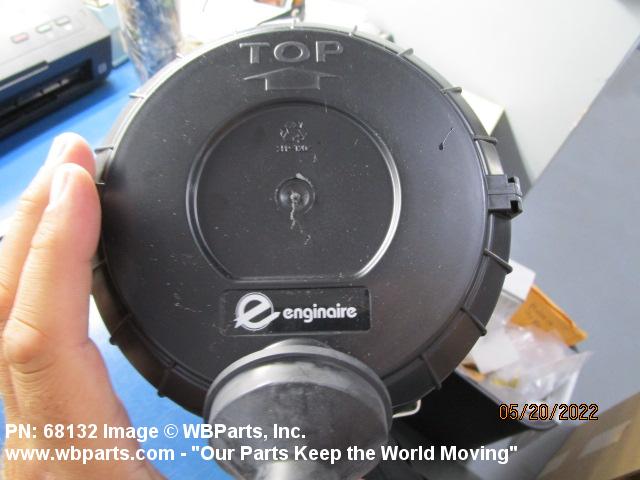

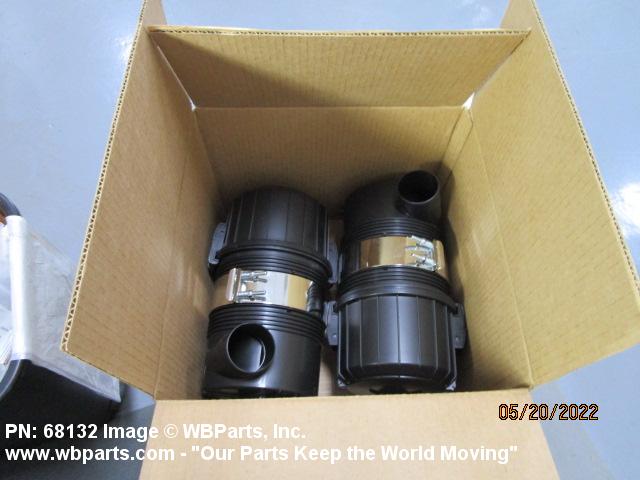

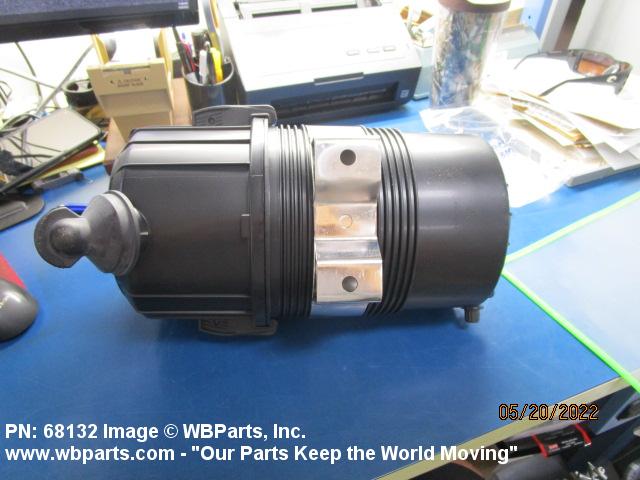

Drawings & Photos | NSN 4310-00-842-6506
Demand History | NSN 4310-00-842-6506
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 68132 | 2021-05-131 | 1 | DIBBS |
| 68132 | 2019-08-220 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4310-00-842-6506
Related Products | NSN 4310-00-842-6506
Technical Data | NSN 4310-00-842-6506
| Characteristic | Specifications |
|---|---|
| MATERIAL | PAPER |
| FILTER TYPE | DRY |
| OVERALL HEIGHT | 9.391 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.6250 INCHES NOMINAL |
| ELEMENT REPLACEABILITY | REPLACEABLE |
| QUANTITY | 1 |
| PRESSURE RELIEF VALVE | NOT INCLUDED |
| BACKFIRE VALVE | INCLUDED |
| INLET TYPE | SLEEVE |
| SLEEVE LOCATION | LOCATED ON SIDE OF CLEANER |
| SLEEVE CONNECTION QUANTITY | 1 |
| SLEEVE LENGTH | 8.000 INCHES NOMINAL |
| SLEEVE INSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OUTLET LOCATION | CENTRALLY LOCATED ON BOTTOM OF CLEANER |
| OUTLET TYPE | SLEEVE |
| OUTLET SLEEVE TYPE | PROTRUDING |
| MOUNTING INSIDE DIAMETER | 1.625 INCHES NOMINAL |
| INTEGRAL CLAMP | NOT INCLUDED |
| MOUNTING PROVISION THREAD SIZE | 1/4-20 |
| MOUNTING PROVISION THREAD SERIES DESIGNATOR | NPT |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LOCATION | INTERNAL |
| REMOTE LOCATION INLET ADAPTER | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| III FSC APPLICATION DATA | MB-1 COMPRESSOR |
| MANUFACTURERS CODE | 16004 |
| DESIGN CONTROL REFERENCE | 68132 |
Restrictions/Controls & Freight Information | NSN 4310-00-842-6506
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:FILTERS,NOI SUB6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-842-6506
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
