NSN 2945-00-211-5168 13403, 15942165, 159-42165
Product Details | INTAKE AIR CLEANER

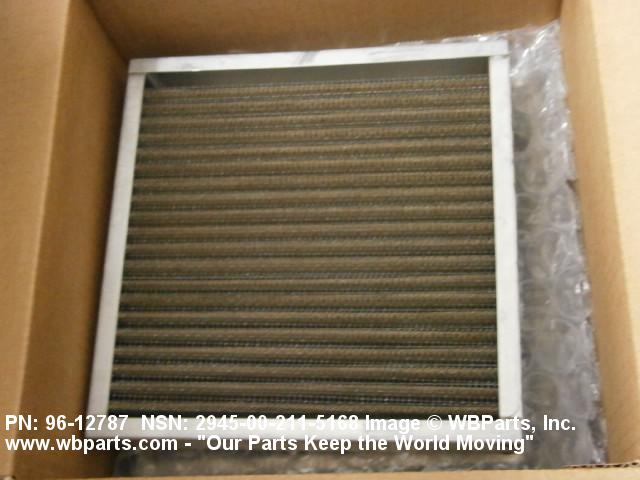

2945-00-211-5168 A device designed to prevent foreign particles from entering the air intake system of an internal combustion engine or air compressor. Excludes mufflers.20329400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43100028Compressors and Vacuum Pumps
Part Alternates: 13403, 15942165, 159-42165, 9612787, 96-12787, 2945-00-211-5168, 00-211-5168, 2945002115168, 002115168
Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1961 | 00-211-5168 | 10118 ( AIR CLEANER, INTAKE ) |
Drawings & Photos | NSN 2945-00-211-5168
Demand History | NSN 2945-00-211-5168
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9612787 | 2011-12-347 | 3 | us |
| 2945-00-211-5168 | 2011-06-160 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2945-00-211-5168
Technical Data | NSN 2945-00-211-5168
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| FILTER TYPE | OIL WETTED |
| OVERALL HEIGHT | 10.000 INCHES NOMINAL |
| WIDTH | 2.000 INCHES NOMINAL |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| ELEMENT REPLACEABILITY | NONREPLACEABLE |
| PRESSURE RELIEF VALVE | NOT INCLUDED |
| BACKFIRE VALVE | NOT INCLUDED |
| INLET TYPE | OPEN |
| ELEMENT TYPE | SCREEN |
| OUTLET LOCATION | LOCATED OVER ENTIRE SURFACE |
| REMOTE LOCATION INLET ADAPTER | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| III FSC APPLICATION DATA | FILTER,CARBURATOR AIR INTAKE,ENGINE,AIRCRAFT |
| MANUFACTURERS CODE | 01767 |
| DESIGN CONTROL REFERENCE | 96-12787 |
Restrictions/Controls & Freight Information | NSN 2945-00-211-5168
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
