Product Details | RECIPROCATING VACUUM PUMP UNIT

4310-00-684-4706 An assembled unit consisting of a commonly mounted reciprocating vacuum pump(s), prime mover(s), and the necessary components to provide for a complete operation. It may include a vacuum storage tank(s).

Part Alternates: 7641124G1, 4310-00-684-4706, 00-684-4706, 4310006844706, 006844706

Pumps and Compressors | Compressors and Vacuum Pumps

Supply Group (FSG) NSN Assign. NIIN
43 01 JAN 1963 00-684-4706

Drawings & Photos | NSN 4310-00-684-4706


Cross Reference | NSN 4310-00-684-4706

Part Number Cage Code Manufacturer
7641124G1 24446 GENERAL ELECTRIC CO
7641124G1 99971 LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4310-00-684-4706

Technical Data | NSN 4310-00-684-4706

Characteristic Specifications
PUMP QUANTITY 1
PRIME MOVER TYPE ELECTRIC MOTOR
PUMP BODY MATERIAL ANY ACCEPTABLE
BODY SURFACE TREATMENT ANY ACCEPTABLE
VACUUM RATING 457.0 TORR
SYSTEM DESIGN NONCORROSIVE
SPECIFIC GAS FOR WHICH DESIGNED AIR
PUMPING ELEMENT TYPE DIAPHRAGM
PUMP CYLINDER QUANTITY 1

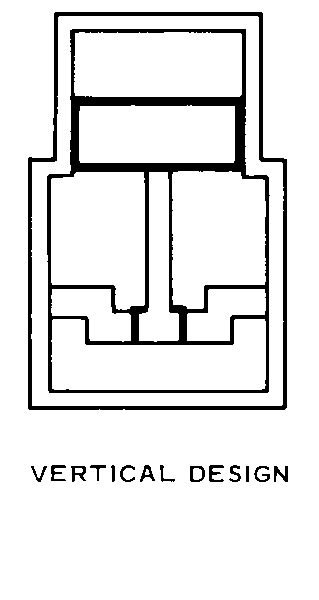

CYLINDER ARRANGEMENT STYLE 1 VERTICAL DESIGN
STAGE QUANTITY 1
COOLING MEDIUM AIR
INTAKE CONNECTION QUANTITY 1
INTAKE CONNECTION TYPE THREADED INTERNAL
INTAKE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR 1/8-27 NPT
DISCHARGE CONNECTION QUANTITY 1
DISCHARGE CONNECTION TYPE THREADED INTERNAL
DISCHARGE CONNECTION THREAD SIZE AND SERIES/TYPE DESIGNATOR 1/8-27 NPT
CURRENT TYPE AC
VOLTAGE IN VOLTS 115.0
FREQUENCY IN HERTZ 60.0
PHASE SINGLE
CURRENT RATING IN AMPS ANY ACCEPTABLE
BRAKE HORSEPOWER REQUIRED 0.020
OPERATING SPEED AT RATED CAPACITY IN RPM 3400.0
AIR DISPLACEMENT RATE NOT RATED
MOUNTING TYPE BASE
DRIVE CONNECTION TYPE ANY ACCEPTABLE
VACUUM STORAGE TANK CAPACITY ANY ACCEPTABLE
OVERALL HEIGHT ANY ACCEPTABLE
OVERALL LENGTH ANY ACCEPTABLE
OVERALL WIDTH ANY ACCEPTABLE
MANUFACTURERS CODE 99971
DESIGN CONTROL REFERENCE 7641124G1

Restrictions/Controls & Freight Information | NSN 4310-00-684-4706

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 128000 PUMPS PWR NOI/WORKING HEADS/PARTS
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 594 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
