NSN 4310-00-684-7579 P4R15GE, 00-684-7579, 006847579
Product Details | RECIPROCATING COMPRESSOR UNIT
4310-00-684-7579 An assembled unit consisting of a commonly mounted reciprocating compressor(s) and a prime mover(s). For items with additional equipment which extends the function of the unit beyond the delivery of compressed air or gas, see PNEUMATIC TOOL AND COMPRESSOR OUTFIT, or more specific names, as applicable. Excludes AUXILIARY SET, ENGINE DRIVEN.
Part Alternates: P4R15GE, 4310-00-684-7579, 00-684-7579, 4310006847579, 006847579
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1963 | 00-684-7579 | 29301 ( COMPRESSOR UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-00-684-7579
Demand History | NSN 4310-00-684-7579
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4310-00-684-7579 | 2013-11-329 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-684-7579
Technical Data | NSN 4310-00-684-7579
| Characteristic | Specifications |
|---|---|
| COMPRESSOR QUANTITY | 1 |
| DUTY CYCLE IN PERCENT | 100 |
| COOLING SYSTEM DESIGN | SINGLE |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 4 |

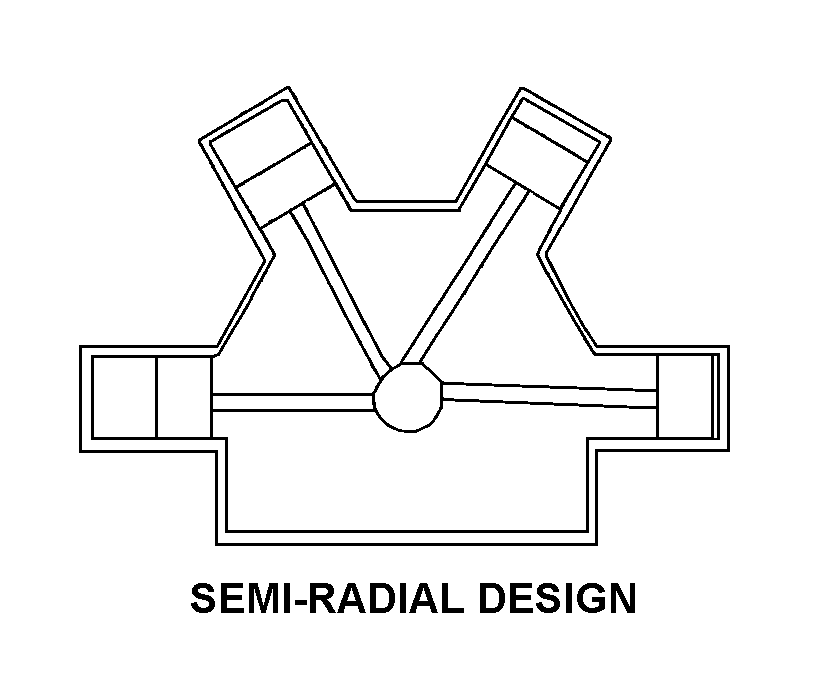

| CYLINDER ARRANGEMENT STYLE | 6 SEMI-RADIAL DESIGN |
| STAGE QUANTITY | 4 |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| SAFETY DEVICE TYPE | RELIEF VALVE |
| CONTROL DEVICE TYPE | AUTOMOTIVE SPEED REGULATOR |
| SILENCER TYPE | DISCHARGE |
| TEMP RATING PER FUNCTION | -53.8 DEG CELSIUS MINIMUM OPERATING |
| SPECIAL FEATURES | TWO RECEIVER TANKS |
| MANUFACTURERS CODE | 0AT62 |
| DESIGN CONTROL REFERENCE | P4R15GE |
Restrictions/Controls & Freight Information | NSN 4310-00-684-7579
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118100 | COMPRESSORS, AIR, NOI, OR AIR ENDS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | D | Hazardous material (not required hand to hand receipt) including all regulated items other than special weapons and their components. |
| Special Handling Code | D | unknonwn |
| HAZMAT | ||
| Type of Cargo | R | Flammable liquids, UN class 3 (flammable liquids label) |
