NSN 4240-00-770-0268 D85571, 7376554X3PCF23, 73765-54X3PCF23
Product Details | AIR BREATHING AIR DUCT HOSE ASSEMBLY
4240-00-770-0268 A length of HOSE, AIR DUCT, AIR BREATHING which may have end couplings on one or both end/or incorporates a communication cable. It is designed for use in breathing oxygen system, air line masks, gas masks, and the like. Excludes items which include the branch or fork hoses; assemblies made up of the oxygen breathing hose, communication cable, wiring for face mask heater, and vent and pressure ducts for the anti-Gsuit and HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: D85571, 7376554X3PCF23, 73765-54X3PCF23, 7376554X3RAPCF23, 73765-54X3RAPCF23, 85571, 4240-00-770-0268, 00-770-0268, 4240007700268, 007700268
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Safety and Rescue Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1963 | 00-770-0268 | 30600 ( HOSE ASSEMBLY, AIR DUCT, AIR BREATHING ) |

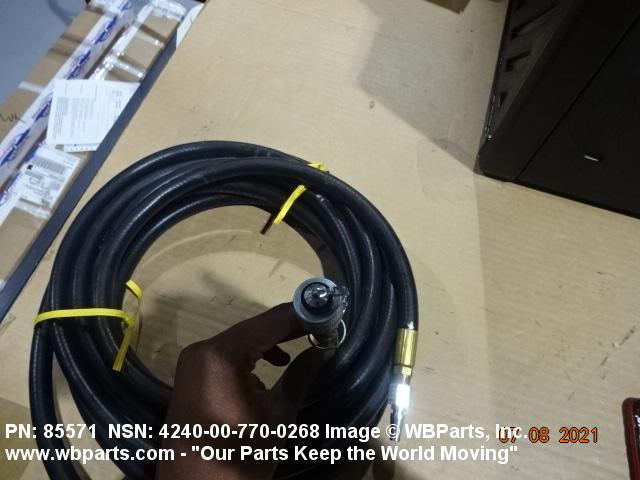

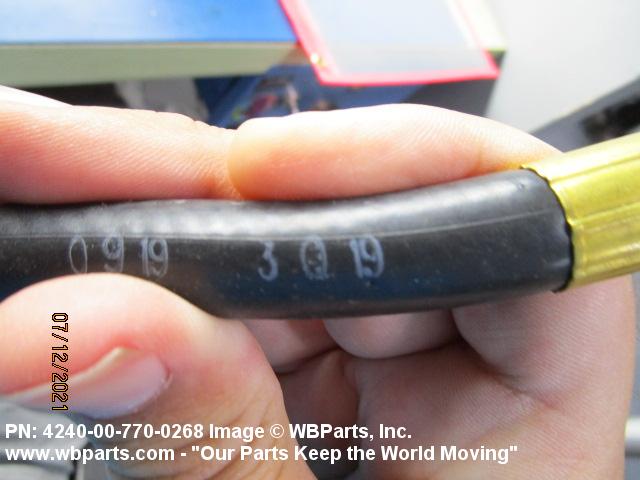

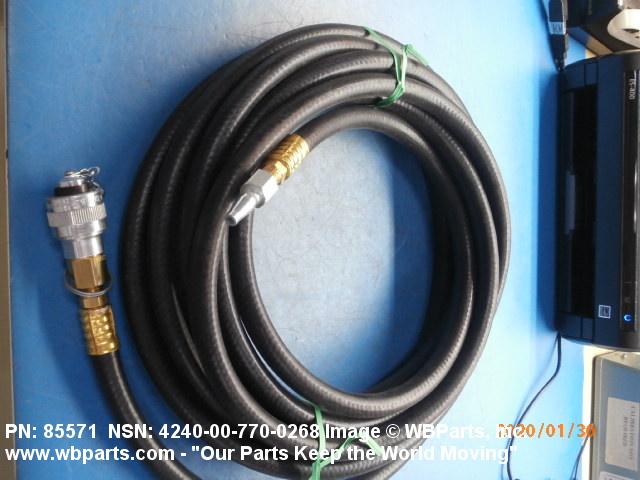

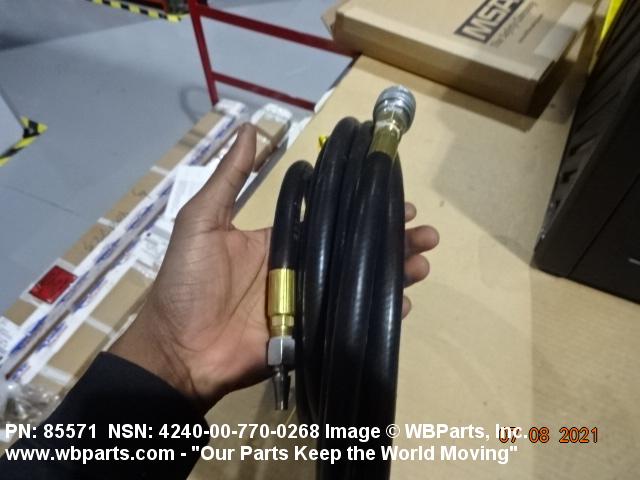

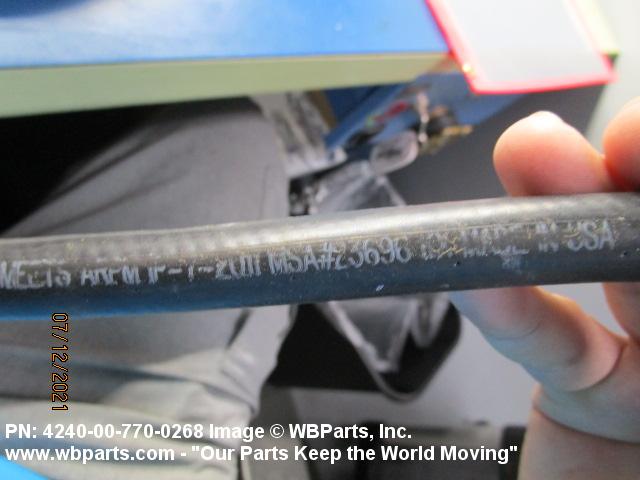

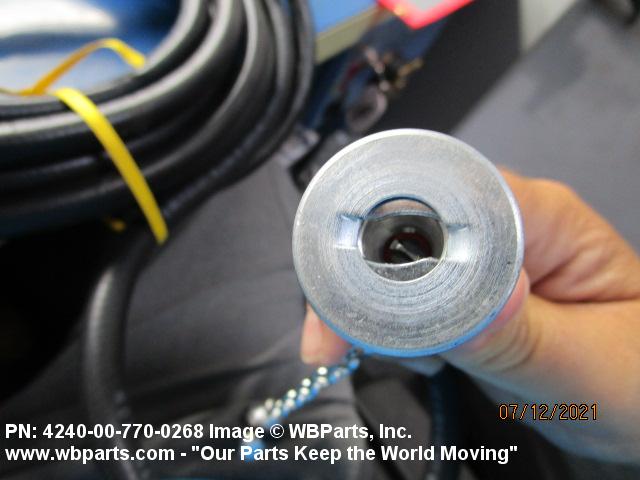

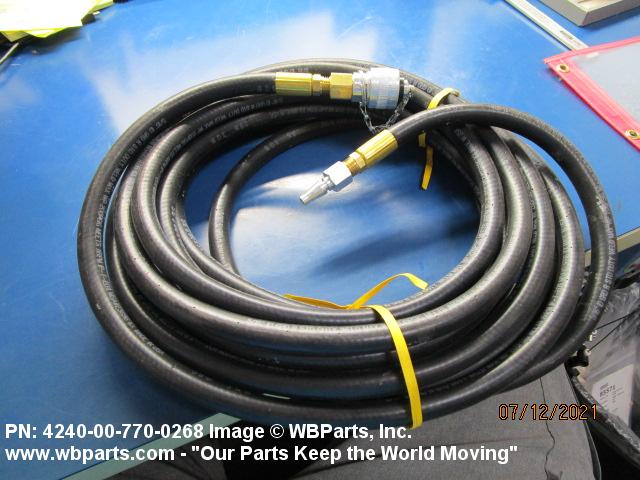

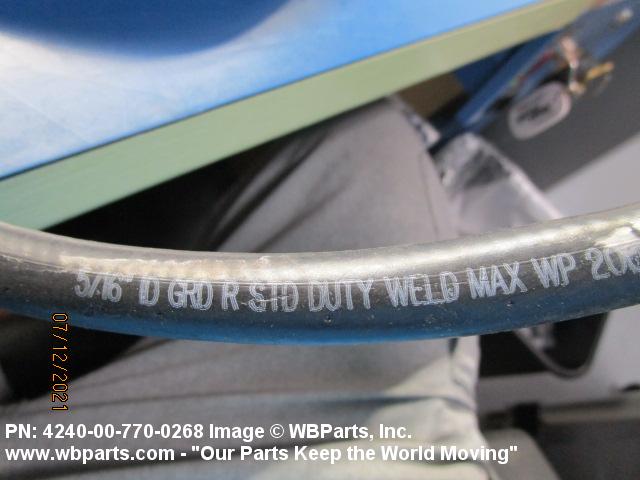

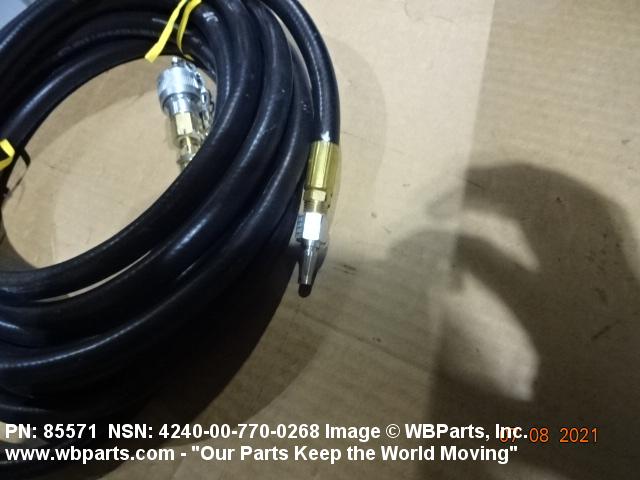

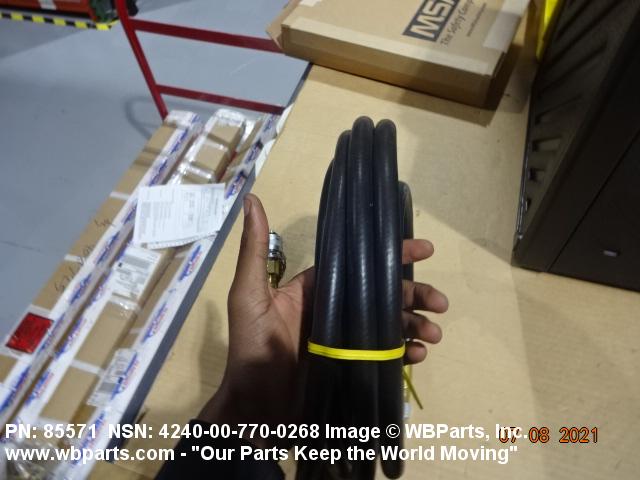

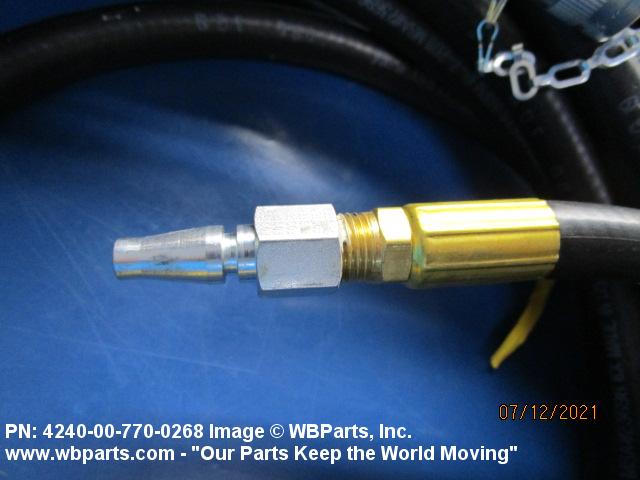

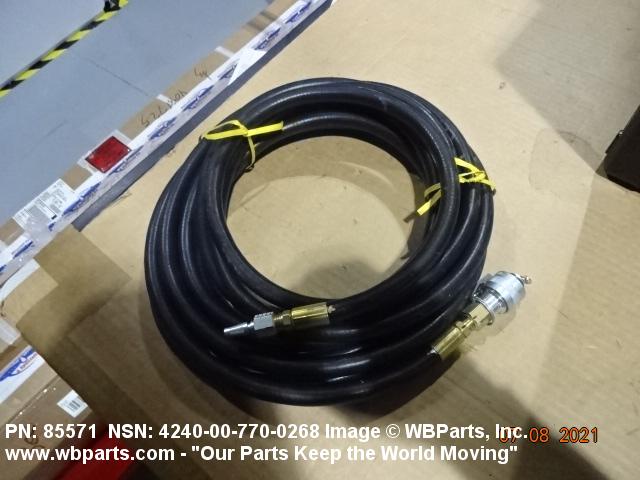

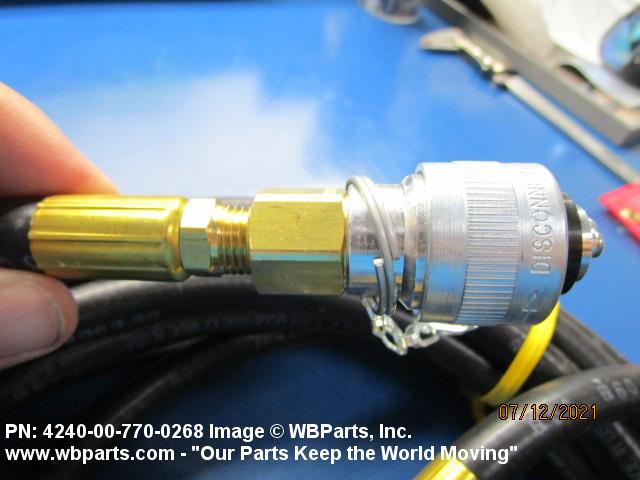

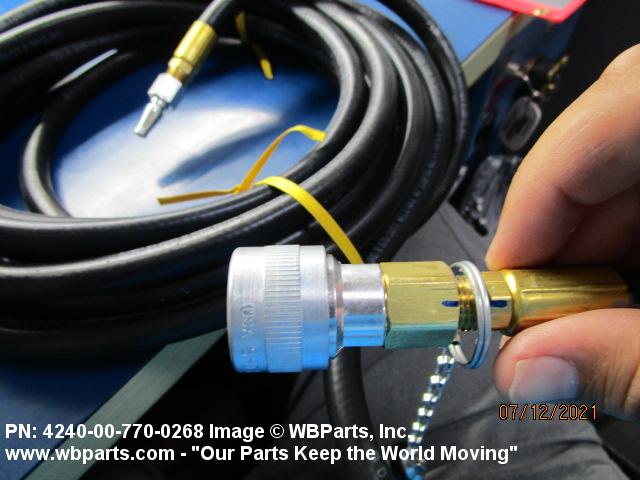

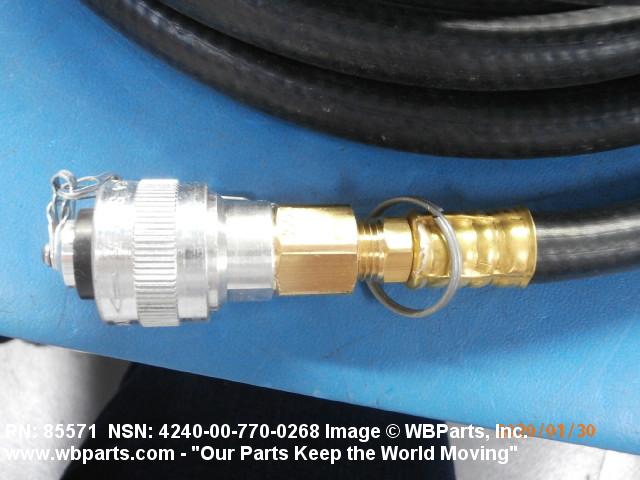

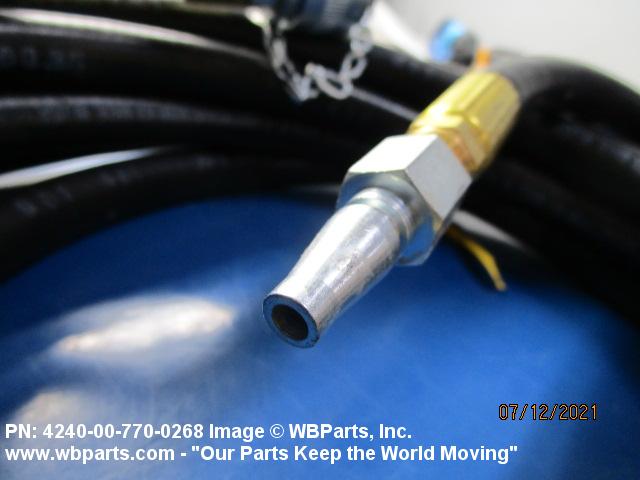

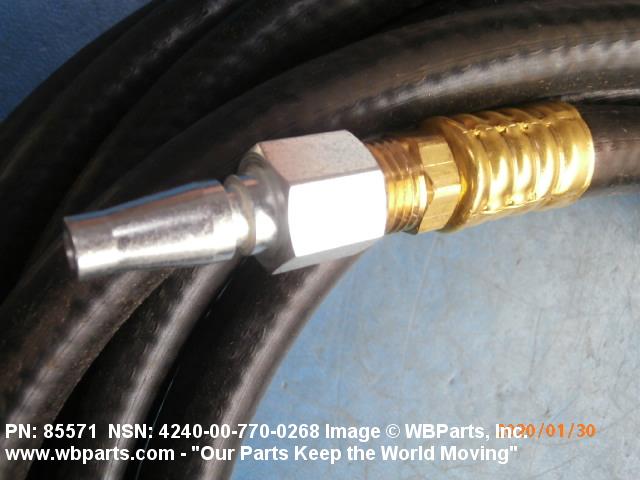

Drawings & Photos | NSN 4240-00-770-0268
Demand History | NSN 4240-00-770-0268
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 85571 | 2024-11-318 | 20 | DIBBS |
| 85571 | 2024-10-298 | 79 | DIBBS |
| 85571 | 2024-09-262 | 118 | DIBBS |
| 85571 | 2024-06-164 | 79 | DIBBS |
| 85571 | 2024-06-164 | 65 | DIBBS |
| 85571 | 2024-05-136 | 42 | DIBBS |
| 85571 | 2023-12-361 | 79 | DIBBS |
| 85571 | 2023-06-152 | 39 | DIBBS |
| 85571 | 2023-04-109 | 6 | DIBBS |
| 85571 | 2023-04-95 | 33 | DIBBS |
| 85571 | 2023-03-80 | 160 | DIBBS |
| 85571 | 2023-02-53 | 66 | DIBBS |
| 85571 | 2022-03-68 | 28 | DIBBS |
| 85571 | 2021-12-363 | 85 | DIBBS |
| 85571 | 2021-08-237 | 83 | DIBBS |
| 4240-00-770-0268 | 2021-05-125 | 8 | United States |
| 4240-00-770-0268 | 2021-03-64 | 8 | United States |
| 4240-00-770-0268 | 2020-11-322 | 8 | United States |
| 85571 | 2020-09-274 | 27 | DIBBS |
| 85571 | 2020-09-257 | 3 | DIBBS |
| 85571 | 2020-09-247 | 40 | DIBBS |
| 85571 | 2020-07-211 | 83 | DIBBS |
| 85571 | 2020-03-75 | 98 | DIBBS |
| 85571 | 2020-02-40 | 73 | DIBBS |
| 4240-00-770-0268 | 2019-07-182 | 4 | United States |
| 85571 | 2019-04-97 | 160 | DIBBS |
| 85571 | 2019-03-72 | 66 | DIBBS |
| 4240-00-770-0268 | 2018-11-305 | 75 | DIBBS |
| 4240-00-770-0268 | 2018-09-268 | 10 | United States |
| 4240-00-770-0268 | 2018-05-126 | 68 | DIBBS |
| 4240-00-770-0268 | 2018-03-64 | 53 | DIBBS |
| 4240-00-770-0268 | 2017-10-295 | 75 | DIBBS |
| 4240-00-770-0268 | 2017-08-215 | 65 | DIBBS |
| 4240-00-770-0268 | 2017-01-04 | 57 | DIBBS |
| 4240-00-770-0268 | 2016-06-171 | 74 | DIBBS |
| 4240-00-770-0268 | 2016-04-118 | 67 | DIBBS |
| 4240-00-770-0268 | 2016-01-07 | 29 | DIBBS |
| 4240-00-770-0268 | 2015-09-250 | 17 | DIBBS |
| 4240-00-770-0268 | 2015-08-228 | 4 | DIBBS |
| 4240-00-770-0268 | 2015-08-221 | 11 | DIBBS |
| 4240-00-770-0268 | 2015-07-211 | 8 | DIBBS |
| 4240-00-770-0268 | 2015-07-196 | 4 | DIBBS |
| 4240-00-770-0268 | 2015-05-145 | 34 | DIBBS |
| 4240-00-770-0268 | 2015-05-137 | 21 | DIBBS |
| 4240-00-770-0268 | 2013-04-116 | 153 | DIBBS |
| 4240-00-770-0268 | 2013-04-115 | 153 | DIBBS |
| 4240-00-770-0268 | 2013-04-105 | 153 | DIBBS |
| 4240-00-770-0268 | 2013-04-93 | 69 | DIBBS |
| 4240-00-770-0268 | 2013-03-68 | 0 | DIBBS |
| 4240-00-770-0268 | 2013-02-32 | 69 | DIBBS |
| 4240-00-770-0268 | 2012-10-293 | 84 | DIBBS |
| 4240-00-770-0268 | 2012-08-244 | 39 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4240-00-770-0268
Related Products | NSN 4240-00-770-0268
Technical Data | NSN 4240-00-770-0268
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY AND STEEL CORROSION RESISTING SINGLE PLY COPPER ALLOY AND STEEL CORROSION RESISTING 1ST END COUPLING |
| SURFACE TREATMENT | ZINC 1ST END COUPLING ZINC 2ND END COUPLING |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.375 INCHES NOMINAL FIRST END |
| MEASURING METHOD AND LENGTH | 300.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | COUPLING FIRST END COUPLING SECOND END |
| COUPLING STYLE | D9 THREADED INTERNAL FIRST END D8 THREADED EXTERNAL SECOND END |
| THREAD SERIES DESIGNATOR | UNF FIRST END UNF SECOND END |
| NOMINAL THREAD SIZE | 0.750 INCHES FIRST END 0.750 INCHES SECOND END |
| THREAD QUANTITY PER INCH | 16 FIRST END 16 SECOND END |
| SPECIAL FEATURES | SCHRADER FITTINGS P/N 55597 FEMALE CONNECTION, P/N 55516 MALE CONNECTION; OZONE RESISTANCE:NOT OZONE RESISTANT; END SIMILARITY:NOT IDENTICAL; HOSE STYLE:SLEEVE SECTION, STYLE NO. 5 FROM OLD FIIG A22900; HOSE MATERIAL:RUBBER; COMMUNICATION CABLE AND RESTRAINT CORD:NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4240-00-770-0268
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4240-00-770-0268
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
