NSN 4240-00-093-5502 C566269, C5-66-269, 00-093-5502
Product Details | AIR BREATHING AIR DUCT HOSE ASSEMBLY
4240-00-093-5502 A length of HOSE, AIR DUCT, AIR BREATHING which may have end couplings on one or both end/or incorporates a communication cable. It is designed for use in breathing oxygen system, air line masks, gas masks, and the like. Excludes items which include the branch or fork hoses; assemblies made up of the oxygen breathing hose, communication cable, wiring for face mask heater, and vent and pressure ducts for the anti-Gsuit and HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: C566269, C5-66-269, 4240-00-093-5502, 00-093-5502, 4240000935502, 000935502
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Safety and Rescue Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1963 | 00-093-5502 | 30600 ( HOSE ASSEMBLY, AIR DUCT, AIR BREATHING ) |
Drawings & Photos | NSN 4240-00-093-5502
Demand History | NSN 4240-00-093-5502
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4240-00-093-5502 | 2015-02-40 | 34 | DIBBS |
| 4240-00-093-5502 | 2014-10-297 | 34 | DIBBS |
| 4240-00-093-5502 | 2014-08-238 | 34 | DIBBS |
| 4240-00-093-5502 | 2014-06-175 | 34 | DIBBS |
| 4240-00-093-5502 | 2014-04-99 | 16 | DIBBS |
| 4240-00-093-5502 | 2014-02-58 | 13 | DIBBS |
| 4240-00-093-5502 | 2013-05-128 | 5 | DIBBS |
| 4240-00-093-5502 | 2009-12-338 | 5 | DIBBS |
Cross Reference | NSN 4240-00-093-5502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5-66-269 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4240-00-093-5502
Technical Data | NSN 4240-00-093-5502
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER 1ST PLY PLASTIC POLYAMIDE AND RUBBER 2ND PLY PLASTIC POLYAMIDE 3RD PLY STEEL 1ST END COUPLING STEEL REINFORCING WIRE |
| SURFACE TREATMENT | PHOSPHATE 1ST END COUPLING CHROMATE ZINC 2ND END COUPLING |
| STYLE DESIGNATOR | A3 FULLY CONVOLUTED W/WIRE RINGS BETWEN CONVOLUTIONS |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.883 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.125 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 72.000 INCHES NOMINAL OVERALL |
| CONNECTION TYPE | COUPLING FIRST END |

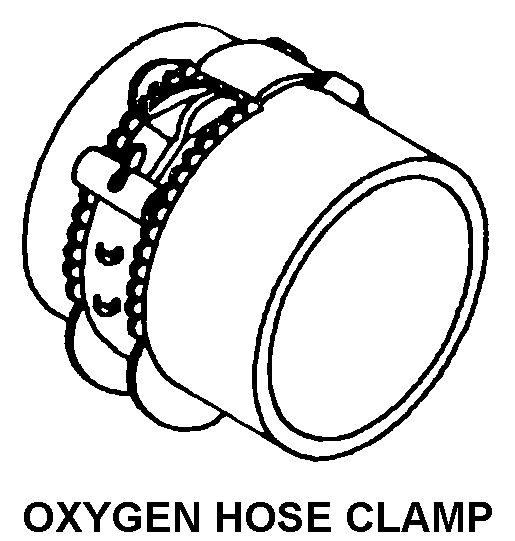

| COUPLING STYLE | D16 OXYGEN HOSE CLAMP FIRST END |
| HOSE WEIGHT | 5.000 OUNCES PER LINEAR FOOT |
| TEST DATA DOCUMENT | MIL-H-14506-81349 SPECIFICATION |
| III FSC APPLICATION DATA | FILTER UNIT,GAS-PARTICULATE |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | C5-66-269 |
Restrictions/Controls & Freight Information | NSN 4240-00-093-5502
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 796 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4240-00-093-5502
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
