Product Details | TUBEAXIAL FAN

4140-01-235-7392 A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.20316800000259000004140000000

Part Alternates: 034250, 4140-01-235-7392, 01-235-7392, 4140012357392, 012357392

Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment

Supply Group (FSG) NSN Assign. NIIN
41 04 JUL 1986 01-235-7392

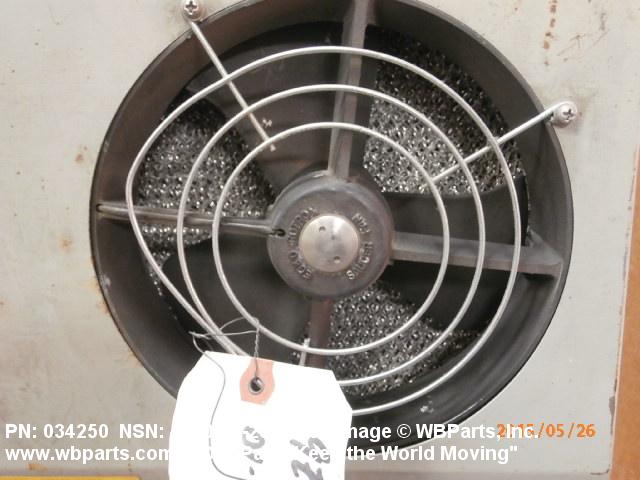

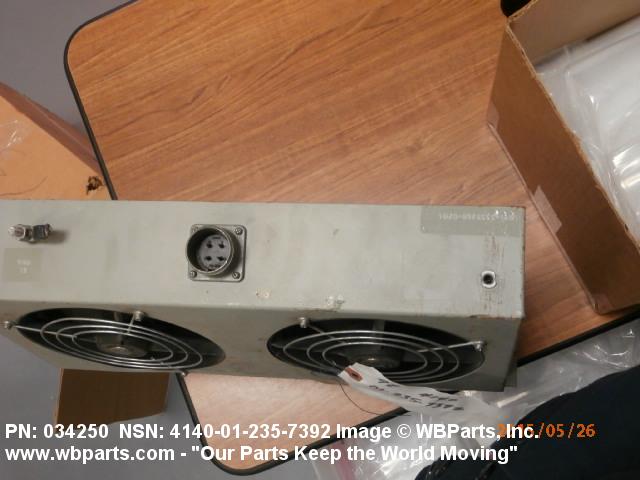

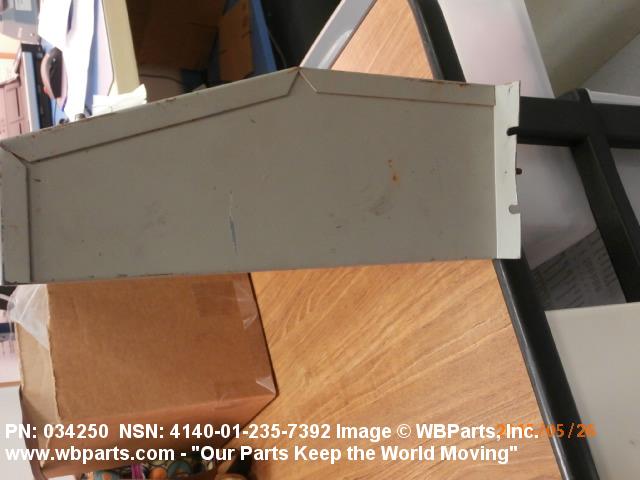

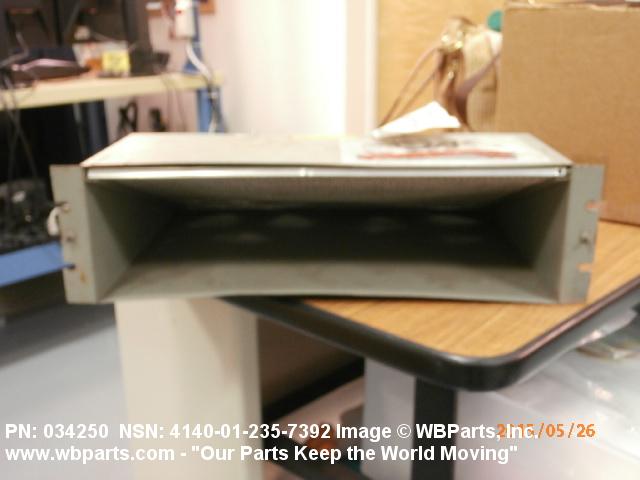

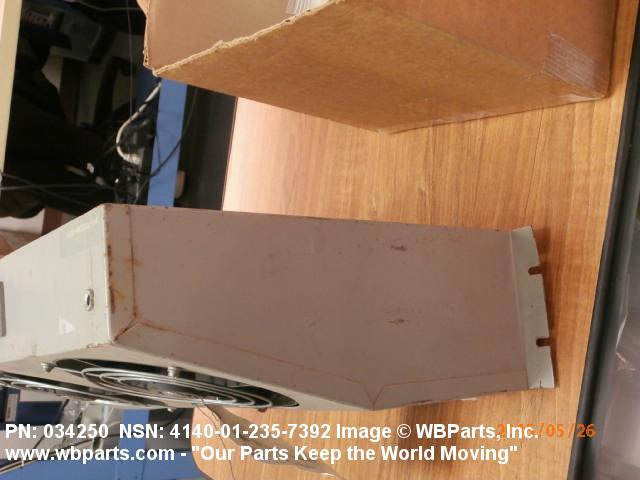

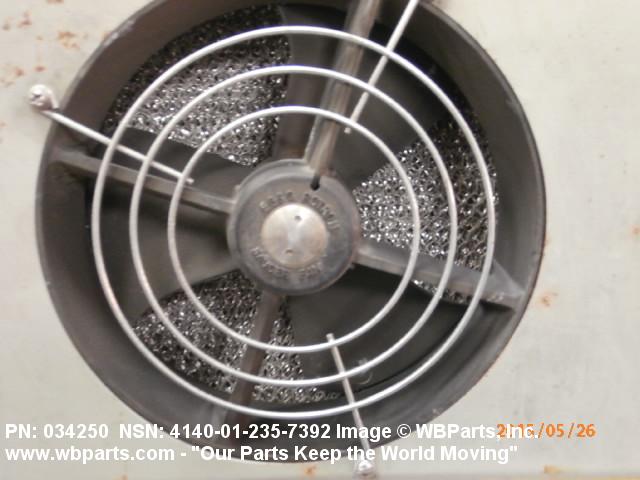

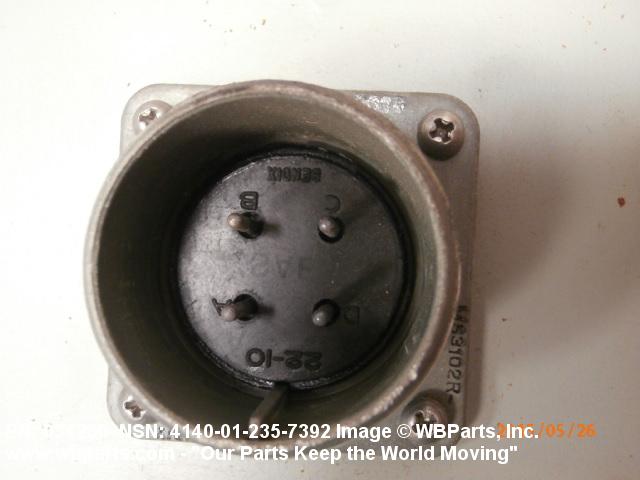

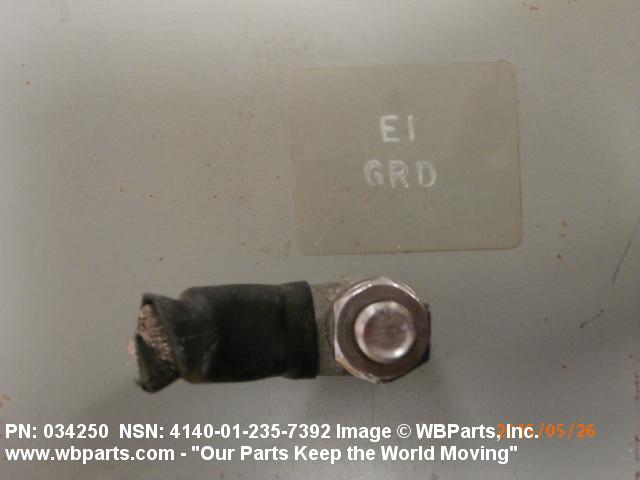

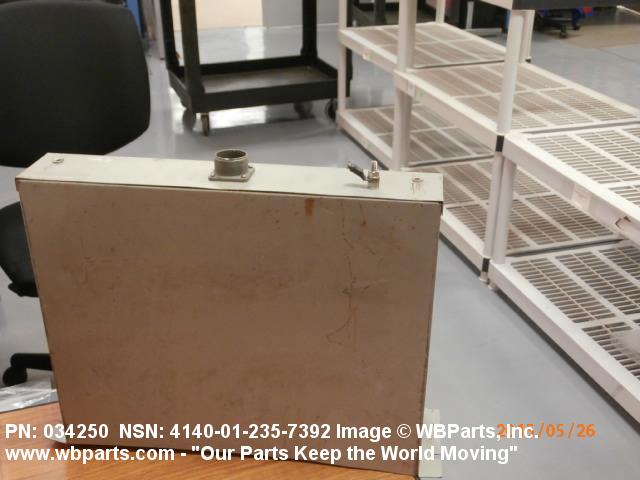

Drawings & Photos | NSN 4140-01-235-7392


Demand History | NSN 4140-01-235-7392

Part Number Request Date QTY Origin
034250 2024-03-81 2 DIBBS
034250 2023-05-150 2 DIBBS
034250 2023-05-137 2 DIBBS
4140-01-235-7392 2015-09-256 6 DIBBS
4140-01-235-7392 2015-03-78 2 US

Cross Reference | NSN 4140-01-235-7392

Part Number Cage Code Manufacturer
034250 57487 ROTRON INCORPORATED DBA AMETEK ROTRON TECHNICAL MOTOR
034250 82877 ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4140-01-235-7392

Technical Data | NSN 4140-01-235-7392

Characteristic Specifications
PRIME MOVER TYPE ELECTRIC MOTOR
OPERATING SPEED AT RATED CAPACITY IN RPM 3085.0
VOLTAGE IN VOLTS AND CURRENT TYPE 115.0 AC
PHASE SINGLE
FREQUENCY IN HERTZ 50.0 AND 60.0
MANUFACTURERS CODE 57487
DESIGN CONTROL REFERENCE 034250

Restrictions/Controls & Freight Information | NSN 4140-01-235-7392

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061900 FANS ELEC EXHAUST/VENTILATING
Less than car load rating
Less than truck load rating K 92.5
Water commodity Code 72E unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity E Engineer supplies, other than those listed under code B.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4140-01-235-7392

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
