NSN 4140-00-437-7858 M23071/8-001, M23071/8-1, M230718001
Product Details | TUBEAXIAL FAN
4140-00-437-7858 A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.20316800000259000004140000000
Part Alternates: M23071/8-001, M23071/8-1, M230718001, M2307181, A057644, A0-57644, A074673, A0-74673, FP1T4CB0012C8, MILB230718, MILB23071-8, PROPIMAX3BM473JH, PROPIMAX3BM-473JH, 0091901010, 009-1901-010, 021086, 4140-00-437-7858, 00-437-7858, 4140004377858, 004377858, 021086000
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 12 SEP 1969 | 00-437-7858 | 04244 ( FAN, TUBEAXIAL ) |

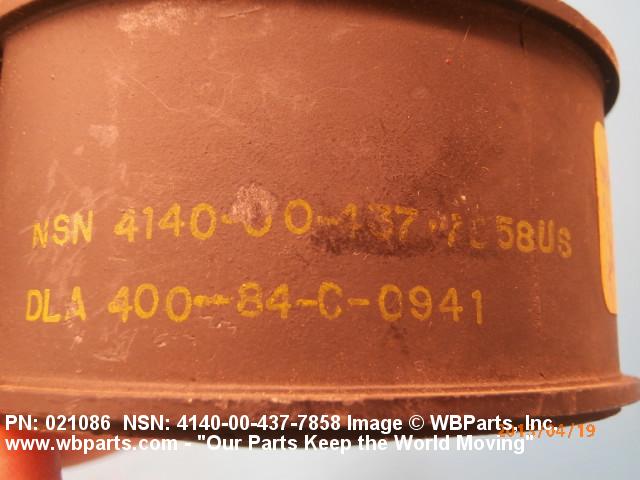

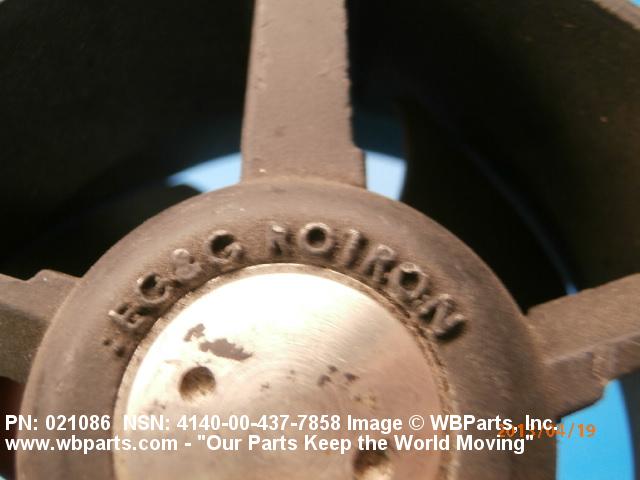

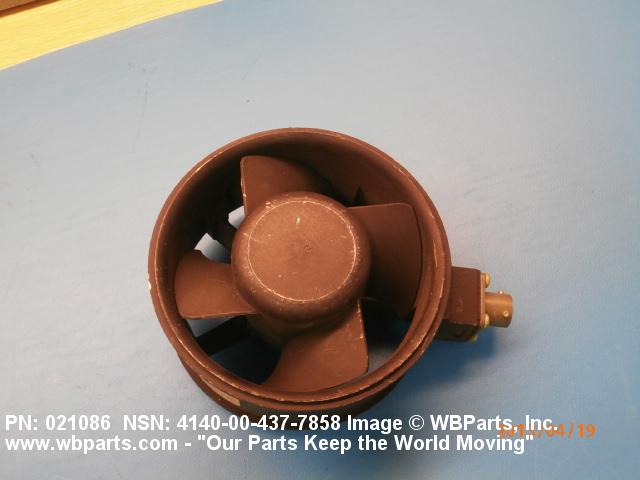

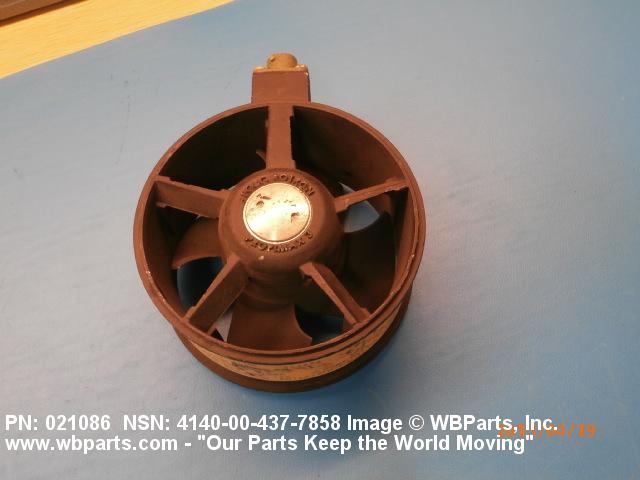

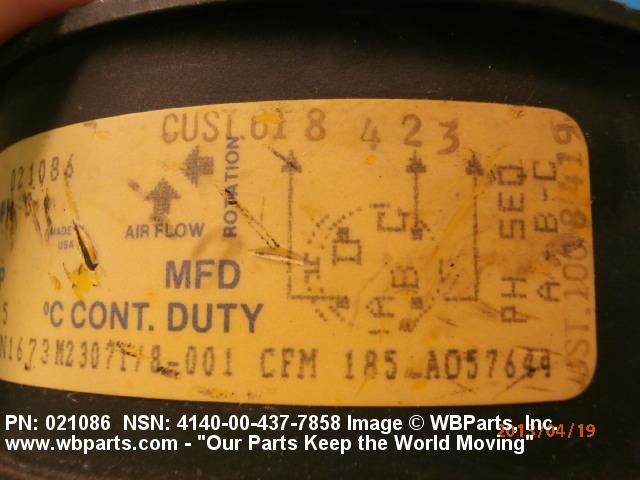

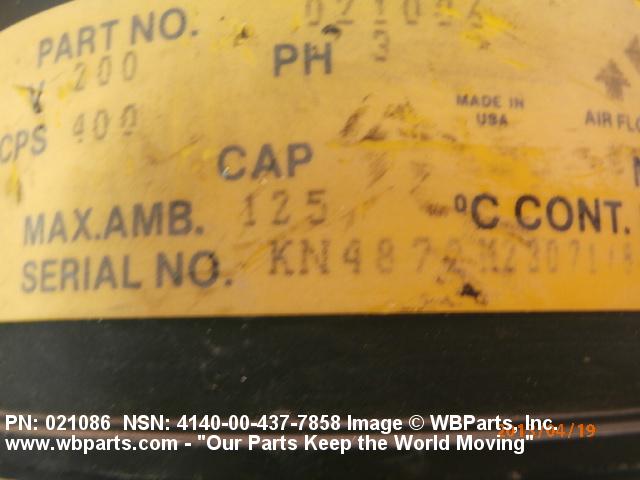

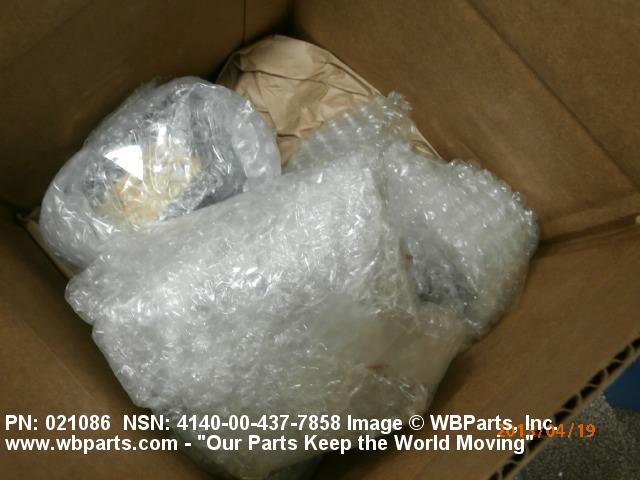

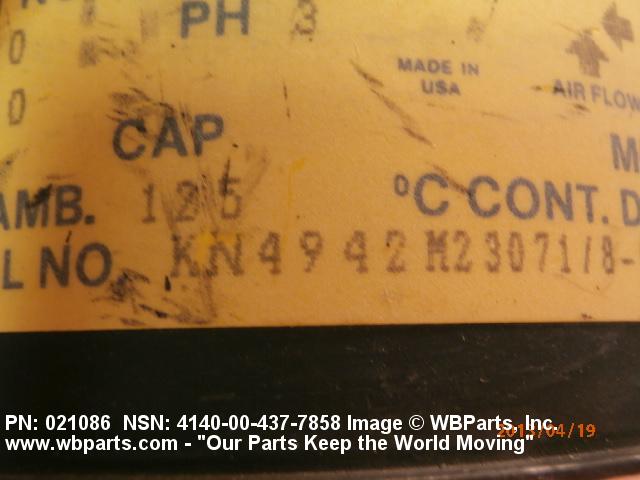

Drawings & Photos | NSN 4140-00-437-7858
Demand History | NSN 4140-00-437-7858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4140-00-437-7858 | 2024-07-202 | 1 | US |
| 021086000 | 2024-04-113 | 6 | DIBBS |
| 021086000 | 2024-04-100 | 6 | DIBBS |
| 4140-00-437-7858 | 2024-03-66 | 7 | United States |
| 4140-00-437-7858 | 2024-03-65 | 7 | United States |
| 021086000 | 2020-11-306 | 2 | DIBBS |
| 021086000 | 2020-04-111 | 8 | DIBBS |
| 021086000 | 2020-04-99 | 8 | DIBBS |
| 4140-00-437-7858 | 2019-10-300 | 1 | US |
| 021086000 | 2019-05-129 | 1 | TW |
| 021086000 | 2019-04-91 | 20 | DIBBS |
| 4140-00-437-7858 | 2019-02-36 | 20 | DIBBS |
| 4140-00-437-7858 | 2019-01-08 | 4 | TW |
| 4140-00-437-7858 | 2018-12-338 | 20 | DIBBS |
| 4140-00-437-7858 | 2018-11-308 | 5 | DIBBS |
| 4140-00-437-7858 | 2018-02-56 | 11 | DIBBS |
| 4140-00-437-7858 | 2018-01-03 | 2 | Taiwan |
| 4140-00-437-7858 | 2017-09-270 | 14 | DIBBS |
| 4140-00-437-7858 | 2017-07-204 | 14 | DIBBS |
| 4140-00-437-7858 | 2017-05-151 | 15 | DIBBS |
| 4140-00-437-7858 | 2017-01-27 | 1 | United States |
| 4140-00-437-7858 | 2017-01-11 | 15 | us |
| 4140-00-437-7858 | 2016-10-280 | 10 | DIBBS |
| 4140-00-437-7858 | 2016-02-52 | 27 | DIBBS |
| 4140-00-437-7858 | 2016-02-46 | 11 | DIBBS |
| 4140-00-437-7858 | 2015-12-342 | 16 | DIBBS |
| 4140-00-437-7858 | 2015-10-279 | 9 | DIBBS |
| 4140-00-437-7858 | 2015-08-231 | 11 | DIBBS |
| 4140-00-437-7858 | 2015-05-123 | 27 | DIBBS |
| 4140-00-437-7858 | 2015-04-92 | 13 | DIBBS |
| 4140-00-437-7858 | 2014-12-343 | 10 | DIBBS |
| 4140-00-437-7858 | 2014-08-217 | 26 | DIBBS |
| 4140-00-437-7858 | 2013-11-326 | 43 | DIBBS |
| 4140-00-437-7858 | 2013-07-190 | 11 | DIBBS |
| M230718001 | 2013-04-99 | 4 | United States |
| 4140-00-437-7858 | 2011-01-18 | 47 | DIBBS |
| 4140-00-437-7858 | 2010-12-355 | 40 | DIBBS |
| 4140-00-437-7858 | 2010-11-333 | 40 | DIBBS |
| 4140-00-437-7858 | 2010-10-274 | 15 | DIBBS |
| 4140-00-437-7858 | 2010-07-189 | 28 | DIBBS |
| 4140-00-437-7858 | 2010-06-160 | 33 | DIBBS |
| 4140-00-437-7858 | 2010-04-95 | 10 | DIBBS |
| 4140-00-437-7858 | 2010-03-81 | 32 | DIBBS |
| 4140-00-437-7858 | 2010-01-19 | 31 | DIBBS |
| 4140-00-437-7858 | 2009-10-280 | 8 | DIBBS |
| 4140-00-437-7858 | 2008-10-284 | 7 | DIBBS |
| 4140-00-437-7858 | 2008-10-284 | 10 | DIBBS |
| 4140-00-437-7858 | 2008-10-284 | 13 | DIBBS |
| 4140-00-437-7858 | 2008-10-284 | 15 | DIBBS |
| 4140-00-437-7858 | 2008-10-284 | 18 | DIBBS |
| 4140-00-437-7858 | 2008-08-220 | 10 | DIBBS |
| 4140-00-437-7858 | 2008-08-220 | 13 | DIBBS |
| 4140-00-437-7858 | 2008-08-220 | 15 | DIBBS |
| 4140-00-437-7858 | 2008-08-220 | 18 | DIBBS |
Cross Reference | NSN 4140-00-437-7858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 009-1901-010 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |

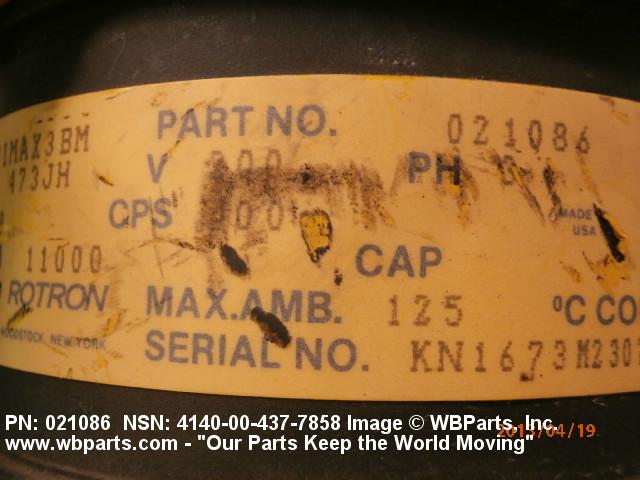

| 021086 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| 021086000 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| A0-57644 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| A0-74673 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| FP1T4CB0012C8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M23071/8-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M23071/8-001 | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
| M23071/8-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILB23071-8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |

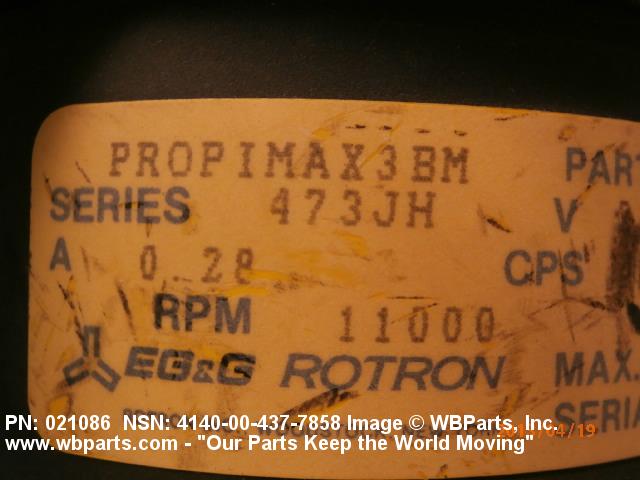

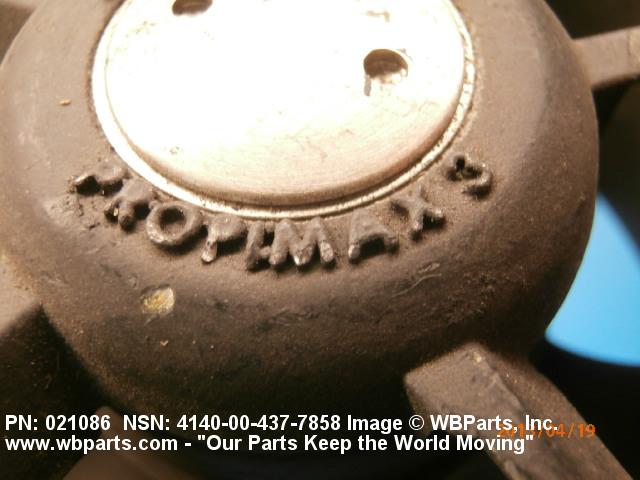

| PROPIMAX3BM-473JH | 82877 | ROTRON INCORPORATED DBA AMETEK ROTRON MIL AERO WOODSTOCK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4140-00-437-7858
Related Products | NSN 4140-00-437-7858
Technical Data | NSN 4140-00-437-7858
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 31 FIXED |

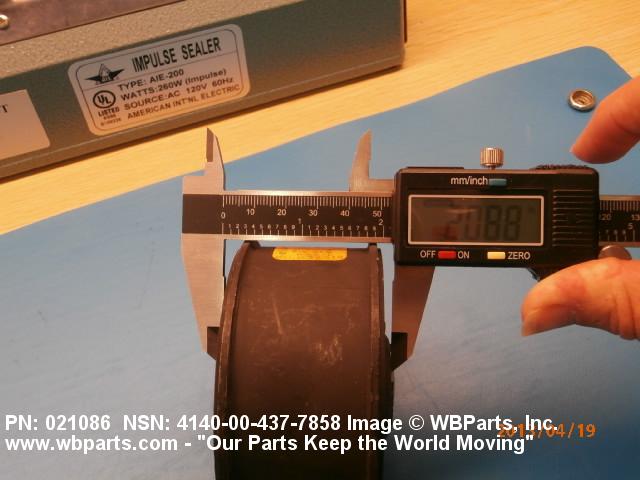

| LENGTH | 2.281 INCHES MAXIMUM |

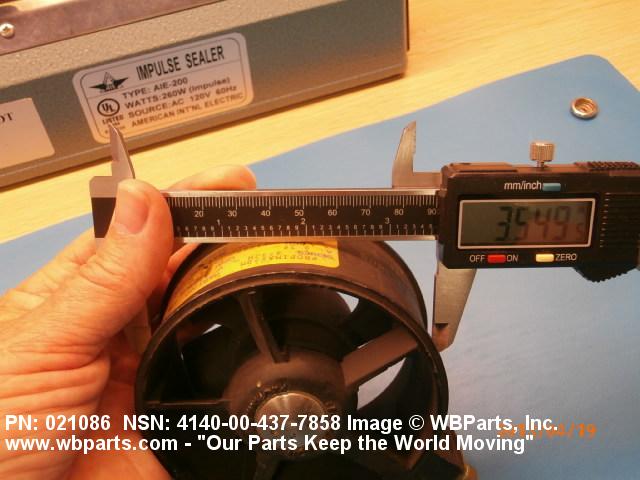

| HOUSING INSIDE DIAMETER | 3.562 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ENAMEL OVERALL |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | NOT RATED |

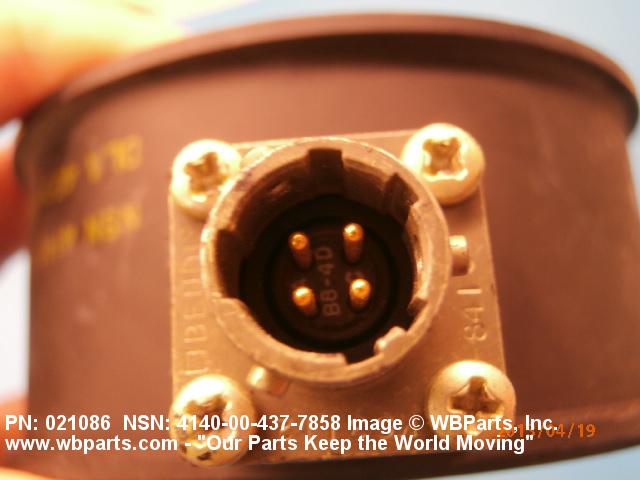

| ELECTRICAL CONNECTION TYPE | CONNECTOR RECEPTACLE |
| PRIME MOVER POWER RATING | 73.0 WATTS |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 11000.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 200.0 AC |
| PHASE | THREE |
| FREQUENCY IN HERTZ | 400.0 |
| AIR FLOW RATE | 174.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| ENVIRONMENTAL PROTECTION | FUNGUS RESISTANT AND HUMIDITY PROOF AND MOISTURE RESISTANT AND SHOCK PROOF AND SPRAY PROOF |
| FLOW DIRECTION | INWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 RIM |
| III END ITEM IDENTIFICATION | VARIOUS SYSTEMS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILB23071-8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M23071/8-001 |
Restrictions/Controls & Freight Information | NSN 4140-00-437-7858
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 752 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-437-7858
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
