NSN 4140-00-442-3206 8210, 00-442-3206, 004423206
Product Details | VENTILATING FAN
4140-00-442-3206 A nonpositive displacement mechanical device having either an axial or centrifugal fan impeller. It is designed to move free air or gas from indoors to outdoors or vice versa over a wide range of volumes at low pressures. It is supported by a ring, plate, or shroud or may be inclosed in a housing. It is designed for installation in a window, roof or wall opening, or the like.
Part Alternates: 8210, 4140-00-442-3206, 00-442-3206, 4140004423206, 004423206
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 23 MAY 1974 | 00-442-3206 | 04262 ( FAN, VENTILATING ) |
Drawings & Photos | NSN 4140-00-442-3206
Demand History | NSN 4140-00-442-3206
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8210 | 2020-11-323 | 160 | US |
| 8210 | 2020-02-34 | 100 | United States |
| 8210 | 2014-05-128 | 2 | Spain |
| 8210 | 2011-02-40 | 2 | US |
Cross Reference | NSN 4140-00-442-3206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8210 | 94227 | SCOVILL INC NUTONE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-442-3206
Technical Data | NSN 4140-00-442-3206
| Characteristic | Specifications |
|---|---|

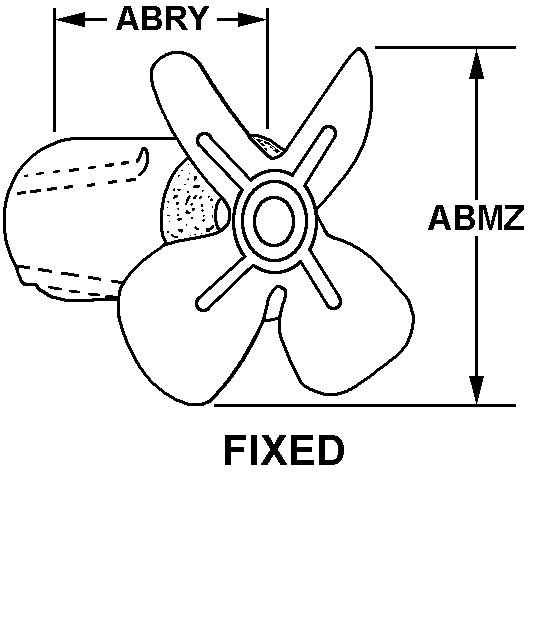

| STYLE DESIGNATOR | 34 FIXED |
| LENGTH | 5.625 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYPROPYLENE BLADE |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | NOT RATED |
| ELECTRICAL CONNECTION TYPE | CONNECTOR PLUG |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 235.0 CUBIC FEET PER MINUTE MAXIMUM |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| FLOW DIRECTION | OUTWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| SPECIAL FEATURES | THRU CEILING TYPE-W/SURFACE GRILLE |
| MANUFACTURERS CODE | 94227 |
| DESIGN CONTROL REFERENCE | 8210 |
Restrictions/Controls & Freight Information | NSN 4140-00-442-3206
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061900 | FANS ELEC EXHAUST/VENTILATING |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-442-3206
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
