NSN 4140-00-081-6144 210055, 382-003-001, 470373
Product Details | VENTILATING FAN
4140-00-081-6144 A nonpositive displacement mechanical device having either an axial or centrifugal fan impeller. It is designed to move free air or gas from indoors to outdoors or vice versa over a wide range of volumes at low pressures. It is supported by a ring, plate, or shroud or may be inclosed in a housing. It is designed for installation in a window, roof or wall opening, or the like.
Part Alternates: 210055, 382-003-001, 470373, 6500, 7600S, 4140-00-081-6144, 00-081-6144, 4140000816144, 000816144, 382003001
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 24 NOV 1972 | 00-081-6144 | 04262 ( FAN, VENTILATING ) |

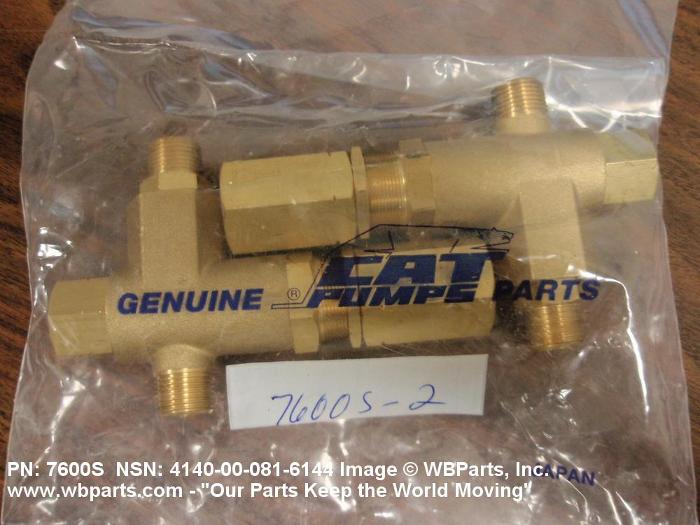

Drawings & Photos | NSN 4140-00-081-6144
Demand History | NSN 4140-00-081-6144
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6500 | 2017-07-193 | 1 | Singapore |
| 4140-00-081-6144 | 2013-05-149 | 14 | DIBBS |
| 4140-00-081-6144 | 2012-09-268 | 14 | DIBBS |
| 4140-00-081-6144 | 2011-10-291 | 18 | Taiwan |
| 4140-00-081-6144 | 2010-04-96 | 4 | DIBBS |
| 6500 | 2009-05-134 | 4 | Malaysia |
| 4140-00-081-6144 | 2007-05-142 | 56 | Taiwan |
Cross Reference | NSN 4140-00-081-6144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 210055 | 16067 | CALIFORNIA INSTRUMENTS CORP |
| 210055 | 25965 | AMETEK PROGRAMMABLE POWER, INC. DBA AMTEK NORTH |
| 210055 | K7014 | WESSEX ELECTRONICS LTD |
| 382-003-001 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 470373 | 0ZW37 | DANKA OFFICE IMAGING COMPANY |
| 470373 | 32153 | EASTMAN KODAK CO COMMERCIAL & GOVERNMENT SYSTEMS |
| 6500 | 23936 | PURDY WILLIAM J CO INTERFAN DIV |
| 7600S | 62292 | EBM INDUSTRIES INC DBA EBM PAPST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4140-00-081-6144
Related Products | NSN 4140-00-081-6144
Technical Data | NSN 4140-00-081-6144
| Characteristic | Specifications |
|---|---|

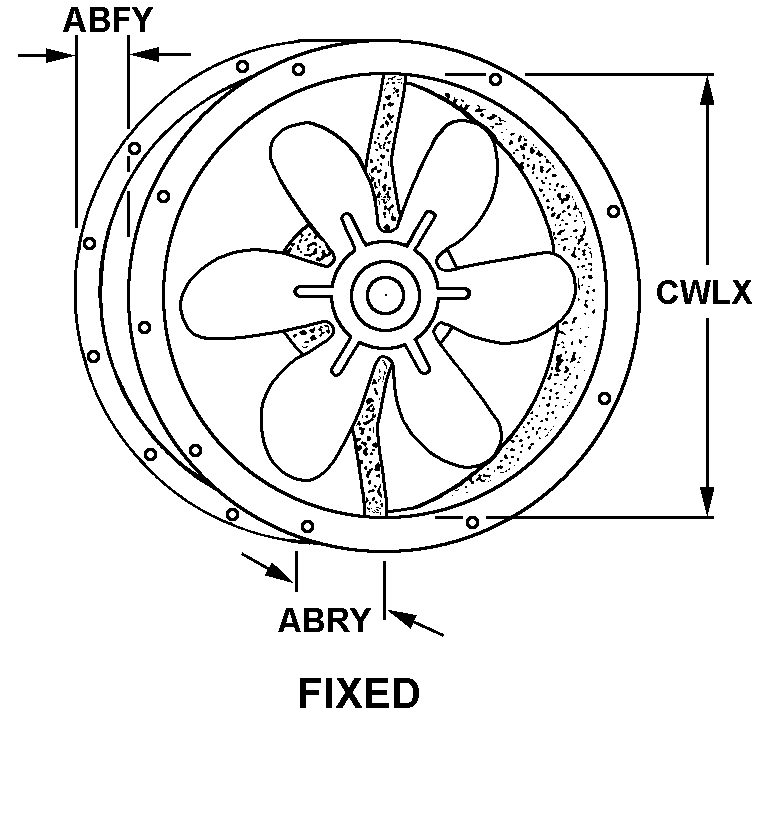

| STYLE DESIGNATOR | 32 FIXED |
| LENGTH | 2.160 INCHES MINIMUM AND 2.180 INCHES MAXIMUM |
| HOUSING INSIDE DIAMETER | 5.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | -20.0 DEG CELSIUS AND 50.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | WIRE LEAD |
| PRIME MOVER POWER RATING | 0.053 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 3200.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 50.0 AND 60.0 |
| AIR FLOW RATE | 240.0 CUBIC FEET PER MINUTE MAXIMUM |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| FLOW DIRECTION | INWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE AND 8 UNTHREADED HOLE |
| MANUFACTURERS CODE | 62292 |
| DESIGN CONTROL REFERENCE | 7600S |
Restrictions/Controls & Freight Information | NSN 4140-00-081-6144
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061900 | FANS ELEC EXHAUST/VENTILATING |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
