NSN 4140-00-289-8828 FF-18546 FF-18703, FF18546FF18703, L1A1W5
Product Details | TUBEAXIAL FAN
4140-00-289-8828 A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.20316800000259000004140000000
Part Alternates: FF-18546 FF-18703, FF18546FF18703, L1A1W5, MILF18953, 108089 PIECE 1, 108089PIECE1, 5007068790, 500706-8790, 4140-00-289-8828, 00-289-8828, 4140002898828, 002898828
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1963 | 00-289-8828 | 04244 ( FAN, TUBEAXIAL ) |

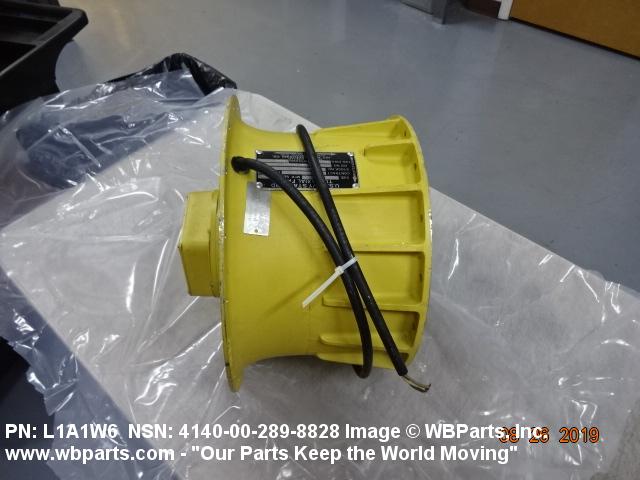

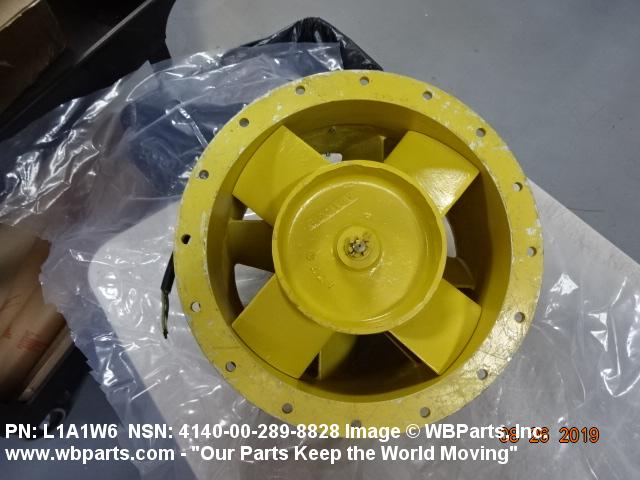

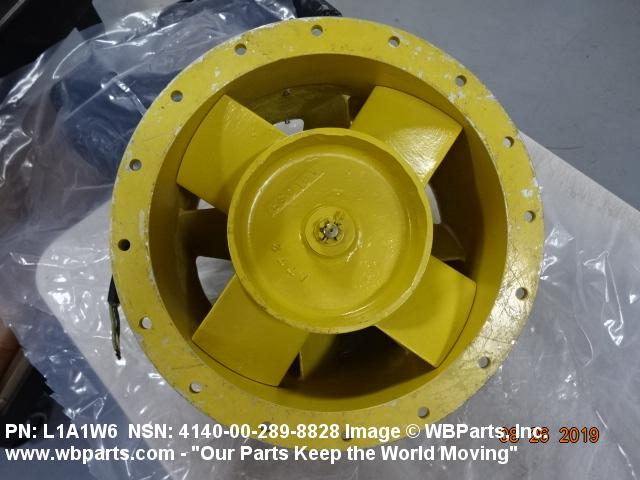

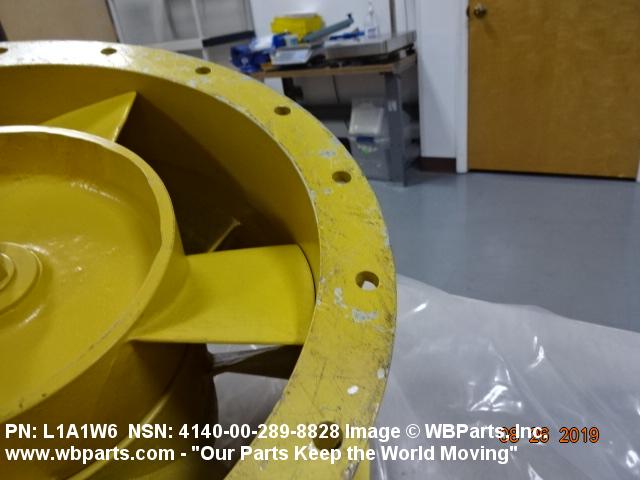

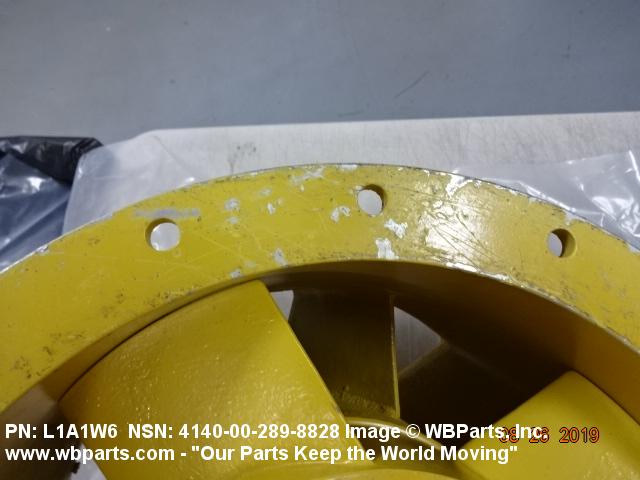

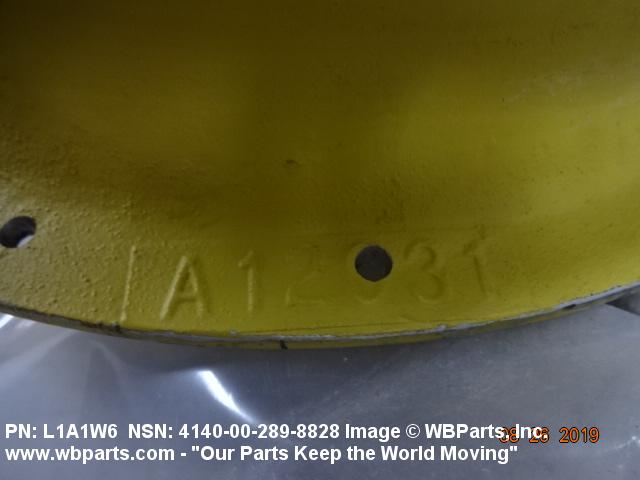

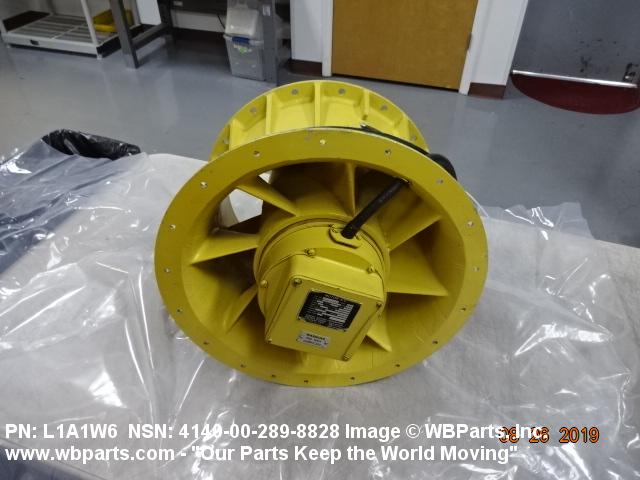

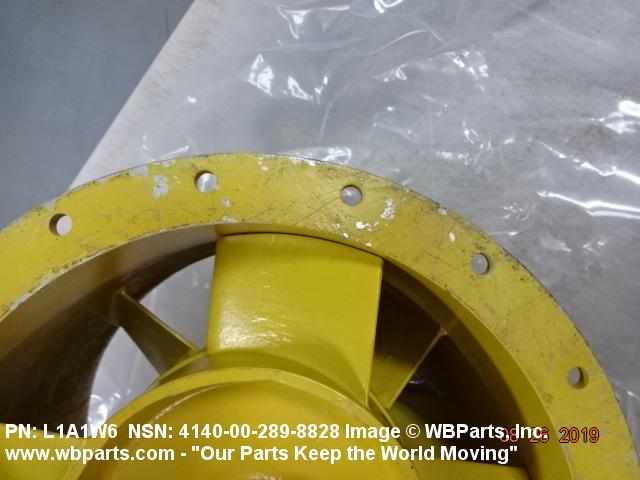

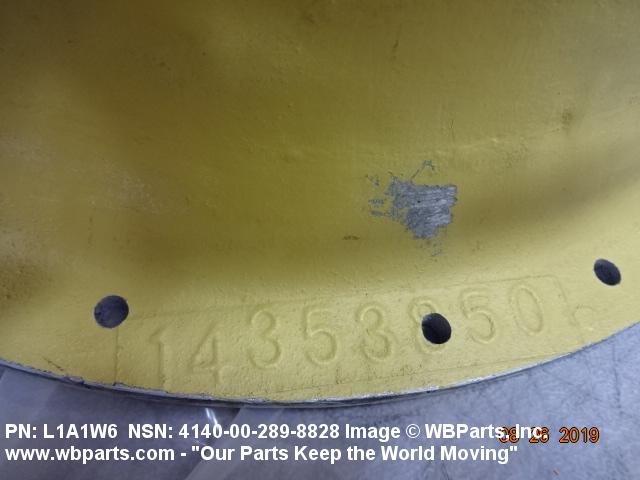

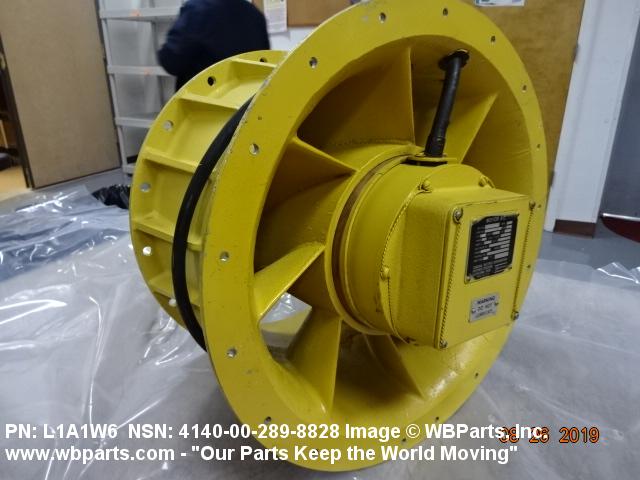

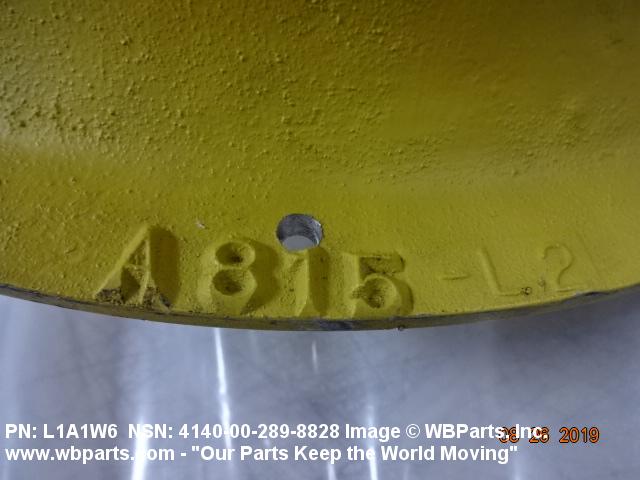

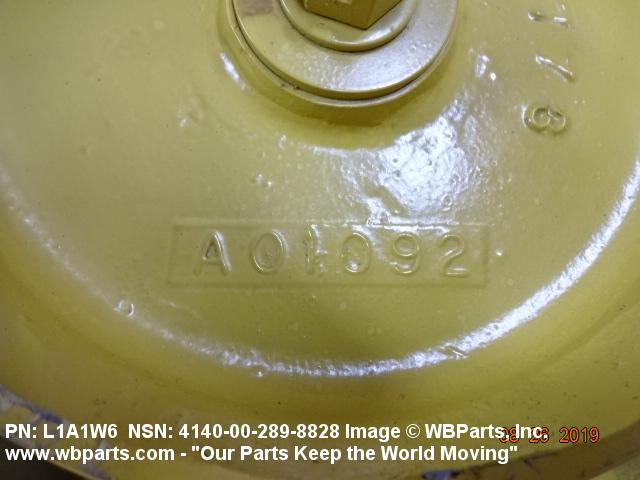

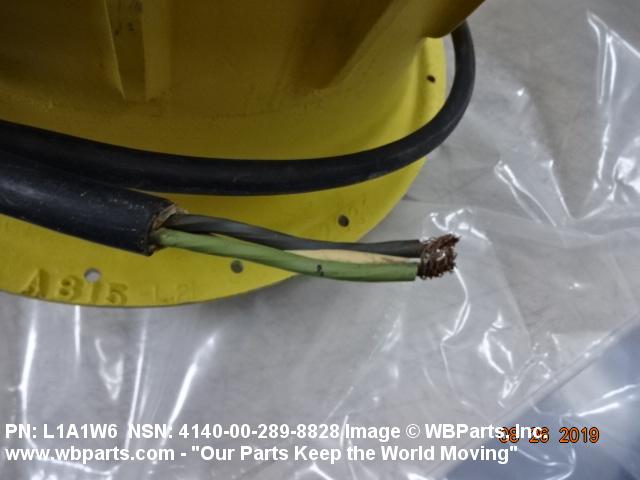

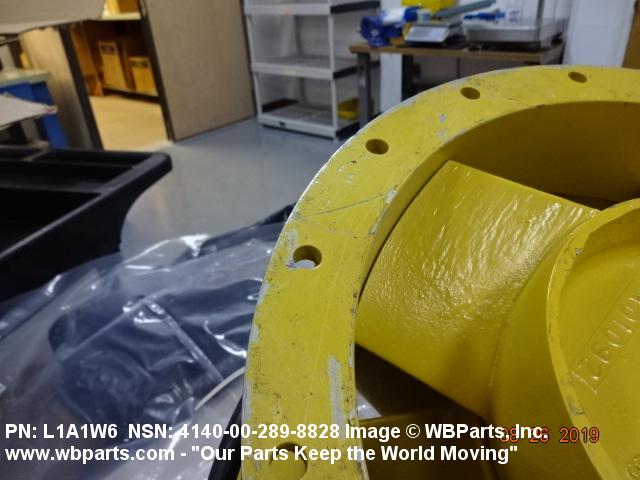

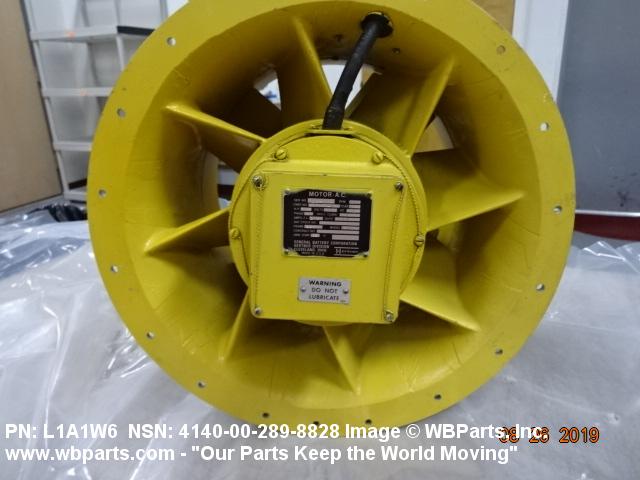

Drawings & Photos | NSN 4140-00-289-8828
Demand History | NSN 4140-00-289-8828
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4140-00-289-8828 | 2024-07-191 | 1 | DIBBS |
| 4140-00-289-8828 | 2023-10-277 | 1 | DIBBS |
| 4140-00-289-8828 | 2023-04-101 | 1 | US |
| 4140-00-289-8828 | 2022-10-296 | 1 | DIBBS |
| 4140-00-289-8828 | 2022-10-289 | 1 | DIBBS |
| 4140-00-289-8828 | 2022-08-227 | 2 | United States |
| 4140-00-289-8828 | 2019-05-130 | 1 | United States |
| 4140-00-289-8828 | 2019-01-11 | 1 | US |
| 4140-00-289-8828 | 2019-01-09 | 1 | United States |
| 4140-00-289-8828 | 2018-12-362 | 1 | United States |
| 4140-00-289-8828 | 2018-10-275 | 1 | US |
| 4140-00-289-8828 | 2018-09-250 | 1 | US |
Cross Reference | NSN 4140-00-289-8828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108089 PIECE 1 | 02994 | BLISS ELECTRONICS CORP |
| 500706-8790 | 75477 | HOWDEN NORTH AMERICA INC. DBA HOWDEN NORTH AMERICA |
| FF-18546 FF-18703 | 75477 | HOWDEN NORTH AMERICA INC. DBA HOWDEN NORTH AMERICA |
| L1A1W5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF18953 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4140-00-289-8828
Related Products | NSN 4140-00-289-8828
Technical Data | NSN 4140-00-289-8828
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 31 FIXED |
| LENGTH | 9.250 INCHES NOMINAL |
| HOUSING INSIDE DIAMETER | 12.125 INCHES NOMINAL |
| MATERIAL | ALUMINUM BLADE STEEL HOUSING |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| AMBIENT TEMP AT FULL RATED POWER | 50.0 DEG CELSIUS |
| ELECTRICAL CONNECTION TYPE | TERMINAL BLOCK |
| PRIME MOVER POWER RATING | 0.125 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 1725.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 790.000 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.5 INCHES OF WATER |
| ENVIRONMENTAL PROTECTION | SPLASH PROOF |
| FLOW DIRECTION | OUTWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 FLANGE |
| TEST DATA DOCUMENT | 81349-MILF18953 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | L1A1W5 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF18953 |
Restrictions/Controls & Freight Information | NSN 4140-00-289-8828
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061920 | FANS ELEC NOI IN BARREL/BOX/CRATE |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 752 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4140-00-289-8828
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
