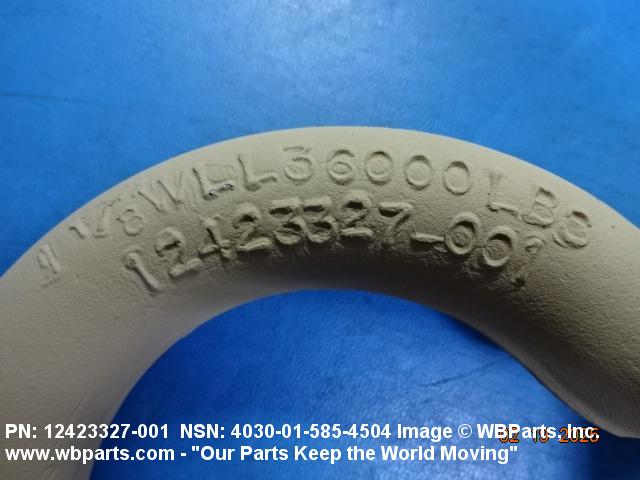

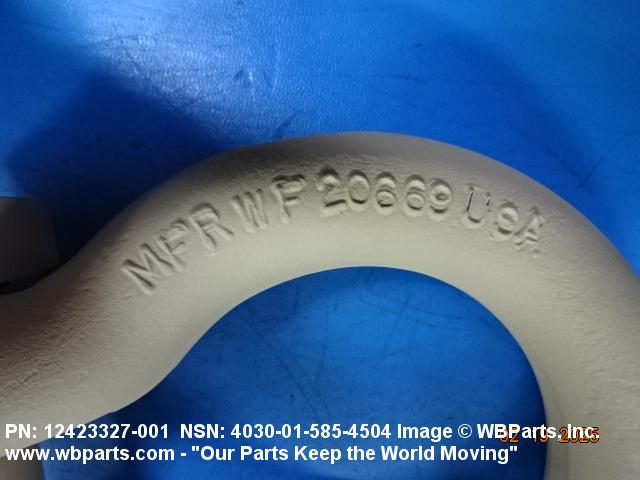

NSN 4030-01-585-4504 12423327, 12423327001, 12423327-001
Product Details | SHACKLE

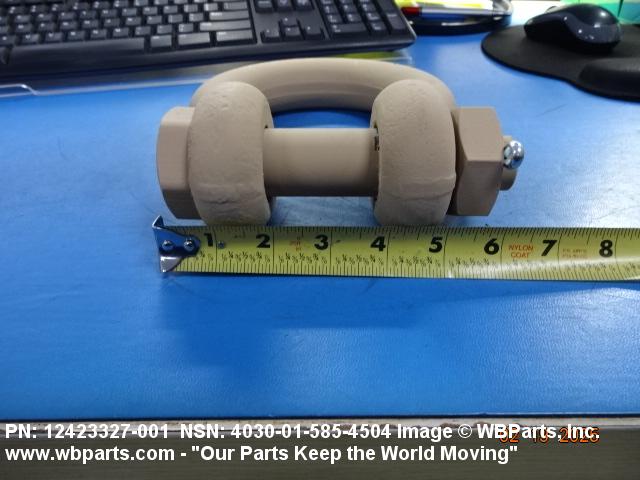

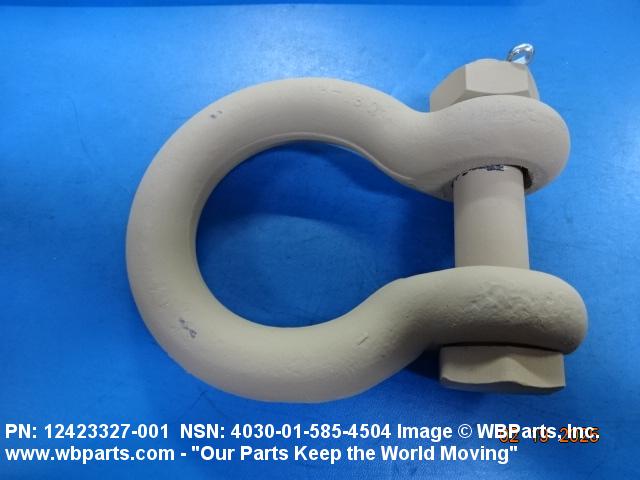

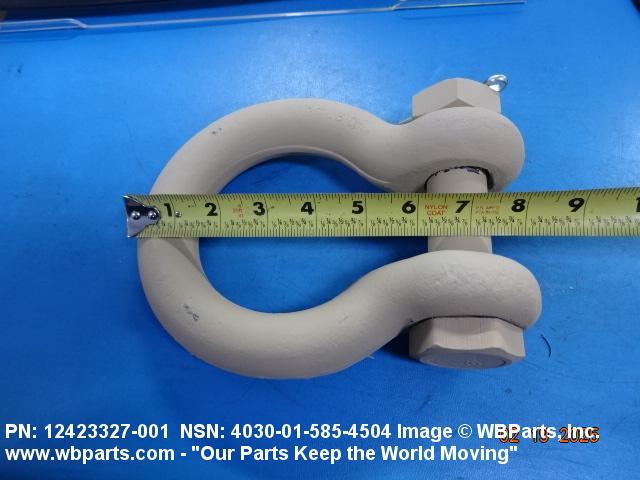

4030-01-585-4504 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: 12423327, 12423327001, 12423327-001, 4030-01-585-4504, 01-585-4504, 4030015854504, 015854504
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 26 MAY 2010 | 01-585-4504 | 11074 ( SHACKLE ) |
Demand History | NSN 4030-01-585-4504
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-01-585-4504 | 2024-12-341 | 2 | United States |
| 12423327-001 | 2024-10-297 | 1235 | DIBBS |
| 4030-01-585-4504 | 2018-07-185 | 262 | DIBBS |
| 4030-01-585-4504 | 2018-07-183 | 1 | DIBBS-RFPs |
| 4030-01-585-4504 | 2018-01-05 | 186 | us |
| 4030-01-585-4504 | 2018-01-04 | 544 | DIBBS |
| 4030-01-585-4504 | 2017-12-339 | 789 | DIBBS |
| 4030-01-585-4504 | 2017-07-186 | 349 | DIBBS |
| 4030-01-585-4504 | 2017-03-78 | 256 | DIBBS |
| 4030-01-585-4504 | 2016-12-341 | 486 | DIBBS |
| 4030-01-585-4504 | 2015-09-260 | 337 | DIBBS |
| 4030-01-585-4504 | 2015-08-237 | 997 | DIBBS |
| 4030-01-585-4504 | 2015-08-228 | 997 | DIBBS |
| 4030-01-585-4504 | 2013-01-24 | 267 | DIBBS |
| 4030-01-585-4504 | 2013-01-01 | 270 | DIBBS |
| 4030-01-585-4504 | 2010-11-306 | 45 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-01-585-4504
Related Products | NSN 4030-01-585-4504
Technical Data | NSN 4030-01-585-4504
| Characteristic | Specifications |
|---|---|

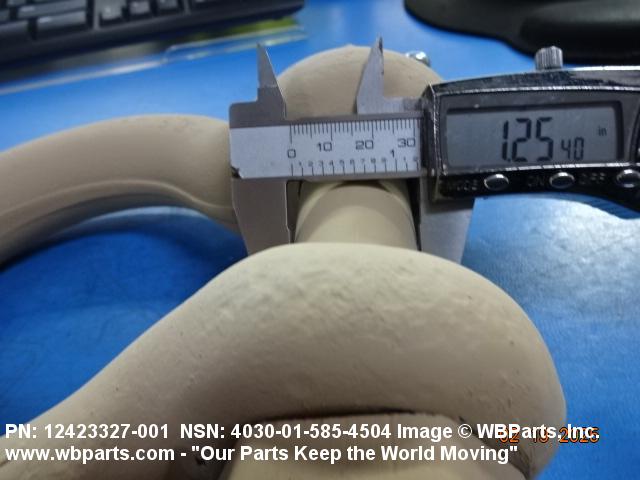

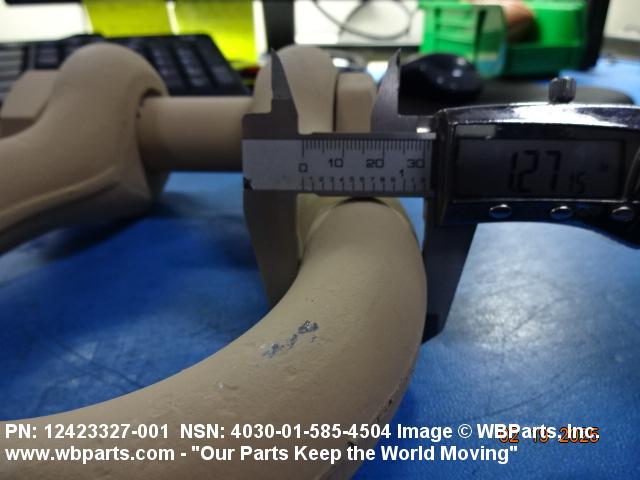

| MATERIAL DIAMETER | 1.250 INCHES NOMINAL |
| STYLE DESIGNATOR | ANTITOPPLING |

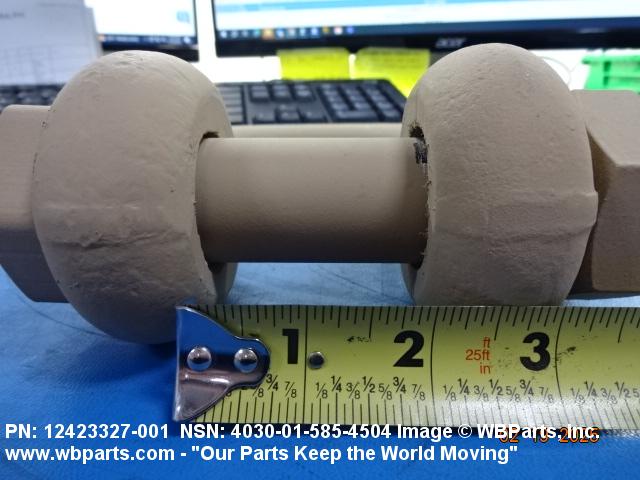

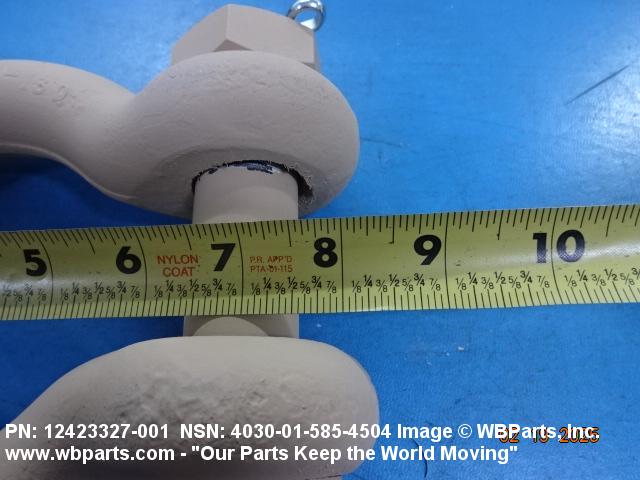

| OPENING WIDTH | 4.000 INCHES NOMINAL |
| END ITEM IDENTIFICATION | 2320-01-549-8565; TRUCK, CARGO 5 TON |

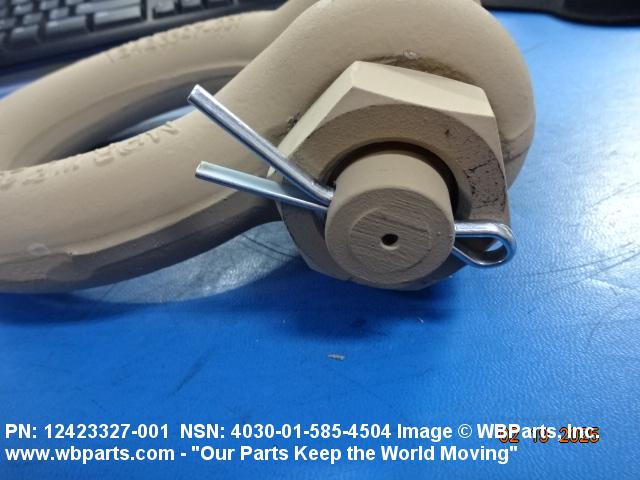

| LOCKING DEVICE TYPE | COTTER PIN |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SHACKLE, ANCHOR, TIEDOWNS |
Restrictions/Controls & Freight Information | NSN 4030-01-585-4504
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019470 | AUTO SHACKLES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-01-585-4504
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
