NSN 4030-01-561-0220 8196564, 01-561-0220, 015610220
Product Details | SHACKLE
4030-01-561-0220 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: 8196564, 4030-01-561-0220, 01-561-0220, 4030015610220, 015610220
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 22 FEB 2008 | 01-561-0220 | 11074 ( SHACKLE ) |
Drawings & Photos | NSN 4030-01-561-0220
Demand History | NSN 4030-01-561-0220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-01-561-0220 | 2021-07-209 | 1 | DIBBS |
| 4030-01-561-0220 | 2021-07-201 | 1 | DIBBS |
| 4030-01-561-0220 | 2020-04-119 | 1 | DIBBS |
| 4030-01-561-0220 | 2019-11-310 | 1 | DIBBS |
| 4030-01-561-0220 | 2019-10-302 | 1 | DIBBS |
| 4030-01-561-0220 | 2016-08-214 | 4 | DIBBS |
| 4030-01-561-0220 | 2016-07-194 | 1 | DIBBS |
| 4030-01-561-0220 | 2016-01-26 | 1 | DIBBS |
| 4030-01-561-0220 | 2015-08-230 | 1 | US |
| 4030-01-561-0220 | 2015-08-217 | 1 | DIBBS |
Cross Reference | NSN 4030-01-561-0220
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8196564 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-01-561-0220
Related Products | NSN 4030-01-561-0220
Technical Data | NSN 4030-01-561-0220
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5648 OR EN 10088-3-1.4571 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2700 ASSN STD SINGLE TREATMENT RESPONSE |

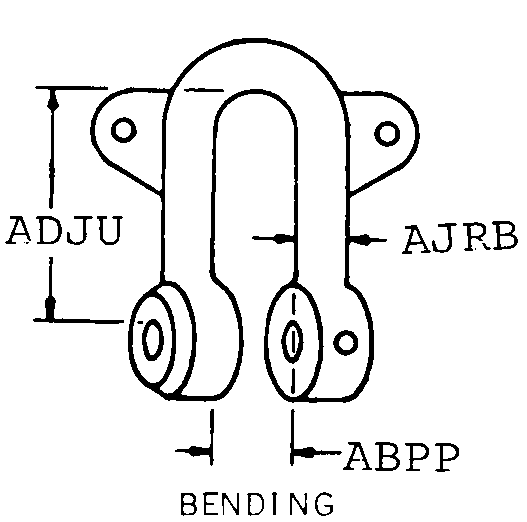

| STYLE DESIGNATOR | 121 BENDING |
| OPENING WIDTH | 0.394 INCHES NOMINAL |
| INSIDE LENGTH | 1.190 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.380 INCHES NOMINAL |
| SPECIAL FEATURES | PIN HOLE WITH 12MM THREADS, 3 HOOK CONNECTING LOOPS |
| III END ITEM IDENTIFICATION | MK19 LOADER RAM |
