NSN 4030-01-346-7889 S-505-3/4, S50534, 1041205 TYPE S-505-3/4
Product Details | WIRE ROPE SWAGING SLEEVE
4030-01-346-7889 A compression fitting designed to make a permanent eye, lap, or running splice on an item.
Part Alternates: S-505-3/4, S50534, 1041205 TYPE S-505-3/4, 1041205TYPES50534, 4030-01-346-7889, 01-346-7889, 4030013467889, 013467889
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 10 OCT 1991 | 01-346-7889 | 16283 ( SWAGING SLEEVE, WIRE ROPE ) |
Drawings & Photos | NSN 4030-01-346-7889
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-01-346-7889
Technical Data | NSN 4030-01-346-7889
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

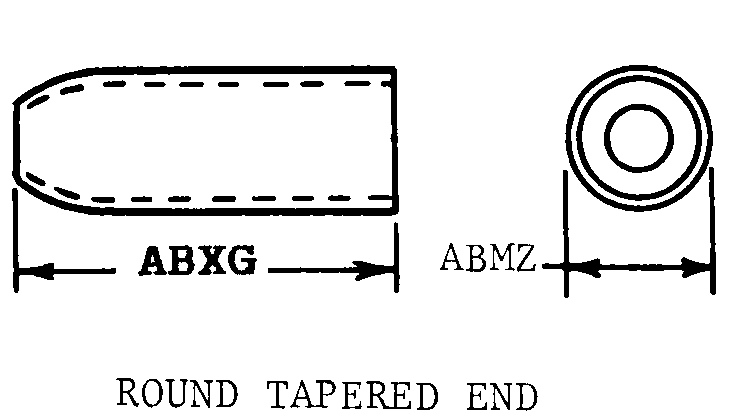

| STYLE DESIGNATOR | 163 ROUND TAPERED END |
| DIAMETER | 1.719 INCHES NOMINAL |
| OVERALL LENGTH | 3.203 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4030-01-346-7889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
