NSN 4030-01-146-4132 S2091INPINDIA, S209-1IN-PIN-DIA, RRC271
Product Details | SHACKLE
4030-01-146-4132 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: S2091INPINDIA, S209-1IN-PIN-DIA, RRC271, RR-C-271, 4030-01-146-4132, 01-146-4132, 4030011464132, 011464132
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 29 JAN 1983 | 01-146-4132 | 11074 ( SHACKLE ) |

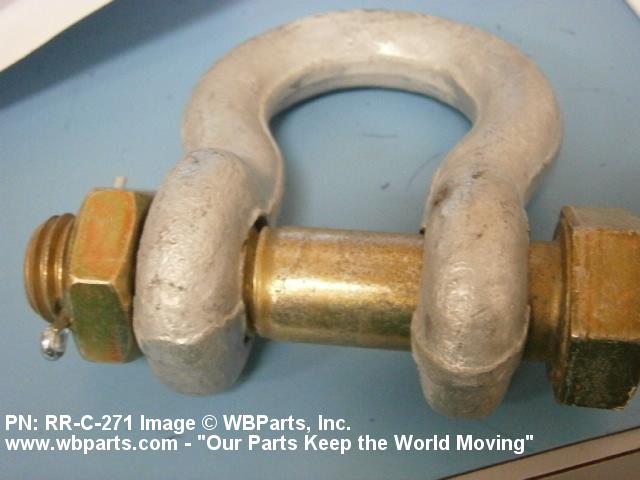

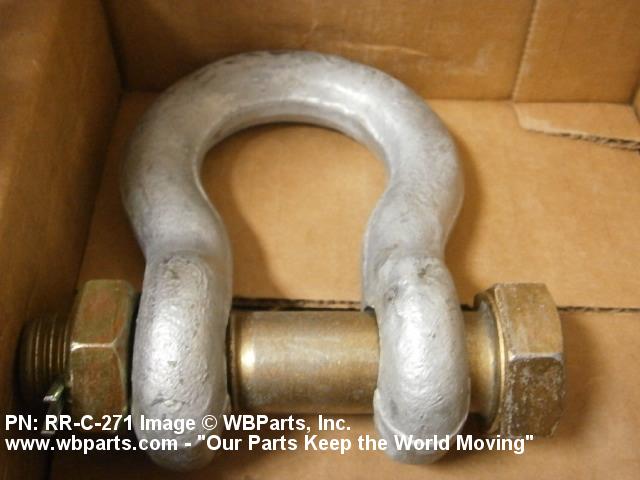

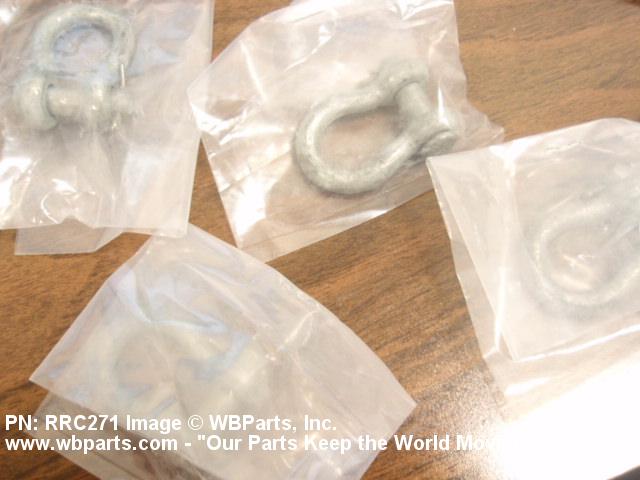

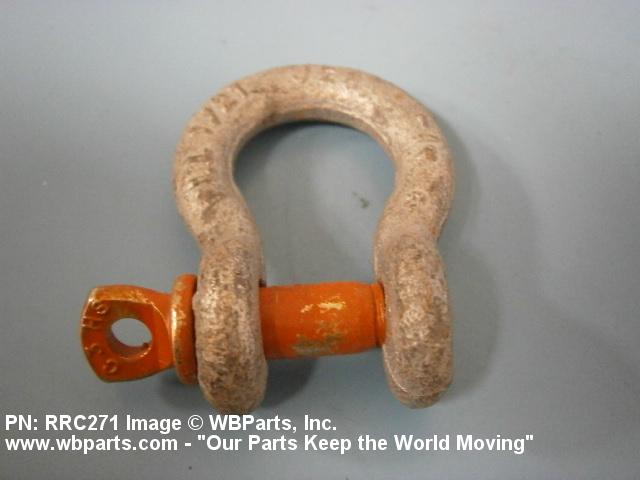

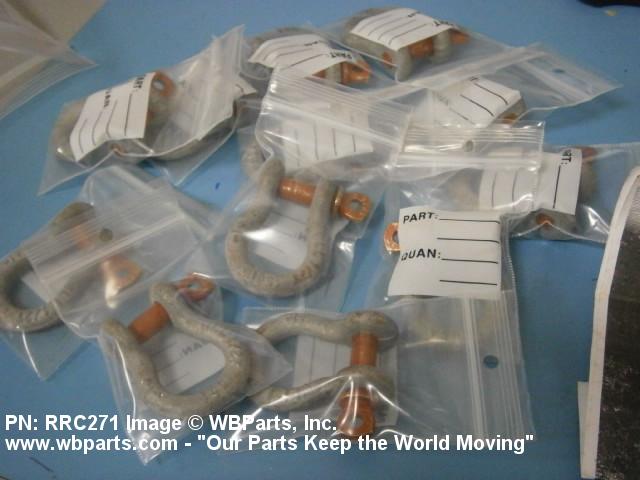

Drawings & Photos | NSN 4030-01-146-4132
Demand History | NSN 4030-01-146-4132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RR-C-271 | 2022-10-301 | 2 | Malaysia |
| RRC271 | 2021-07-190 | 1 | US |
| RRC271 | 2020-10-296 | 50 | US |
| RRC271 | 2020-01-29 | 1 | GR |
| RR-C-271 | 2019-01-07 | 6 | |
| RR-C-271 | 2019-01-07 | 6 | |
| RRC271 | 2018-04-106 | 1 | US |
| RRC271 | 2018-02-50 | 2 | United States |
| RRC271 | 2014-09-265 | 3 | US |
| RRC271 | 2013-01-11 | 522 | US |
| RRC271 | 2010-11-322 | 300 | US |
| RRC271 | 2010-08-242 | 4 | United States |
| RRC271 | 2010-05-139 | 2 | United States |
| RRC271 | 2008-09-267 | 8000 | US |
| RRC271 | 2008-02-42 | 50 | United States |
| RRC271 | 2007-06-173 | 1000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-01-146-4132
Technical Data | NSN 4030-01-146-4132
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A153-65 ASSN STD SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 110 ANCHOR |
| OPENING WIDTH | 1.688 INCHES NOMINAL |
| INSIDE LENGTH | 3.750 INCHES NOMINAL |
| MATERIAL DIAMETER | 1.000 INCHES NOMINAL |
| BREAKING STRENGTH | 56550.0 POUNDS MINIMUM |

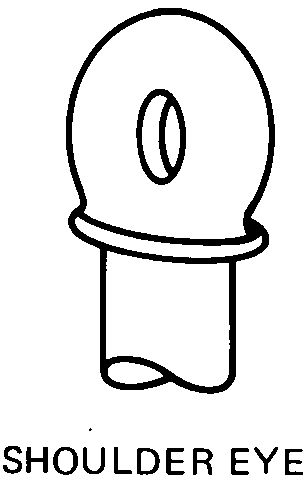

| CLOSURE HEAD STYLE | 5 SHOULDER EYE |
| END CONDITION | THREADED |
| TEST DATA DOCUMENT | 81348-RRC271 SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-C-271 |
Restrictions/Controls & Freight Information | NSN 4030-01-146-4132
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZS | Denmark ZT ZU |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
